AS78L05CZTR-E1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AS78L05CZTR-E1

AS78L05CZTR-E1: DescriptionFIXED POSITIVE REGULATOR; CategoryPower/power management The power supply circuit; File Size923KB，18 Pages; ManufacturerBCD Semi（Diodes）

Download Datasheet Parametric Compare View All

AS78L05CZTR-E1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AS78L05CZTR-E1	-	-	View	Buy Now

AS78L05CZTR-E1 Overview

FIXED POSITIVE REGULATOR

AS78L05CZTR-E1 Parametric

Parameter Name	Attribute value
Maker	BCD Semi（Diodes）
Parts packaging code	TO-92
package instruction	ROHS COMPLIANT, TO-92, 3 PIN
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	1.8 V
Maximum absolute input voltage	36 V
Maximum input voltage	30 V
Minimum input voltage	7 V
JESD-30 code	O-XBCY-T3
JESD-609 code	e3
Maximum grid adjustment rate	0.15%
Maximum load regulation	0.06%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	5.1 V
Minimum output voltage 1	5 V
Nominal output voltage 1	5 V
Package body material	UNSPECIFIED
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
method of packing	AMMO PACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	1%

Preview

Download Datasheet

View All

Data Sheet

100mA POSITIVE VOLTAGE REGULATOR

General Description

The AS78LXX series are three terminal positive regu-

lators designed for a wide variety of applications

including local, on-card regulation.

This series of regulators are complete with internal

current limiting, thermal shutdown protection, and

safe-area compensation which make them virtually

immune from output overload. If adequate heat sinking

are provided, these regulators can deliver output cur-

rents up to 100mA.

The AS78LXX series are available in TO-92 (bulk or

ammo packing), SOT-89 and SOIC-8 packages.

AS78LXX

Features

Output Current up to 100mA

Fixed Output Voltages of 5V, 12V and 15V

Output Voltage Accuracy of

±5%

over the Full

Temperature Range

Internal Short Circuit Current Limiting

Internal Thermal Overload Protection

No External Components

Output Transistor Safe-area Protection

Applications

Consumer Electronics

Microprocessor Power Supply

Mother Board

TO-92(Bulk Packing)

TO-92(Ammo Packing)

SOT-89

SOIC-8 (Option 1)

SOIC-8 (Option 2)

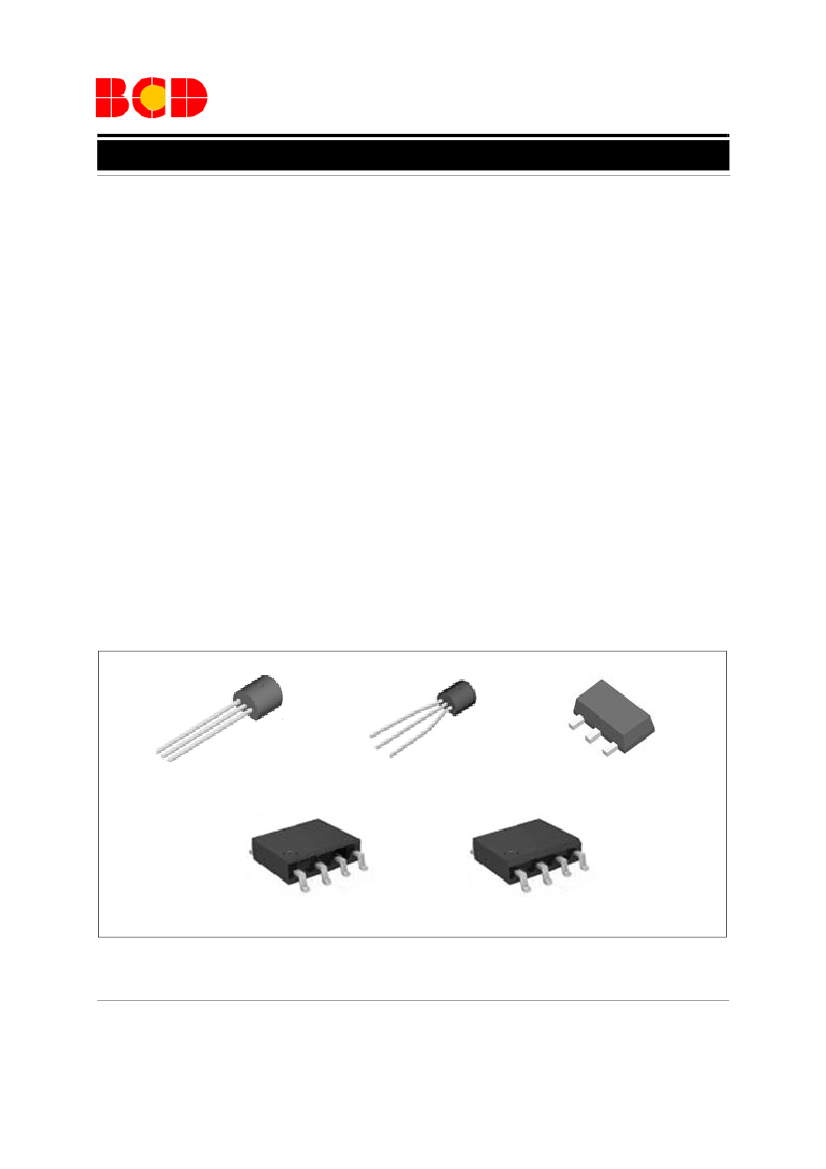

Figure 1. Package Types of AS78LXX

May 2013 Rev. 3. 0

BCD Semiconductor Manufacturing Limited

AS78L05CZTR-E1 Related Products

	AS78L05CZTR-E1	AS78L05CZTR-G1	AS78L05M-G1	AS78L12M-E1	AS78L12MTR-G1	AS78L15M-E1	AS78L15MTR-G1	AS78LXX_13
Description	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR	FIXED POSITIVE REGULATOR
Number of terminals	3	3	3	8	3	3	3	3
Maximum output current 1	0.1 A	0.1 A	0.1000 A	0.1 A	0.1000 A	0.1000 A	0.1000 A	0.1000 A
surface mount	NO	NO	YES	YES	YES	YES	YES	YES
state	-	-	Active	-	Active	Active	Active	Active
Adjustment type	-	-	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Adjustable	-	-	FIXED	-	FIXED	FIXED	FIXED	FIXED
dropout_voltage1_nom	-	-	1.8 V	-	1.8 V	1.8 V	1.8 V	1.8 V
input_voltage_absolute_max	-	-	36 V	-	36 V	36 V	36 V	36 V
line_regulation_max	-	-	0.2500 V	-	0.2500 V	0.2500 V	0.2500 V	0.2500 V
load_regulation_max	-	-	0.1500 V	-	0.1500 V	0.1500 V	0.1500 V	0.1500 V
Number of outputs	-	-	1	-	1	1	1	1
erating_temperature,_tj_mi	-	-	-40 Cel	-	-40 Cel	-40 Cel	-40 Cel	-40 Cel
erating_temperature,_tj_max	-	-	125 Cel	-	125 Cel	125 Cel	125 Cel	125 Cel
Rated output voltage 1	-	-	15 V	-	15 V	15 V	15 V	15 V
Packaging Materials	-	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
ckage_equivalence_code	-	-	TO-243	-	TO-243	TO-243	TO-243	TO-243
cking_method	-	-	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
qualification_status	-	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
sub_category	-	-	Other Regulators	-	Other Regulators	Other Regulators	Other Regulators	Other Regulators
Craftsmanship	-	-	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
voltage_tolerance_max	-	-	5 %	-	5 %	5 %	5 %	5 %
