AST

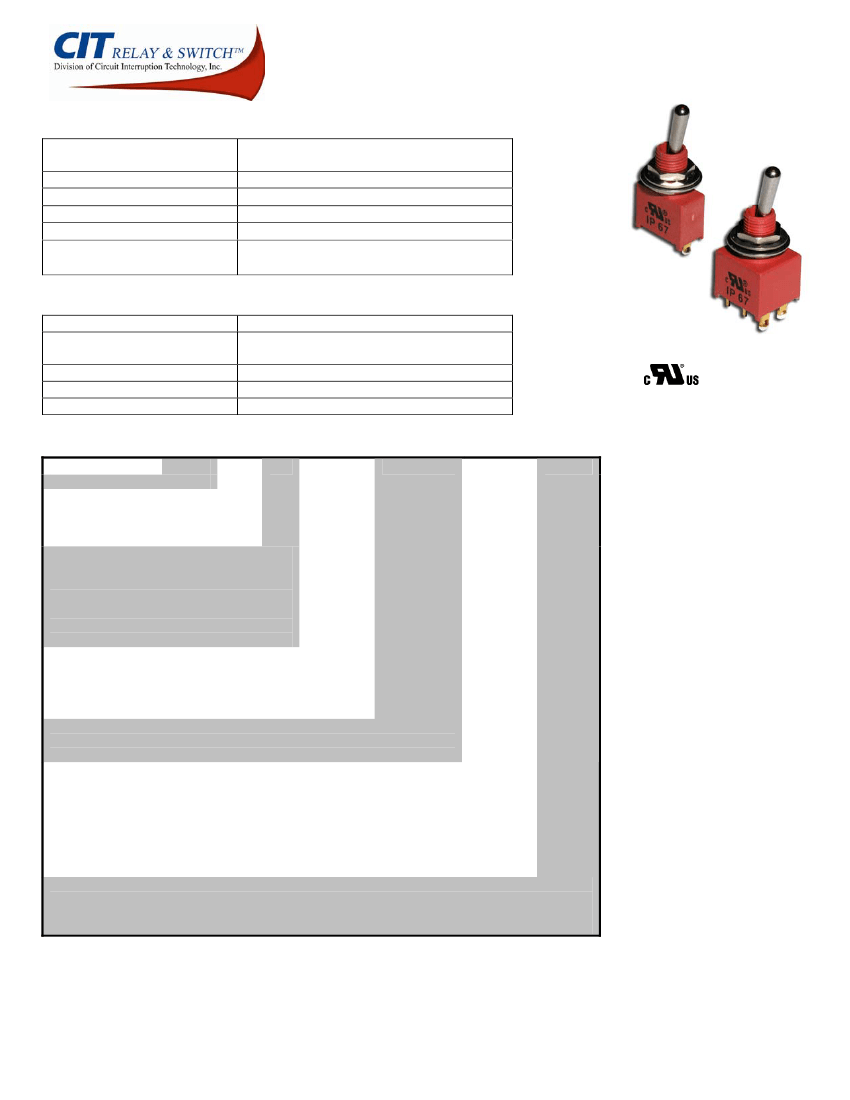

SPECIFICATIONS

Electrical Ratings

Electrical Life

Contact Resistance

Dielectric Strength

Insulation Resistance

Operating Temperature

Storage Temperature

5A @ 120VAC, 28VDC; 2A @ 250VAC

See Contact Options

30,000 cycles typical

< 20 mΩ max initial @ 2-4VDC, 100mA

1500Vrms min

> 100MΩ min

-40°C to 85°C

MATERIALS

←

RoHS COMPLIANT

Actuator

Housing

Support Bracket

Contacts

Terminals

Brass, Chrome Plated

4/6 Nylon, Glass Filled, Flame Retardant

Heat Stabilized, UL94V-0

Steel, Tin Plated

Copper Alloy, Silver Plated

Process Sealed

- E222871

ORDERING INFORMATION

Series:

AST

Number of Poles:

1 = SPDT

2 = DPDT

3 = 3PDT

Switch Function:

1 = ON-NONE-ON

2 = ON-NONE-(ON)

3 = ON-OFF-ON

4 = (ON)-OFF-(ON)

5 = ON-OFF-(ON)

6 = ON-ON-ON **Only in DPDT models

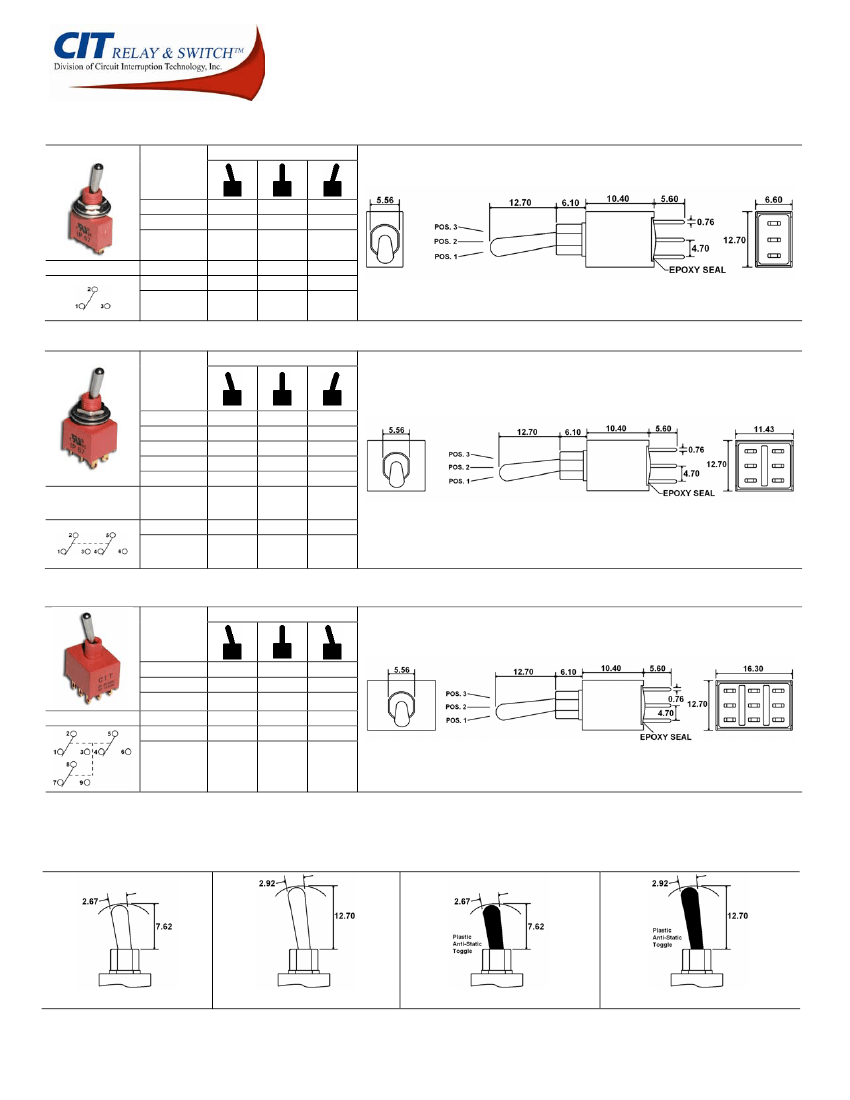

Actuator:

T = 7.62mm, Std

S = 12.70mm, Std

P1 = 7.62mm, Plastic, Anti-Static

P2 = 12.70mm, Plastic, Anti-Static

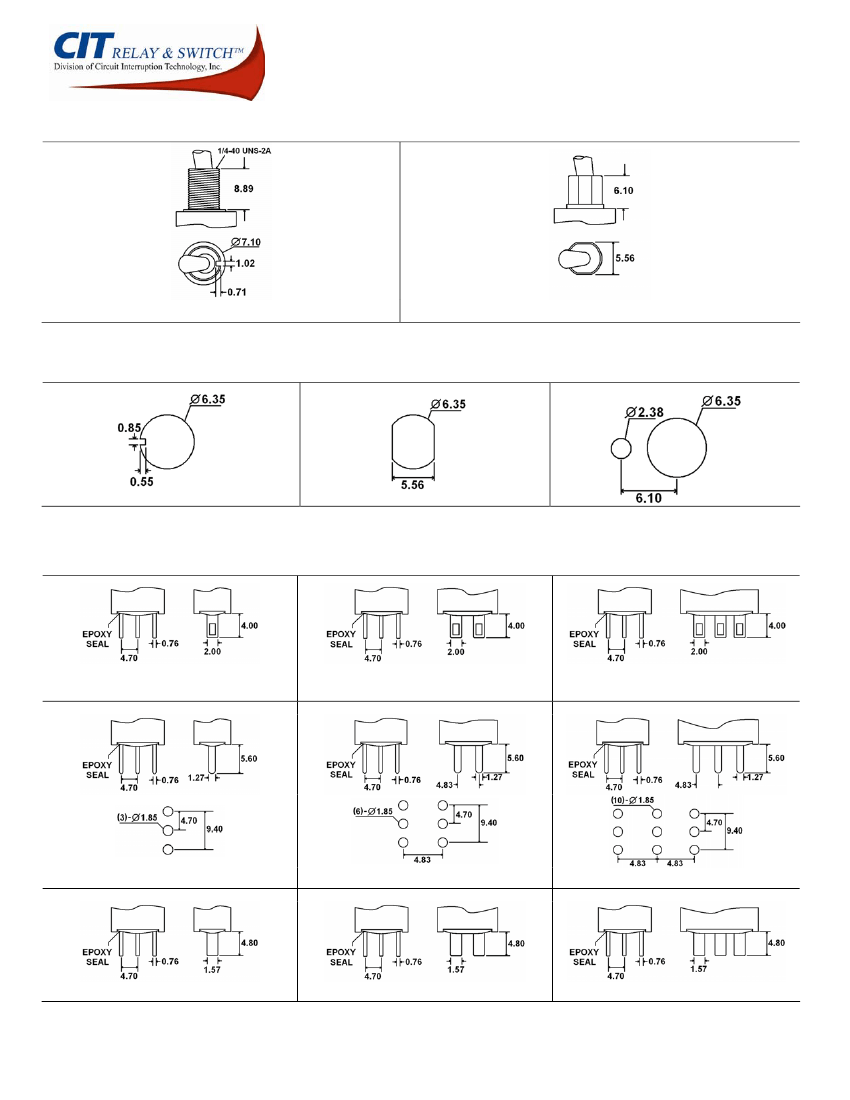

Bushing:

E = 8.89mm, Threaded ¼-40 UNS-2A

N = 6.10mm, Non-Threaded

Terminals:

B = Solder Lug

C = PC Pin

D = Quick Connect

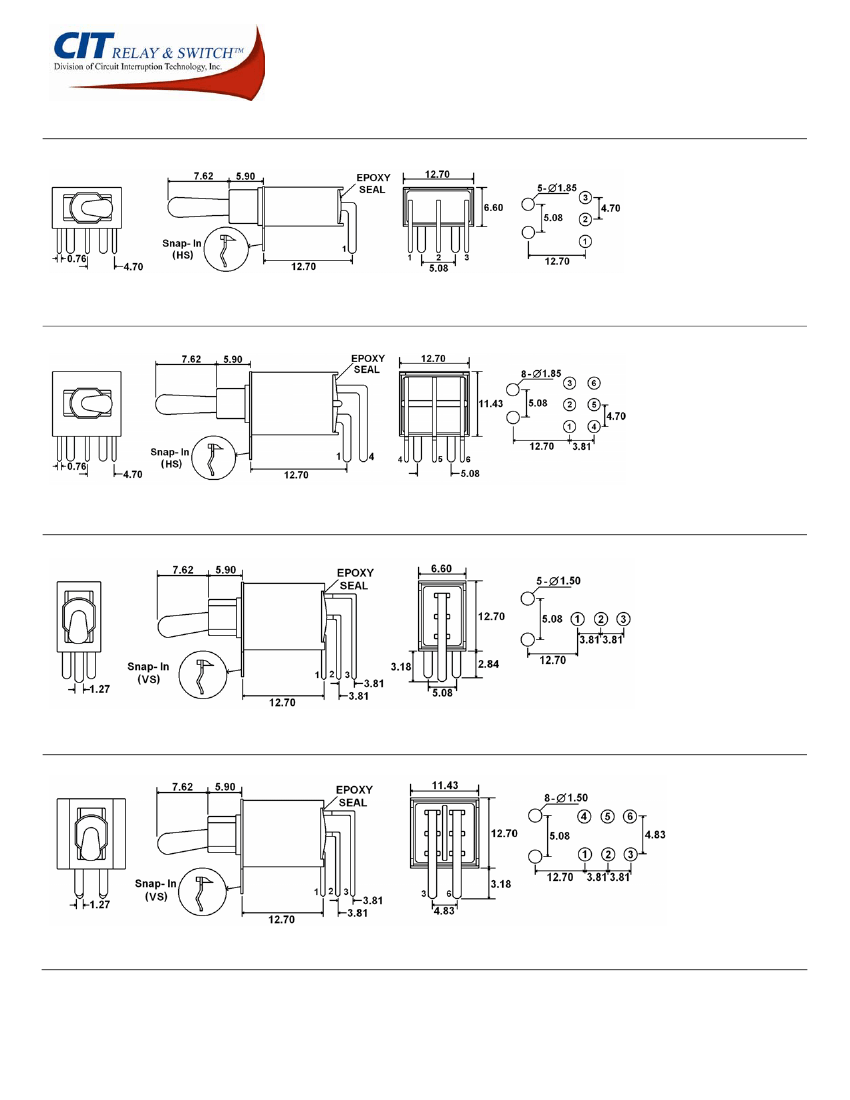

H = Horizontal Mount, Right Angle PC Pin;

HS = Snap-in

V = Vertical Mount, Right Angle PC Pin;

VS = Snap-in

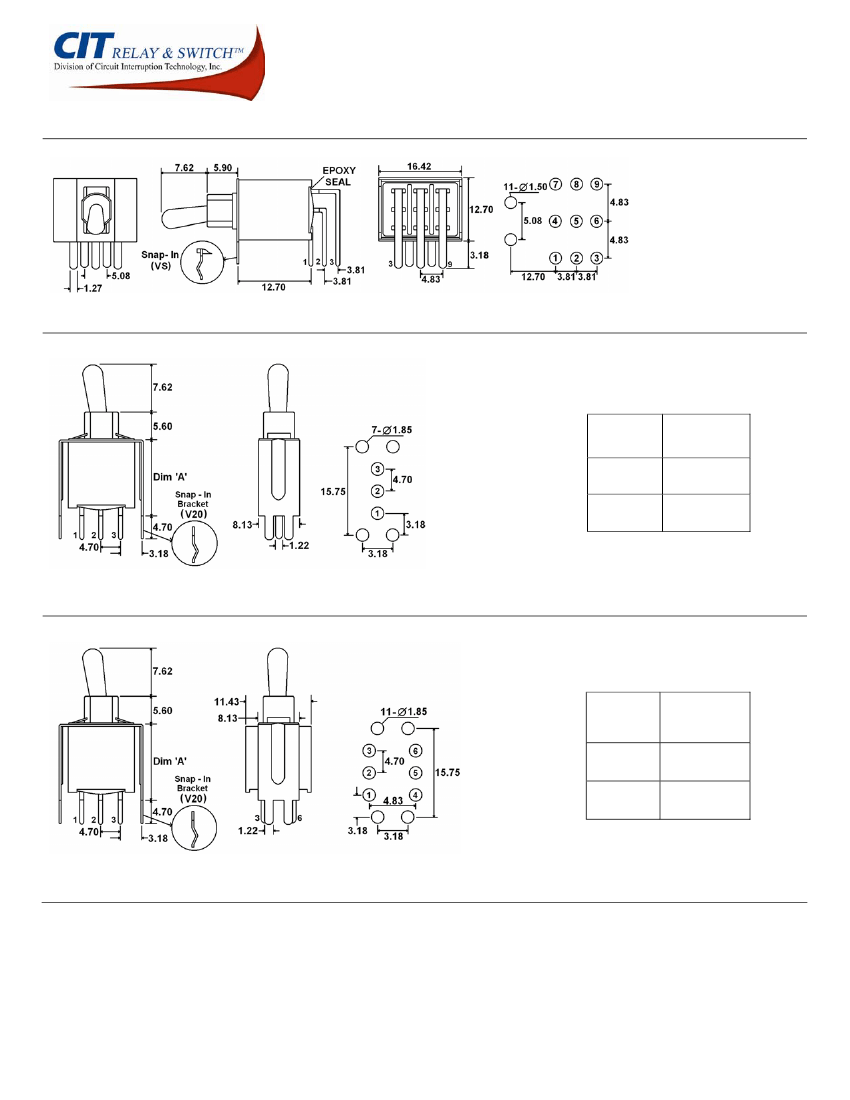

S20 = PC Pin with Support Bracket;

V20 = Snap-in Support Bracket

S25 = PC Pin with Support Bracket;

V25 = Snap-in Support Bracket

Contacts:

Q = Silver Plated

R = Gold Plated

G = Gold over Silver Plated

www.citswitch.com

page

126

phone – 763.535.2339 fax – 763.535.2194
