ATF1504ASL-25JU44 datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> ATF1504ASL-25JU44

ATF1504ASL-25JU44: DescriptionEE PLD, 10ns, PQCC44; CategoryProgrammable logic devices Programmable logic; File Size457KB，35 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATF1504ASL-25JU44 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATF1504ASL-25JU44	-	-	View	Buy Now

ATF1504ASL-25JU44 Overview

EE PLD, 10ns, PQCC44

ATF1504ASL-25JU44 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	LPCC
package instruction	LCC-44
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POWER -UP RESET; SECURITY FUSE
maximum clock frequency	60 MHz
In-system programmable	YES
JESD-30 code	S-PQCC-J44
JTAG BST	YES
length	16.5862 mm
Dedicated input times
Number of I/O lines	32
Number of entries	32
Number of macro cells	64
Output times	32
Number of product terms	40
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	0 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	EE PLD
propagation delay	25 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
Base Number Matches	1

Preview

Download Datasheet

View All

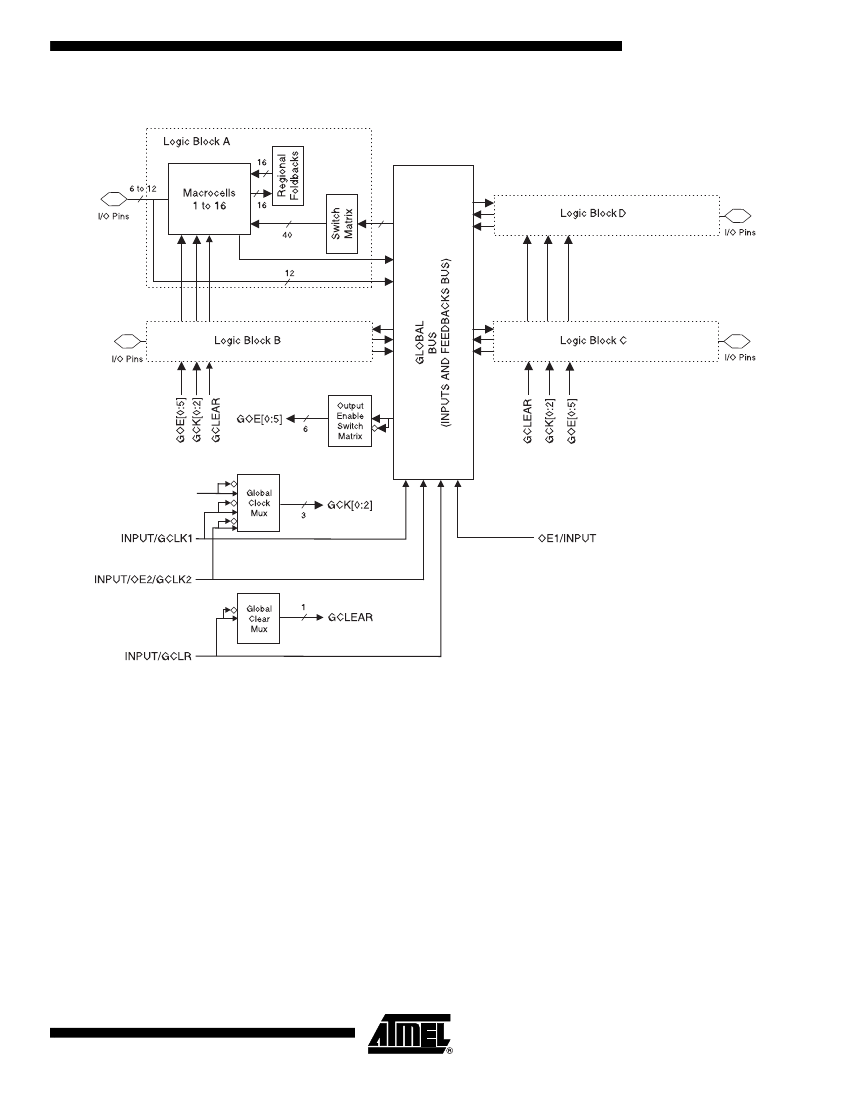

Features

•

High-density, High-performance, Electrically-erasable Complex Programmable

Logic Device

– 64 Macrocells

– 5 Product Terms per Macrocell, Expandable up to 40 per Macrocell

– 44, 68, 84, 100 Pins

– 7.5 ns Maximum Pin-to-pin Delay

– Registered Operation up to 125 MHz

– Enhanced Routing Resources

In-System Programmability (ISP) via JTAG

Flexible Logic Macrocell

– D/T/Latch Configurable Flip-flops

– Global and Individual Register Control Signals

– Global and Individual Output Enable

– Programmable Output Slew Rate

– Programmable Output Open Collector Option

– Maximum Logic Utilization by Burying a Register with a COM Output

Advanced Power Management Features

– Automatic µA Standby for “L” Version

– Pin-controlled 1 mA Standby Mode

– Programmable Pin-keeper Circuits on Inputs and I/Os

– Reduced-power Feature per Macrocell

Available in Commercial and Industrial Temperature Ranges

Available in 44-, 68-, and 84-lead PLCC; 44- and 100-lead TQFP; and 100-lead PQFP

Advanced EE Technology

– 100% Tested

– Completely Reprogrammable

– 10,000 Program/Erase Cycles

– 20-year Data Retention

– 2000V ESD Protection

– 200 mA Latch-up Immunity

JTAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported

PCI-compliant

3.3V or 5.0V I/O Pins

Security Fuse Feature

Green (Pb/Halide-fee/RoHS Compliant) Package Options

•

High-

performance

Complex

Programmable

Logic Device

ATF1504AS

ATF1504ASL

•

Enhanced Features

•

Improved Connectivity (Additional Feedback Routing, Alternate Input Routing)

Output Enable Product Terms

Transparent – Latch Mode

Combinatorial Output with Registered Feedback within Any Macrocell

Three Global Clock Pins

ITD (Input Transition Detection) Circuits on Global Clocks, Inputs and I/O

Fast Registered Input from Product Term

Programmable “Pin-keeper” Option

Power-up Reset Option

Pull-up Option on JTAG Pins TMS and TDI

Advanced Power Management Features

– Edge-controlled Power-down “L”

– Individual Macrocell Power Option

– Disable ITD on Global Clocks, Inputs and I/O

Rev. 0950O–PLD–7/05

ATF1504ASL-25JU44 Related Products

	ATF1504ASL-25JU44	ATF1504AS-7AX44	ATF1504ASL-20JC84	ATF1504ASL-25AI44	ATF1504ASL-25QI100	ATF1504AS-10JU84	ATF1504ASL-25AI100	ATF1504ASL-25AU100
Description	EE PLD, 10ns, PQCC44	EE PLD, 10ns, PQCC44	EE PLD, 10ns, PQCC44	EE PLD, 10ns, PQCC44	EE PLD, 10ns, PQCC44	EE PLD, 10 ns, PQCC84	EE PLD, 10ns, PQCC44	EE PLD, 25 ns, PQFP100
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	incompatible	conform to	incompatible	conform to
Parts packaging code	LPCC	QFP	LCC	QFP	QFP	LCC	QFP	QFP
package instruction	LCC-44	TQFP, TQFP44,.47SQ,32	PLASTIC, MS-018AF, LCC-84	TQFP, TQFP44,.47SQ,32	QFP, QFP100,.7X.9	LCC-84	TFQFP, TQFP100,.63SQ	TFQFP, TQFP100,.63SQ
Contacts	44	44	84	44	100	84	100	100
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	POWER -UP RESET; SECURITY FUSE	POWER -UP RESET; SECURITY FUSE	YES	YES	YES	POWER -UP RESET; SECURITY FUSE	YES	POWER -UP RESET; SECURITY FUSE
maximum clock frequency	60 MHz	166.7 MHz	83.3 MHz	60 MHz	60 MHz	125 MHz	60 MHz	60 MHz
In-system programmable	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	S-PQCC-J44	S-PQFP-G44	S-PQCC-J84	S-PQFP-G44	R-PQFP-G100	S-PQCC-J84	S-PQFP-G100	S-PQFP-G100
JTAG BST	YES	YES	YES	YES	YES	YES	YES	YES
length	16.5862 mm	10 mm	29.3116 mm	10 mm	20 mm	29.3116 mm	14 mm	14 mm
Number of I/O lines	32	32	64	32	64	64	64	64
Number of macro cells	64	64	64	64	64	64	64	64
Number of terminals	44	44	84	44	100	84	100	100
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	TQFP	QCCJ	TQFP	QFP	QCCJ	TFQFP	TFQFP
Encapsulate equivalent code	LDCC44,.7SQ	TQFP44,.47SQ,32	LDCC84,1.2SQ	TQFP44,.47SQ,32	QFP100,.7X.9	LDCC44,.7SQ	TQFP100,.63SQ	TQFP100,.63SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK, THIN PROFILE	CHIP CARRIER	FLATPACK, THIN PROFILE	FLATPACK	CHIP CARRIER	FLATPACK, THIN PROFILE, FINE PITCH	FLATPACK, THIN PROFILE, FINE PITCH
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	25 ns	7.5 ns	20 ns	25 ns	25 ns	10 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	1.2 mm	4.57 mm	1.2 mm	3.4 mm	4.57 mm	1.2 mm	1.2 mm
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	GULL WING	J BEND	GULL WING	GULL WING	J BEND	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	1.27 mm	0.8 mm	0.65 mm	1.27 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	16.5862 mm	10 mm	29.3116 mm	10 mm	14 mm	29.3116 mm	14 mm	14 mm
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	-	EAR99
JESD-609 code	-	e3	e0	e0	e0	-	e0	e3
Humidity sensitivity level	-	3	2	-	3	-	3	3
Peak Reflow Temperature (Celsius)	-	260	225	240	225	-	240	260
power supply	-	3.3/5,5 V	3.3/5,5 V	3.3/5,5 V	3.3/5,5 V	-	3.3/5,5 V	3.3/5,5 V
Terminal surface	-	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Maximum time at peak reflow temperature	-	40	30	30	30	-	30	40
