ATXMEGA64A1-AU: Description16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，107 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATXMEGA64A1-AU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATXMEGA64A1-AU	-	-	View	Buy Now

ATXMEGA64A1-AU Overview

16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100

ATXMEGA64A1-AU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Atmel (Microchip)
Parts packaging code	QFP
package instruction	TFQFP, TQFP100,.63SQ
Contacts	100
Reach Compliance Code	compli
ECCN code	5A992.C
Factory Lead Time	1 week
core architecture	AVR
Device core	AVR
clock speed	32
Memory	4
flash memory	64
were able	0
Adc channel	16
ADC resolution	12
Samacsys Descripti	ATXMEGA64A1-AU, 8, 16 bit AVR Microcontroller 32MHz 2, 64kb Flash, 4kb RAM, I2C SPI 100-Pin TQFP
Has ADC	YES
Other features	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ
Address bus width
bit size	16
CPU series	AVR RISC
maximum clock frequency	32 MHz
DAC channel	YES
DMA channel	YES
External data bus width
JESD-30 code	S-PQFP-G100
length	14 mm
Number of I/O lines	78
Number of terminals	100
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TFQFP
Encapsulate equivalent code	TQFP100,.63SQ
Package shape	SQUARE
Package form	FLATPACK, THIN PROFILE, FINE PITCH
power supply	1.8/3.3 V
Certification status	Not Qualified
RAM (bytes)	4096
rom(word)	32768
ROM programmability	FLASH
Maximum seat height	1.2 mm
speed	32 MHz
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Features

•

High-performance, Low-power 8/16-bit

Atmel

AVR

XMEGA

Microcontroller

•

Non-Volatile Program and Data Memories

64K - 384K Bytes of In-System Self-Programmable Flash

4K - 8K Bytes Boot Section with Independent Lock Bits

2 KB - 4 KB EEPROM

4 KB - 32 KB Internal SRAM

External Bus Interface for up to 16M bytes SRAM

External Bus Interface for up to 128M bit SDRAM

Peripheral Features

– Four-channel DMA Controller with support for external requests

– Eight-channel Event System

– Eight 16-bit Timer/Counters

Four Timer/Counters with 4 Output Compare or Input Capture channels

Four Timer/Counters with 2 Output Compare or Input Capture channels

High-Resolution Extension on all Timer/Counters

Advanced Waveform Extension on two Timer/Counters

– Eight USARTs

IrDA modulation/demodulation for one USART

– Four Two-Wire Interfaces with dual address match (I

C and SMBus compatible)

– Four SPI (Serial Peripheral Interface) peripherals

– AES and DES Crypto Engine

– 16-bit Real Time Counter with separate Oscillator

– Two Eight-channel, 12-bit, 2 Msps Analog to Digital Converters

– Two Two-channel, 12-bit, 1 Msps Digital to Analog Converters

– Four Analog Comparators with Window compare function

– External Interrupts on all General Purpose I/O pins

– Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal and External Clock Options with PLL and Prescaler

– Programmable Multi-level Interrupt Controller

– Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby

– Advanced Programming, Test and Debugging Interfaces

JTAG (IEEE 1149.1 Compliant) Interface for programming, test and debugging

PDI (Program and Debug Interface) for programming and debugging

I/O and Packages

– 78 Programmable I/O Lines

– 100 - lead TQFP

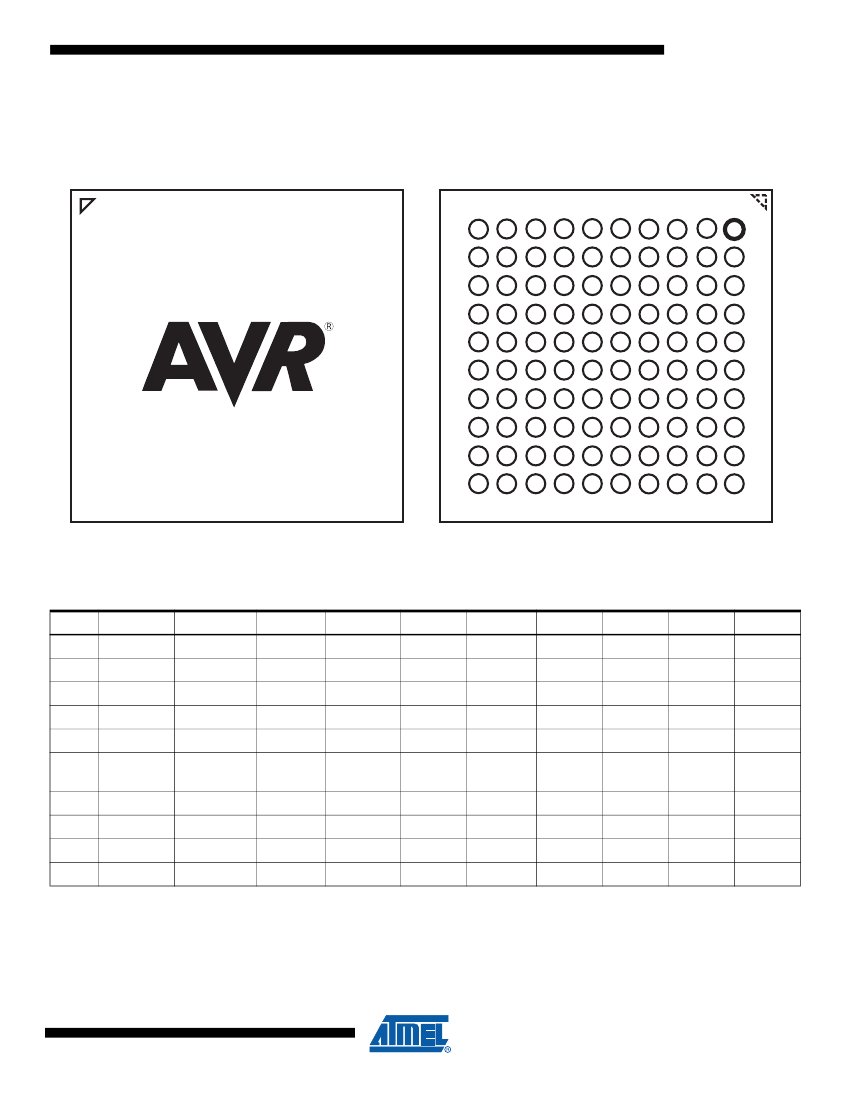

– 100 - ball CBGA

– 100 - ball VFBGA

Operating Voltage

– 1.6 – 3.6V

Speed performance

– 0 – 12 MHz @ 1.6 – 3.6V

– 0 – 32 MHz @ 2.7 – 3.6V

–

•

8/16-bit

XMEGA A1

Microcontroller

ATxmega384A1

ATxmega256A1

ATxmega192A1

ATxmega128A1

ATxmega64A1

Preliminary

•

Typical Applications

•

Industrial control

Factory automation

Building control

Board control

White Goods

•

Climate control

ZigBee

Motor control

Networking

Optical

•

Hand-held battery applications

Power tools

HVAC

Metering

Medical Applications

8067L–AVR–08/10

XMEGA A1

3. Overview

The Atmel

AVR

XMEGA

™

A1 is a family of low power, high performance and peripheral rich

CMOS 8/16-bit microcontrollers based on the AVR enhanced RISC architecture. By executing

powerful instructions in a single clock cycle, the XMEGA A1 achieves throughputs approaching

1 Million Instructions Per Second (MIPS) per MHz allowing the system designer to optimize

power consumption versus processing speed.

The AVR CPU combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent

registers to be accessed in one single instruction, executed in one clock cycle. The resulting

architecture is more code efficient while achieving throughputs many times faster than conven-

tional single-accumulator or CISC based microcontrollers.

The XMEGA A1 devices provides the following features: In-System Programmable Flash with

Read-While-Write capabilities, Internal EEPROM and SRAM, four-channel DMA Controller,

eight-channel Event System, Programmable Multi-level Interrupt Controller, 78 general purpose

I/O lines, 16-bit Real Time Counter (RTC), eight flexible 16-bit Timer/Counters with compare

modes and PWM, eight USARTs, four Two Wire Serial Interfaces (TWIs), four Serial Peripheral

Interfaces (SPIs), AES and DES crypto engine, two 8-channel, 12-bit ADCs with optional differ-

ential input with programmable gain, two 2-channel, 12-bit DACs, four analog comparators with

window mode, programmable Watchdog Timer with seperate Internal Oscillator, accurate inter-

nal oscillators with PLL and prescaler and programmable Brown-Out Detection.

The Program and Debug Interface (PDI), a fast 2-pin interface for programming and debugging,

is available. The devices also have an IEEE std. 1149.1 compliant JTAG test interface, and this

can also be used for On-chip Debug and programming.

The XMEGA A1 devices have five software selectable power saving modes. The Idle mode

stops the CPU while allowing the SRAM, DMA Controller, Event System, Interrupt Controller and

all peripherals to continue functioning. The Power-down mode saves the SRAM and register

contents but stops the oscillators, disabling all other functions until the next TWI or pin-change

interrupt, or Reset. In Power-save mode, the asynchronous Real Time Counter continues to run,

allowing the application to maintain a timer base while the rest of the device is sleeping. In

Standby mode, the Crystal/Resonator Oscillator is kept running while the rest of the device is

sleeping. This allows very fast start-up from external crystal combined with low power consump-

tion. In Extended Standby mode, both the main Oscillator and the Asynchronous Timer continue

to run. To further reduce power consumption, the peripheral clock to each individual peripheral

can optionally be stopped in Active mode and Idle sleep mode.

The device is manufactured using Atmel's high-density nonvolatile memory technology. The pro-

gram Flash memory can be reprogrammed in-system through the PDI or JTAG. A Bootloader

running in the device can use any interface to download the application program to the Flash

memory. The Bootloader software in the Boot Flash section will continue to run while the Appli-

cation Flash section is updated, providing true Read-While-Write operation. By combining an

8/16-bit RISC CPU with In-System Self-Programmable Flash, the Atmel XMEGA A1 is a power-

ful microcontroller family that provides a highly flexible and cost effective solution for many

embedded applications.

The XMEGA A1 devices are supported with a full suite of program and system development

tools including: C compilers, macro assemblers, program debugger/simulators, programmers,

and evaluation kits.

8067L–AVR–08/10

ATXMEGA64A1-AU Related Products

	ATXMEGA64A1-AU	ATXMEGA384A1_10	ATXMEGA128A1-AU	ATXMEGA192A1-AU	ATXMEGA256A1-AU	ATXMEGA256A1-CU
Description	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100	16-BIT, FLASH, 32 MHz, RISC MICROCONTROLLER, PQFP100
DAC channel	YES	Yes	YES	Yes	YES	YES
DMA channel	YES	Yes	YES	Yes	YES	YES
Number of terminals	100	100	100	100	100	100
Maximum operating temperature	85 °C	85 Cel	85 °C	85 Cel	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 Cel	-40 °C	-40 °C
PWM channel	YES	Yes	YES	Yes	YES	YES
surface mount	YES	Yes	YES	Yes	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	BALL
Terminal location	QUAD	Four	QUAD	Four	QUAD	BOTTOM
Is it Rohs certified?	conform to	-	conform to	-	conform to	conform to
Parts packaging code	QFP	-	QFP	-	QFP	BGA
package instruction	TFQFP, TQFP100,.63SQ	-	14 X 14 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, MS-026AED, TQFP-100	-	TFQFP, TQFP100,.63SQ	TFBGA, BGA100,10X10,32
Contacts	100	-	100	-	100	100
Reach Compliance Code	compli	-	compli	-	compli	compli
ECCN code	5A992.C	-	5A992.C	-	3A991.A.2	3A991.A.2
Has ADC	YES	-	YES	-	YES	YES
Other features	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ	-	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ	-	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ
bit size	16	-	16	-	16	16
CPU series	AVR RISC	-	AVR RISC	-	AVR RISC	AVR RISC
maximum clock frequency	32 MHz	-	32 MHz	-	32 MHz	32 MHz
JESD-30 code	S-PQFP-G100	-	S-PQFP-G100	-	S-PQFP-G100	S-PBGA-B100
length	14 mm	-	14 mm	-	14 mm	9 mm
Number of I/O lines	78	-	78	-	78	78
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TFQFP	-	TFQFP	-	TFQFP	TFBGA
Encapsulate equivalent code	TQFP100,.63SQ	-	TQFP100,.63SQ	-	TQFP100,.63SQ	BGA100,10X10,32
Package shape	SQUARE	-	SQUARE	-	SQUARE	SQUARE
Package form	FLATPACK, THIN PROFILE, FINE PITCH	-	FLATPACK, THIN PROFILE, FINE PITCH	-	FLATPACK, THIN PROFILE, FINE PITCH	GRID ARRAY, THIN PROFILE, FINE PITCH
power supply	1.8/3.3 V	-	1.8/3.3 V	-	1.8/3.3 V	1.8/3.3 V
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
RAM (bytes)	4096	-	8192	-	16384	16384
rom(word)	32768	-	65536	-	262144	262144
ROM programmability	FLASH	-	FLASH	-	FLASH	FLASH
Maximum seat height	1.2 mm	-	1.2 mm	-	1.2 mm	1.2 mm
speed	32 MHz	-	32 MHz	-	32 MHz	32 MHz
Maximum supply voltage	3.6 V	-	3.6 V	-	3.6 V	3.6 V
Minimum supply voltage	2.7 V	-	2.7 V	-	2.7 V	2.7 V
Nominal supply voltage	3.3 V	-	3.3 V	-	3.3 V	3.3 V
technology	CMOS	-	CMOS	-	CMOS	CMOS
Terminal pitch	0.5 mm	-	0.5 mm	-	0.5 mm	0.8 mm
width	14 mm	-	14 mm	-	14 mm	9 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	-	MICROCONTROLLER, RISC	-	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC
