Data Sheet
5A LOW DROPOUT LINEAR REGULATOR
General Description
The AZ1084C is a series of low dropout positive volt-
age regulators with a maximum dropout of 1.5V at 5A
of load current.
The series features on-chip thermal limiting which pro-
vides protection against any combination of overload
and ambient temperatures that would create excessive
junction temperatures. It also includes a trimmed band-
gap reference and a current limiting circuit.
The AZ1084C is available in 1.5V, 1.8V, 2.5V, 3.3V
and 5.0V versions. The fixed versions integrate the
adjust resistors. It is also available in an adjustable ver-
sion which can set the output voltage with two external
resistors.
The AZ1084C series is available in standard packages
of TO-263-3, TO-263-2, TO-252-2 (3) and TO-252-2
(4).
AZ1084C
Features
·
·
·
·
·
·
·
·
Low Dropout Voltage: 1.35V Typical at 5A
Current Limiting and Thermal Protection
Output Current: 5A
Current Limit: 6.5A
Operating Junction Temperature Range: 0 to
125
o
C
Compatible with Low ESR Ceramic Capacitor
Line Regulation (Adj Version): 0.015% (Typ)
Load Regulation (Adj Version): 0.1% (Typ)
Applications
·
·
·
·
·
High Efficiency Linear Regulators
Battery Chargers
Post Regulation for Switching Supply
Microprocessor Supply
Desktop PCs, RISC and Embedded Processors'
Supply
TO-263-3
TO-263-2
TO-252-2 (3)
TO-252-2 (4)

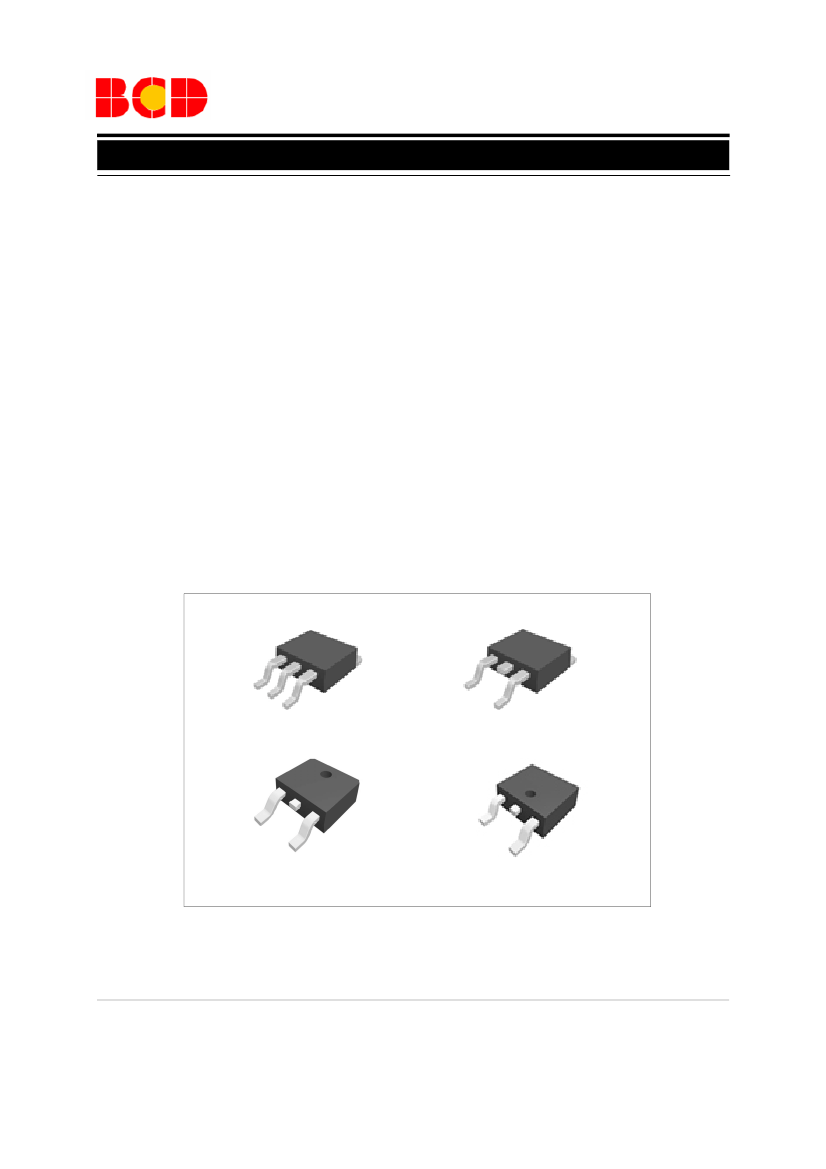

Figure 1. Package Types of AZ1084C
Jan. 2013 Rev. 1. 7
1
BCD Semiconductor Manufacturing Limited
Data Sheet
5A LOW DROPOUT LINEAR REGULATOR
Functional Block Diagram
AZ1084C
3
INPUT
Thermal
Protection
-
+
2
OUTPUT
A1
A2
For Adjustable Output, disconnect A1 and A2, connect B
For Fixed Output, connect A1 and A2, disconnect B
1
B
ADJ/
GND
Figure 3. Functional Block Diagram of AZ1084C
Jan. 2013 Rev. 1. 7
3
BCD Semiconductor Manufacturing Limited
Data Sheet
5A LOW DROPOUT LINEAR REGULATOR
Ordering Information (Continued)
Package
Temperature
Range
Part Number
AZ1084CD-ADJTRG1
AZ1084CD-1.5TRG1
TO-252-2 (3)/
TO-252-2 (4)
0 to 125
o
C
AZ1084CD-1.8TRG1
AZ1084CD-2.5TRG1
AZ1084CD-3.3TRG1
AZ1084CD-5.0TRG1
AZ1084C
Marking ID
AZ1084CD-ADJG1
AZ1084CD-1.5G1
AZ1084CD-1.8G1
AZ1084CD-2.5G1
AZ1084CD-3.3G1
AZ1084CD-5.0G1
Packing
Type
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant. Products with
"G1" suffix are available in green packages.
Jan. 2013 Rev. 1. 7
5
