BZY97C10 GP........ BZY97C200 GP
1.5 W Zener Diodes
Dimensions in mm.
DO-41
(Plastic)
Voltage
10 to 200 V
Power
1.5 W
5
± 0.2
58.5
±0.5
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
2. Max. solder temperature, 350 °C.
3. Max. soldering time, 3.5 sec.
4. Do not bend lead at a point closer than
2 mm. to the body.
•
Diffused junction
•
The plastic material carries
U/L recognition 94 V-0
•
Terminals: Axial Leads
•
Polarity: Color band denotes cathode
Maximum Ratings, according to IEC publication No. 134
P
tot
P
ZSM
T
j
T
stg
Power dissipation at Tamb = 60
o
C
Non repetitive peak zener dissipation
(t = 10 ms.)
Operating temperature range
Storage temperature range
1.5 W
40 W
– 55 to + 175 °C
– 55 to + 175 °C
Electrical Characteristics at Tamb = 25°C
V
F
R
thj-a
Max. forward voltage drop at I
F
= 1.0 A
Max. thermal resistance at 10 mm.
lead length
1.1 V
50° C/W
Oct - 02
BZY97C GP
1
Tamb = 25°C

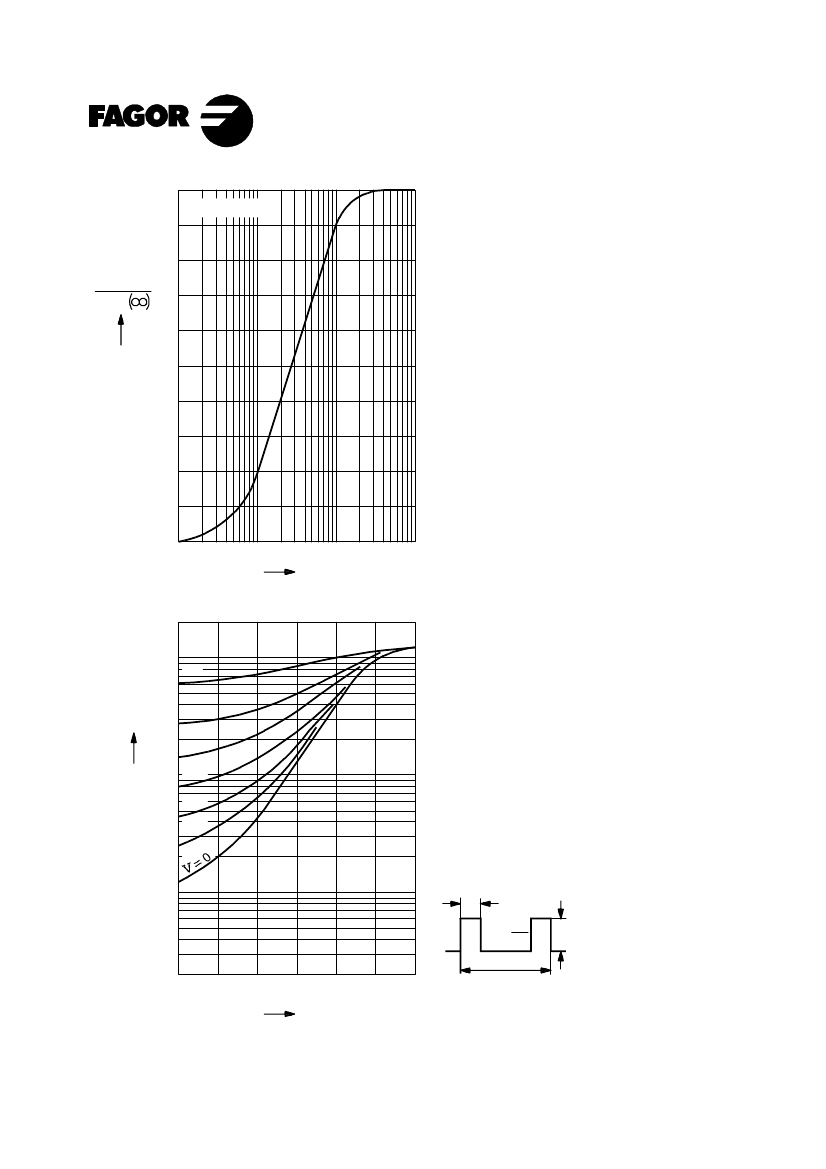

Relative change of Zener
voltage versus turn-on time.
∆
V
Z
(t)
∆
V
Z
0.8
0.6
0.4
0.2
0
1
10
10
t (sec.)
2
10
3
100
5
4
0.5
3
2
r
thU
10
0.1
5
0.05
4
3
0.02
2
1
5
4
3
2
0.1
-5
10
-4
-3
-2
Pulse thermal resistance
versus pulse duration. Valid
provided that leads are kept
at ambient temperature at a
distance of 10mm. from case.
0.2
0.01
t
p
V=
T
10
10
10
10
-1
t
p
T
P
I
1
10
t
p
(sec.)
