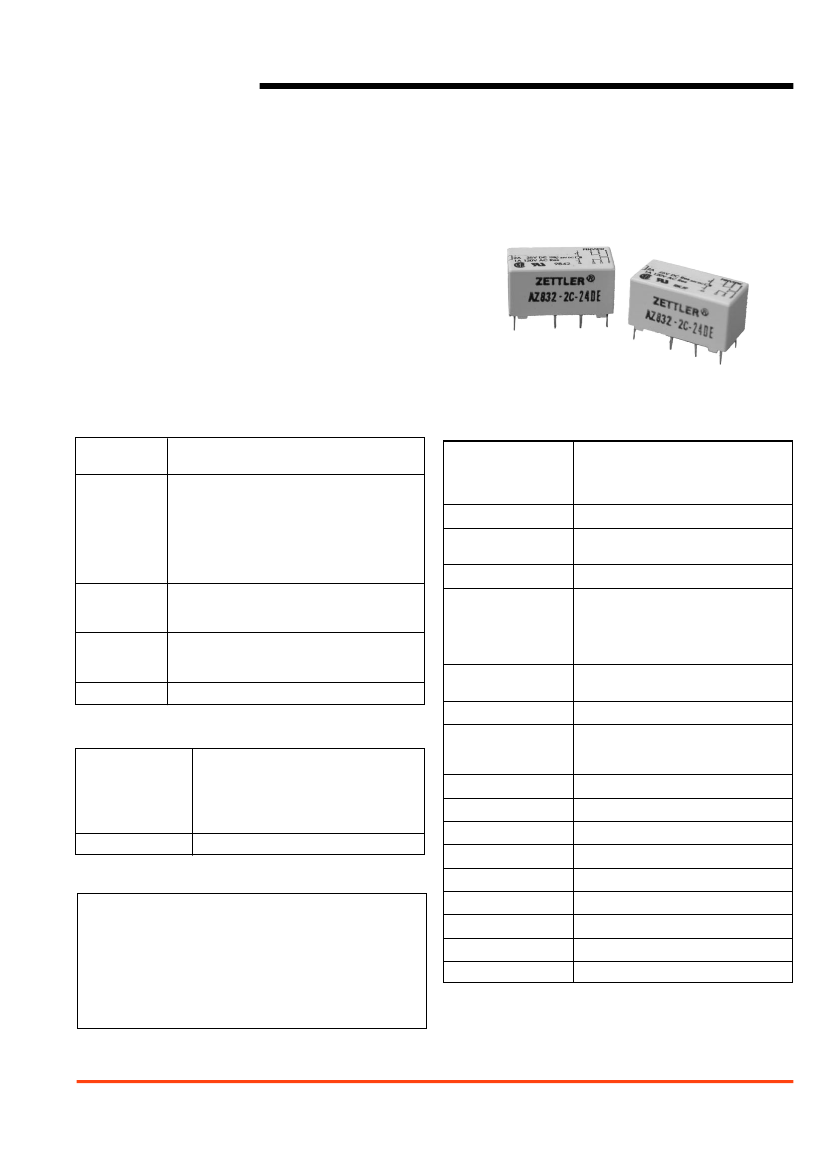

AZ832
POLARIZED DIP RELAY
SINGLE SIDE STABLE
FEATURES
Low profile for compact board spacing
DC coils to 48 VDC
High sensitivity, 96 mW pickup
Life expectancy to 20 million operations
High switching capacity, 150 W, 250 VA
Fits standard 16 pin IC socket
Epoxy sealed for automatic wave soldering
and cleaning
•
Meets FCC Part 68.302 1500 V lightning surge
•
Meets FCC Part 68.304 1000 V dielectric
•
UL file E43203; CSA file LR702225
CONTACTS
Arrangement
Ratings
DPDT (2 Form C)
Bifurcated crossbar contacts
Resistive load:
Max. switched power: 150 W or 250 VA
Max. switched current: 5 A
Max. switched voltage: 250 VDC or 250 VAC
*Note: If switching voltage is greater than 30 VDC,
special precautions must be taken. Please contact
the factory.
•
•
•
•
•
•
•
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Bounce (typical)
Dielectric Strength
(at sea level)
Minimum operations
2 x 10
7
1 x 10
5
at 2 A, 30 VDC or 1 A, 125 VAC
2 x 10
6
at 1 A, 30 VDC or .5 A, 125 VAC
3 ms at nominal coil voltage
2 ms at nominal coil voltage
(with no coil suppression)
3 ms
1500 Vrms contact to coil
1000 Vrms between contact sets
1000 Vrms across contacts
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
50 g at 10–500 Hz
50 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
5 grams
Rated Load
UL/CSA
Material
2 A at 25 VDC resistive
1 A at 120 VAC resistive
Gold plated silver against palladium silver.
Gold plated palladium silver against palladium
silver (Suffix “A”)
< 50 milliohms initially
Insulation Resistance
Dropout
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature
Standard coil: 128 mW
Sensitive coil: 96 mW
0.9 W at 20°C (68°F)
Max. 115°C (239°F)
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
NOTES
1.
2.
3.
4.
All values at 20°C (68°F).
Relay may pull in with less than “Must Operate” value.
Relay has fixed coil polarity.
For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
5. Relay adjustment may be affected if undue pressure is exerted
on relay case.
6. Specifications subject to change without notice.
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
