TM8W105M020RSZ

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 1 uF, SURFACE MOUNT, 0805, CHIP
CategoryPassive components    capacitor
File Size139KB,10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TM8W105M020RSZ Online Shopping

Suppliers Part Number Price MOQ In stock
TM8W105M020RSZ - - View Buy Now

TM8W105M020RSZ Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 1 uF, SURFACE MOUNT, 0805, CHIP

TM8W105M020RSZ Parametric

Parameter NameAttribute value
MakerVishay
package instruction, 0805
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresESR IS MEASURED AT 100 KHZ
capacitance1 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR8000 mΩ
high1.2 mm
JESD-609 codee0
leakage current0.0002 mA
length2.06 mm
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, Embossed Plastic, 7 Inch
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)20 V
size code0805
surface mountYES
Delta tangent0.08
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWRAPAROUND
width1.35 mm

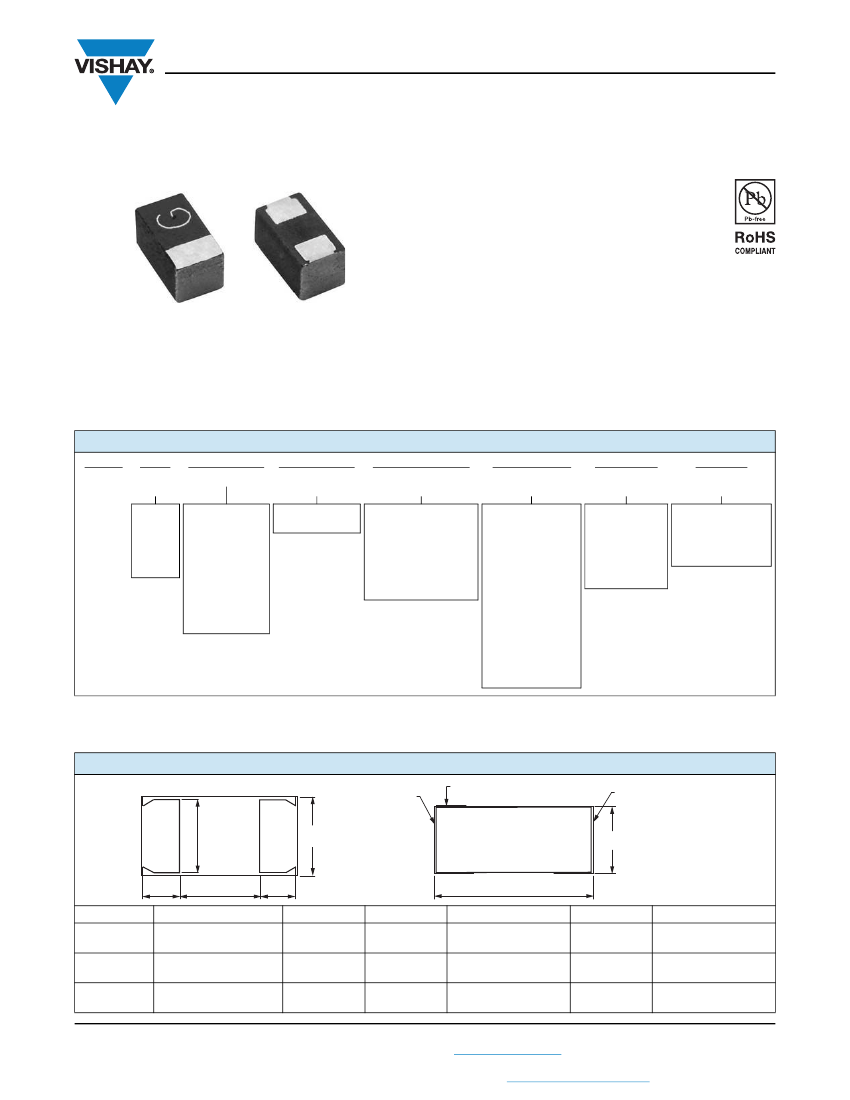

TM8
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors
M
ICRO
T
AN®
High Reliability, Low DCL, Leadframeless Molded
FEATURES
• High reliability solid surface mount tantalum
capacitors
• Low DCL for extended battery life
• Small sizes for space constrained applications
• L-shaped terminations for superior board
mounting
• Suitable for medical implantable applications with
additional screening
• Compliant to RoHS Directive 2011/65/EU
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(to + 125 °C with voltage derating)
Capacitance Range:
1 μF to 47 μF
Capacitance Tolerance:
± 10 % and ± 20 % standard
Voltage Range:
2 V
DC
to 40 V
DC
ORDERING INFORMATION
TM8
MODEL
R
CASE
CODE
See
Ratings
and
Case
Codes
table
106
CAPACITANCE
This is
expressed in
picofarads.
The first two
digits are the
significant
figures. The
third is the
number of
zeros to
follow.
M
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
016
DC VOLTAGE
RATING AT + 85 °C
This is expressed
in volts. To complete
the three-digit block,
zeros precede the
voltage rating.
A decimal point is
indicated by an “R”
(6R3 = 6.3 V).
E
TERMINATION/
PACKAGING
E = Sn/Pb solder/
7" (178 mm) reels
L = Sn/Pb solder/
7" (178 mm) reels,
½ reel
R = Sn/Pb solder/
7" (178 mm)
300 pcs. qty.
C = 100 % tin/
7" (178 mm) reels
H = 100 % tin/
7" (178 mm) reels,
½ reel
U = 100 % tin/
7" (178 mm)
300 pcs. qty.
B
RELIABILITY
LEVEL
B = 0.1 %
weibull FRL
S = Hi-Rel std.
(40 h burn-in)
Z = Non-
established
reliability
A
SURGE
CURRENT
A = 10 cycles
at 25 °C
B = 10 cycles
at - 55 °C/+ 85 °C
Z = None
Note
• Standard options are in bold
DIMENSIONS
in inches [millimeters]
Anode Polarity Bar
Anode Termination
Cathode Termination
C
W
H
P1
P2
P1
L
CASE CODE
K
M
L
Revision: 17-Feb-12
L
0.045 ± 0.002
[1.14 ± 0.05]
0.063 ± 0.006
[1.60 ± 0.15]
0.081 ± 0.008
[2.05 ± 0.2]
W
0.026 ± 0.002
[0.66 ± 0.05]
0.033 ± 0.006
[0.84 ± 0.15]
0.051 ± 0.004
[1.3 ± 0.10]
H
0.024 max.
[0.61 max.]
0.033 ± 0.006
[0.84 ± 0.15]
0.04 max.
[1.0 max.]
P1
0.010 ± 0.004
[0.25 ± 0.1]
0.020 ± 0.004
[0.51 ± 0.1]
0.020 ± 0.004
[0.50 ± 0.1]
P2 (REF.)
0.020 min.
[0.51 min.]
0.019 min.
[0.48 min.]
0.028 min.
[0.70 min.]
C
0.015 ± 0.004
[0.38 ± 0.1]
0.024 ± 0.004
[0.61 ± 0.1]
0.035 + 0.009/- 0.001
[0.9 + 0.23/- 0.02]
Document Number: 40133
164
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
