APH-1-11-SM1-SDA-GD15-PPL

Description
Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size178KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

APH-1-11-SM1-SDA-GD15-PPL Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

APH-1-11-SM1-SDA-GD15-PPL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknow
Other featuresROHS COMPLIANT
body width0.1 inch
subject depth0.13 inch
body length1.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrie
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Durability1000 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee3
Manufacturer's serial numberAPH-1-XX-SM1-SDA-XX-PPL
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing4.0894 mm
Plating thickness15u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch5.08 mm
Termination typeSURFACE MOUNT
Total number of contacts11
Base Number Matches1
1
2
3
4
5
6
7
8
9
A
SPECIFICATIONS
Contact material:
Insulator material:
Insulator color:
Contact plating:
Solder plating:
Brass
Nylon 6T
Black
Gold over nickel
Tin over nickel
A
B
B
C
C
PC Board Layout
D
D
E
Standard (SM1)
Reverse (SM2)
E
F
G
Series
Rows
Total Contacts
Type
Contact length
Plating
Options
APH
X
XX
XX
XXX
XX
XX
Pin header, 1=Single Single row 1-40 [blank]=Straight
SDA=.240”mating length
GDXX=Gold
Blank=None
.100” pitch 2=Double Dual row 2-80
RA=Right angle
SDB=.318”mating length
SGXX=Duplex
PPL=Pick and
SMX=Surface mount CSL=Customer specified length TN=Tin
Place Pad
RoHS compliant
See Chart
XX=Flash if blank; 15, 30, or 50µ”
Rev.
Description
Date
Approved
Drawing
Name
Date
Central Components Manufacturing
A PNT, PN
8/13/08 Greg
Approved Howard
08/10/99
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
Checked Lizzy
08/10/99
Drawn Tina
08/10/99 Part No.:
APH-1-XX-SM1-SDA-XX-PPL
0.0 ± 0.35
1
2
3
4
F
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

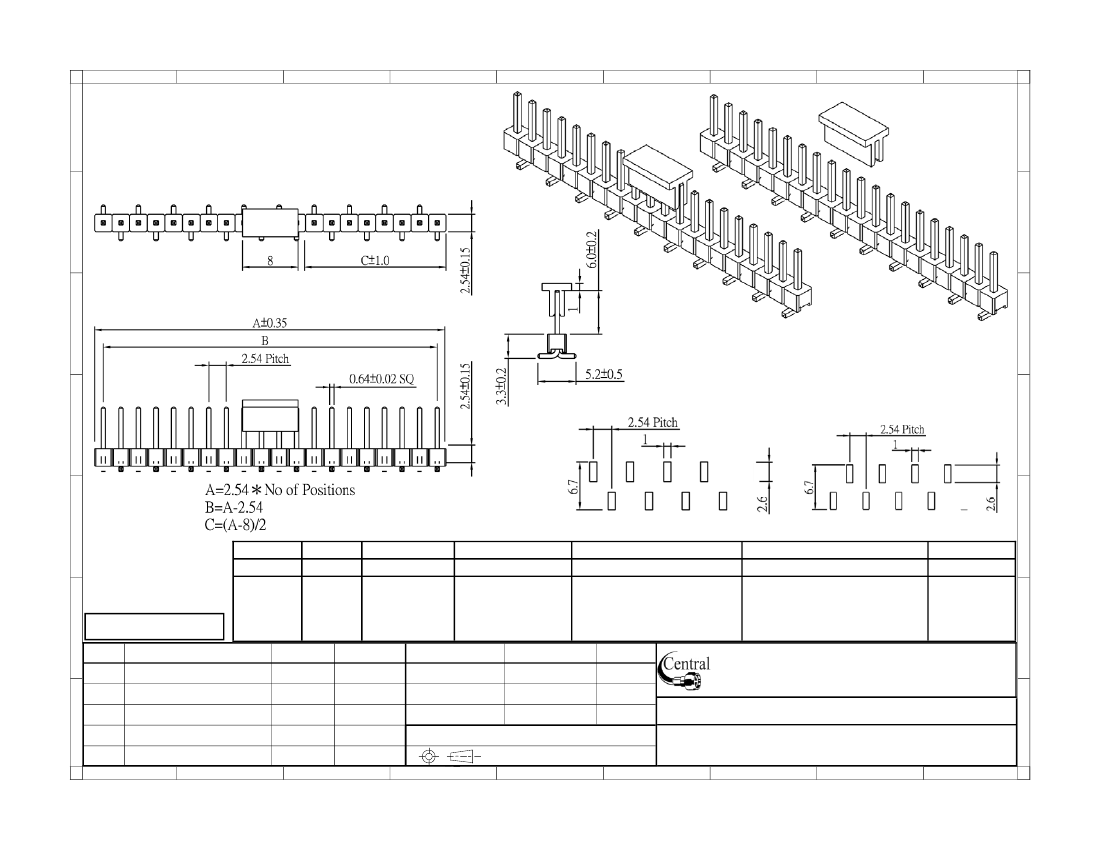

Description: Pin header, 2.54 pitch, SMT type, single row
7
8
9
G
