Film capacitors – AC capacitors
Motor run capacitors

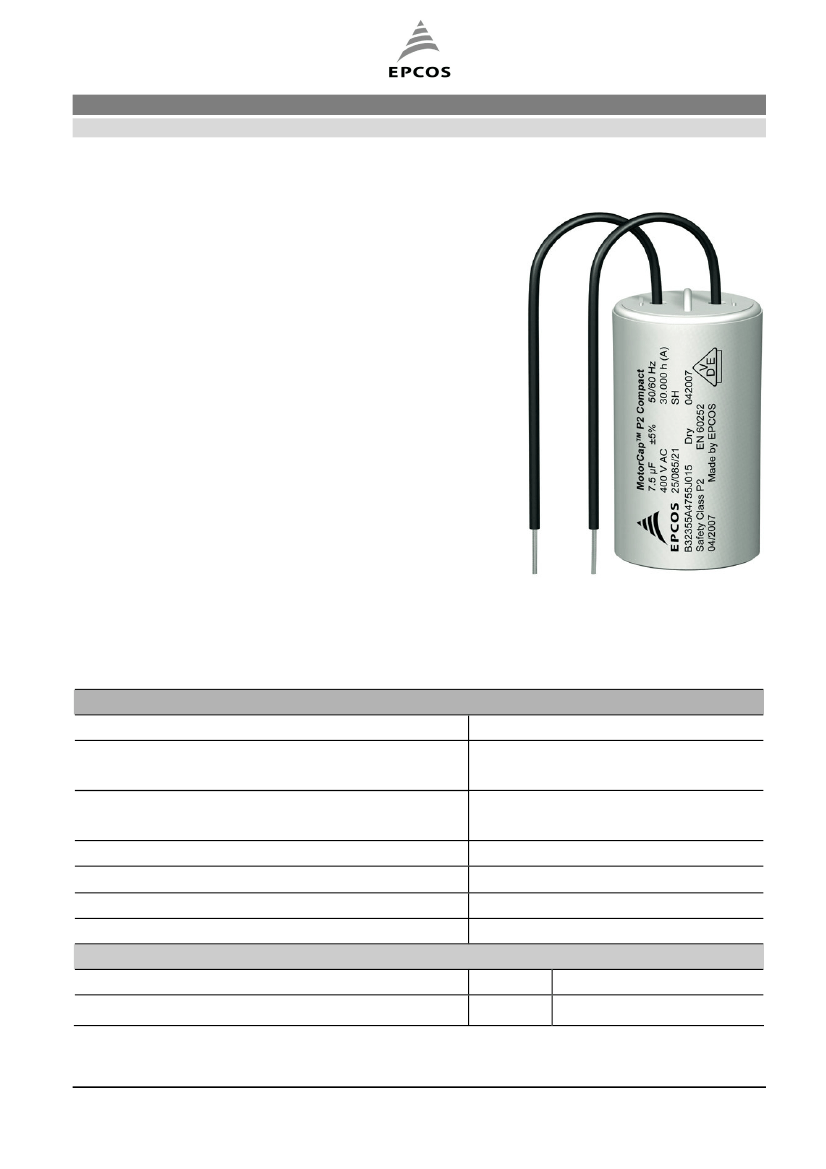

B32355 – MotorCap™ P2 Compact
Construction
Dielectric: polypropylene film
Electrode: segmented metallized film
Plastic can and top material to IEC 60335-1
Dry type
Features
Self-healing properties
Low dissipation factor
P2 safety class to IEC 60252-1 2001-02
High insulation resistance
IEC/EN 60335-1 compatible
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
Insulated copper wire
Mounting parts (optional)
Threaded stud at bottom of can
(M8, max. torque = 5 Nm)
Fast fixation for mounting into a hole of Ø 8 mm
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.1 · V
R
1.3 · I
R
(V
R
= rated voltage)
(I
R
= rated current)
IEC 60252-1 2001-02 / EN 60252 2001
P0
P2
400 V/85 °C: 30000 h (class A)
450 V/85 °C: 10000 h (class B)
See dimensions table
5%
400, 450 V AC
50/60 Hz
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 6
June 2009
Film capacitors – AC capacitors
Motor run capacitors
B32355 – MotorCap™ P2 Compact
Test data
AC test voltage terminal to terminal V
TT
Insulation resistance R
ins
or time constant
at 20 °C, rel. humidity
65%
(minimum as-delivered values)
Dissipation factor tan
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and -2-1/1
Test temperature 550 °C for I
R
≤
0.5 A
Test temperature 750 °C for I
R
> 0.5 A
Part is compatible to EN 60335-1
Tracking Test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
> 250 V
Self-extinguish within 2 seconds of
withdrawing glow wire without igniting
wrapping tissue to GWIT.
20 N at 125°C
Compliant to EN 60252
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
2 · V
R
, 2 s (routine test)
2 · V
R
, 60 s (type test)
3,000 s
1.0 · 10
-3
(120 Hz)
10 V/s
Approvals
VDE
– 400 V/85 °C: 30,000 h (class A)
VDE
– 450 V/85 °C: 10,000 h (class B)
Approved
Approved
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 6
June 2009
Film capacitors – AC capacitors
Motor run capacitors
B32355 – MotorCap™ P2 Compact

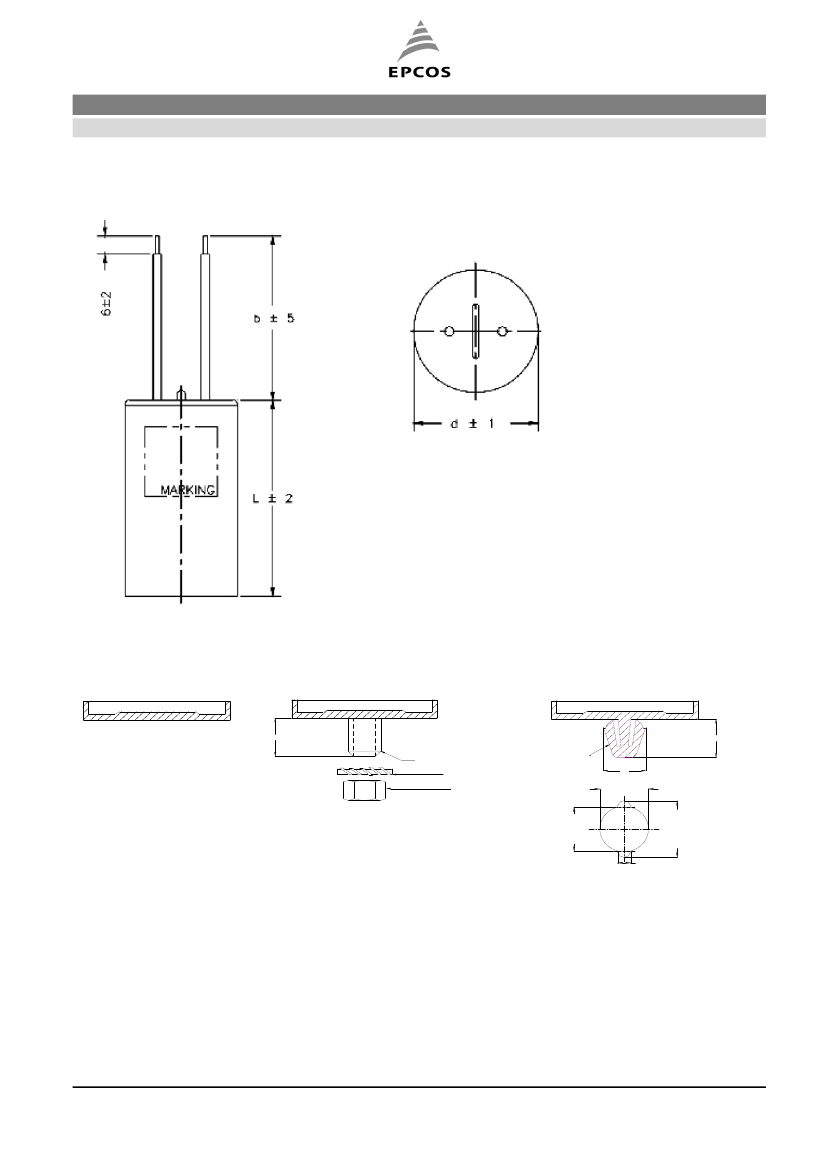

Dimensional drawing
Mounting options
* = 1: can without mounting
* = 3: can with M8 bolt
* = 5: fast fix mounting
10
Stud M8x1.25
Star Washer 8mm
Nut M8x1.25
10
M8-sized
M-Clip
fast
fixation
10
Ø8.2+0.2/-0
10.2+0.1/-0
2.0±0.05
Ø2.2+0.1/-0
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 6
June 2009
Film capacitors – AC capacitors
Motor run capacitors
B32355 – MotorCap™ P2 Compact
Ordering codes and packing units
V
R
V AC
400 / 450
C
R
µF
2.0
2.5
3.0
3.5
4.0
5.0
6.0
7.0
7.5
8.0
9.0
10
11
12
12
13
15
18
20
Max. dimensions
d×l
mm
25 × 50
25 × 50
25 × 50
30 × 56
30 × 56
30 × 56
30 × 62
35 × 56
35 × 56
35 × 56
35 × 71
35 × 71
40 × 72
35 × 96
40 × 72
40 × 72
45 × 72
50 × 96
50 × 96
B32355A4205J0*#
B32355A4255J0*#
B32355A4305J0*#
B32355A4355J0*#
B32355A4405J0*#
B32355A4505J0*#
B32355A4605J0*#
B32355A4705J0*#
B32355A4755J0*#
B32355A4805J0*#
B32355A4905J0*#
B32355A4106J0*#
B32355A4116J0*#
B32355A4126J1*#
B32355A4126J0*#
B32355A4136J0*#
B32355A4156J0*#
B32355A4186J0*#
B32355A4206J0*#
Ordering code
(composition see below)
Packing units
pcs.
112
112
112
112
112
112
84
84
84
84
84
84
60
84
60
60
45
32
32
Composition of ordering code:
*: construction
1
plastic can
3
plastic can with M8 bolt
5
plastic can with fast fixation device available for diameters 30 mm, 32 mm and 35 mm,
others on request
#: wire length (dimension ‘b’ in drawing)
3
100 mm
7
200 mm
9
250 mm
Please read “Applications warning, installation and maintenance instructions” and the “General Safety Data Sheet for Power
Capacitors” issued by ZVEI, which are available on the internet at
www.epcos.com/ac_capacitors,
to ensure optimum performance and to
prevent products from failing, and in worst case, bursting and fire. Information given in the data sheet reflects typical specifications. You are
kindly requested to approve our product specifications or request our approval for your specification before ordering.
U
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 5 of 6
June 2009
