Film Capacitors – Power Factor Correction
B44066R6***E230 … B44066R6***E231
Key components
Power factor controller series BR6000–T, V5.0
Preliminary data

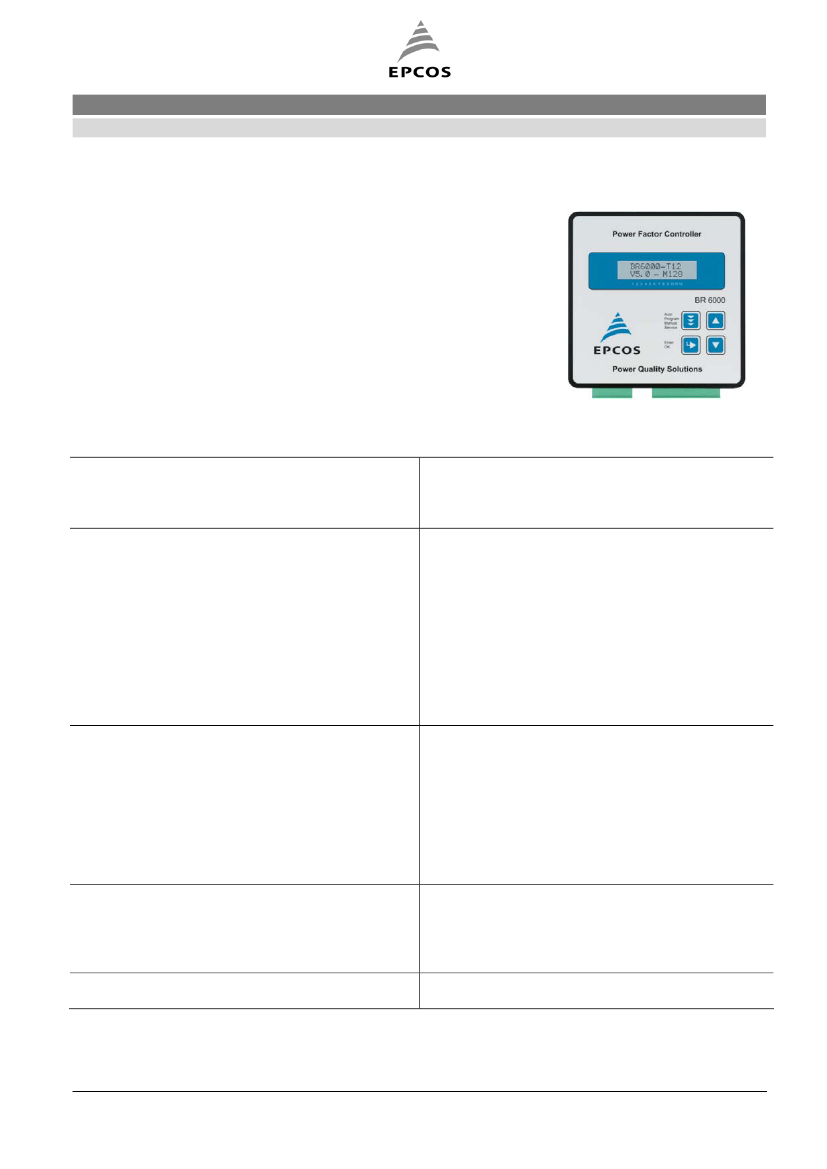

Charateristics
Intelligent control
Menu driven handling (plain language)
Dutch/English/French/German/Polish/Portuguese/
Russian/Czech/Spanish
Self-optimizing control capability
Large measuring voltage range
Recall function of recorded values
Four-quadrant operation (e.g. stand by generator)
Powerful alarm output
Control series editor (value perception selectable)
2
nd
expert mode
Interface RS485 optional
Features
Display
System parameters displayed
Alarm output
Recall recorded values
Dynamic PFC
Large and multifunctional LCD
(2 x 16 characters)
-
Graphic and alphanumeric
-
LCD illumination
-
System voltage (V AC)
-
Reactive power (kvar)
-
Active power (kW)
-
Frequency
-
Apparent power (kVA)
-
Apparent current (A)
-
Temperature (°C / °F )
-
Real-time cos
-
Target cos
-
kvar value to target cos
-
display of values also as percentage
-
Insufficient compensation
-
Overcompensation
-
Undercurrent
-
Overcurrent
-
Overtemperature
-
Threshold value programmable
-
Internal error storage
nd
-
2 signal relay random
-
Triggering time programmable
- Maximum voltage, (V
max
)
-
Maximum reactive power, Q (kvar)
-
Maximum active power, P (kW)
-
Maximum apparent power, S (kVA)
-
Maximum temperature (°C)
-
Direct triggering of thyristor modules
series TSM
-
FK PC PM PFC
Please read
Important notes
at the end of this document.
Page 2 of 6
November 2009
Film Capacitors – Power Factor Correction
B44066R6***E230 … B44066R6***E231
Key components
Power factor controller series BR6000–T, V5.0
Preliminary data
Technical data
Weight
Case
Ambient conditions
Over-voltage class
Pollution degree
Operating temperature
Storage temperature
Sensitivity to inference (industrial areas)
Spurious radiation (residential areas)
Safety guidelines
Mounting position
Humidity class
Protection class
Front plate
Rear side
Operation
Supply voltage
Target cos
Switching and discharge time range
Number of control series
Control modes
1 kg
Panel-mounted instrument, 144 x 144 x 55 mm
(cut out 138 x 138 mm)
III
2
-20 ... 60 °C
-20 ... 75 °C
EN55082-2.1995
EN55011 10.1997
IEC61010-1:2001, EN61010-1:2001
Any
15 … 95% without dew
IP54 according to IEC60529
IP20 according to IEC60529
110 … 230 V AC, 50 and 60 Hz power lines
0.3 inductive to 0.3 capacitive adjustable
20 … 1000 ms
20 series preset + control series editor for free
programming
- Series switching (LIFO),
- circular switching (FIFO),
- self-optimized intelligent control mode
Measurement
Measurement voltage range
Fundamental frequency
Measurement current (CT)
Minimum operating current
Maximum current
Zero voltage release
30 ... 525 V AC (L-N) or (L-L)
50 and 60 Hz
x/5 and x/1 Ampere possible
40 mA / 10 mA
5.3 (sinusodial)
< 15 ms
FK PC PM PFC
Please read
Important notes
at the end of this document.
Page 3 of 6
November 2009
Film Capacitors – Power Factor Correction
B44066R6***E230 … B44066R6***E231
Key components
Power factor controller series BR6000–T, V5.0
Preliminary data
Switching outputs
Transistor outputs
- Number of outputs
- Switching voltage/power
Alarm relay
Message relay
6 or 12 steps available
10 … 24 V DC
Potential-free contact (max. 250 V, 6 A)
Potential-free contact (max. 250 V, 6 A)
2 complete sets of parameters programmable
(activation of 2
nd
parameter set via external input)
Interface
Ordering Codes
Type
Voltage
50/60 Hz
V AC
Output
Relay
Transistor
Alarm
output
Switchover Inter-
target
face
cos
1/2
Ordering code
RS485 optional for 12-step controller
BR6000-T06
BR6000-T12
110 … 230
110 … 230
-
-
-
6
12
12
Yes
Yes
Yes
No
Yes
Yes
No
No
B44066R6106E230
B44066R6112E230
BR6000-T12/S485 110 … 230
RS485 B44066R6412E231
FK PC PM PFC
Please read
Important notes
at the end of this document.
Page 4 of 6
November 2009
Film Capacitors – Power Factor Correction
B44066R6***E230 … B44066R6***E231
Key components
Power factor controller series BR6000–T, V5.0
Preliminary data

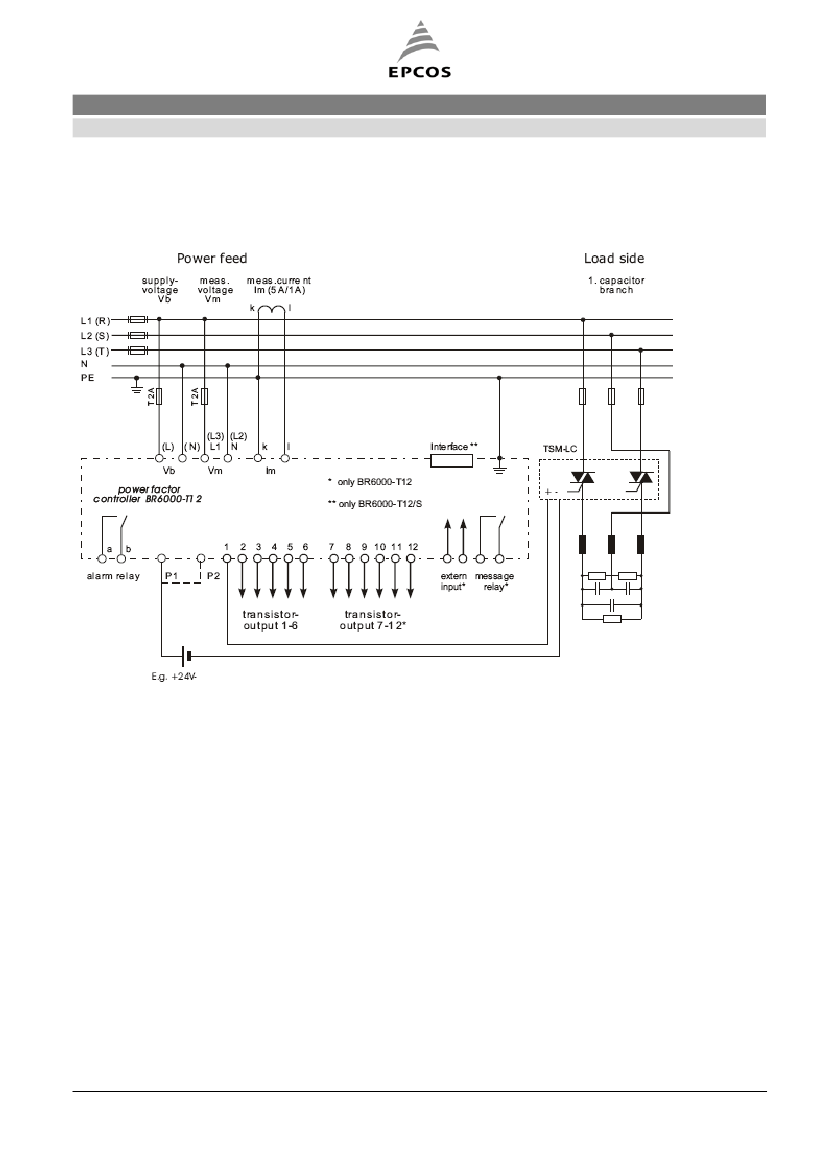

Connection plan
FK PC PM PFC
Please read
Important notes
at the end of this document.
Page 5 of 6
November 2009
