SAW Components
SAW RF filter for base stations
LTE 800
Series/type:
Ordering code:
Date:
Version:
B5131
B39811B5131U410
December 16, 2010
2.0
©
EPCOS AG 2010. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW RF filter
Data sheet
Application
s
s
s
s
s
B5131
806.0 MHz
RF filter for LTE800MHz BTS Tx
Unbalanced to unbalanced operation
Low amplitude ripple
Usable passband of 30 MHz
No matching required for operation at 50Ω
Features
Package size 3.0 x3.0 x 1.10 mm
3
Package code DCC6C
RoHS compatible
Approximate weight 0.037 g
Ceramic package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
Electrostatic Sensitive Device
(ESD)
s
Filter surface passivated
s
s
s
s
s
Pin configuration
s
2
Input
s
5
Output
s
1, 3, 4, 6 case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 16, 2010
SAW Components
SAW RF filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T =
Z
S
=
Z
L
=
-40 ˚C to +85 ˚C
50
Ω
50
Ω
min.
Center frequency
Minimum insertion attenuation
791.0 ... 821.0
Maximum insertion attenuation
791.0 ... 821.0
Amplitude ripple
(p-p)
791.0 ...
Group delay ripple
(p-p)
791.0 ...
Input return loss
791.0
Output return loss
791.0
f
C
α
min
MHz
α
max
MHz
∆α
821.0
MHz
∆τ
821.0
MHz
—
30
50
—
0.8
1.0
—
1.8
3.0
—
1.20
—
—
typ.
@ 25 ˚C
806.0
max.
—
B5131
806.0 MHz
MHz
dB
dB
dB
ns
...
821.0
MHz
9
11
—
dB
...
821.0
MHz
α
rel
9
11
—
dB
Relative attenuation
(relative to
α
min
)
1.0 ... 715.4 MHz
715.4 ... 770.0 MHz
832.0 ... 880.0 MHz
880.0 ... 921.0 MHz
921.0 ... 3800.0 MHz
25
15
13
20
25
31
23
15
26
30
—
—
—
—
—
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 16, 2010
SAW Components
SAW RF filter
Data sheet
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power at
791.0 ... 821.0
1)
B5131
806.0 MHz
T
T
stg
V
DC
V
ESD
P
IN
–40/+85
–40/+85
0
100
1)
15
˚C
˚C
V
V
dBm
machine model, 1 pulse
CW
acc. to JESD22-A115A (machine model), 1 negative & 1 positive pulse.
Please read
cautions and warnings and
important notes
at the end of this document.
4
December 16, 2010
SAW Components
SAW RF filter
Data sheet
Transfer function
B5131
806.0 MHz

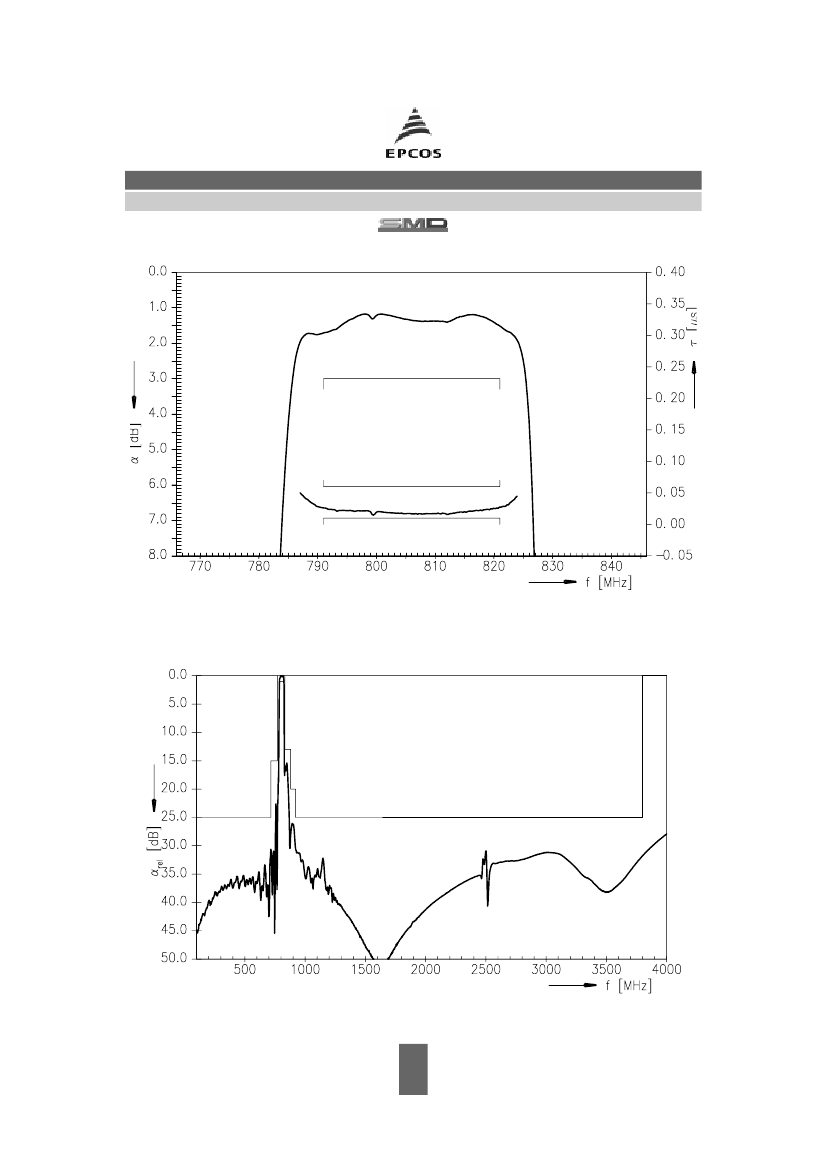

Transfer function (wide band, normalized)
Please read
cautions and warnings and
important notes
at the end of this document.
5
December 16, 2010
