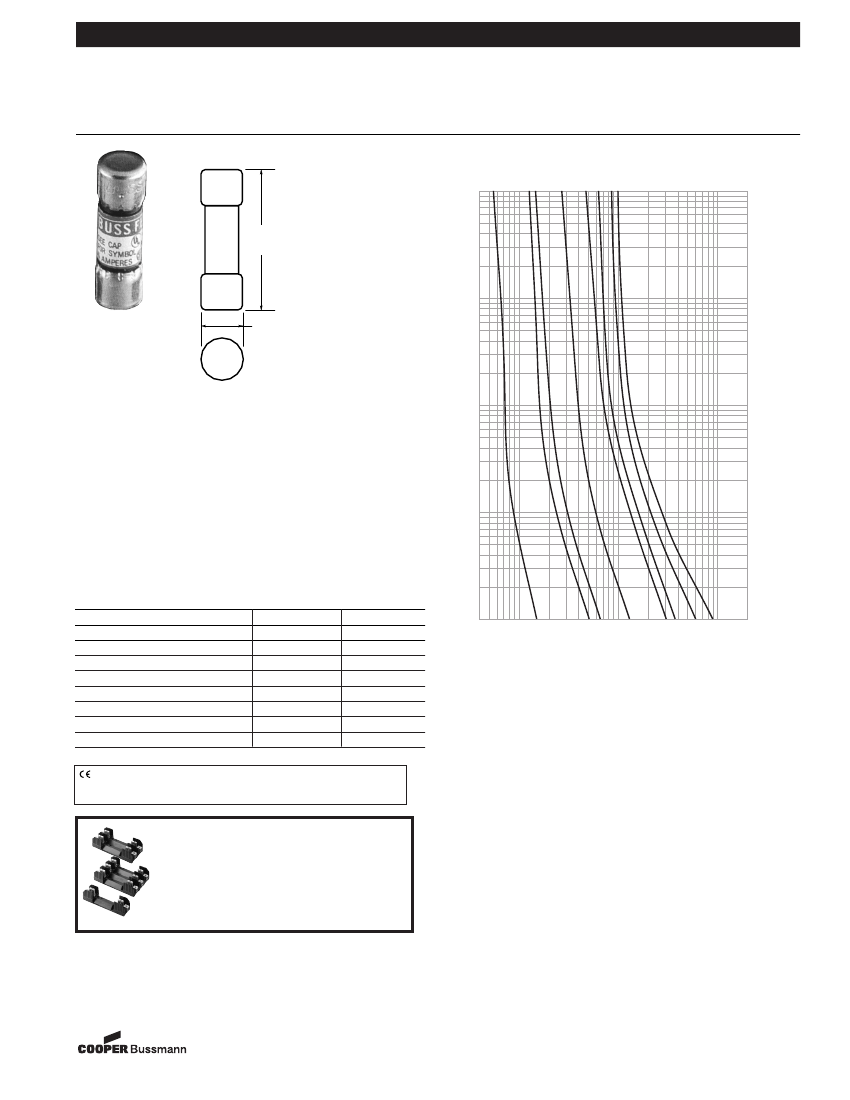

Bussmann
®
Fast-Acting Ferrule Fuses
13/32” x 1-3/8”
Dimensional Data
BBS
Time-Current Characteristic Curves–Average Melt
4/10
100
AMPERE
RATING
3/4
1
2
3
5
6
7
1.38"
(±0.031)
10
0.41"
(±0.004)
TIME IN SECONDS
48Vac
BBS-12
BBS-15
BBS-20
BBS-25
BBS-30
—
—
—
Catalog Symbol:
BBS
Fast-Acting
1/10 TO 30A
Interrupting Rating:
10 KA
UL Listed,
STD. 248-14
0-5A/600Vac OR LESS, 6-10A/250Vac
(GUIDE #JDYX, FILE #E19180)
CSA CERTIFIED, C22.2 NO. 248.14
0-5A/600V, 6-10A/250Vac
(CLASS #1422-01, FILE #53787)
Electrical Ratings (Catalog Symbol and Amperes)
600Vac
BBS-1/10
BBS-2/10
BBS-1/4
BBS-4/10
BBS-1/2
BBS-6/10
BBS-3/4
BBS-8/10
BBS-1
BBS-1-1/2
BBS-1-6/10
BBS-1-8/10
BBS-2
BBS-3
BBS-4
BBS-5
250Vac
BBS-6
BBS-7
BBS-8
BBS-10
—
—
—
—
1
.1
.01
.4
100
CURRENT IN AMPERES
200
10
1
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
• For control circuits, gaseous vapor fixture, HID ballasts;
electronic circuits and hand-held meters.
• Fibre Tube.
• Nickel Plated Brass Endcaps.
Recommended fuseblocks/fuseholders for
13/32” x 1-1/2” fuses
See Data Sheets listed below
• Open fuseblocks - 1104, 2104
• Finger-safe fuseholders - 1109, 1102, 1103, 1151
• Panel-mount fuseholders - 2114, 2113, 2108,
2112, 2109, 2140
• In-line fuseholders - 2127, 2126
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheeti are by definition uncontrolled. This bulletin is intended to clear-
ly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any prod-
ucts and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected,
it should be tested by the user in all possible applications.
10-2-02
SB02295
Form No. BBS
Page 1 of 1
Data Sheet: 2010
