PHG.1B.316.CLLD62Z
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
16
0
0
0
0
0
0
1B
Female solder
50
5.30 - 6.20 mm
FGG.1B.316.CLAD62
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
PH*: Free receptacle, cable collet and nut for fitting a bend relief
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 5.3 - 6.2 mm
Z : Nut for fitting a bend relief
20.24 g
Performance
Configuration
Insulator
Rated Current
1B.316 : 16 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
1.5 Amps
Specifications
Contact Type: Solder
Max. Matings: 3000
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Dia.: 0.5 mm (0.02in)
Bucket Dia.: 0.45 mm (0.018in)
Max. Solid Conductor: 0.09 mm^2 (AWG 28)
Max. Stranded Conductor: 0.09 mm^2 (AWG 28)
R (max): 8.7 mOhm
Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
Vtest (contact-contact): 800 V (AC), 1130 V (DC)
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

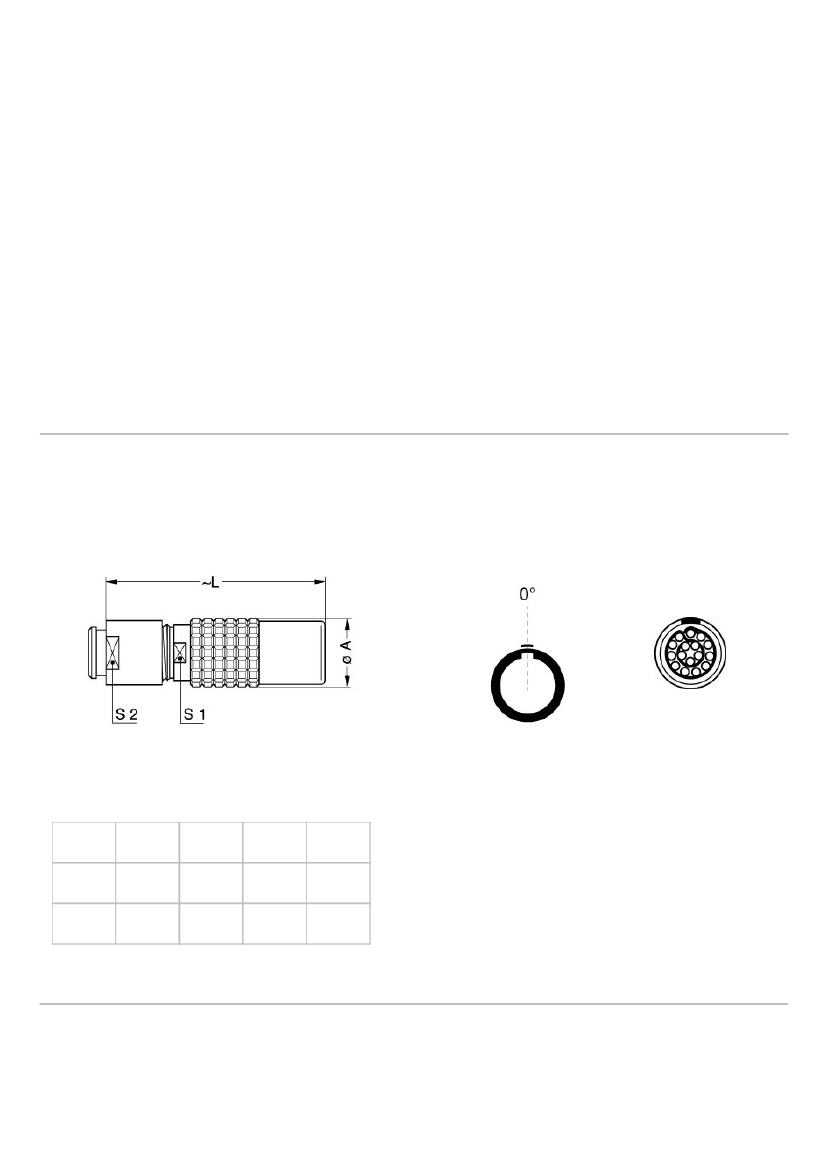

DRAWINGS
Draws
Dimensions
A
mm.
in.
12.5
0,49
L
39.5
1,56
S1
10
0,39
S2
9
0,35
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Spanner wrench: DCD.1B.015.PA090
Cables
CMN.16.T28.059PGCE
CMN.16.T28.059PGZE
CMN.16.T28.059PNCE
CMN.16.T28.059PNZE
116 080
PUR
Black
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
