B40C800G THRU B380C800G
GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER
Reverse Voltage -
65 to 600 Volts
Forward Current -
0.9 Ampere
FEATURES
Case Style WOG
0.388 (9.86)
0.348 (8.84)
0.220 (5.6)
0.160 (4.1)
1.0
(25.4)
MIN.
0.032 (0.81)
0.028 (0.71)
0.060 (1.52)
0.020 (0.51)
♦
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
♦
Glass passivated chip junctions
♦
High case dielectric strength
♦
Typical I
R
less than 0.1
µA
♦
High overload surge current
♦
Ideal for printed circuit boards
♦
High temperature soldering guaranteed:
260°C/10 seconds, 0.375" (9.5mm) lead length
5 lbs. (2.3kg) tension
MECHANICAL DATA
Case:
Molded plastic body over passivated junctions
Terminals:
Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position:
Any
Weight:
0.04 ounce, 1.1 grams
0.220 (5.6)
0.348 (8.84)
0.308 (7.82)
0.180 (4.6)
0.220 (5.6)
0.180 (4.6)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
B40
C800G
B80
C800G
B125
C800G
B250
C800G
B380
C800G
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS input voltage R + C-load
Maximum average forward output current for
free air operation at T
A
=45°C R + L-load
C-Load
Maximum non-repetitive peak voltage
Maximum DC blocking voltage
Maximum peak working voltage
Maximum repetitive peak forward surge current
Peak forward surge current
single sine wave on rated load at T
J
=125°C
Rating for fusing at T
J
=125°C (t<100ms)
Minimum series resistor C-load at V
RMS
= ±10%
Maximum load capacitance +50%
-10%
Maximum instantaneous forward voltage drop
per leg at 0.9A
Maximum reverse current at rated repetitive
peak voltage per leg
Typical thermal resistance per leg
(NOTE 1)
Operating junction temperature range
Storage temperature range
NOTES:
V
RRM
V
RMS
I
(AV)
V
RSM
V
DC
V
RWM
I
FRM
I
FSM
I
2
t
Rt
C
L
V
F
I
R
R
ΘJA
R
ΘJL
T
J
T
STG
65
40
125
80
200
125
0.9
0.8
400
250
600
380
Volts
Volts
Amps
100
65
90
200
125
180
350
200
300
10.0
45.0
10.0
600
400
600
1000
600
900
Volts
Volts
Volts
Amps
Amps
A
2
sec
1.0
5000
2.0
2500
4.0
1000
1.0
10.0
36.0
11.0
-40 to +125
-40 to +150
8.0
500
12.0
200
Ohms
µF
Volts
µA
°C/W
°C
°C
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. at 0.375" (9.5mm) lead lengths with 0.2 x 0.2"(5.5 x 5.5mm) copper pads.
4/98

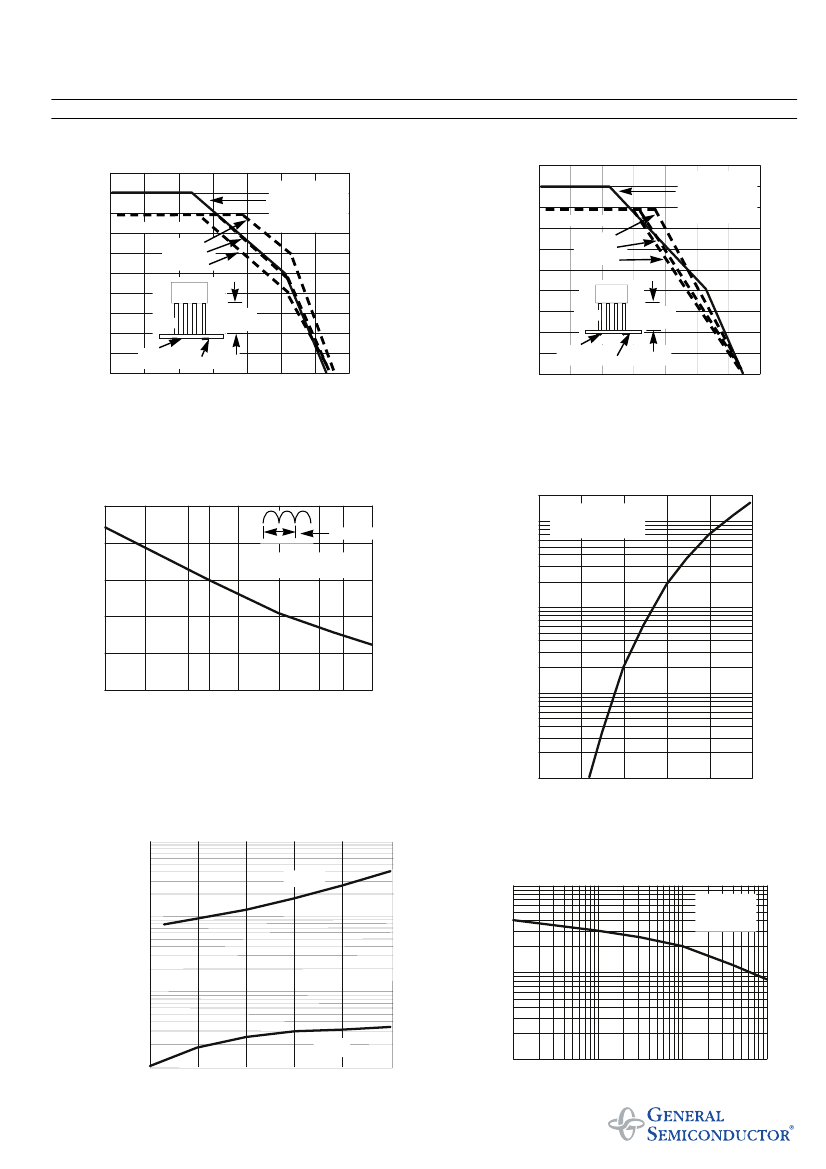

RATINGS AND CHARACTERISTICS CURVES B40C800G THRU B380C800G
FIG.1 - DERATING CURVES OUTPUT RECTIFIED
CURRENT FOR B40C800G...B125C800G
FIG. 2 - DERATING CURVES FOR OUTPUT
RECTIFIED CURRENT B250C800G...B380C800G
BRIDGE OUTPUT FULL WAVE
RECTIFIED CURRENT AVERAGE, AMPERES
1.0
BRIDGE OUTPUT FULL WAVE
RECTIFIED CURRENT AVERAGE
AMPERES
1.0
50 to 60 Hz
RESISTIVE OR
INDUCTIVE LOAD
0.375” (9.5mm)
LEAD LENGTHS
0.8
CAPACITIVE LOAD
50 to 60 Hz
RESISTIVE OR
INDUCTIVE LOAD
0.375” (9.5mm)
LEAD LENGTHS
0.8
CAPACITIVE LOAD
0 - 10µF
10 - 100µF
> - 100µF
0.6
0.4
0 - 10µF
10 - 100µF
> - 100µF
0.6
0.4
P.C.B.
0.375”
(9.5mm)
P.C.B.
0.375”
(9.5mm)
0.2
COPPER PADS
0.22 x 0.22” (5.5 x 5.5mm)
0.2
COPPER PADS
0.22 x 0.22” (5.5 x 5.5mm)
0
0
20
40
60
0
80
100
120 140
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE, °C
AMBIENT TEMPERATURE, °C
FIG. 3 - MAXIMUM NON-REPETITIVE PEAK FORWARD
CURRENT PER LEG
FIG. 4 - TYPICAL FORWARD CHARACTERISTICS
PER LEG
PEAK FORWARD SURGE CURRENT,
AMPERES
50
INSTANTANEOUS FORWARD SURGE CURRENT,
AMPERES
1 CYCLE
20
10
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
40
T
J
= 25°C
10mS SINGLE SINE-WAVE
30
20
10
0
1.0
1
10
NUMBER OF CYCLES AT 50Hz
100
0.1
0.01
0.4
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
PER LEG
0.6
0.8
1.0
1.2
0.6
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
T
J
=100°C
FIG. 6 - TYPICAL JUNCTION CAPACITANCE
PER LEG
100
1
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
10
0.1
T
J
=25°C
0.01
0
1.0
0.1
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
1.0
10
100
REVERSE VOLTAGE, VOLTS
Talking
