BTNGBR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > BTNGBR2

Preview

BTNGBR2: DescriptionCIT SWITCH; File Size343KB，5 Pages; ManufacturerCIT; Websitehttp://www.citswitch.com/

Download Datasheet View All

BTNGBR2 Overview

CIT SWITCH

Preview

Download Datasheet

View All

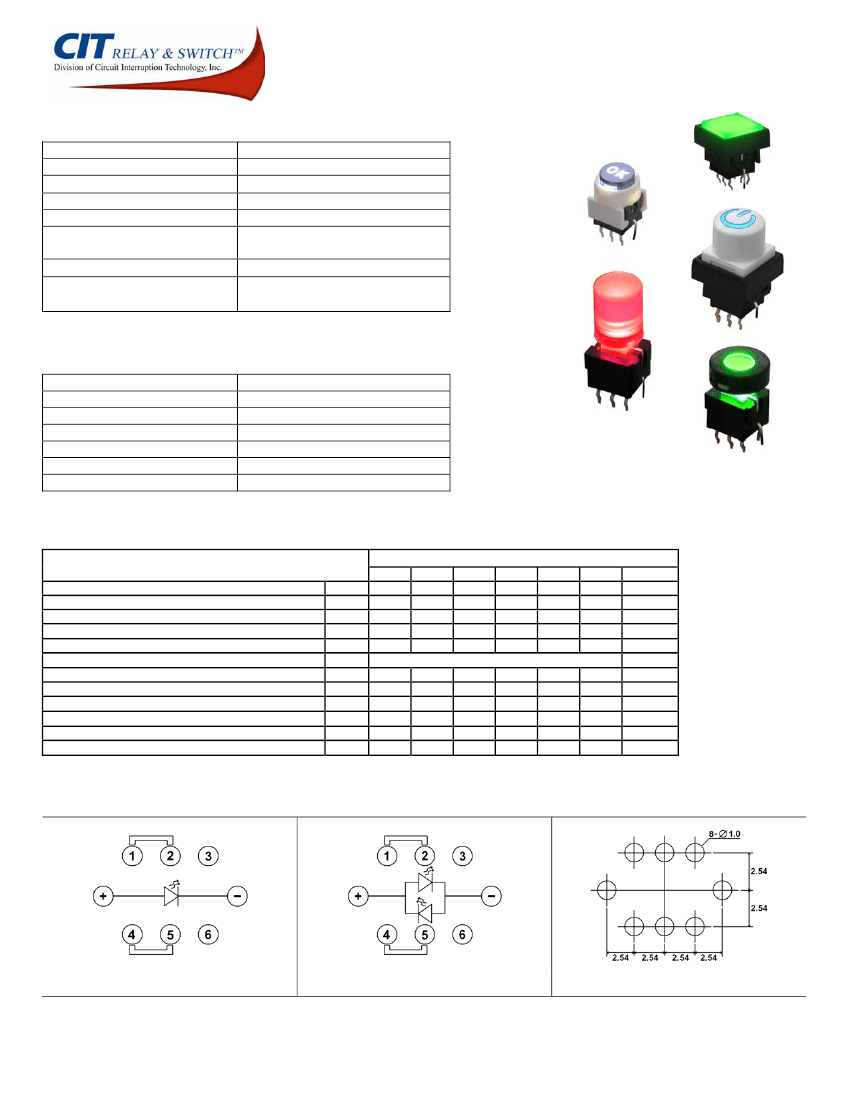

SPECIFICATIONS

Electrical Ratings

Electrical Life

Contact Resistance

Dielectric Strength

Actuation Force

Travel

Insulation Resistance

Operating Temperature

Storage Temperature

100mA @ 30VDC

10,000 cycles typical

< 50 mΩ max initial

500Vrms min

250+/- 100gF

Total Travel: 1.5mm

Travel to Lock: 1.0mm

> 100MΩ min

-40°C to 85°C

MATERIALS

←

RoHS COMPLIANT

Actuator

Frame

Cover

Base

Caps

Contacts

Terminals

6/6 Nylon

9T Nylon

PC and PBT

Phosphor Bronze, Silver Plated

Brass, Silver Plated

LED CHARACTERISTICS

LED Ratings

Reverse Voltage

Forward Current (avg)

Forward Current (peak)

Reverse Current V

= 5V

Power Dissipation

Operating & Storage Temperature

Forward Voltage (typ.), I

= 20mA

Forward Voltage (max.), I

= 20mA

Wavelength at Peak Emmission, I

= 20mA

Spectral Line Half-Width, I

= 20mA

Luminous Intensity, I

= 20mA

Viewing Angle

∆λ

120

2.1

2.6

660

120

125

2.1

2.6

585

120

COLORS

125

114

108

-40~ +85

2.0

3.3

3.1

2.5

3.8

3.6

572

460

515

120

700

120

125

114

3.3

3.8

N/A

800

120

Units

µA

°C

mcd

Deg

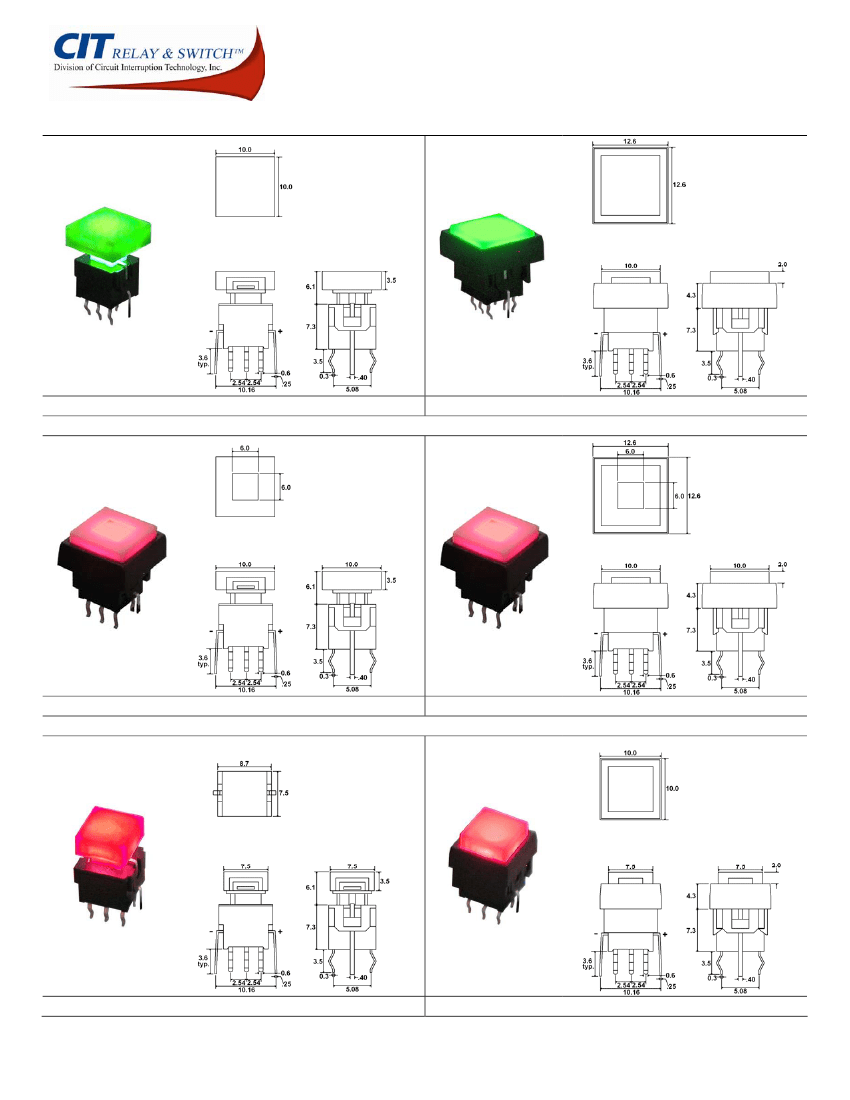

SCHEMATICS & PC LAYOUT

SINGLE COLOR LED

DUAL COLOR LED

www.citswitch.com

phone – 763.535.2339 fax – 763.535.2194
