B500C3700-2200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B500C3700-2200

B500C3700-2200: Description2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size127KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

B500C3700-2200 Overview

2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE

B500C3700-2200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	R-PSIP-W4
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	2.7 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

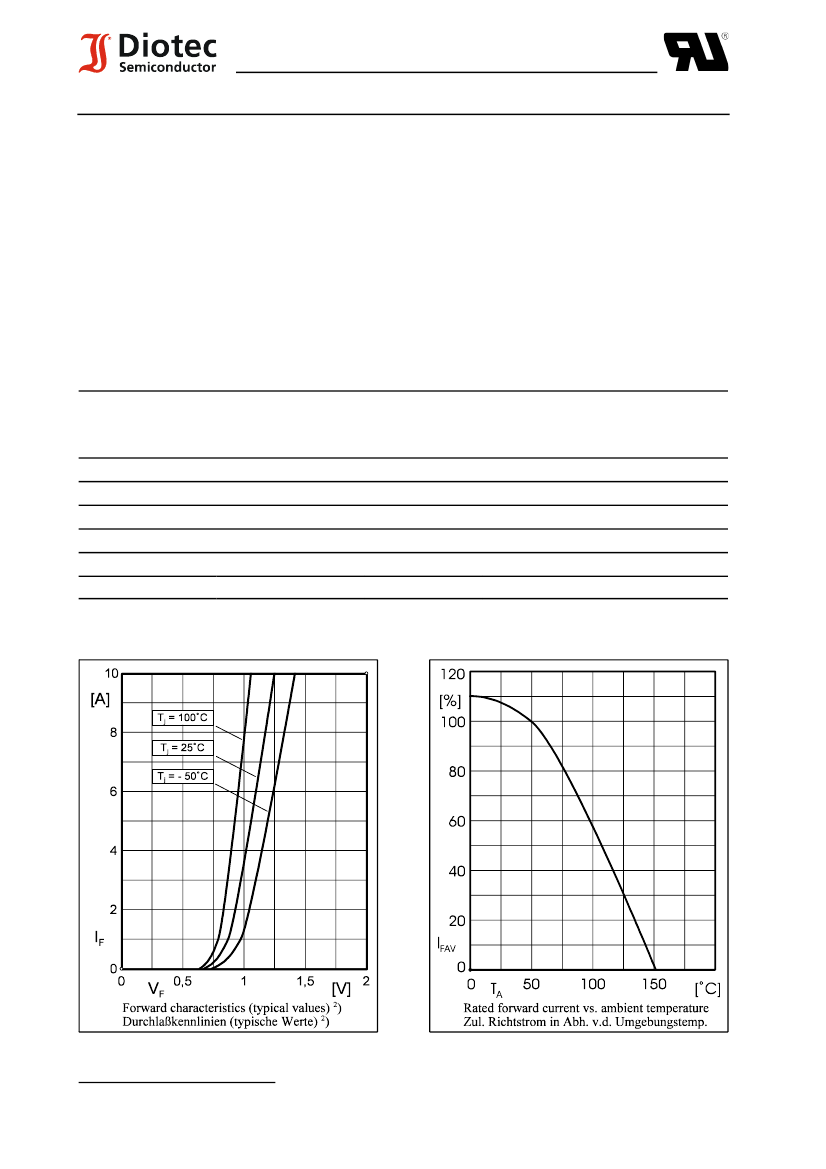

B…C 3700-2200

Silicon-Bridge Rectifiers

Silizium-Brückengleichrichter

Nominal current – Nennstrom

Alternating input voltage

Eingangswechselspannung

Plastic case

Kunststoffgehäuse

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging: bulk

Standard Lieferform: lose im Karton

Dimensions / Maße in mm

3.7 A / 2.2 A

40…500 V

32 x 5.6 x 17 [mm]

see page 22

s. Seite 22

see page 28

siehe Seite 28

Mounting clamp BO 2

Befestigungsschelle BO 2

Recognized Product – Underwriters Laboratories Inc.® File E175067

Anerkanntes Produkt – Underwriters Laboratories Inc.® Nr. E175067

Maximum ratings

Type

Typ

B40C 3700-2200

B80C 3700-2200

B125C 3700-2200

B250C 3700-2200

B380C 3700-2200

B500C 3700-2200

Alternating input voltage

Eingangswechselspannung

VRMS

[V]

125

250

380

500

Grenzwerte

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

RRM

[V]

)

160

250

600

800

1000

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 Hz half sine-wave

Stoßstrom für eine 50 Hz Sinus-Halbwelle

Rating for fusing – Grenzlastintegral, t < 10 ms

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

f > 15 Hz

= 25

FRM

FSM

30 A

)

150 A

110 A

– 50...+150

) Valid for one branch – Gültig für einen Brückenzweig

) Valid, if leads are kept at ambient temperature at a distance of 10 mm from case

Gültig, wenn die Anschlußdrähte in 10 mm Abstand vom Gehäuse auf Umgebungstemperatur gehalten werden

11.02.2003

B500C3700-2200 Related Products

	B500C3700-2200	B250C3700-2200	B380C3700-2200	B40C3700	B40C3700-2200	B80C3700-2200
Description	2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE	2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE	2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE	2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE	2.7 A, 65 V, SILICON, BRIDGE RECTIFIER DIODE	2.7 A, 160 V, SILICON, BRIDGE RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
Maker	DIOTEC	DIOTEC	DIOTEC	-	DIOTEC	DIOTEC
package instruction	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	-	R-PSIP-W4	R-PSIP-W4
Reach Compliance Code	compli	compli	compli	-	compli	compli
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	-	R-PSIP-W4	R-PSIP-W4
Humidity sensitivity level	1	1	1	-	1	1
Maximum non-repetitive peak forward current	150 A	150 A	150 A	-	150 A	150 A
Number of components	4	4	4	-	4	4
Phase	1	1	1	-	1	1
Number of terminals	4	4	4	-	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-	-50 °C	-50 °C
Maximum output current	2.7 A	2.7 A	2.7 A	-	2.7 A	2.7 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE
Maximum repetitive peak reverse voltage	1000 V	600 V	800 V	-	80 V	160 V
surface mount	NO	NO	NO	-	NO	NO
Terminal form	WIRE	WIRE	WIRE	-	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
