Part Number

Search

B500D

Description
BRIDGE RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size161KB,2 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

B500D Online Shopping

Suppliers Part Number Price MOQ In stock
B500D - - View Buy Now

B500D Overview

BRIDGE RECTIFIER DIODE

B500D Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionR-PDIP-T4
Contacts4
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresUL RECOGNIZED
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
JESD-30 codeR-PDIP-T4
JESD-609 codee2
Maximum non-repetitive peak forward current40 A
Number of components4
Phase1
Number of terminals4
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
surface mountNO
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

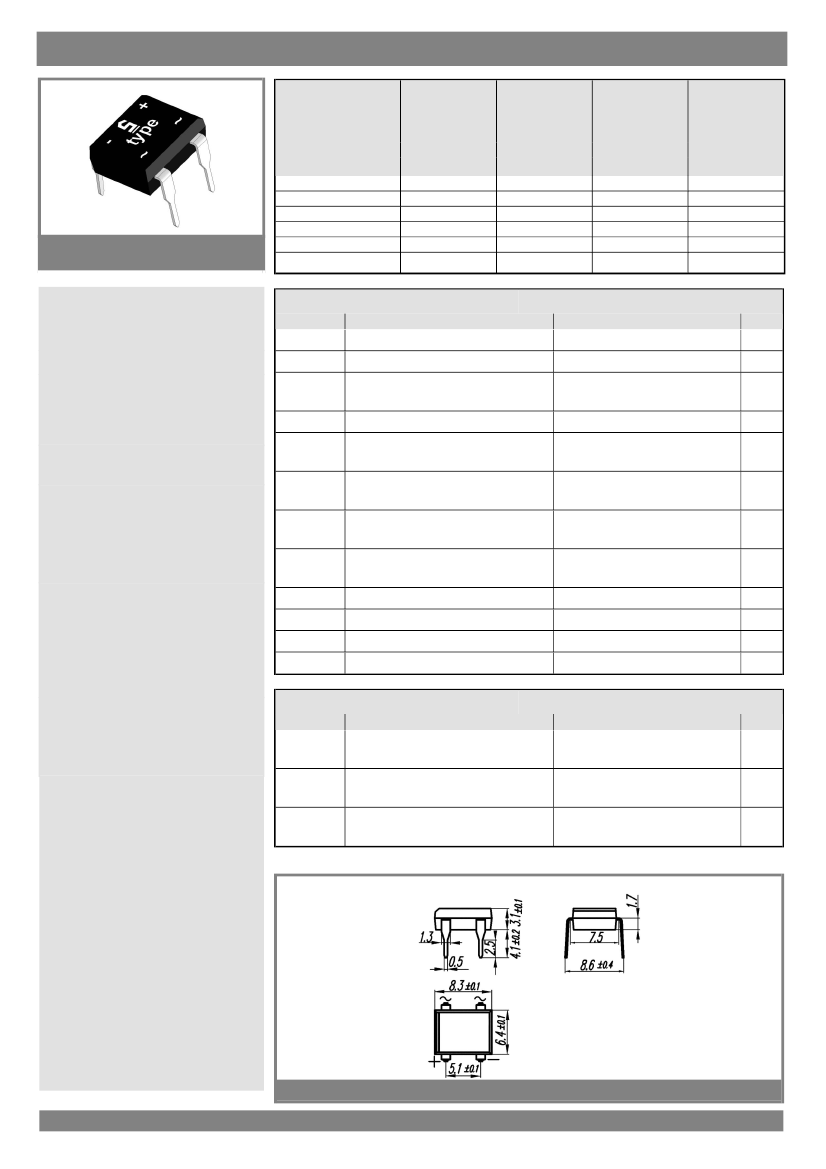

B 40D ... B 500D
Square bridge
Si-Bridge Rectifiers
B 40D ... B 500D
Forward Current: 1,0 A
Reverse Voltage: 80 to 1000 V
Absolute Maximum Ratings
Symbol Conditions
Values
Units
Publish Data
Features
Mechanical Data
Characteristics
Symbol Conditions
Values
Units
Dimensions in mm
1
24-03-2005 SCT
© by SEMIKRON

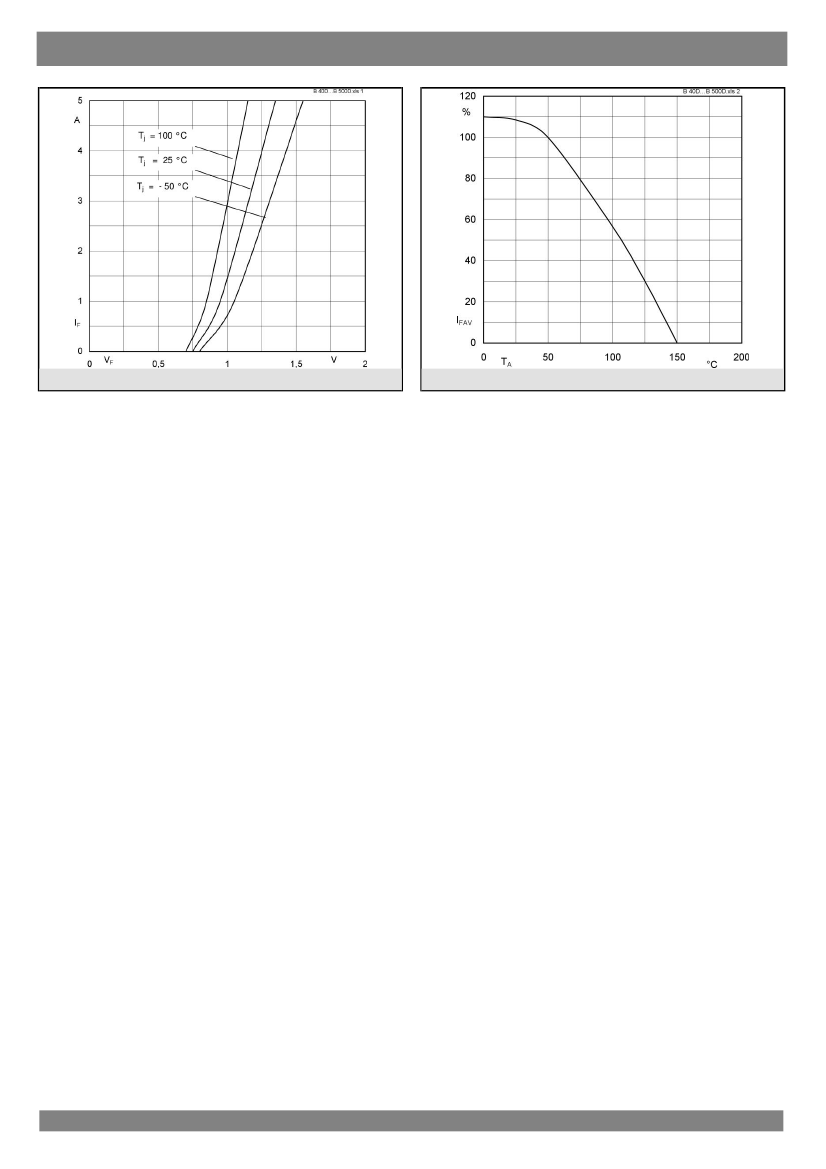

B500D Related Products

B500D B125D B250D B40D B80D B380D
Description BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
package instruction R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4
Contacts 4 4 4 4 4 4
Reach Compliance Code unknow unknow unknow unknow unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Configuration BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS BRIDGE, 4 ELEMENTS
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
JESD-30 code R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4 R-PDIP-T4
JESD-609 code e2 e2 e2 e2 e2 e2
Maximum non-repetitive peak forward current 40 A 40 A 40 A 40 A 40 A 40 A
Number of components 4 4 4 4 4 4
Phase 1 1 1 1 1 1
Number of terminals 4 4 4 4 4 4
Maximum output current 1 A 1 A 1 A 1 A 1 A 1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 250 V 600 V 80 V 160 V 800 V
surface mount NO NO NO NO NO NO
Terminal surface Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maker - SEMIKRON SEMIKRON SEMIKRON SEMIKRON -
