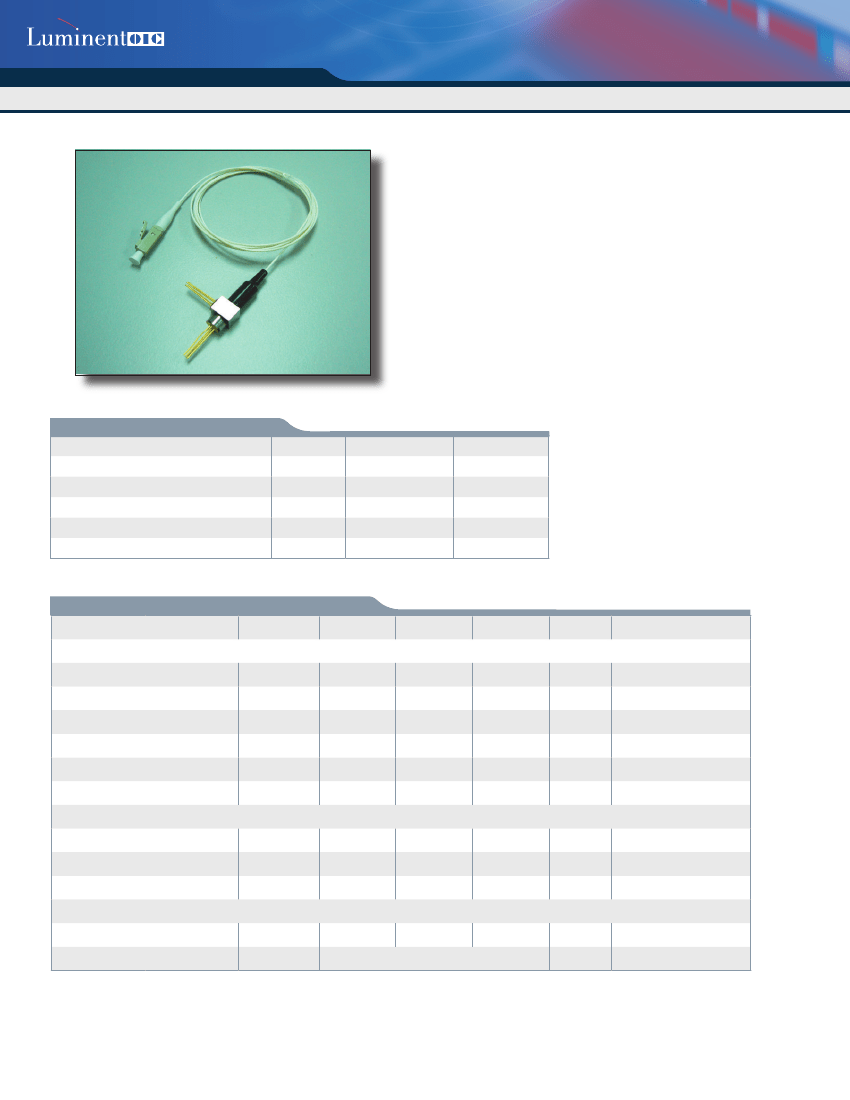

1550nm Emitting , 1310nm Receiving (PIN-TIA, 3.3V),
Bi-directional Diplexer Optical Module
C-15/13-F04-P-NLCH-XX
Features
• Multi fiber bi-directional operation
• Laser diode with multi-quantum- well structure
• Low threshold current
• InGaAs/InP PIN Photodiode with trans-impedance amplifier
• High sensitivity with AGC*
• Differential ended output
• Single Supply Voltage +3.3V
• Integrated WDM coupler
• Un-cooled operation from -40ºC to +85ºC
• Hermetically sealed active component
• Multi mode fiber pigtailed with optional LC connector
• Design for fiber optic networks
• RoHS Compliant available
Absolute Maximum Rating (Tc=25ºC)
Parameter
Fiber Output Power
LD Reverse Voltage
PIN-TIA Voltage
Operating Temperature
Storage Temperature
H
Symbol
P
f
V
RLD
V
CC
T
opr
T
stg
Value
2(H)
2
4
-40 to +85
-40 to +85
Unit
mW
V
V
ºC
ºC
(All optical data refer to a coupled 62.5/125µm Multimode fiber)
Optical and Electrical Characteristics( Tc=25ºC)
Parameter
Laser Diode
Optical Output Power
Peak Wavelength
Spectrum Width (RMS)
Threshold Current
Forward Voltage
Rise/Fall Time
H
Symbol
P
f
λ
∆λ
I
th
V
F
t
r/
t
f
Min
1
1530
-
-
-
-
Typical
1.6
1550
-
10
1.2
-
Max
-
1570
3
15
1.5
0.3
Unit
mW
nm
nm
mA
V
ns
Test Condition
CW, I
th
+ 25mA , kink free
CW, P
f
=P
f
(Min)
CW, P
f
=P
f
(Min)
CW
CW, P
f
=P
f
(Min)
I
bias=Ith
,10% to 90%
Monitor Diode
Monitor Current
Dark Current
Capacitance
I
m
I
DARK
C
t
100
-
-
-
-
6
-
0.1
15
µA
µA
p
F
CW, Pf=Pf(Min),VRPD=2V
V
RPD
=5V
V
RPD
=5V, f=1MHz
Module
Tracking Error
Optical Crosstalk
∆P
f
/P
f
CRT
-1.5
-
< -45
1.5
dB
dB
APC, -40 to +85ºC
Note:
1.Pin assignment can be customized.
2.Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS843-JAN0306
rev. A.1
1
1550nm Emitting , 1310nm Receiving (PIN-TIA, 3.3V),
Bi-directional Diplexer Optical Module
C-15/13-F04-P-NLCH-XX
Detector
λ=1100-1360nm
DC Electrical Characteristics( Tc=25ºC)
Parameter
Power Supply
Differential Output Voltage
Supply Current (RL-50Ω)
Symbol
Vcc
V
d
I
cc
Min
3.0
-
-
Typical
3.3
260
21
Max
3.6
450
30
Unit
V
mV
mA
Test Condition
AC/Optical and Electrical Characteristics( Tc=25ºC)
Parameter
Detection Range
Gain @ 10 Mbps Differential
Bandwidth
Saturation Power
Sensitivity
Output Resistance
Symbol
Min
1100
Typical
1310
7
470
-6
-33
50
Max
1360
-
-
-
-30
52
Unit
nm
V/mW
MHz
dBm
dBm
ohm
Test Condition
-
Measure differentially,AC
coupled,RL=50
Ω
-
BER<10-
10
@622Mbps
PRBS 2
23
-1,Er=10dB
BER<10-
10
@622Mbps
PRBS 2
23
-1,Er=10dB
-
G
BW
Psat
Sens.
Rout
6
404
-7
-
48
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS843-JAN0306
rev. A.1
1550nm Emitting , 1310nm Receiving (PIN-TIA, 3.3V),
Bi-directional Diplexer Optical Module
C-15/13-F04-P-NLCH-XX

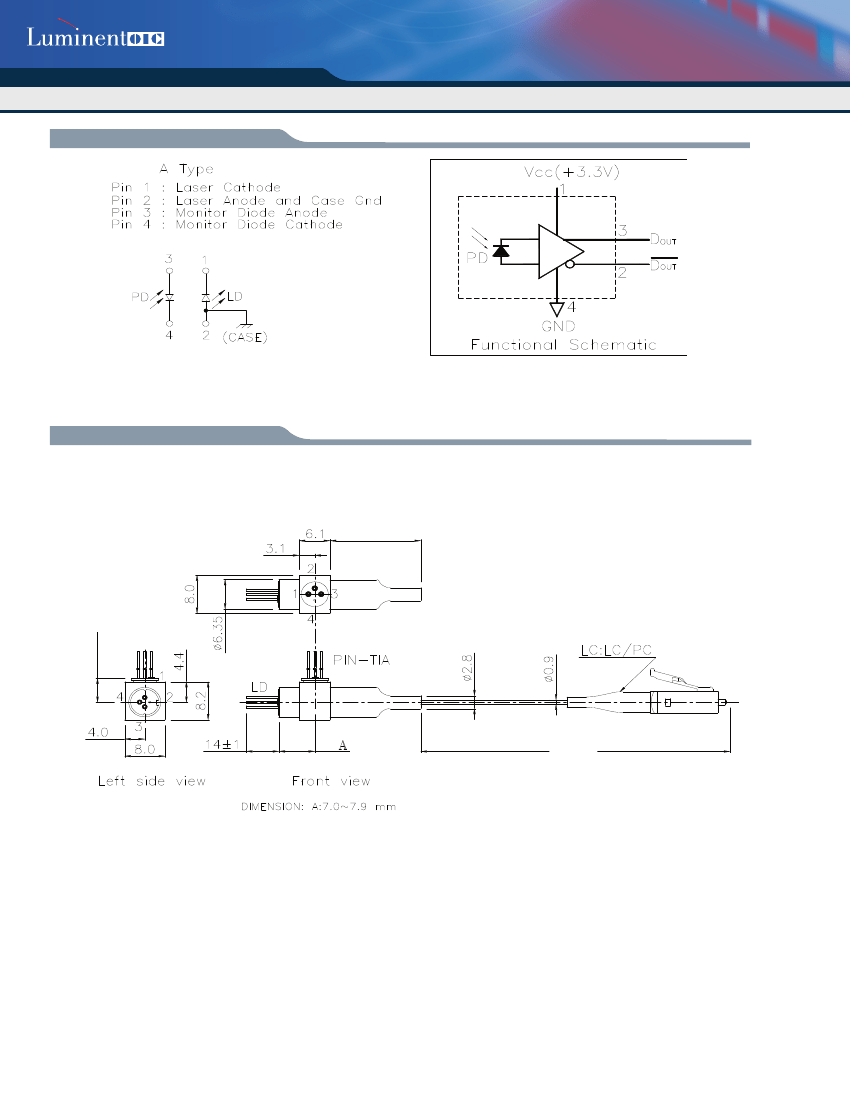

Pin Assignment
Outline Demensions
Units in mm.
Part Number: C-15/13-F04-P-NLCH-XX
Top view
19.4
4.9~5.7
1000
+200
-0
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS843-JAN0306
rev. A.1
1550nm Emitting , 1310nm Receiving (PIN-TIA, 3.3V),
Bi-directional Diplexer Optical Module
C-15/13-F04-P-NLCH-XX
Ordering Information
C-15/13-F04-P-NLCH-XX
1550nm Transmitter
1310nm Receiver
Package
P=Pigtail
Connector
LC
04: 622 Mb/s PIN-TIA+3.3V
Fiber Output Power
H
Fiber Application
N=62.5/125µm
RoHS Compliant
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
Warnings
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended.
Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at LuminentOIC’s sole and absolute discretion. LuminentOIC warrants
performance of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated
as “preliminary” are given to describe components only, and LuminentOIC expressly disclaims any and all warranties for said products, including express,
implied, and statutory warranties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to
the company’s Terms and Conditions of Sale for further warranty information.
LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or
intellectual property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and
LuminentOIC makes no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights.
Products described in this document are NOT intended for use in implantation or other life support applications where malfunction may result in injury
or death to persons. LuminentOIC customers using or selling products for use in such applications do so at their own risk and agree to fully defend and
indemnify LuminentOIC for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that LuminentOIC is not liable for any actual,
consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must con-
tact LuminentOIC to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© LuminentOIC, Inc. 2006
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS843-JAN0306
rev. A.1
