Product Bulletin
Surface Mount Ceramic Chip Capacitors – Ultra Stable X8R Dielectric
KEMET’s Ultra Stable X8R Dielectric features a 150°C maximum operating temperature, offering the latest in high temperature di-
electric technology and therefore a reliable choice for extreme temperature applications. It offers the same temperature capability
as conventional X8R, but without the capacitance loss due to applied DC voltage. Ultra Stable X8R exhibits no capacitance loss
and is a suitable replacement for higher capacitance and larger footprint devices that fail to offer capacitance stability. Product ap-
plications include harsh environments such as Down Hole (Oil Exploration), Automotive (Under Hood), Military and Aerospace.

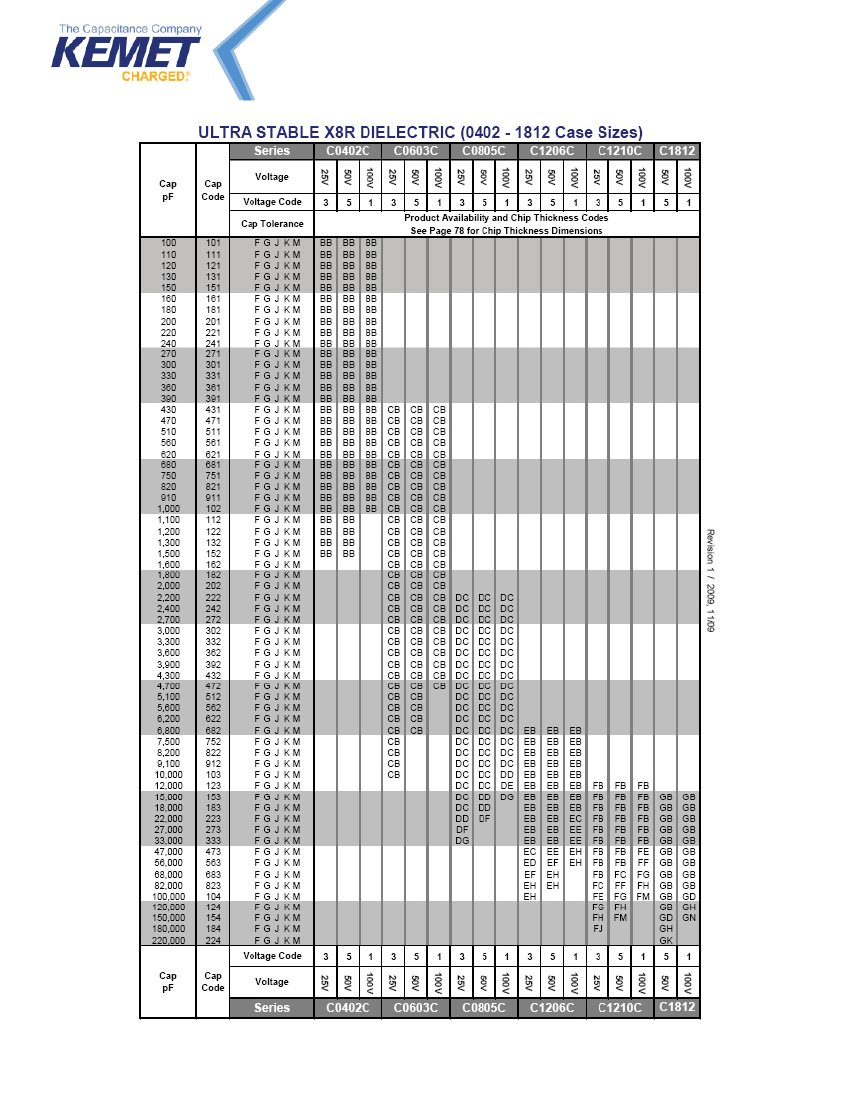

Six standard package options are available which include EIA 0402, 0603, 0805, 1206, 1210, and 1812 case sizes. Devices are
available in dc voltage ratings of 25V, 50V and 100V, with capacitance offerings ranging from 10pF to 0.22μF. Capacitance toler-
ances offerings include ±1%, ±2%, ±5%, ±10% and ±20%, with capacitance shift limited to ±15% from -55°C to +150°C.
All parts are environmentally friendly, in compliance with RoHS legislation (RoHS 6/6) and are being offered in both commercial
and automotive grades with 100% pure matte tin-plated terminations that allow for excellent solderability. A Sn/Pb termination
option is also available upon request.

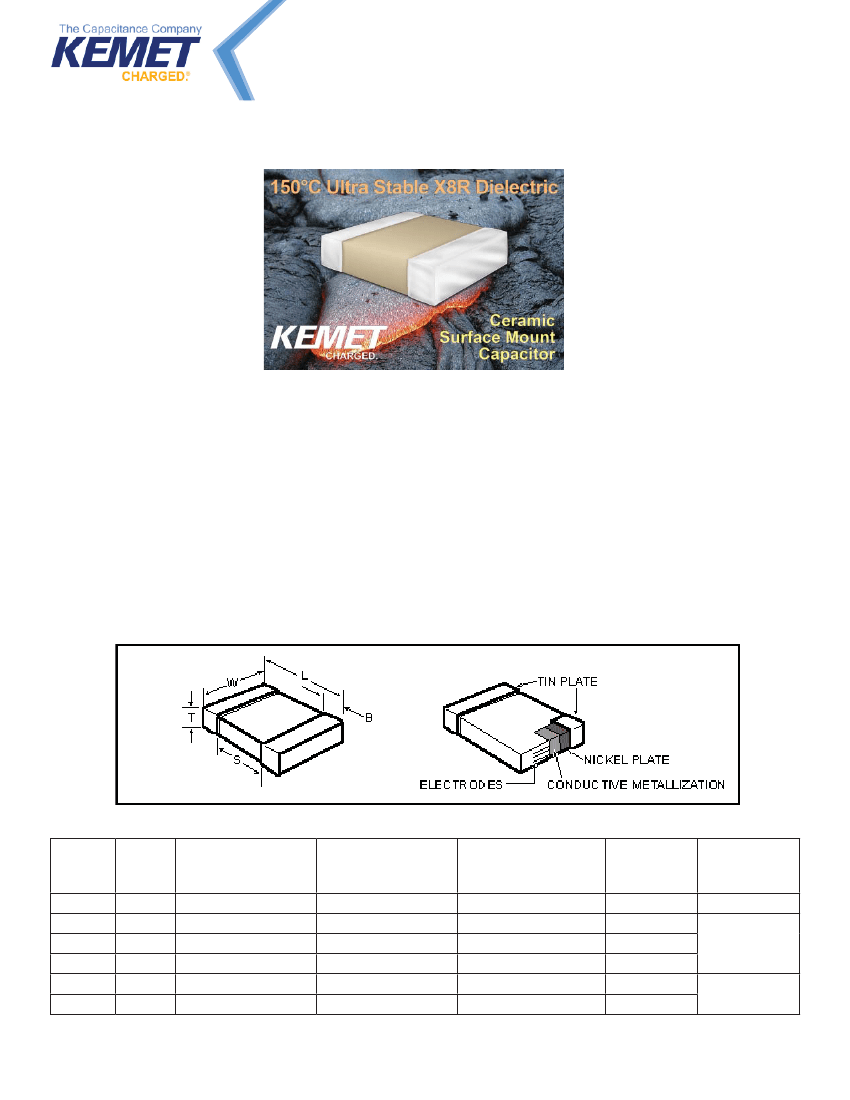

Outline Drawing

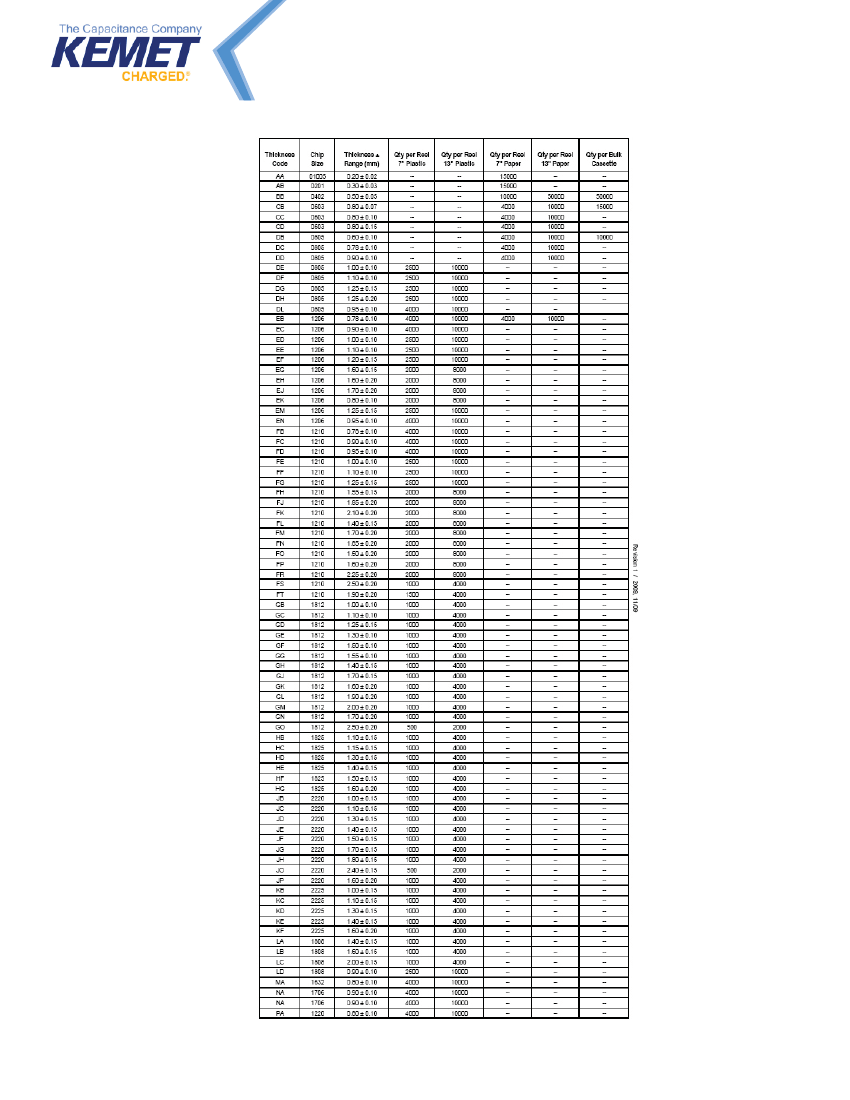

Dimensions - Millimeters (Inches)
EIA SIZE
CODE
0402
0603
0805
1206
1210
1812
METRIC
SIZE
CODE
1005
1608
2012
3216
3225
4520
L - LENGTH
1.0 (.04) ± .05 (.002)
1.6 (.063) ± .15 (.006)
2.0 (.079) ± .20 (.008)
3.2 (.126) ± .20 (.008)
3.2 (.126) ± .20 (.008)
4.5 (.177) ± .3 (.012)
W - WIDTH
0.5 (.02) ± .05 (.002)
0.8 (.032) ± .15 (.006)
1.25 (.049) ± .20 (.008)
1.6 (.063) ± .20 (.008)
2.5 (.098) ± .20 (.008)
3.2 (.126) ± .3 (.012)
B - BANDWIDTH
0.30 (.012) ±.10 (.004)
0.35 (.014) ± .15 (.006)
0.50 (.02) ± .25 (.010)
0.50 (.02) ± .25 (.010)
0.50 (.02) ± .25 (.010)
0.6 (.024) ± .35 (.014)
S
SEPARATION
minimum
0.3 (.012)
0.7 (.028)
0.75 (.030)
N/A
N/A
N/A
MOUNTING
TECHNIQUE
Solder Reflow
Solder Wave +
or
Solder Reflow
Solder Reflow
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4000 11/09
Product Bulletin
Qualification Certification:
Automotive Grade Available: AEC-Q200 Rev. C
RoHS-PRC (6/6) - 100% matte Sn termination
Electrical Parameters:
As detailed in the KEMET Surface Mount Catalog F3102 for X8R, with following specific requirements based on room temperature
(25°C) parameters:
• Operating Temperature Range: -55°C to +150°C
• Temperature Coefficient of Capacitance : ±15% (-55 to 150ºC)
• Insulation Resistance (IR) measured after 2 minutes at rated voltage @ 25°C:
Limit is 1000 megohm microfarads or 100GΩ, whichever of the two is smaller.
• Capacitance and Dissipation Factor (DF) measured under the following conditions:
1kHz and 1 Vrms
DF Limits are:
25 - 100 Volts: 2.5%
Ordering Information
C
Ceramic
1210
Case
Size
(L"x W")
0402
0603
0805
1206
1210
1812
C
Specification/
Series
C = Standard
184
Capacitance
Code (pF)
2 Sig. Digits +
Number of
Zeros
K
Capacitance
Tolerance
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
3
Voltage
3 = 25V
5 = 50V
1 = 100V
H
Dielectric
H = X8R
(Ultra
Stable)
A
Failure Rate/
Design
A = N/A
C
End Metallization
(Plated)
C = 100% Matte Sn
L = SnPb (5% min)
Soldering Process
All parts incorporate the standard KEMET barrier layer of pure nickel, with an overplate of pure tin to provide excellent solderability as
well as resistance to leaching. The recommended techniques are as follows:
• 0402 and
≥1210
Case Sizes - Solder Reflow Only
• 0603/0805/1206 Case Sizes - Solder Wave/Solder Reflow
Marking
These chips will be supplied unmarked. If required, they can be laser-marked as an extra option. Details on the marking format are
included in KEMET Surface Mount catalog F3102.
In general, the information in the KEMET Surface Mount catalog F3102 applies to these capacitors. The information in this bulletin
supplements that in the catalog.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F4000 11/09
