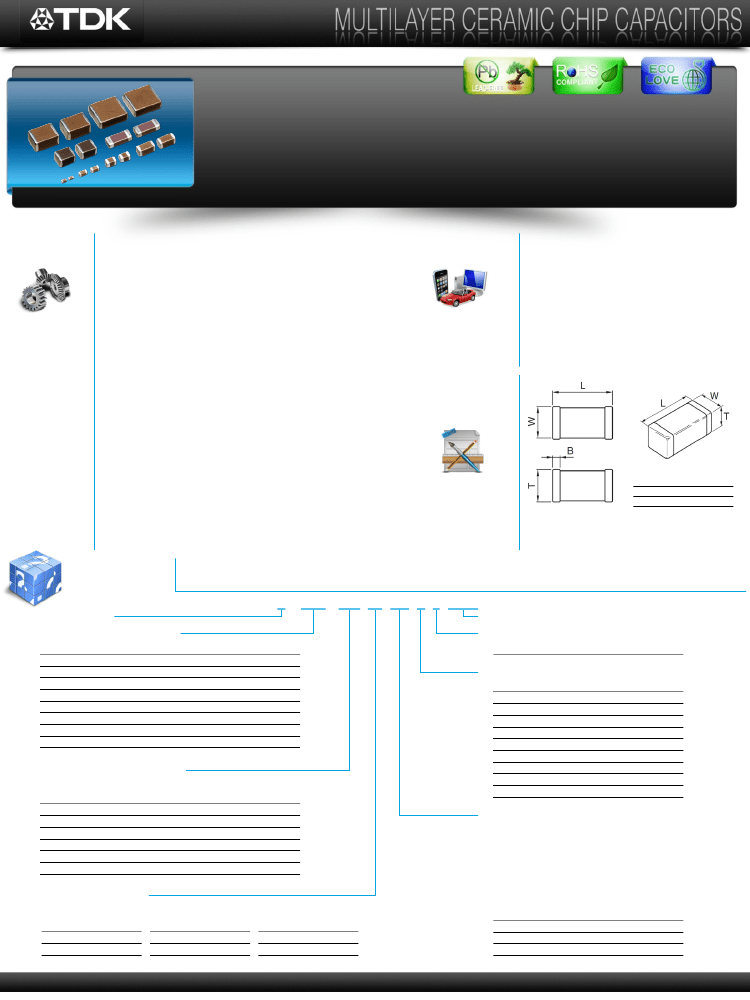

C Series
General Application
Type: C0402, C0603, C1005, C1608,
C2012, C3216, C3225, C4532, C5750
Features
• High capacitance has been achieved through precision
technologies that enable the use of multiple thinner
ceramic dielectric layers.
• A monolithic structure ensures superior mechanical
strength and reliability.
• High-accuracy automatic mounting is facilitated through
the maintenance of very precise dimensional tolerances.
• Composed of only ceramics and metals, these
capacitors provide extremely dependable performance,
exhibiting virtually no degradation even when subjected to
temperature extremes.
• Low stray capacitance ensures high conformity with
nominal values, thereby simplifying the circuit design
process.
• Low residual inductance assures superior frequency
characteristics.
• Because electrostatic capacity has been obtained up to
the electrolytic capacitor range, these capacitors offer
long service life and are optimally suited for power supply
designs that require high levels of reliability.
• Owing to their low ESR and excellent frequency
characteristics, these products are optimally suited for
high frequency and high-density type power supplies.
Applications
•
•
•
•
•
•
•
•
•
Electronics equipment
Mobile communications equipment
Office automation equipment
Automotive electronics
Test and measurement equipment
Hybrid ICs, etc.
Decoupling
Smoothing
Charge pump
Shape &
Dimensions
L
W
T
B
Body Length
Body Width
Body Height
Terminal Width
Dimensions in mm
Part Number
Construction
Series Name
Dimensions L x W (mm)
Case Code
C0402
C0603
C1005
C1608
C2012
C3216
C3225
C4532
C5750
C
2012
X7R 1E 105 K T XXXX
Length
0.40 ± 0.02
0.60 ± 0.03
1.00 ± 0.05
1.60 ± 0.10
2.00
±
0.20
3.20
±
0.20
3.20
±
0.40
4.50
±
0.40
5.70
±
0.40
Capacitance
Change
0±30 ppm/ºC
+350/-1000 ppm/ºC
±15%
+22%
±15%
±22%
+22/-82%
Voltage
Code
1C
1E
1V
Width
0.20 ± 0.02
0.30 ± 0.03
0.50 ± 0.05
0.80 ± 0.10
1.25
±
0.20
1.60
±
0.20
2.50
±
0.30
3.20
±
0.40
5.00
±
0.40
Temperature
Range
-55 to +125ºC
-25 to +85ºC
-55 to +85ºC
-55 to +105ºC
-55 to +125ºC
-55 to +125ºC
-33 to +85ºC
Voltage
Code
1H
Voltage
(DC)
50V
Internal Codes
Packaging Style
Capacitance Tolerance
Tolerance Code
W
B
C
D
E
G
J
K
M
Z
Packaging Code
T
Style
Tape & Reel
Temperature Characteristic
Temperature
Characteristics
C0G
SL
X5R
X6S
X7R
X7S
Y5V
Voltage
Code
0G
0J
1A
Rated Voltage (DC)
Voltage
(DC)
4V
6.3V
10V
Voltage
(DC)
16V
25V
35V
Nominal Capacitance (pF)
The capacitance is expressed in three digit
codes and in units of pico Farads (pF). The first
and second digits identify the first and second
significant figures of the capacitance. The third
digit identifies the multiplier. R designates a
decimal point.
Capacitance Code
0R5
010
102
105
Capacitance
0.5pF
1pF
1,000pF (1nF)
1,000,000pF (1µF)
Tolerance
± 0.05 pF
± 0.10 pF
± 0.25 pF
± 0.50 pF
± 0.20 pF
±
2%
±
5%
±
10%
±
20%
+80-20%
