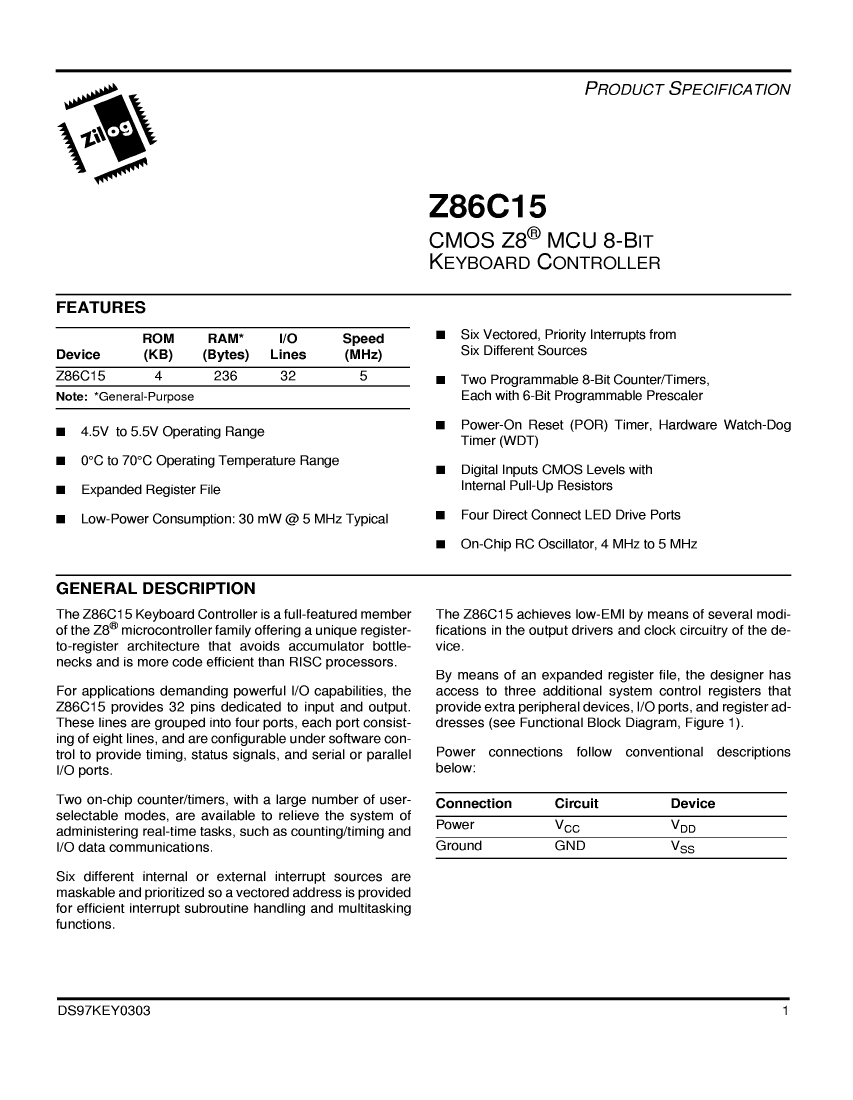

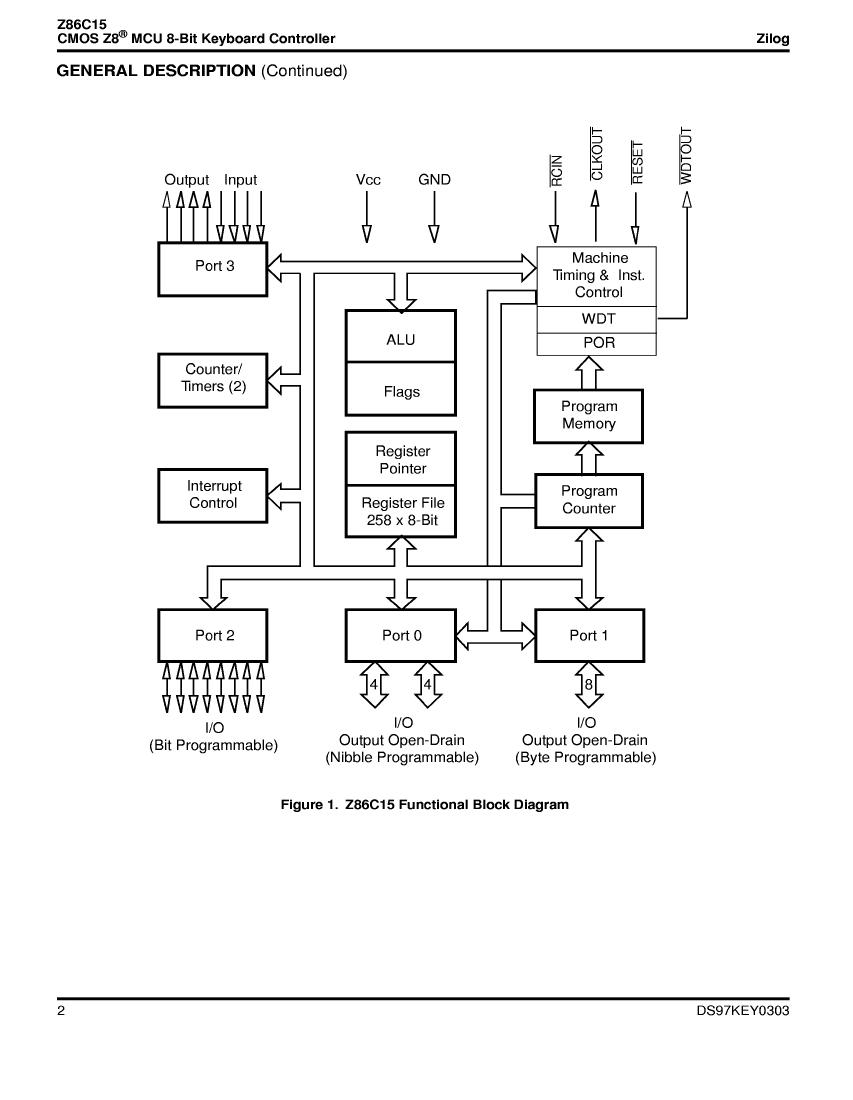

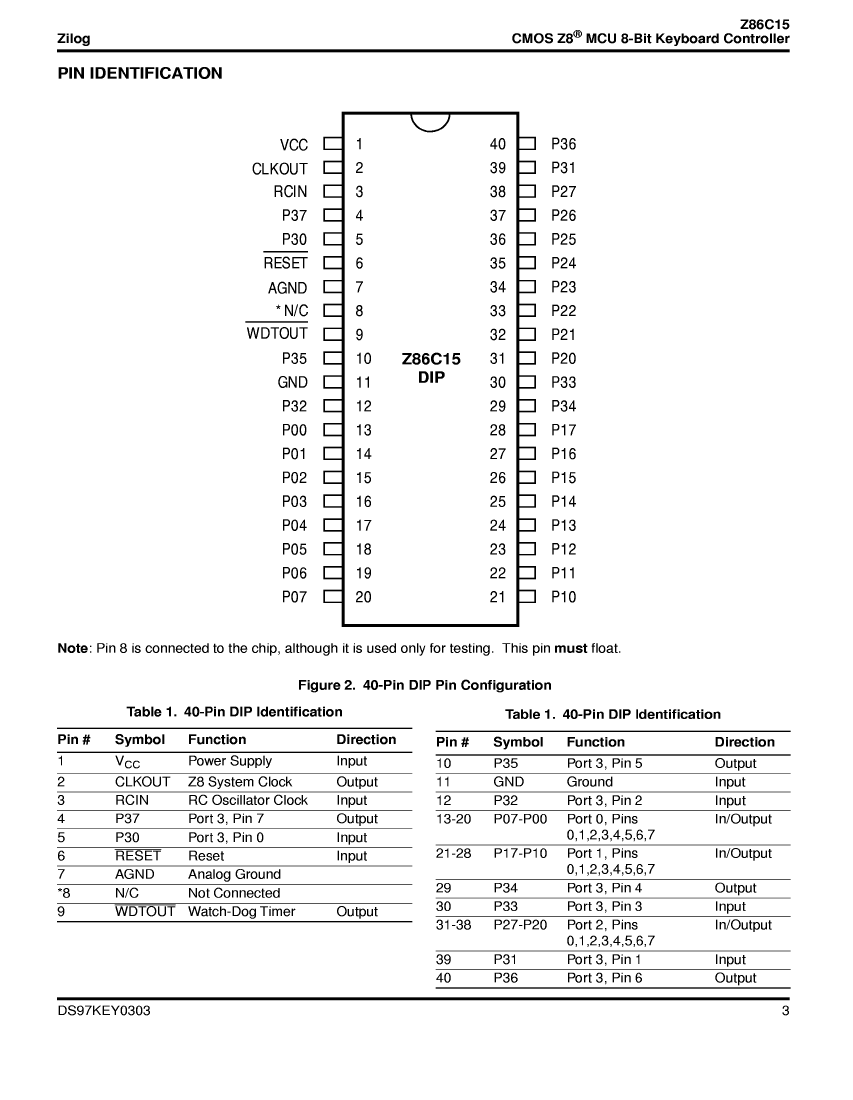

IC,KEYBOARD CONTROLLER,CMOS,DIP,40PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Zilog, Inc. |
| Parts packaging code | DIP |
| package instruction | DIP, DIP40,.6 |
| Contacts | 40 |
| Reach Compliance Code | compli |
| Has ADC | NO |
| Address bus width | |
| bit size | 8 |
| maximum clock frequency | 5 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | R-PDIP-T40 |
| JESD-609 code | e0 |
| length | 52.325 mm |
| Number of I/O lines | 32 |
| Number of terminals | 40 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP40,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| rom(word) | 4096 |
| ROM programmability | MROM |
| Maximum seat height | 4.24 mm |
| speed | 5 MHz |
| Maximum slew rate | 4 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Z86C1505PSC | Z86C1505FSC | |
|---|---|---|

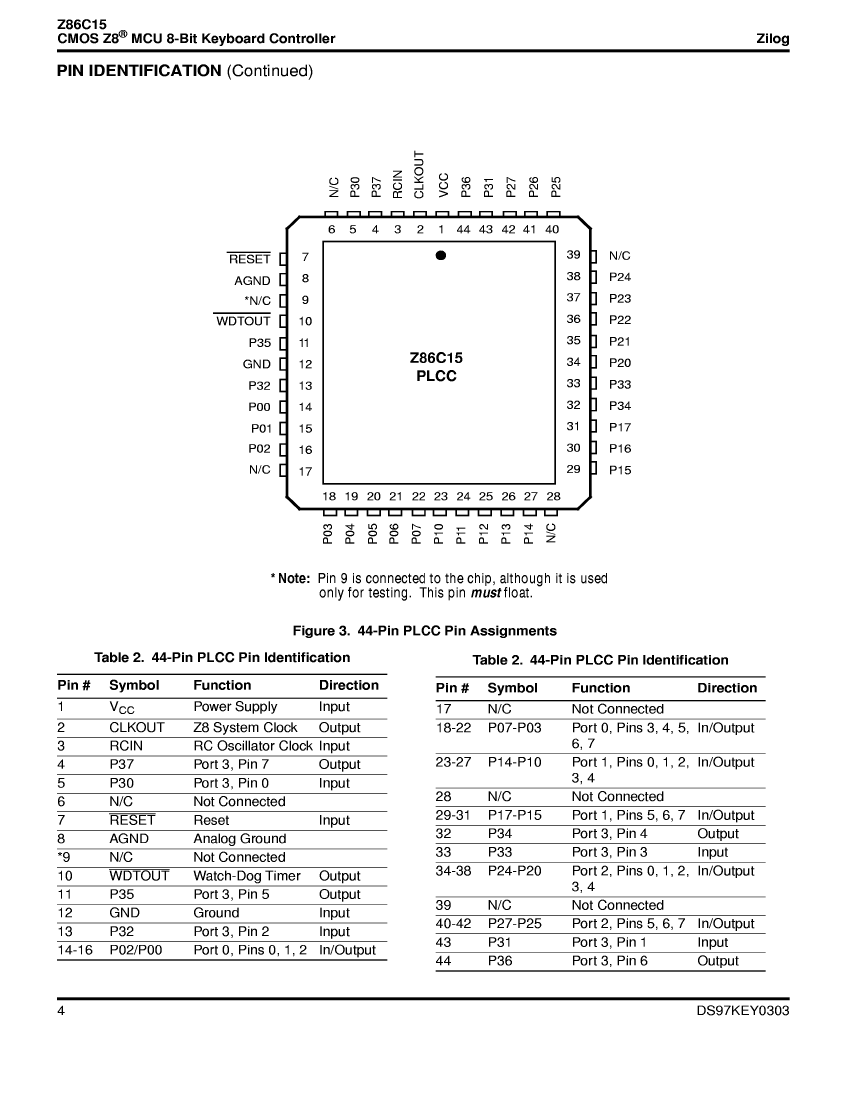

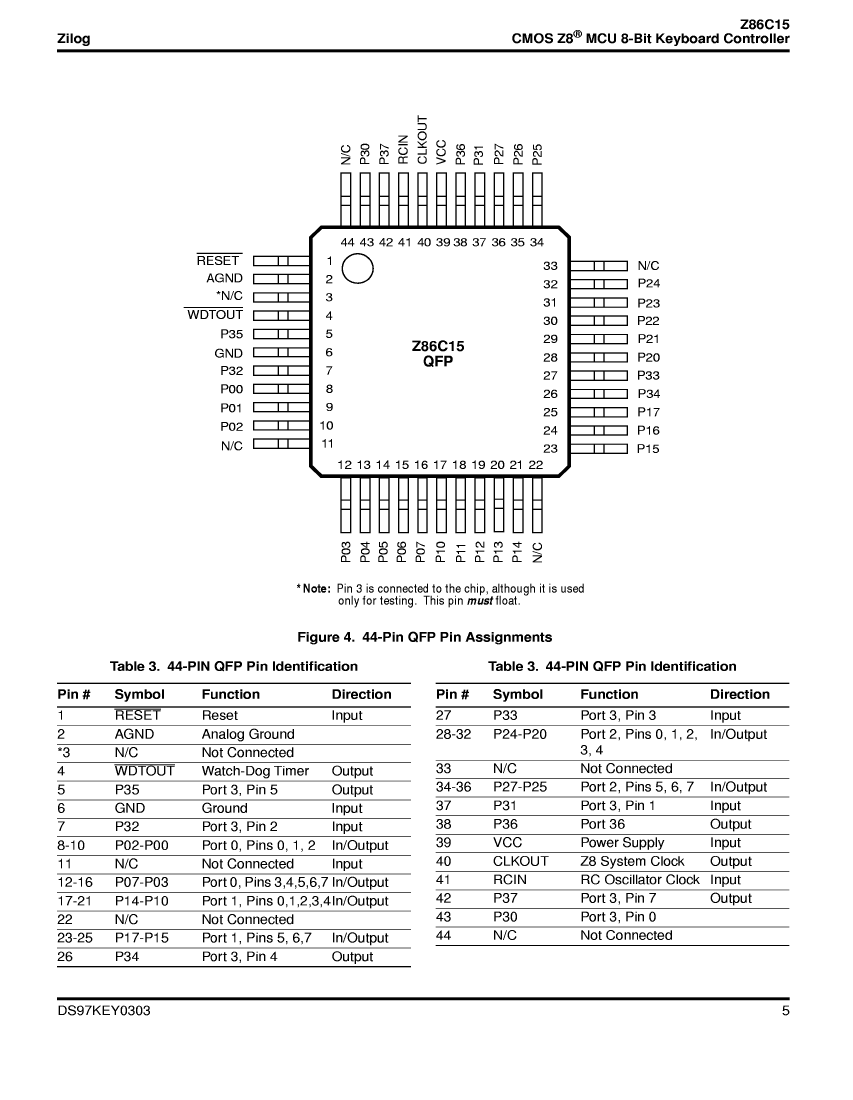

| Description | IC,KEYBOARD CONTROLLER,CMOS,DIP,40PIN | Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PQFP44, QFP-44 |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | Zilog, Inc. | Zilog, Inc. |
| Parts packaging code | DIP | QFP |
| package instruction | DIP, DIP40,.6 | QFP, QFP44,.57SQ,32 |
| Contacts | 40 | 44 |
| Reach Compliance Code | compli | unknown |
| Has ADC | NO | NO |
| bit size | 8 | 8 |
| maximum clock frequency | 5 MHz | 5 MHz |
| DAC channel | NO | NO |
| DMA channel | NO | NO |
| JESD-30 code | R-PDIP-T40 | S-PQFP-G44 |
| JESD-609 code | e0 | e0 |
| length | 52.325 mm | 10 mm |
| Number of I/O lines | 32 | 32 |
| Number of terminals | 40 | 44 |
| Maximum operating temperature | 70 °C | 70 °C |
| PWM channel | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QFP |
| Encapsulate equivalent code | DIP40,.6 | QFP44,.57SQ,32 |
| Package shape | RECTANGULAR | SQUARE |
| Package form | IN-LINE | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | 240 |
| power supply | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified |
| rom(word) | 4096 | 4096 |
| ROM programmability | MROM | MROM |
| Maximum seat height | 4.24 mm | 2.5 mm |
| speed | 5 MHz | 5 MHz |
| Maximum slew rate | 4 mA | 4 mA |
| Maximum supply voltage | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V |
| surface mount | NO | YES |
| technology | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL |
| Terminal surface | TIN LEAD | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 0.8 mm |
| Terminal location | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 10 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER |
