5962-01-107-2127 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-107-2127

5962-01-107-2127: DescriptionIC IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,DIP,24PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size272KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-107-2127 Overview

IC IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,DIP,24PIN, Digital to Analog Converter

5962-01-107-2127 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	unknow
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T24
Maximum linear error (EL)	0.006%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15,-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum slew rate	25 mA
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

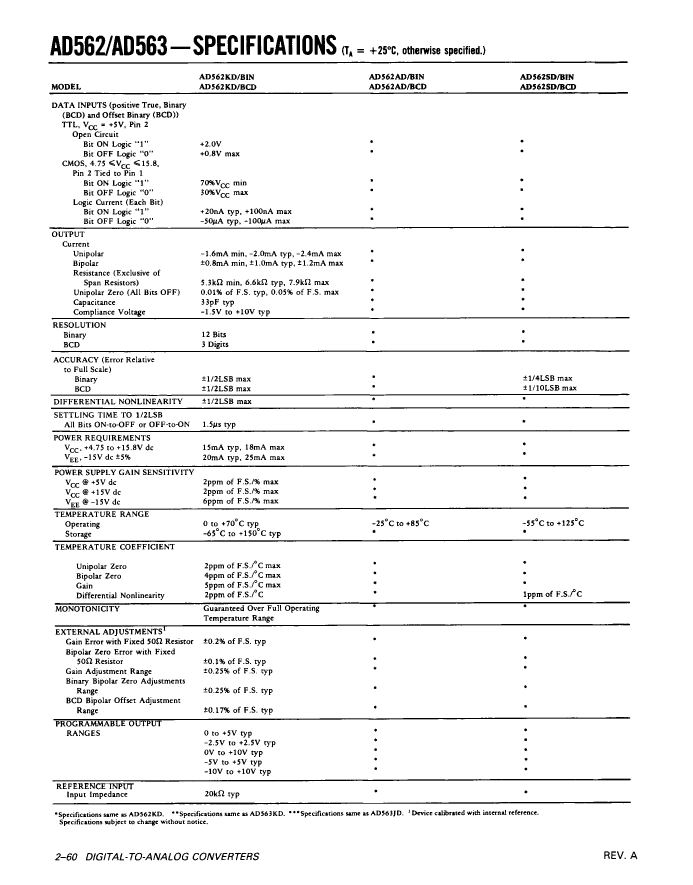

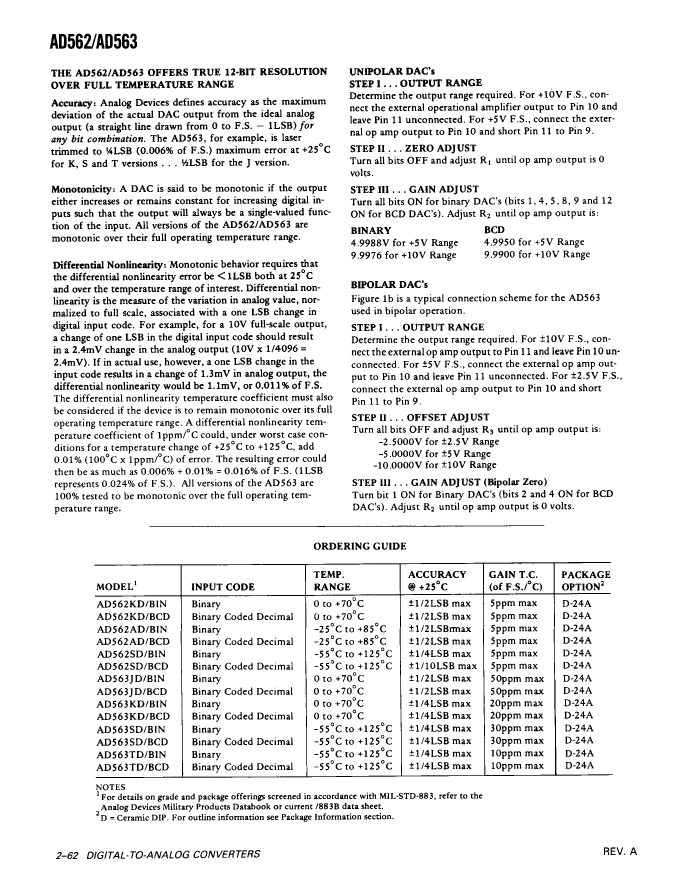

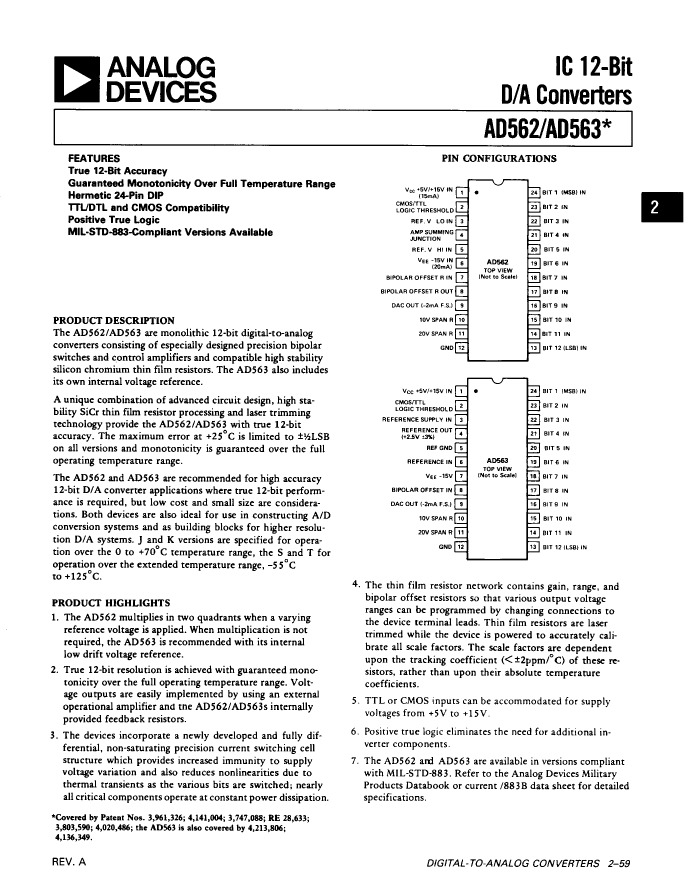

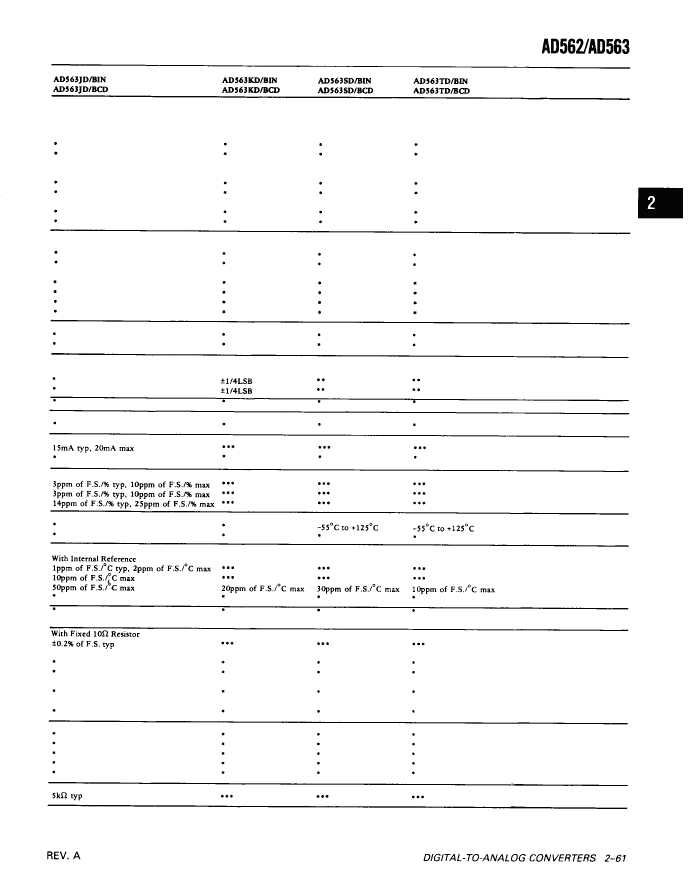

Preview

Download Datasheet

View All

5962-01-107-2127 Related Products

	5962-01-107-2127	AD562SD/BIN/883B	AD562KN/BIN	AD563SD/883B	AD563TD/883B	PM562GV
Description	IC IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,DIP,24PIN, Digital to Analog Converter	AD562SD/BIN/883B	IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,DIP,24PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,12-BIT,CMOS,DIP,24PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,24PIN, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	compliant	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-PDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24
Maximum linear error (EL)	0.006%	0.006%	0.012%	0.006%	0.006%	0.006%
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5/15,-15 V	5/15,-15 V	5/15,-15 V	5/15,-15 V	5/15,-15 V	5/15,-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	BIPOLAR	BIPOLAR	CMOS	CMOS	BIPOLAR
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	ADI	-	ADI	ADI	ADI	ADI
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Maximum slew rate	25 mA	25 mA	-	25 mA	25 mA	-
JESD-609 code	-	e0	e0	e0	e0	e0
Terminal surface	-	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
