5962-01-107-6940 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-107-6940

5962-01-107-6940: DescriptionCOMPARATOR, ONE BIT ADC; CategoryAnalog mixed-signal IC converter; File Size191KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-107-6940 Overview

COMPARATOR, ONE BIT ADC

5962-01-107-6940 Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Maximum analog input voltage	10 V
Converter type	ADC, ONE BIT COMPARATOR
JESD-30 code	R-XDIP-T18
Maximum linear error (EL)	0.049%
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-12/-15 V
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

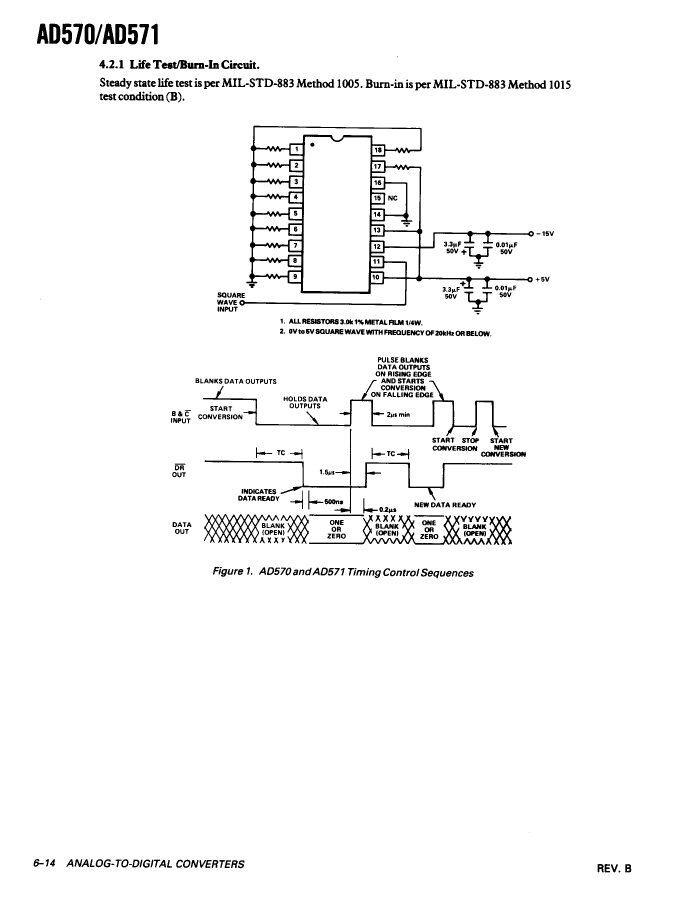

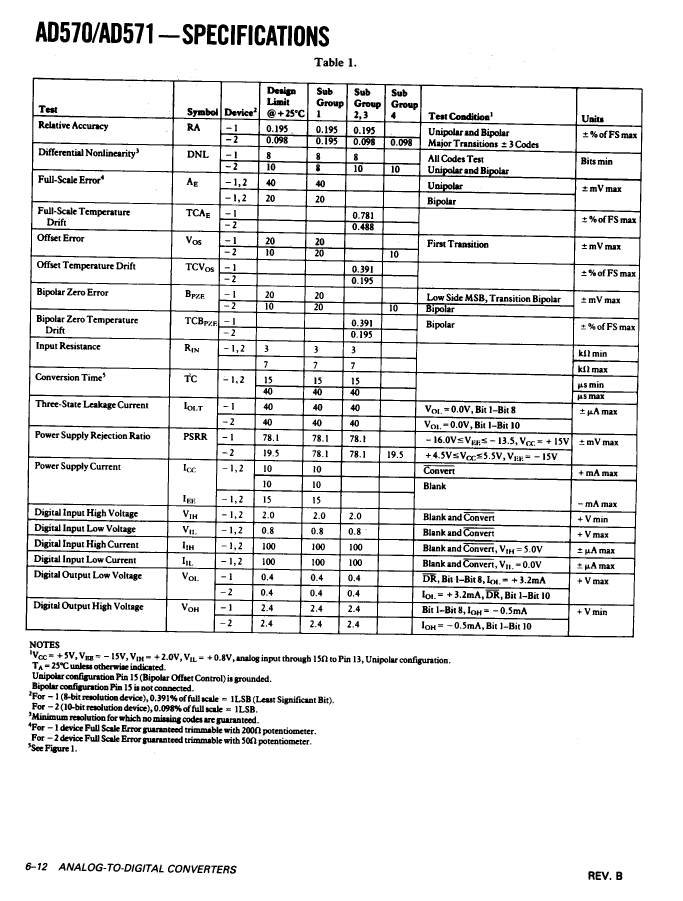

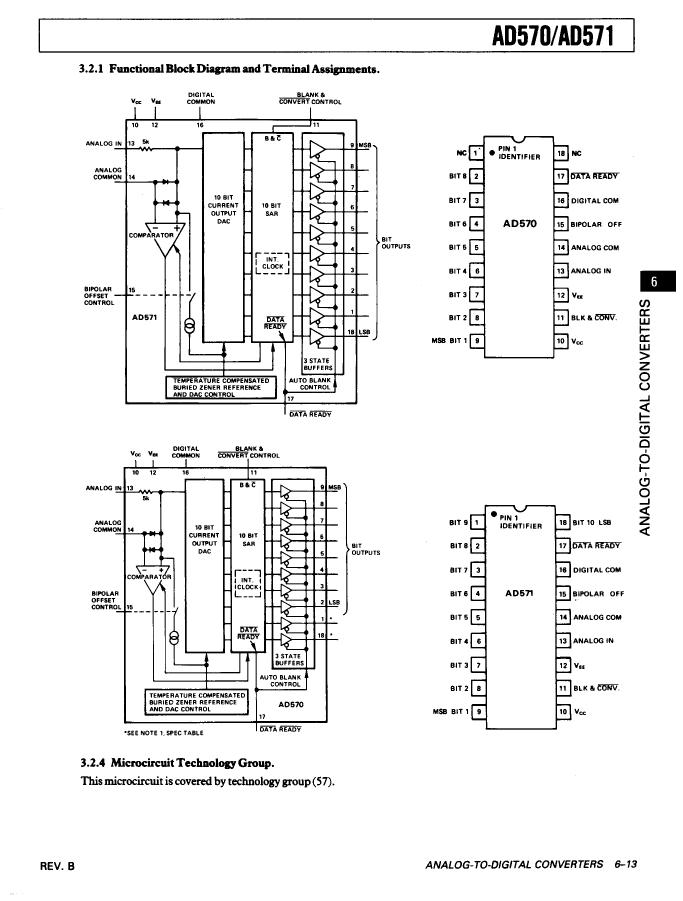

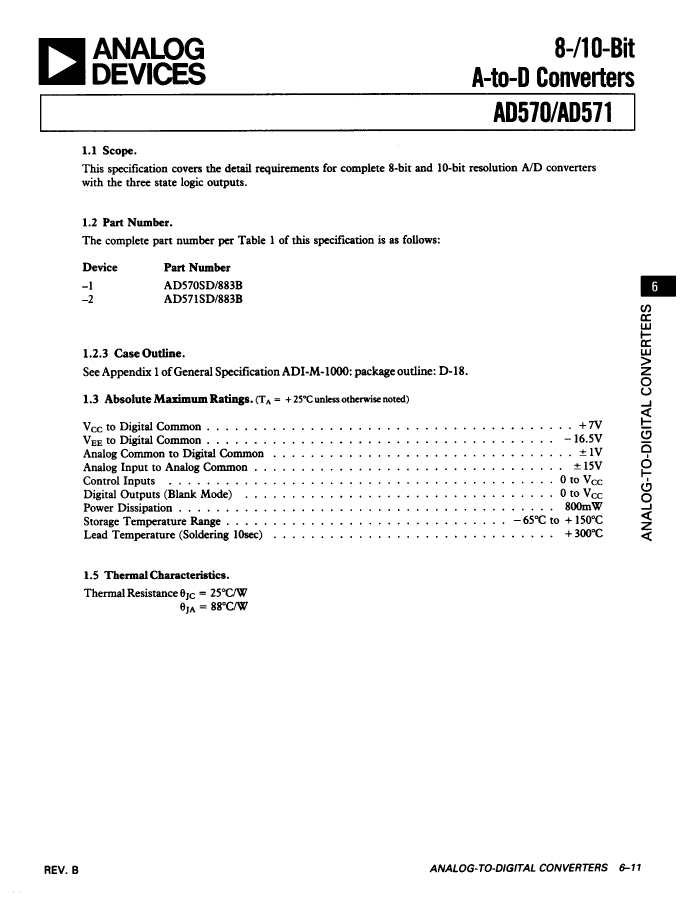

Preview

Download Datasheet

View All

5962-01-107-6940 Related Products

	5962-01-107-6940	5962-01-201-1762	5962-01-224-1250	5962-01-148-3044	5962-01-252-1496	AD570JN	AD570JCHIPS	AD571JCHIPS	AD571JD/+	5962-01-174-7679
Description	COMPARATOR, ONE BIT ADC	IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,18PIN	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,18PIN	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,18PIN	IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,18PIN	IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIP,18PIN	IC IC,A/D CONVERTER,SINGLE,8-BIT,BIPOLAR,DIE, Analog to Digital Converter	IC IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIE, Analog to Digital Converter	IC IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,18PIN, Analog to Digital Converter	IC,A/D CONVERTER,SINGLE,10-BIT,BIPOLAR,DIP,18PIN
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown	compliant	compliant	unknown	unknown
Maximum analog input voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Converter type	ADC, ONE BIT COMPARATOR	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
Number of digits	10	10	8	8	10	8	8	10	10	10
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIE OR CHIP	DIE OR CHIP	DIP18,.3	DIP18,.3
power supply	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Maker	ADI	-	-	ADI	-	ADI	ADI	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP	DIP	DIP	-	-	-	-	DIP
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	-	-	-	-	DIP, DIP18,.3
Contacts	18	18	18	18	18	-	-	-	-	18
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	EAR99	EAR99	EAR99	3A001.A.2.C
JESD-30 code	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-PDIP-T18	-	-	R-XDIP-T18	R-XDIP-T18
Maximum linear error (EL)	0.049%	0.098%	0.2%	0.2%	0.098%	-	0.2%	0.098%	0.098%	0.098%
Number of terminals	18	18	18	18	18	18	-	-	18	18
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	-	-	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	-	-	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	-	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	-	-	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	-	DUAL	DUAL
Base Number Matches	-	1	1	1	1	1	1	1	1	-
