CDR14BP302AGSM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CDR14BP302AGSM

CDR14BP302AGSM: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, BP, 30ppm/Cel TC, 0.003uF, Surface Mount, 1111, CHIP; CategoryPassive components capacitor; File Size147KB，9 Pages; ManufacturerAVX

Download Datasheet Parametric View All

CDR14BP302AGSM Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 2% +Tol, 2% -Tol, BP, 30ppm/Cel TC, 0.003uF, Surface Mount, 1111, CHIP

CDR14BP302AGSM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 1111
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	9 weeks
capacitance	0.003 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.676 mm
JESD-609 code	e0
length	2.79 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	WAFFLE PACK
positive tolerance	2%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-55681
size code	1111
surface mount	YES
Temperature characteristic code	BP
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
width	2.79 mm

Preview

Download Datasheet

View All

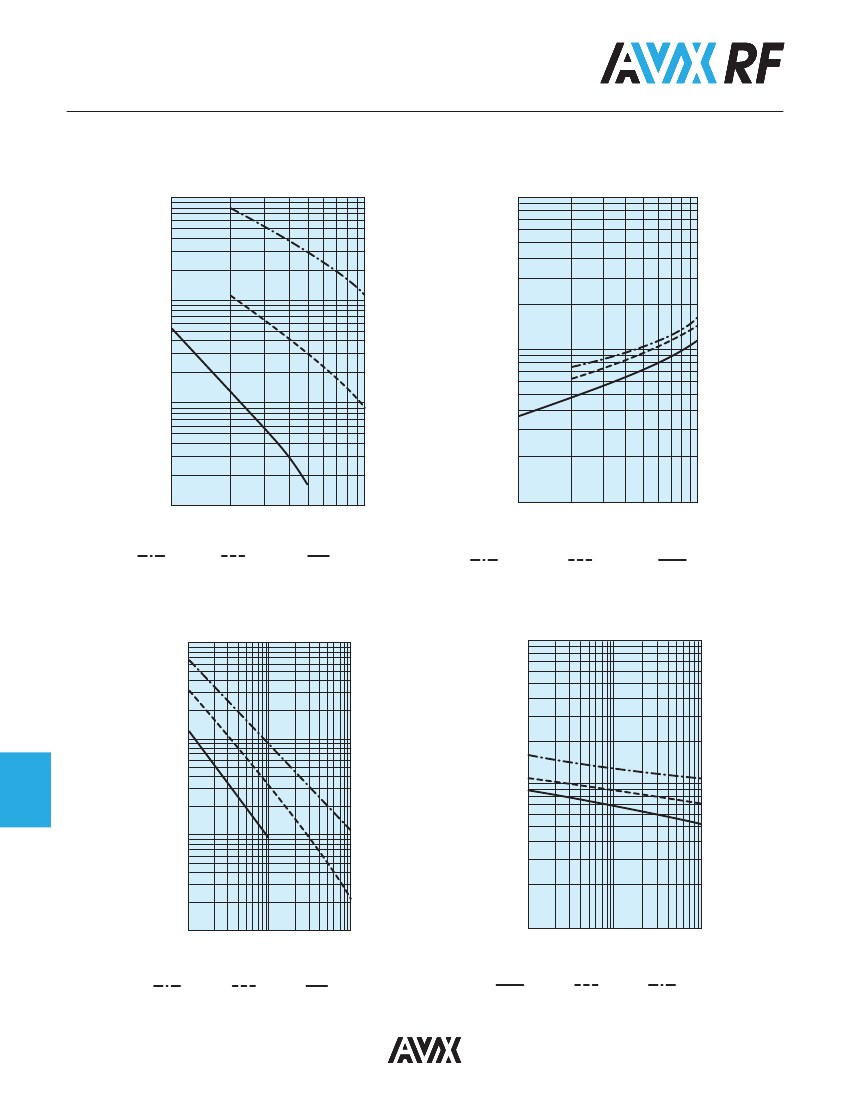

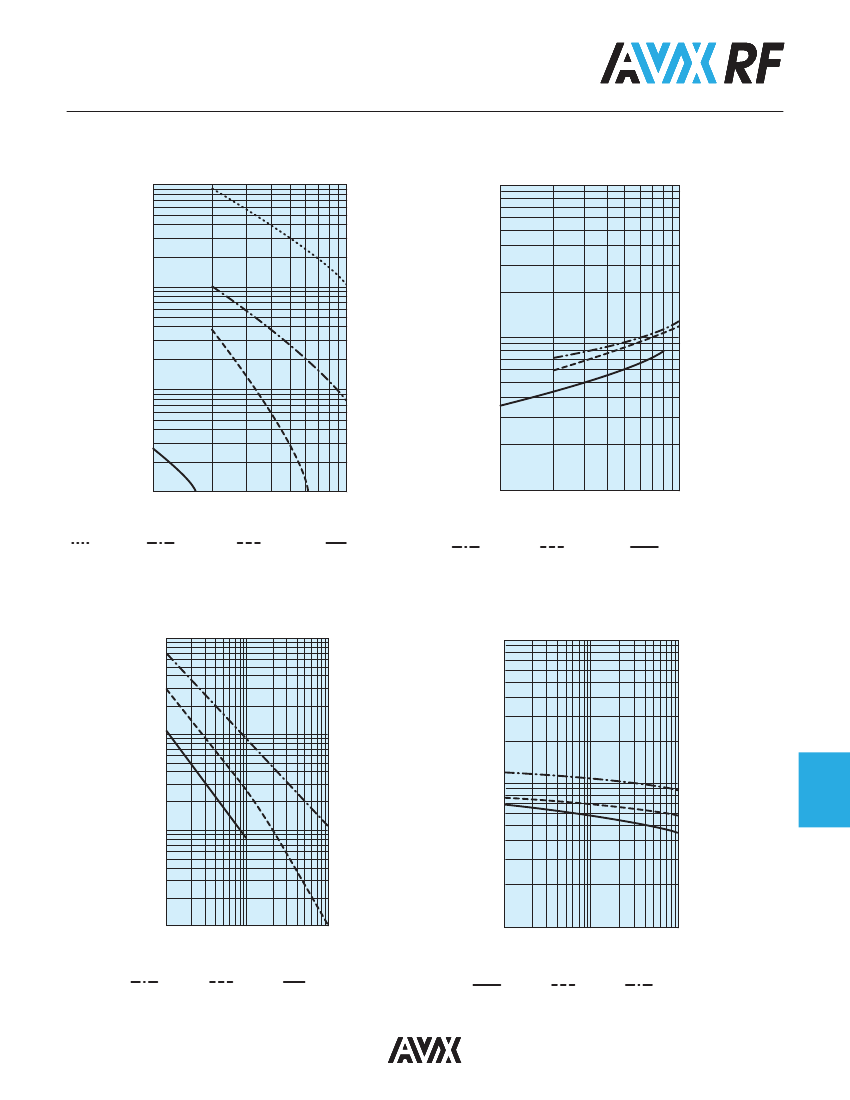

Microwave MLC’s

CDR Series — MIL-PRF-55681 (RF/Microwave Chips)

MILITARY DESIGNATION PER MIL-PRF-55681

A 0J

CDR11/12

CDR13/14

CROSS REFERENCE: AVX/MIL-PRF-55681

Per MIL-C-55681

CDR11

CDR12

CDR13

CDR14

AVX

Style

AQ11

AQ12

AQ13

AQ14

Length (L)

.055±.015

(1.40±.381)

.055±.025

(1.40±.635)

.110±.020

(2.79±.508)

.110 +.035 -0.20

(2.79 +.889 -.508)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.020

(2.79±.508)

Thickness (T)

Max

Min

.057

(1.45)

.057

(1.45)

.102

(2.59)

.102

(2.59)

.020

(.508)

.020

(.508)

.030

(.762)

.030

(.762)

Termination Band (bw)

Max

Min

.020

(.508)

.020

(.508)

.025

(.635)

.025

(.635)

.005

(.127)

.005

(.127)

.005

(.127)

.005

(.127)

HOW TO ORDER

CDR12

MIL Style

CDR11, CDR12,

CDR13, CDR14

101

Capacitance

EIA Capacitance Code in pF.

First two digits = significant figures

or “R” for decimal place.

Third digit = number of zeros or

after “R” significant figures.

Capacitance

Tolerance Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Failure Rate

Level

Termination

Finish (Military

Designations)

Code

M = 1.0%

P = .1%

R = .01%

S = .001%

Voltage

Temperature

Limits

BG = +90±20 ppm/°C with and without

rated voltage from -55°C to + 125°C

BP = 0±30ppm/°C with and without

rated voltage from -55°C to +125°C

Rated Voltage

Code

A = 50V

B = 100V

C = 200V

D = 300V

E = 500V

PACKAGING

Standard Packaging Quanity

CDR11-12 = 100 pcs per waffle pack

CDR13-14 = 80 pcs per waffle pack

M = Palladium/Silver (CDR11 & 13 only)

N = Silver, Nickel, Gold (CDR11 & 13 only)

S = Solder Coated, Final (CDR12 & 14 only)

U = Base Metallization, Barrier Metal, Solder

Coated. (Solder M.P. 200°C or less)

(CDR12 & 14 only)

W = Base Metallization, Barrier Metal,

Tinned (Tin or Tin/Lead Alloy)

(CDR12 & 14 only)

Y = 100% Tin

(CDR12 & 14 only)

Z = Base Metallization, Barrier Metal

(TIn Lead Alloy With 4% Lead Min.)

(CDR12 & 14 only)

Not RoHS Compliant

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481

(equivalent to IEC 286 part 3).

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel: ≤0.040" thickness = 2000 pcs

≤0.075" thickness = 2000 pcs

—13" reel: ≤0.075" thickness = 10,000 pcs

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

131
