CH411C275KA80A3

Description
Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 2.7uF, Surface Mount, 3436, CHIP
CategoryPassive components    capacitor
File Size2MB,6 Pages
ManufacturerAVX
Download Datasheet Parametric View All

CH411C275KA80A3 Overview

Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 2.7uF, Surface Mount, 3436, CHIP

CH411C275KA80A3 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAVX
package instruction, 3436
Reach Compliance Code_compli
ECCN codeEAR99
capacitance2.7 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high6.34 mm
JESD-609 codee0
length8.7 mm
Manufacturer's serial numberCH
Installation featuresSURFACE MOUNT
multi-layerN
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
positive tolerance10%
Rated (DC) voltage (URdc)100 V
seriesCH(SMT)SMPS
size code3436
surface mountYES
Temperature characteristic codeX7R
Temperature Coefficient15% ppm/°C
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeJ BEND
width9.2 mm

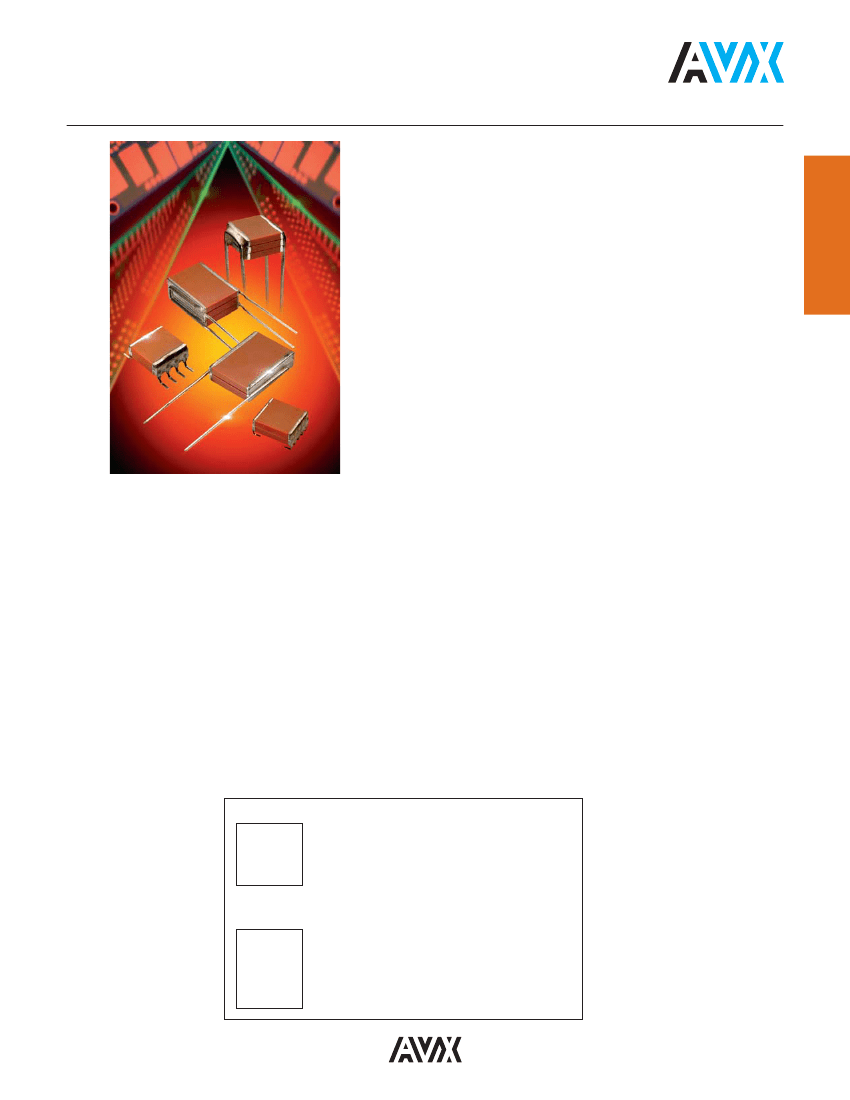

SMPS Capacitors Chip Assemblies
CH/CV - Radial, Dual-in-Line,
4 Terminal/SMT ‘J’ & ‘L’ Ranges
European Preferred Styles
10nF to 180 µF
BS9100 approved
50V to 500 VDC
Low ESR/ESL
-55ºC to +125ºC
1B/C0G and 2C1/X7R Dielectrics
This range allows SMPS engineers to select the best volumetric
solution for input and output filter applications in high reliability designs.
Utilizing advanced multilayer ceramic techniques to minimize ESR/ESL
giving high current handling properties appropriate for filtering,
smoothing and decoupling circuits.
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
CECC 30 000, (4.24.1)
1B/C0G: A Temperature Coefficient - 0 ± 30 ppm/ºC, -55º to +125ºC
2C1/X7R: C Temperature Characteristic - ± 15%, -55º to +125ºC
Capacitance Test 25ºC
1B/C0G: Measured at 1 VRMS max at 1KHz (1MHz for 100 pF or less)
2C1/X7R: Measured at 1 VRMS max at 1KHz
Dissipation Factor 25°C
1B/C0G: 0.15% max at 1KHz, 1 VRMS max (1MHz for 100 pF or less)
2C1/X7R: 2.5% max at 1KHz, 1 VRMS max
Insulation Resistance 25°C
1B/C0G & 2C1/X7R: 100K megohms or 1000 megohms-µF, whichever
is less
Dielectric Withstanding Voltage 25°C
(Flash Test)
1B/C0G & 2C1/X7R: 250% rated voltage for 5 seconds with 50 mA max
charging current. (500 Volt units @ 150% rated voltage)
Dielectric Withstanding Voltage 25°C
(Flash Test)
1B/C0G & 2C1/X7R: 250% rated voltage for 5 seconds with 50 mA
max charging current. (500 Volt units @ 150% rated voltage)
Life Test
(1000 hrs) CECC 30 000 (4.23)
1B/C0G & 2C1/X7R: 200% rated voltage at +125ºC.
(500 Volt units @ 120% rated voltage)
Damp Heat
IEC 68-2-3, 56 days.
Thermal Shock
IEC 68-2-14
-55ºC to +125ºC, 5 cycles
Resistance to Solder Heat
IEC 68-2-20
Vibration
IEC 68-2-6
10Hz - 2000Hz, 0.75mm or 98m/sec
2
, 6 hrs.
Bump
IEC 68-2-29
390m/sec
2
, 4000 bumps
MARKING
CH and CV 4x, 5x, 81-84
A5C
225K
xxxxxx
Top line A (AVX). Voltage code, dielectric code.
Middle line capacitance code, tolerance code.
Bottom line 6 digit batch code.
Other CH, CV Styles
AVX
5C
156M
xxxxxx
Top line AVX.
Second line voltage code, dielectric code.
Third line capacitance code, tolerance code.
Bottom line, 6 digit batch code.
