RH06-T-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RH06-T-F

RH06-T-F: DescriptionBridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4; CategoryDiscrete semiconductor diode; File Size66KB，3 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

RH06-T-F Overview

Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4

RH06-T-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	DIP
package instruction	LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4
Contacts	4
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	30 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.25 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40

RH06-T-F Preview

SPICE MODELS: RH02 RH04 RH06

RH02 - RH06

0.5A SURFACE MOUNT GLASS PASSIVATED FAST

RECOVERY BRIDGE RECTIFIER

Features

Glass Passivated Die Construction

Low Forward Voltage Drop

Surge Overload Rating to 30A Peak

Ideally Suited for Automatic Assembly

Miniature Package Saves Space on PC Boards

Lead Free Finish, RoHS Compliant (Note 4)

MiniDIP

Dim

Min

3.6

0.15

0.70

4.5

2.3

0.50

Max

4.0

0.35

0.20

7.0

3.00

1.10

4.9

2.7

0.80

Mechanical Data

Case: MiniDIP

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Terminals: Finish

Bright Tin. Plated Leads, Solderable

per MIL-STD-202, Method 208

Polarity: As Marked on Case

Marking: Type Number

Weight: 0.125 grams (approx.)

D E

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Rectified Current (Note 1) T

= @ 40°C

Non-Repetitive Peak Forward Surge Current, 8.3 ms

Single half-sine-wave Superimposed on Rated Load

(JEDEC method)

Instantaneous Voltage Drop @ 0.4A (per element)

Peak Reverse Current at Rated

DC Blocking Voltage (per element)

Maximum Reverse Recovery Time

Typical Junction Capacitance (per element)

Operating and Storage Temperature Range

Notes:

@ T

= 25°C unless otherwise specified

RH02

200

140

RH04

400

280

0.5

1.15

5.0

100

150

13.0

-55 to +150

250

RH06

600

420

Unit

K/W

°C

Symbol

RMM

RWM

RMS

FSM

qJA

, T

STG

@ T

= 25°C

@ T

= 125°C

(Note 3)

(Note 2)

Typical Thermal Resistance, Junction to Ambient (Note 1)

Mounted on Glass Epoxy PC Board.

Measured at 1.0 MHz and Applied Reverse Voltage of 4.0 V.

test conditions: I

= 0.5A, I

= 1.0A, I

= 0.25A.

RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see

EU Directive Annex Notes 5 and 7.

DS30137 Rev. 6 - 2

1 of 3

www.diodes.com

RH02 - RH06

Diodes Incorporated

(AV)

, AVERAGE FORWARD RECTIFIED CURRENT (A)

0.8

Alumina Substrate

0.6

, INSTANTANEOUS FORWARD CURRENT (A)

1.0

0.4

Glass Epoxy PC Board

0.1

0.2

Resistive or Inductive Load

120

160

, AMBIENT TEMPERATURE (

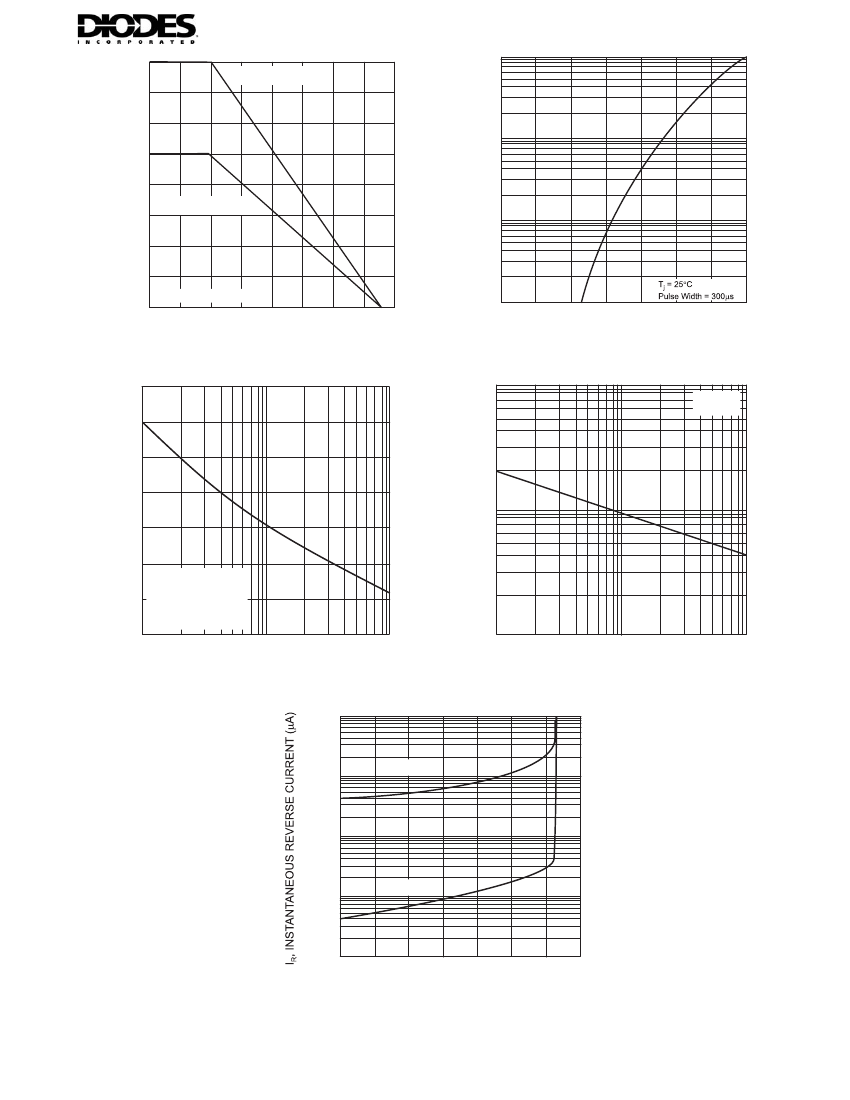

Fig. 1 Output Current Derating Curve

0.01

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

, INSTANTANEOUS FORWARD VOLTAGE (V)

Fig. 2 Typical Forward Characteristics (per leg)

FSM

, PEAK FORWARD SURGE CURRENT (A)

, JUNCTION CAPACITANCE (pF)

100

= 25

f = 1.0MHz

= 25

Single Half Sine-Wave

Pulse Width = 5.3ms

(JEDEC Method)

1.0

NUMBER OF CYCLES AT 60 Hz

Fig. 3 Maximum Peak Forward Surge Current (per leg)

100

, REVERSE VOLTAGE (V)

Fig. 4 Typical Junction Capacitance

100

= 125

1.0

0.1

= 25

0.01

100

120

140

PERCENT OF RATED PEAK REVERSE VOLTAGE (%)

Fig. 5 Typical Reverse Characteristics (per element)

DS30137 Rev. 6 - 2

2 of 3

www.diodes.com

RH02 - RH06

Ordering Information

Device

RH0x-T

Notes:

(Note 5)

Packaging

MiniDIP

Shipping

3000/Tape & Reel

5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

DS30137 Rev. 6 - 2

3 of 3

www.diodes.com

RH02 - RH06

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

RH06-T-F Related Products

	RH06-T-F	RH02-T	RH02-T-F	RH04-T-F
Description	Bridge Rectifier Diode, 1 Phase, 0.5A, 600V V(RRM), Silicon, LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4	Bridge Rectifier Diode, 1 Phase, 0.5A, 200V V(RRM), Silicon, ROHS COMPLIANT, MINIATURE, PLASTIC, MINIDIP-4	Bridge Rectifier Diode, 1 Phase, 0.5A, 200V V(RRM), Silicon, LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4	Bridge Rectifier Diode, 1 Phase, 0.5A, 400V V(RRM), Silicon, LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4	R-PDSO-G4	R-PDSO-G4	LEAD FREE, MINIATURE, PLASTIC, MINIDIP-4
Contacts	4	4	4	4
Reach Compliance Code	_compli	not_compliant	compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.5 A	0.5 A	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	200 V	200 V	400 V
Maximum reverse recovery time	0.25 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40
