ZTX576K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZTX576K

ZTX576K: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size132KB，6 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZTX576K Overview

Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

ZTX576K Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	TO-92
package instruction	IN-LINE, R-PSIP-W3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	200 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PSIP-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

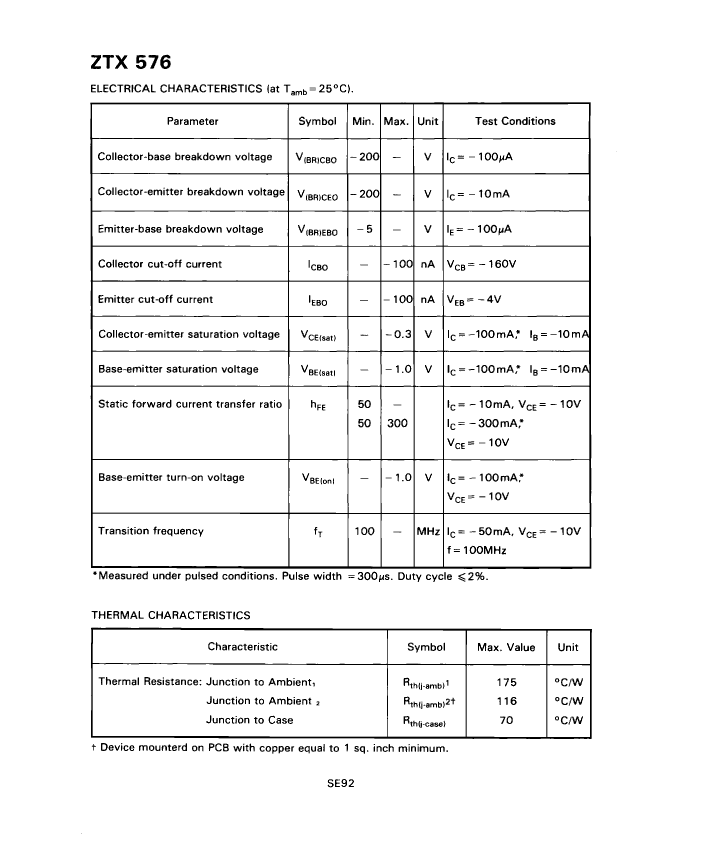

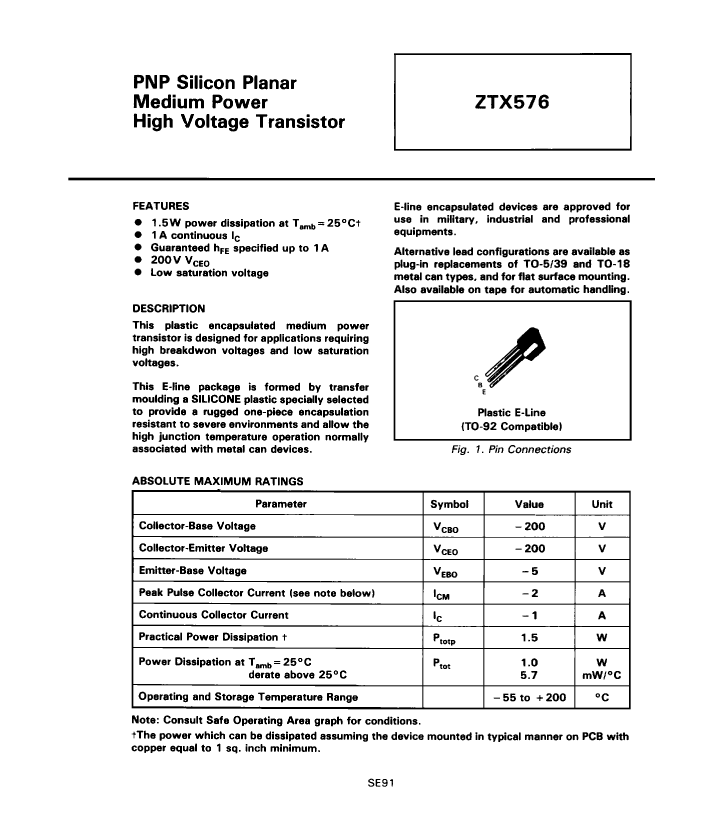

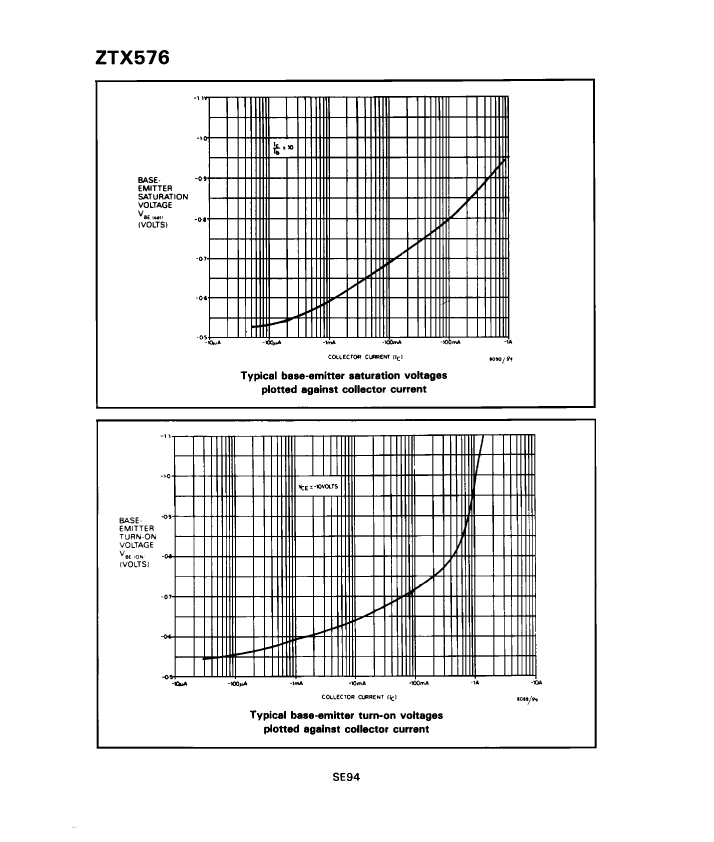

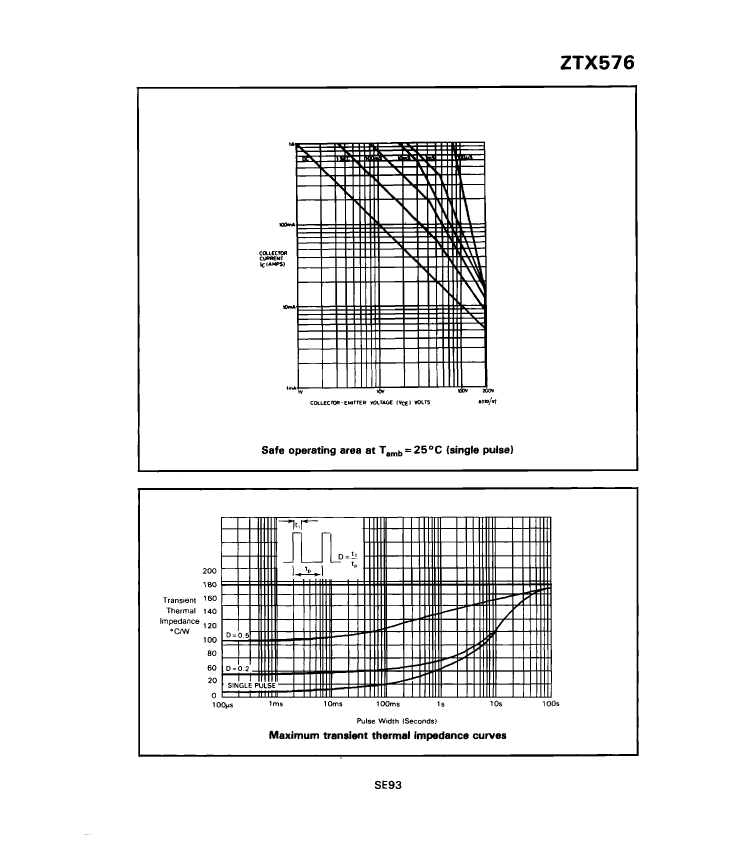

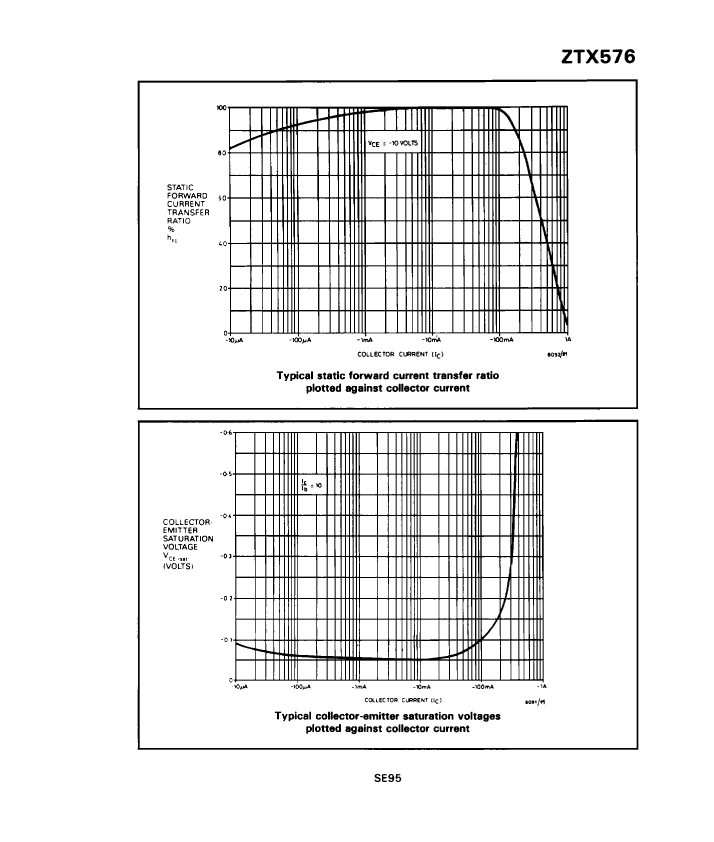

Preview

Download Datasheet

View All

ZTX576K Related Products

	ZTX576K	ZTX576M1	ZTX576Q	ZTX576L
Description	Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Parts packaging code	TO-92	TO-92	TO-92	TO-92
package instruction	IN-LINE, R-PSIP-W3	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	200 V	200 V	200 V	200 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50	50	50
JESD-30 code	R-PSIP-W3	R-PSSO-G3	R-PSIP-W3	R-PSIP-W3
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	WIRE	GULL WING	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	40	40	40
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz
