3CP02-133.000NSGE

Description
CMOS Output Clock Oscillator, 133MHz Nom, GREEN, SMD, 4 PIN
CategoryPassive components    oscillator
File Size150KB,2 Pages
ManufacturerIDT (Integrated Device Technology)
Environmental Compliance
Download Datasheet Parametric Compare View All

3CP02-133.000NSGE Overview

CMOS Output Clock Oscillator, 133MHz Nom, GREEN, SMD, 4 PIN

3CP02-133.000NSGE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIDT (Integrated Device Technology)
Reach Compliance Codecompli
Other featuresTUBE
maximum descent time2.75 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
JESD-609 codee3
Manufacturer's serial number3CP02
Installation featuresSURFACE MOUNT
Nominal operating frequency133 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Oscillator typeCMOS
Output load4 pF
physical size5.0mm x 3.2mm x 0.9mm
longest rise time2.75 ns
Maximum supply voltage3.3 V
Minimum supply voltage1.8 V
surface mountYES
maximum symmetry40/60 %
Terminal surfaceMatte Tin (Sn)

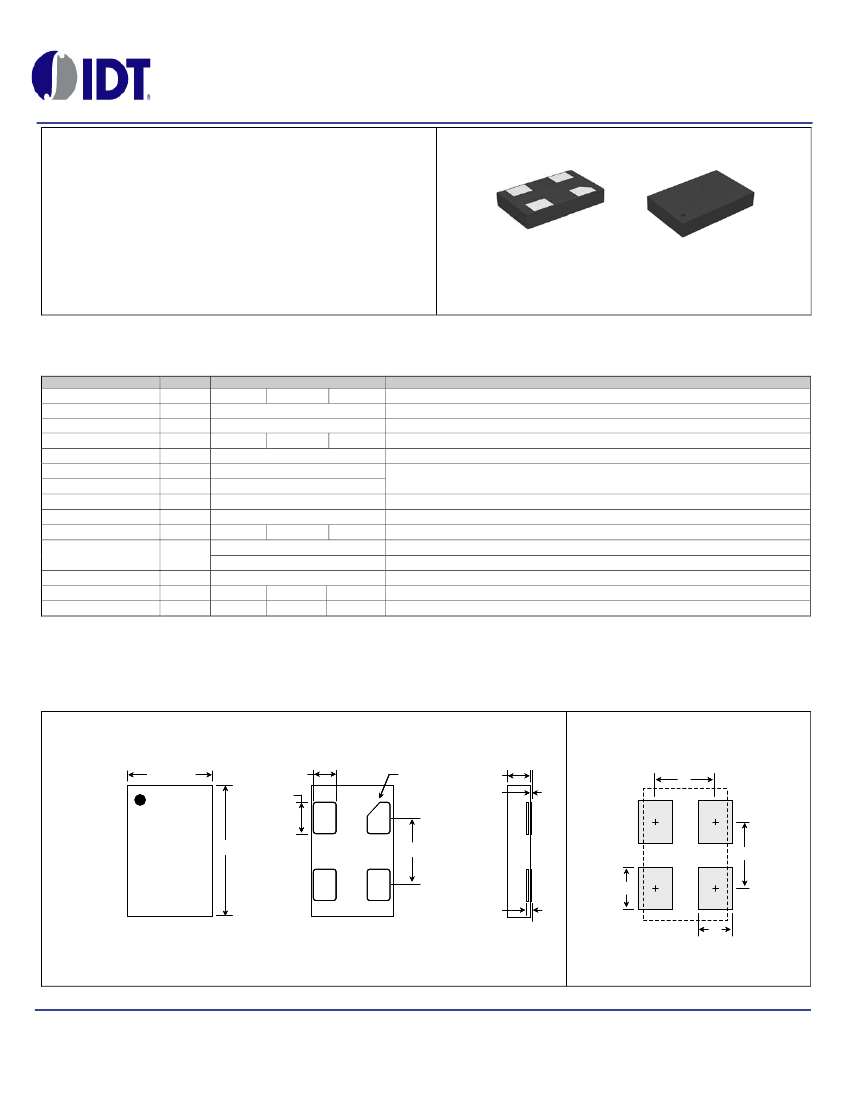

3CP02-133.000NSGE Preview

CrystalFree™ Oscillator
Ultra Low Power Oscillators
3CP02
PRELIMINARY DATA SHEET
Features
Frequency Range:
Output Type:
Frequency Tolerance:
Supply Voltage:
Power Consumption:
Standby Current:
Standard Package:
Operating Temperature:
4 to 133 MHz
CMOS
± 100 ppm
1.8 to 3.3 V
1.9 mA
(1.8 V)
< 1 uA
5.0 x 3.2 mm
0 to 70 °C
-20 to 70 °C
This product is rated “Green”, please contact
factory for environmental compliancy information
Specification
Specifications
Conditions
2.5 V
3.3 V
Nominal
4 to 133 MHz**
See ordering code
± 100 ppm
Total Frequency Stability*
1.9 mA
2.0 mA
2.2 mA
Typical; No load condition; 25°C
1 uA
STBY# = GND
0.3 VDD (max)
At STBY# pin
0.7 VDD (min)
0.1 VDD (max)
I
OL
= - 1mA
0.9 VDD (min)
I
OH
= 1mA
2.75ns
2.3ns
1.9ns
20% to 80% x VDD. Output load (CL) = 4pF
45% / 55%
For frequencies < =100MHz;
SYM
Symmetry
40% / 60%
For frequencies > 100MHz;
Start-up time
T
ST
Output valid time after VDD meets the specified range & STBY# transition
100 us
Period Jitter
PJ
RMS
4pF load; 75MHz
17 ps
6 ps
5 ps
Cycle to Cycle Jitter
CCJ
MAX
120 ps
50 ps
40 ps
4pF load; 75MHz
Note: Above specifications are typical unless otherwise specified.
* Stability over temperature, supply variation, 3x reflow, load variation, aging (10 years)
** 26MHz, 27MHz and 54MHz are supported by 3CV04
1.8 V
Parameter
Supply Voltage
Output Frequency
Frequency Stability
Supply Current
Quiescent Current
Input LOW level
Input HIGH level
Output LOW level
Output HIGH level
Rise/Fall Time
Symbol
VDD
F
OUT
F
STB
IDD
I
STBY
V
IL
V
IH
V
OL
V
OH
T
R
/T
F
Package Outline and Dimensions
Typical PCB Land Pattern
3.20 ±0.05
0.90 ±0.05
1.20 ±0.05
Pin #1 ID
Chamfer
0.5 x 45°
0.85 ±0.05
0.0-0.05
2.2
5.0 x 3.2
(mm)
STBY#
5.0 x 3.2mm
VDD
2.5
4L SMD
5.00 ±0.05
2.54
GND
0.203 Ref.
OUT
1.4
1.6
Top View
Bottom View
Side View
June 1, 2011
www.IDT.com
©2011 Integrated Device Technology, Inc
3CP02 Datasheet
CrystalFree™ Oscillator
Absolute Maximum Ratings
Temperature (°C)
Stresses beyond those listed under
Absolute Maximum Ratings
may cause permanent damage to the device. These ratings are
stress specifications only. Functional operation of product at
these or under any condition beyond those listed in the
operating specifications is not implied. Exposure to absolute
maximum rated conditions may affect product reliability.
Item
VDD
STBY#
OUT
Storage Temperature
Solder Reflow Profile
40 sec (max)
250
200
150
100
50
150°C
60-180
sec
(260°C max)
245°C
217°C
s c
sec
°
/
6
°
C
60-150
sec
a
ma x
4.6V
-0.5V to VDD + 0.5V
-0.5V to VDD + 0.5V
-65°C to 150°C
3
°
C/
se
Maximum Absolute Rating
cm
ax
Time
Pin Descriptions
Pin #
1
2
3
4
Output Wave Form
Description
T
R
0.8 VDD
T
F
V
OH
Name
STBY#
GND
OUT
2
VDD
Standby Mode
1
(0 = Output Disabled)
Ground
CMOS Output
Power
0.5 VDD
1. Pulled high internally
2. Weak pull down to GND during STBY# enable and startup
0.2 VDD
V
OL
SYM = t
1
/ t
2
t
1
t
2
Ordering Information
3C P 0 2-
Frequency
4 to 133MHz
13 3
NS G
Temp
Blank: 0 to 70°C
E:
-20 to 70°C
E
8
Shipping
Blank: Tubes
8:
Tape and Reel
6024 Silver Creek Valley Road
San Jose, California 95138
Sales
800-345-7015 (inside USA)
+1 408-284-8200 (outside USA)
Fax: 408-284-2775
Technical Support
crystalfreetechsupport@idt.com
+408-739-5400
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone using an
IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective
third party owners.
Copyright 2010, 2011. All rights reserved.
June 1, 2011
www.IDT.com
©2011 Integrated Device Technology, Inc
