Z86E2204PSC datasheet, PDF - EEWORLD Datasheet

Z86E2204PSC: DescriptionMicrocontroller, 8-Bit, OTPROM, Z8 CPU, 4MHz, CMOS, PDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size273KB，10 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

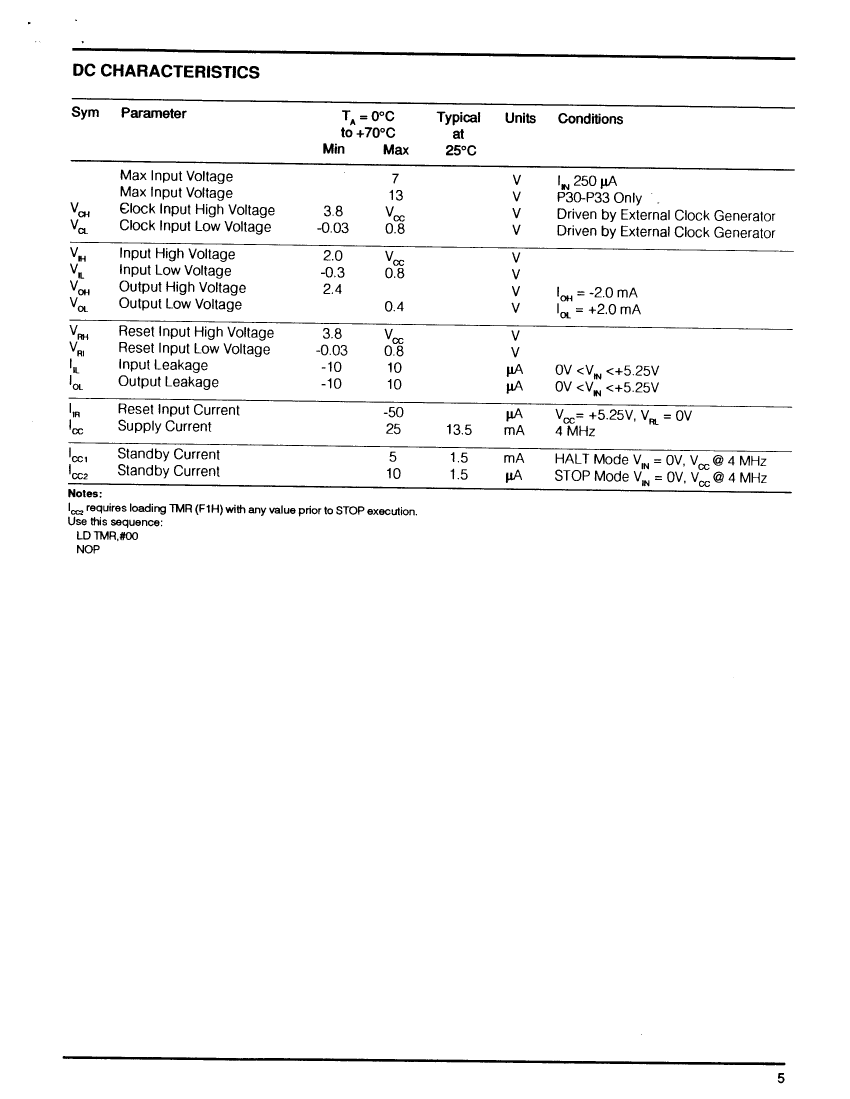

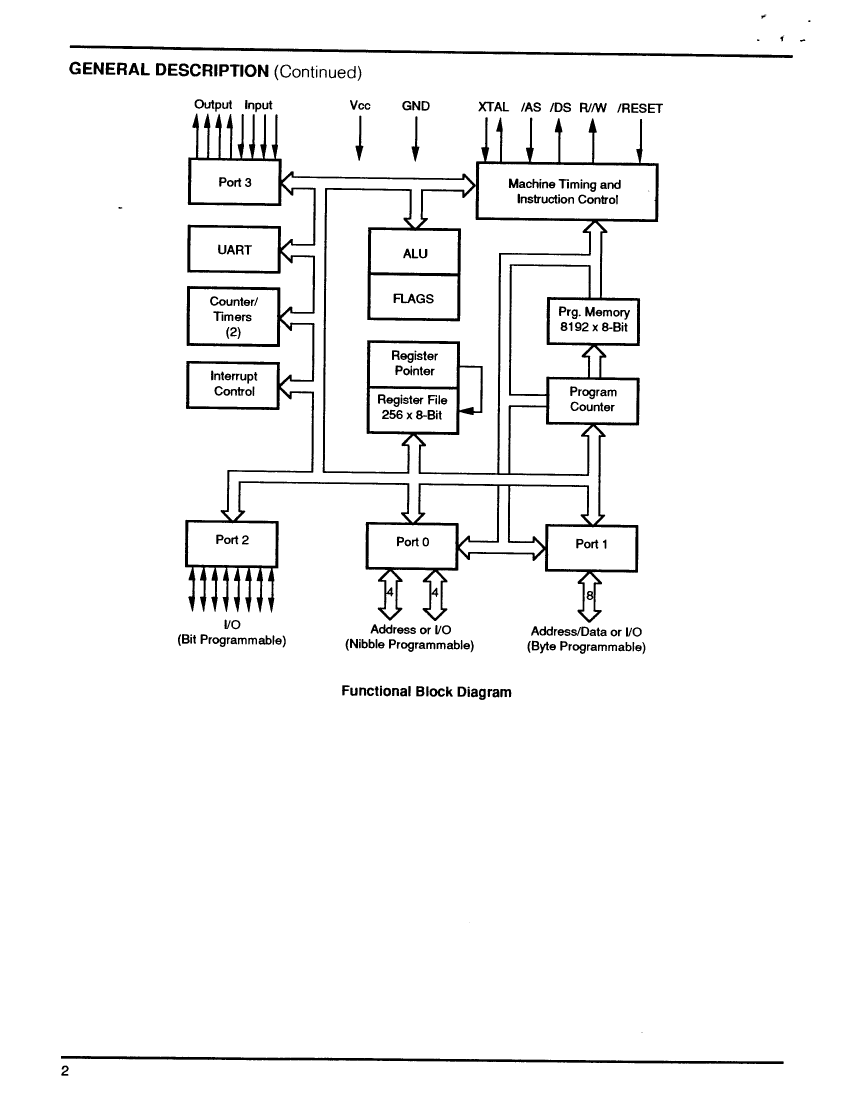

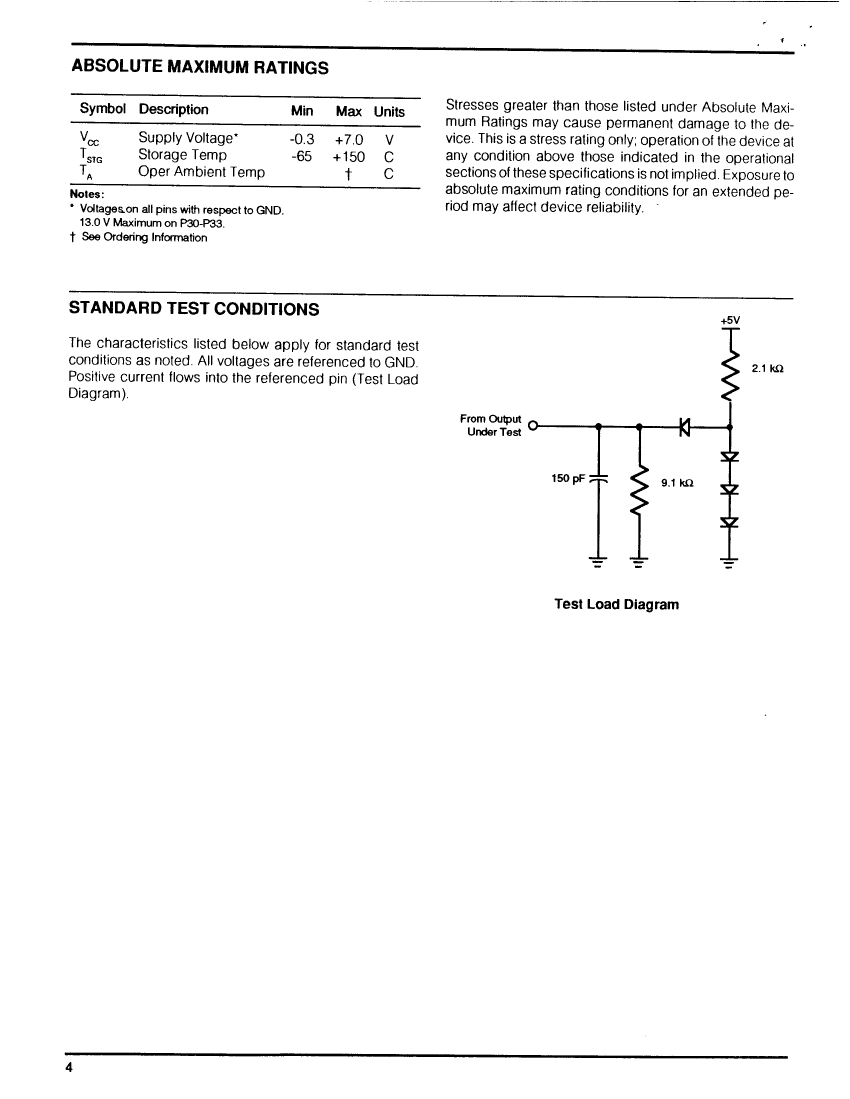

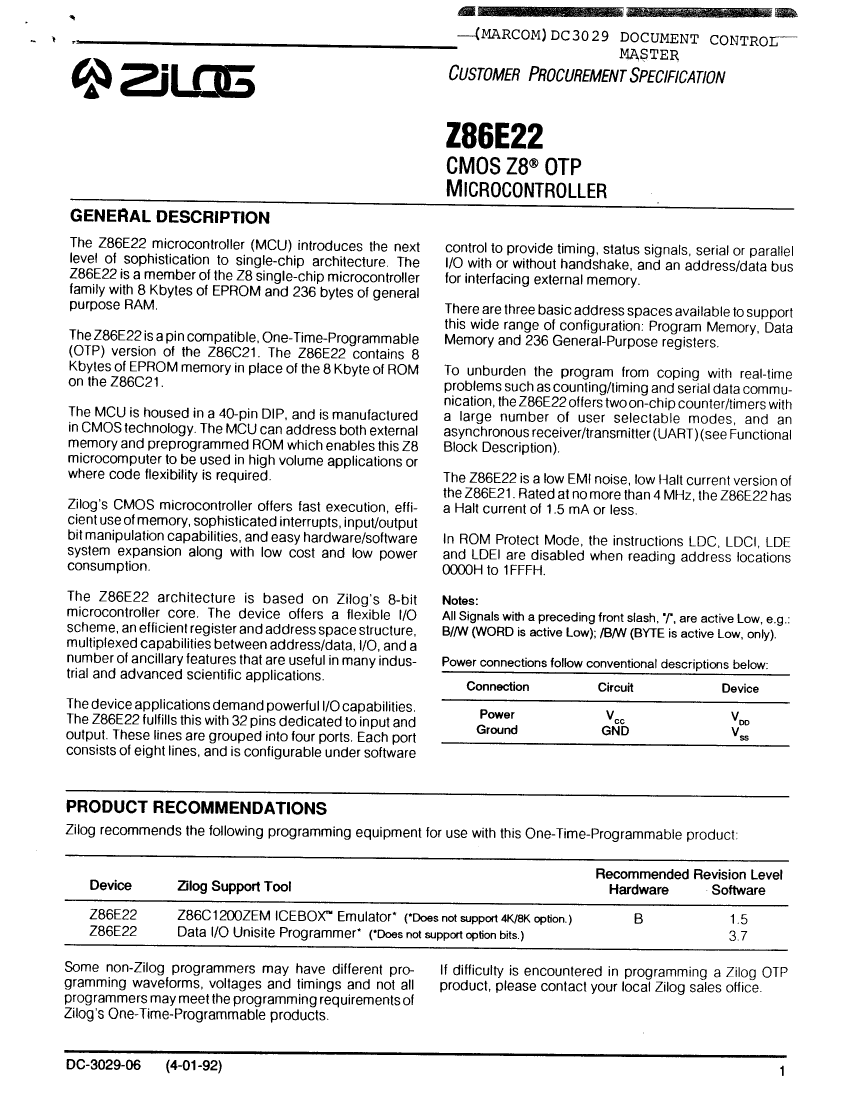

Z86E2204PSC Overview

Microcontroller, 8-Bit, OTPROM, Z8 CPU, 4MHz, CMOS, PDIP40, DIP-40

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	DIP
package instruction	DIP-40
Contacts	40
Reach Compliance Code	unknow
Has ADC	NO
Address bus width	16
bit size	8
CPU series	Z8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
Number of I/O lines	32

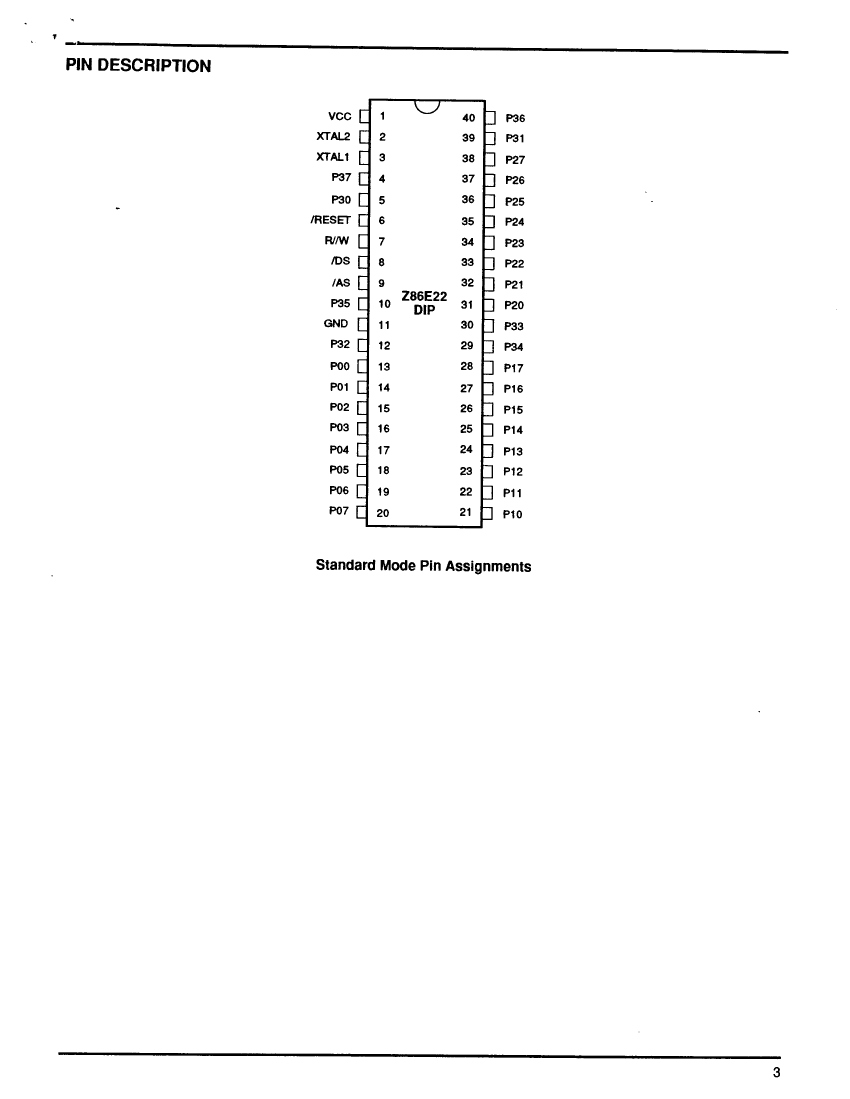

Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	236
rom(word)	8192
ROM programmability	OTPROM
Maximum seat height	4.24 mm
speed	4 MHz
Maximum slew rate	13.5 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	Z86E2204PSC	Z86E2204PSG
Description	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 4MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDIP40, DIP-40
Is it lead-free?	Contains lead	Lead free
Maker	IXYS	IXYS
Parts packaging code	DIP	DIP
package instruction	DIP-40	DIP-40
Contacts	40	40
Reach Compliance Code	unknow	compliant
Has ADC	NO	NO
Address bus width	16	16
bit size	8	8
maximum clock frequency	4 MHz	4 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	e3
length	52.325 mm	52.325 mm
Number of I/O lines	32	32
Number of terminals	40	40
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225
Certification status	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM
Maximum seat height	4.24 mm	4.24 mm
speed	4 MHz	4 MHz
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
