Z86E7408VSC datasheet, PDF - EEWORLD Datasheet

Z86E7408VSC: DescriptionMicrocontroller, 8-Bit, UVPROM, Z8 CPU, 8MHz, CMOS, PQCC68,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size868KB，19 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

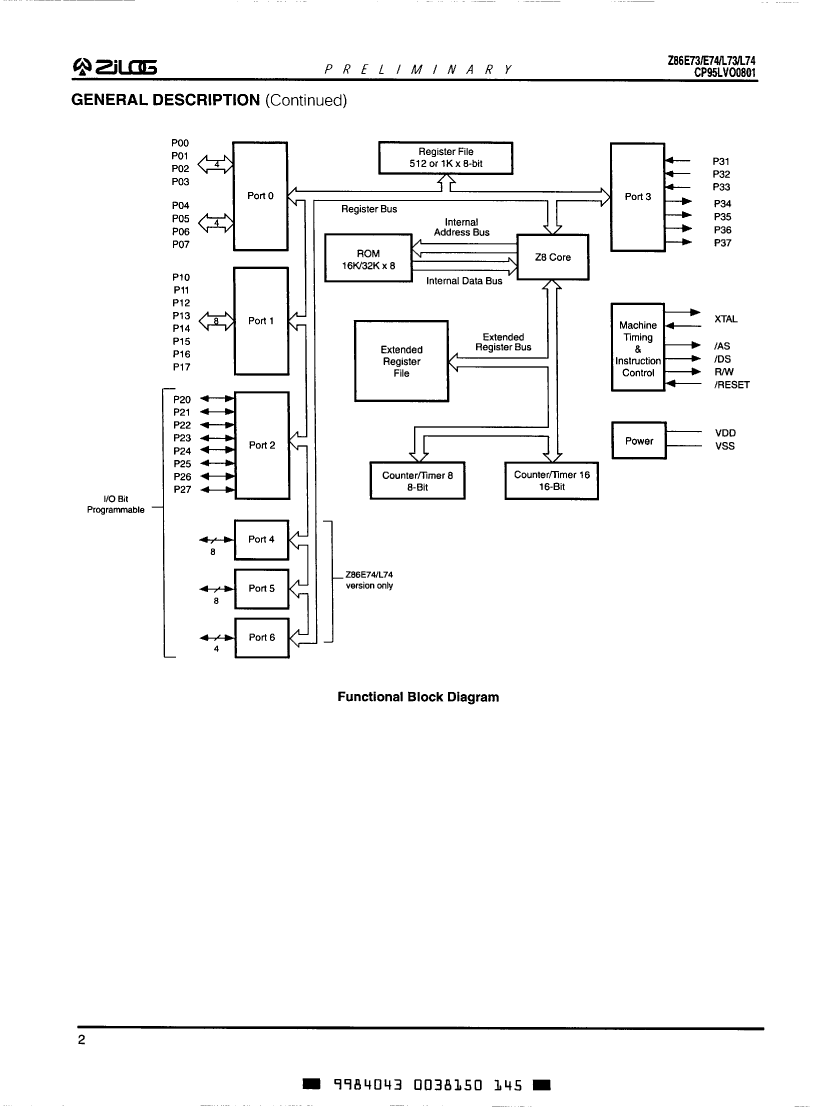

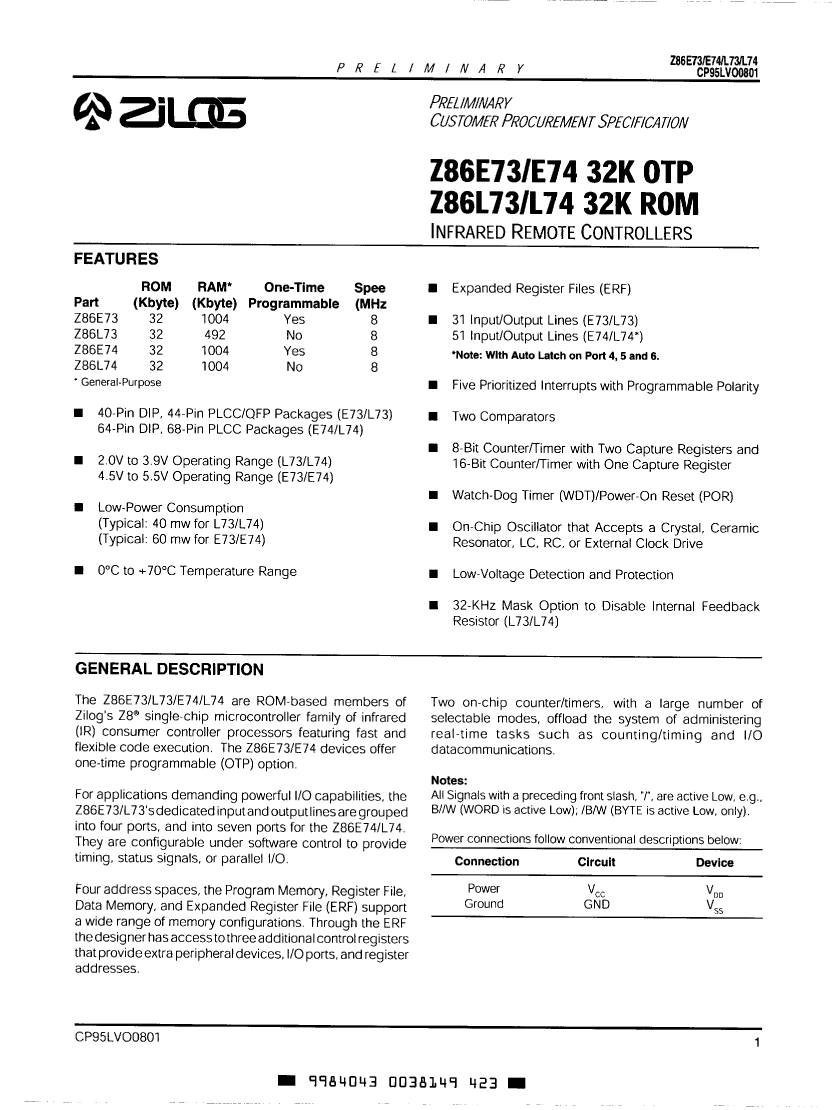

Z86E7408VSC Overview

Microcontroller, 8-Bit, UVPROM, Z8 CPU, 8MHz, CMOS, PQCC68,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknow
Has ADC	NO
Address bus width	16
bit size	8
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J68
length	24.23 mm
Number of I/O lines	51

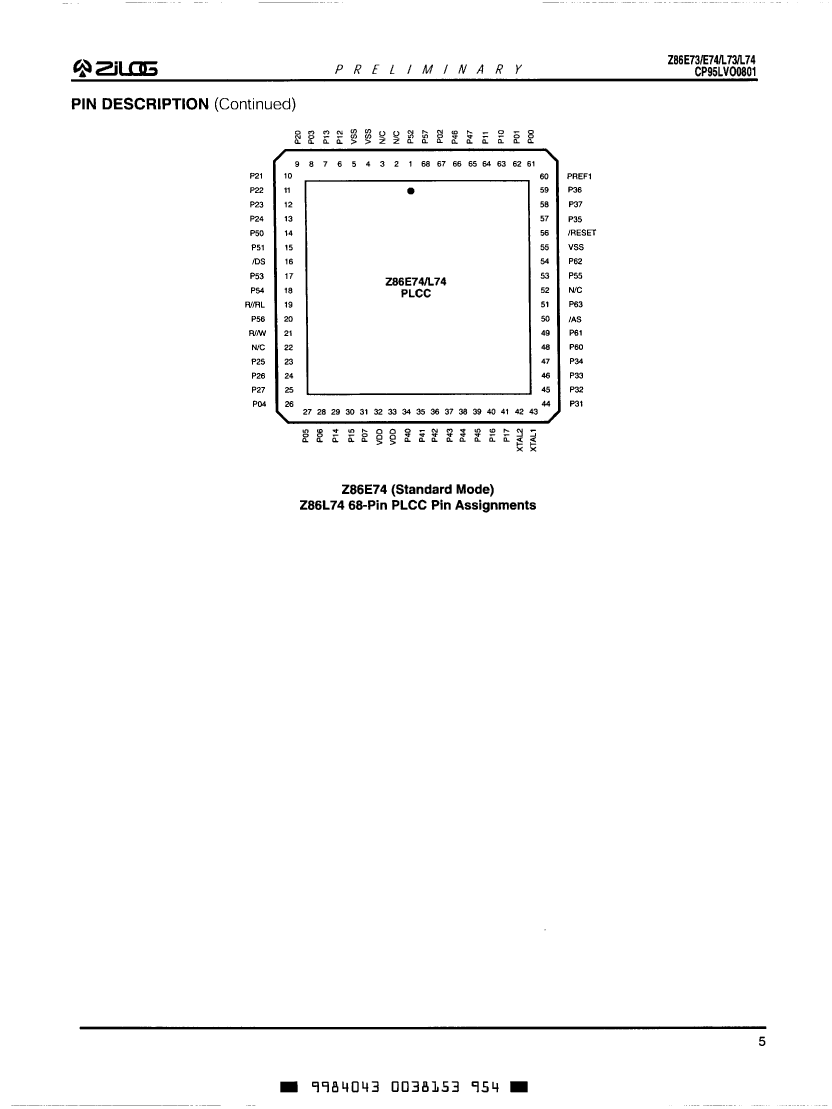

Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	32768
ROM programmability	UVPROM
speed	8 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.23 mm

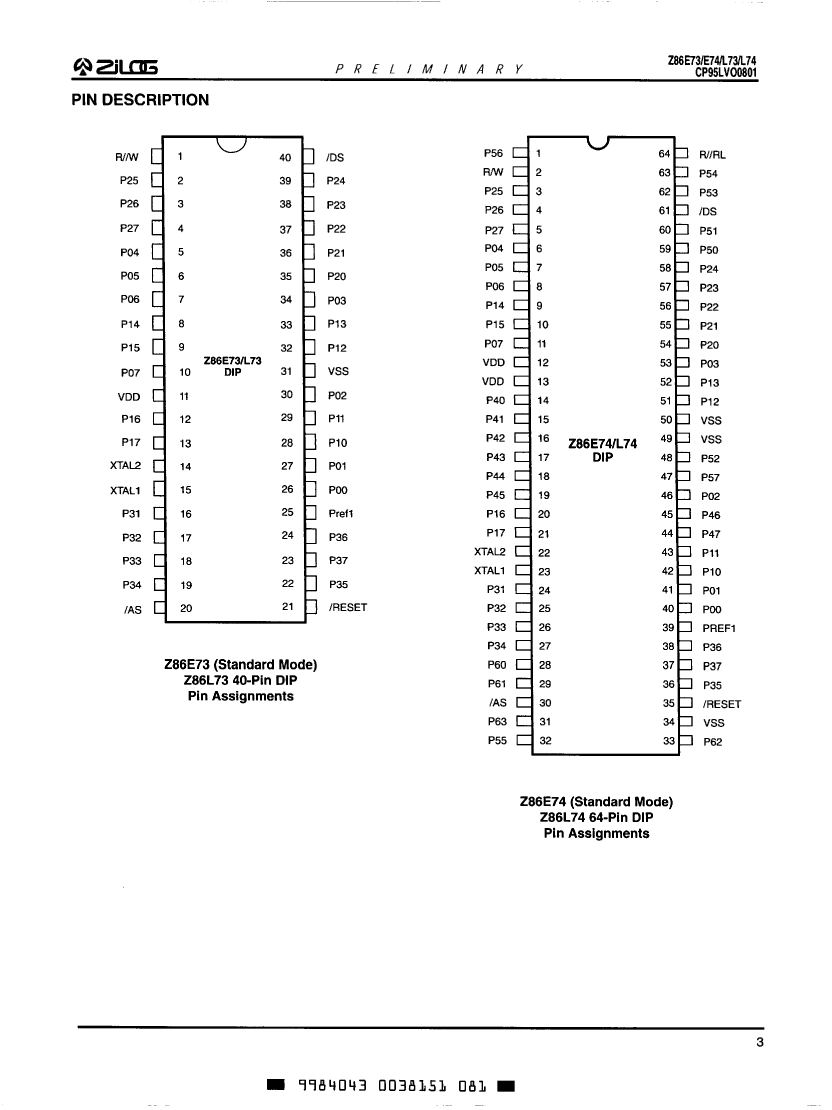

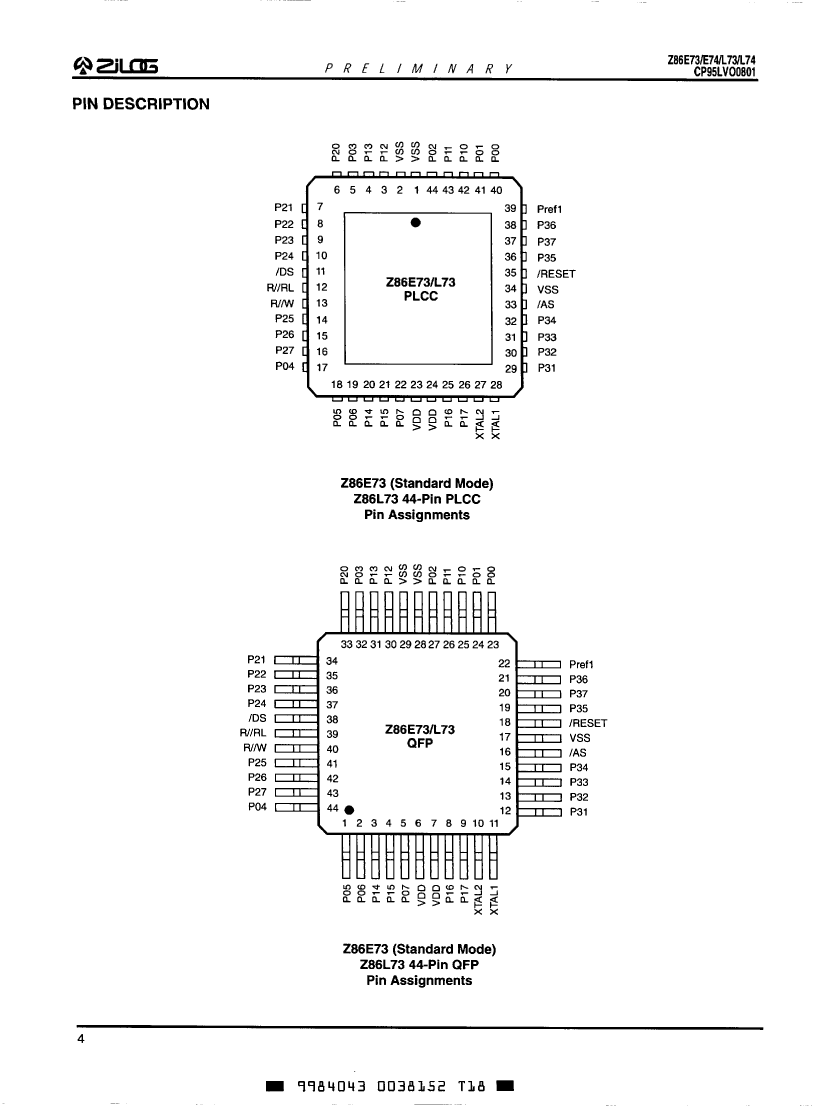

	Z86E7408VSC	Z86L7408VSC	Z86E7408PSC
Description	Microcontroller, 8-Bit, UVPROM, Z8 CPU, 8MHz, CMOS, PQCC68,	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC68,	Microcontroller, 8-Bit, UVPROM, Z8 CPU, 8MHz, CMOS, PDIP64,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS
Reach Compliance Code	unknow	unknown	unknown
Has ADC	NO	NO	NO
Address bus width	16	16	16
bit size	8	8	8
CPU series	Z8	Z8	Z8
maximum clock frequency	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	S-PQCC-J68	S-PQCC-J68	R-PDIP-T64
length	24.23 mm	24.23 mm	57.785 mm
Number of I/O lines	51	51	51
Number of terminals	68	68	64
Maximum operating temperature	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	SDIP
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ	DIP64(UNSPEC)
Package shape	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE, SHRINK PITCH
power supply	5 V	2.2/3.6 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	1024	1024
rom(word)	32768	32768	32768
ROM programmability	UVPROM	MROM	UVPROM
speed	8 MHz	8 MHz	8 MHz
Maximum slew rate	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	3.9 V	5.5 V
Minimum supply voltage	4.5 V	2 V	4.5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.78 mm
Terminal location	QUAD	QUAD	DUAL
width	24.23 mm	24.23 mm	19.05 mm
Nominal supply voltage	5 V	-	5 V
