SAC45P: DescriptionDIODE 500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2, Transient Suppressor; CategoryDiscrete semiconductor diode; File Size405KB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

SAC45P Overview

DIODE 500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15, PLASTIC PACKAGE-2, Transient Suppressor

SAC45P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-15
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SAC5.0

THRU

SAC50

500W Low

Capacitance Transient

Voltage Suppressor

DO-15

Features

•

Glass Passivated Junction

Excellent Clamping Capability

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

UL Recognized File # E222849

Mechanical Data

•

Case: DO-15 molded plastic case

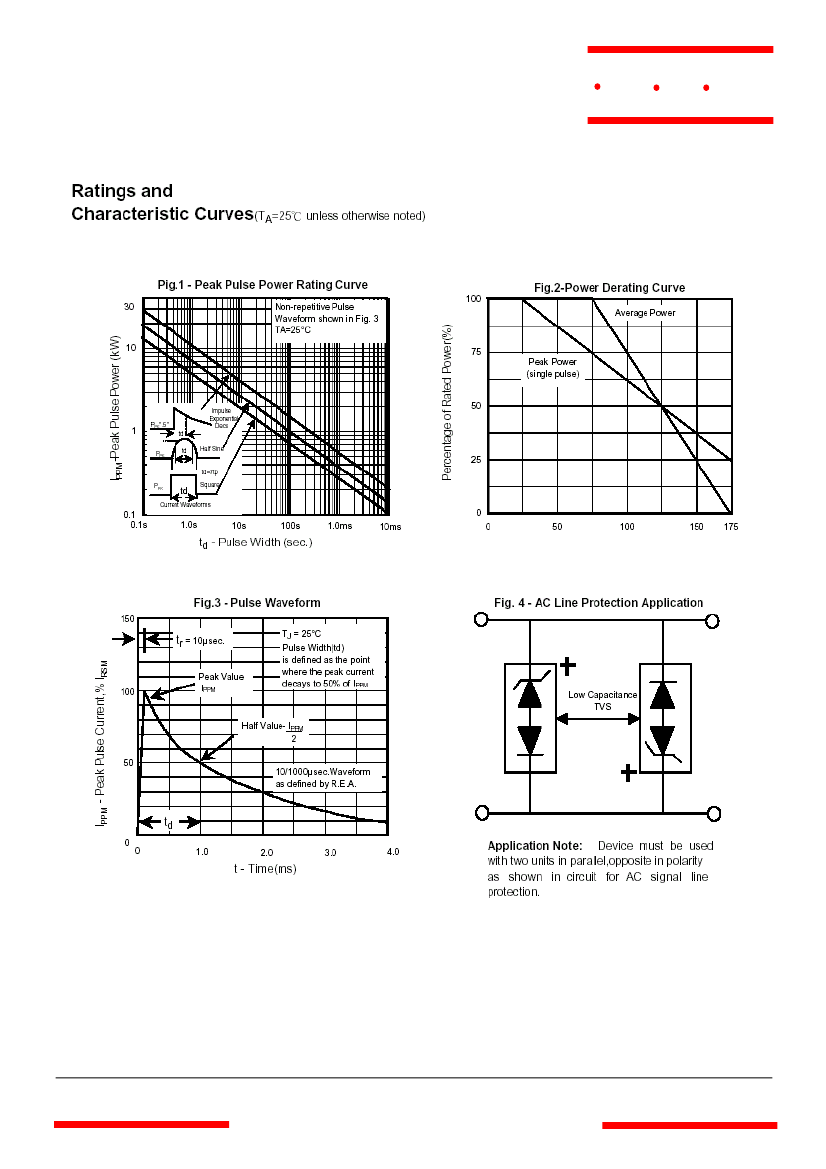

Maximum Ratings

Peak Pulse Power Dissipation

with a 10/1000μs

Waveform(Note 1)

Steady State Power Dissipation

@ T

=75℃ with lead lengths or

0.375’’(9.5mm)

Peak Pulse Power Surge

Current with a 10/1000μs

Waveform(Note 1. FIG.3)

Junction Temperature

Storage Temperature Range

Symbol

PPM

Value

500(min)

Units

Watts

M(AV)

See

Table1

-55 to 175

Watts

Cathode

Mark

PPM

STG

Amps

℃

NOTE:

1) Non-repetitive current pulse, per Fig.3 and derated above

TA=25℃, per Fig.2

DIM

MIN

0.230

0.104

0.026

1.000

DIMENSIONS

INCHES

MAX

0.300

0.140

0.034

-----

MIN

5.80

2.60

0.71

25.40

NOTE

MAX

7.60

3.60

0.86

-----

Revision: 3

www.mccsemi.com

1 of 4

2006/05/29
