1.5KE480A

Description
Trans Voltage Suppressor Diode, 1500W, 408V V(RWM), Unidirectional, 1 Element, Silicon, DO-201,
CategoryDiscrete semiconductor    diode
File Size607KB,6 Pages
ManufacturerPulse Electronics
Environmental Compliance
Download Datasheet Parametric View All

1.5KE480A Overview

Trans Voltage Suppressor Diode, 1500W, 408V V(RWM), Unidirectional, 1 Element, Silicon, DO-201,

1.5KE480A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPulse Electronics
Reach Compliance Codeunknow
Other featuresEXCELLENT CLAMPING CAPABILITY, LOW ZENER IMPEDANCE, PRSM-MIN
Maximum breakdown voltage504 V
Minimum breakdown voltage456 V
Breakdown voltage nominal value480 V
Shell connectionISOLATED
Maximum clamping voltage658 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-201
JESD-30 codeO-PALF-W2
Maximum non-repetitive peak reverse power dissipation1500 W
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation6.5 W
Maximum repetitive peak reverse voltage408 V
surface mountNO
technologyAVALANCHE
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED

1.5KE480A Preview

1.5KE SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
Glass passivated junction
Low zener impedance
Excellent clamping capability
1500W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 12V.
High Temperature soldering guaranteed: 265℃/10 seconds/.375″,
(9.5mm) lead length, 5lbs (2.3kg) tension
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020.
Safety certification: UL: E244458
Mechanical Data
Case: JEDEC DO-201 Moulded plastic
Terminal: Axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Mounting Position: Any
Weight: 0.97g
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
L
=75℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note2, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 1500
See Table
6.5
200
-55 to +150
15
75
Units
Watts
Amps
Watts
Amps
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:TVS-1.5KE SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com
1.5KE SERIES
Dimensions (DO-201)
Millimeters
Inches
Min.
1.000
0.285
0.190
0.038
Max.
-
0.375
0.210
0.042
Cathode Band
d
DIA.
Symbol
s
DIA.
Min.
L
T
25.40
7.20
4.80
0.96
Max.
-
9.50
5.30
1.07
L
T
L
d
s
Electrical Characteristics (T
A
=25℃)
Reverse
Part Number
Stand-Off
Voltage
Unidirectional
1.5KE6.8A
1.5KE7.5A
1.5KE8.2A
1.5KE9.1A
1.5KE10A
1.5KE11A
1.5KE12A
1.5KE13A
1.5KE15A
1.5KE16A
1.5KE18A
1.5KE20A
1.5KE22A
1.5KE24A
1.5KE27A
1.5KE30A
1.5KE33A
1.5KE36A
1.5KE39A
Bidirectional
1.5KE6.8CA
1.5KE7.5CA
1.5KE8.2CA
1.5KE9.1CA
1.5KE10CA
1.5KE11CA
1.5KE12CA
1.5KE13CA
1.5KE15CA
1.5KE16CA
1.5KE18CA
1.5KE20CA
1.5KE22CA
1.5KE24CA
1.5KE27CA
1.5KE30CA
1.5KE33CA
1.5KE36CA
1.5KE39CA
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
Breakdown
Voltage
@I
T
V
BR
(V)
6.45~7.14
7.13~7.88
7.79~8.61
8.65~9.55
9.50~10.50
10.50~11.60
11.40~12.60
12.40~13.70
14.30~15.80
15.20~16.80
17.10~18.90
19.00~21.00
20.90~23.10
22.80~25.20
25.70~28.40
28.50~31.50
31.40~34.70
34.20~37.80
37.10~41.00
Maximum
Clamping
Voltage @I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
Peak
Pulse
Current
I
PP
(A)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
Reverse
Leakage
@V
RWM
I
R
(μA)
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Revision:TVS-1.5KE SERIES-001(A1)
2/6
http://brightking.pulseelectronics.com
1.5KE SERIES
Electrical Characteristics (T
A
=25℃)
Reverse
Part Number
Stand-Off
Voltage
Unidirectional
1.5KE43A
1.5KE47A
1.5KE51A
1.5KE56A
1.5KE62A
1.5KE68A
1.5KE75A
1.5KE82A
1.5KE91A
1.5KE100A
1.5KE110A
1.5KE120A
1.5KE130A
1.5KE150A
1.5KE160A
1.5KE170A
1.5KE180A
1.5KE200A
1.5KE220A
1.5KE250A
1.5KE300A
1.5KE350A
1.5KE400A
1.5KE440A
1.5KE480A
1.5KE510A
1.5KE530A
1.5KE540A
1.5KE550A
Bidirectional
1.5KE43CA
1.5KE47CA
1.5KE51CA
1.5KE56CA
1.5KE62CA
1.5KE68CA
1.5KE75CA
1.5KE82CA
1.5KE91CA
1.5KE100CA
1.5KE110CA
1.5KE120CA
1.5KE130CA
1.5KE150CA
1.5KE160CA
1.5KE170CA
1.5KE180CA
1.5KE200CA
1.5KE220CA
1.5KE250CA
1.5KE300CA
1.5KE350CA
1.5KE400CA
1.5KE440CA
1.5KE480CA
1.5KE510CA
1.5KE530CA
1.5KE540CA
1.5KE550CA
V
RWM
(V)
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
450.00
459.00
467.00
Breakdown
Voltage
@I
T
V
BR
(V)
40.90~45.20
44.70~49.40
48.50~53.60
53.20~58.80
58.90~65.10
64.60~71.40
71.30~78.80
77.90~86.10
86.50~95.50
95.00~105.00
105.00~116.00
114.00~126.00
124.00~137.00
143.00~158.00
152.00~168.00
162.00~179.00
171.00~189.00
190.00~210.00
209.00~231.00
237.00~263.00
285.00~315.00
332.00~368.00
380.00~420.00
418.00~462.00
456.00~504.00
485.00~535.00
503.50~556.50
513.00~567.00
522.50~577.50
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage @I
PP
V
C
(V)
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
Peak
Pulse
Current
I
PP
(A)
25.6
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
7.3
6.9
6.5
6.2
5.5
4.6
4.4
3.7
3.2
2.8
2.5
2.3
2.1
2.1
2.0
2.0
Reverse
Leakage
@V
RWM
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Notes: For bidirectional type having V
RWM
of 10V and less, the I
R
limit is double.
Revision:TVS-1.5KE SERIES-001(A1)
3/6
http://brightking.pulseelectronics.com
1.5KE SERIES

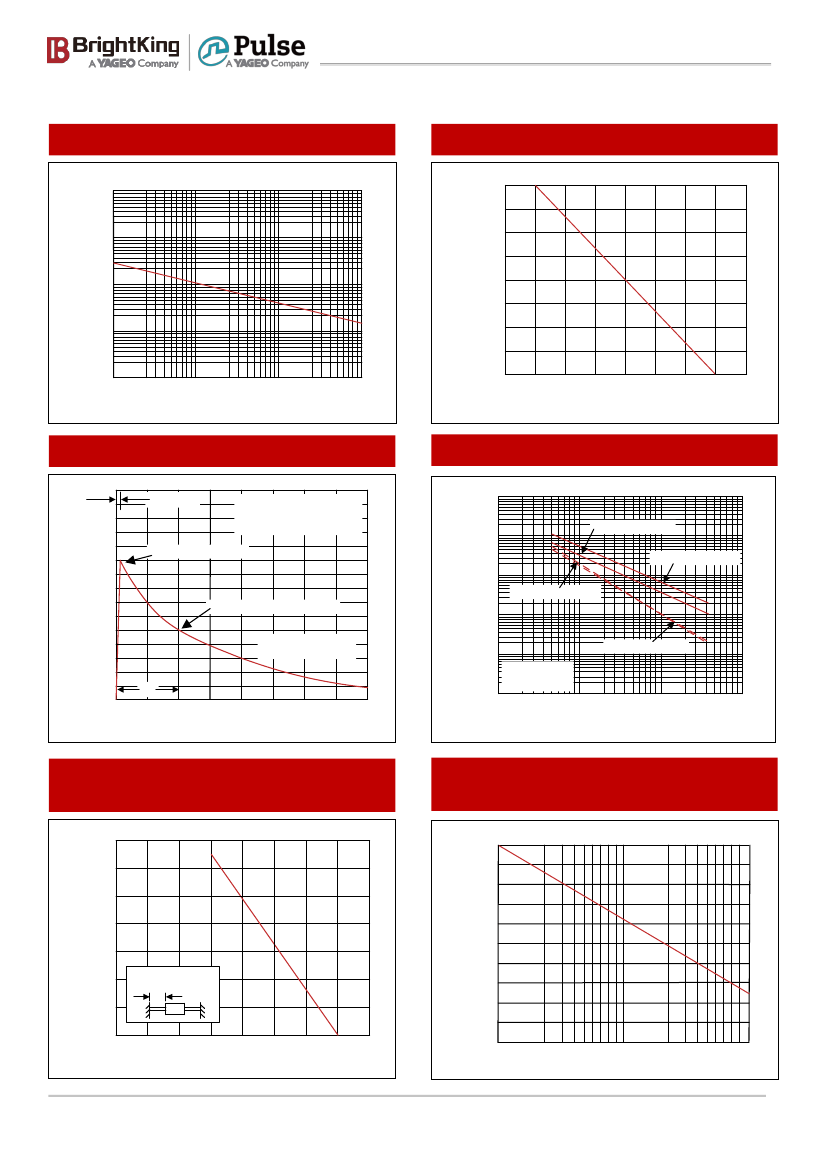

Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
1000
Figure 2. Pulse Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
1
10
1000
P
PPM
- Peak Pulse Power (kW)
100
75
10
50
1
25
0.1
0.1
0
0
25
50
75
100 125
150 175
200
T
A
-Ambient Temperature (℃)
t
d
-Pulse Width (µs)
Figure 3. Pulse Waveform
150
I
PPM
- Peak Pulse Current, %I
RSM
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
Figure 4. Typical Junction Capacitance
100000
Bi-directional V=0V
t
r
=10µs
10000
Uni-directional V=0V
100
Peak Value I
PPM
Cj (pF)
1000
Uni-directional @V
R
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
100
10
1
T
J
=25℃
f=1.0MHz
Vsig=50mVp-p
Bi-directional @V
R
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
10
100
1000
V
BR
-Reverse Breakdown Voltage (V)
Figure 5. Steady State Power Dissipation Derating
Curve
7
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
200
P
M(AV)
, Steady State Power Dissipation (W)
I
FSM
- Peak Forward Surve Current (A)
100
125
150
175
200
6
5
4
3
2
1
0
0
25
50
75
T
L
-Lead Temperature (℃)
L= 0.375″(9.5mm)
Lead Lengths
180
160
140
120
100
80
60
40
20
0
1
10
Number of Cycles at 60Hz
100
Revision:TVS-1.5KE SERIES-001(A1)
4/6
http://brightking.pulseelectronics.com
1.5KE SERIES
Recommended Soldering Conditions
Wave Soldering
300
Preheating
Maximum Wave 265℃
Soldering
Cooling
250
Temperature (℃)
200
150
100
50
0
0
0.5
1
1.5
2
2.5
3
3.5
4
Time (minutes)
Item
Peak Temperature
Dipping Time
Soldering
Conditions
265℃
10 seconds
1 time
Marking Code
Cathode Band
Logo
YXXX
1.5KE6.8A
Date Code
Marking Code
Logo
YXXX
1.5KE6.8CA
Date Code
Marking Code
Part Number Code
1.5KE XXX C A
5% V
BR
Voltage Tolerance
Bidirectional
V
BR
Voltage
Series Code
Revision:TVS-1.5KE SERIES-001(A1)
5/6
http://brightking.pulseelectronics.com
Please look at a circuit
SLEEP and SNOOZE are connected to a control chip. The chip manual says that SLEEP should be connected to a 5s intermittent circuit and SNOOZE to a 0.5s intermittent circuit. The reference module gives...
IT学徒 Analog electronics
LED Flash Power Supply
Does anyone have the information or design of the LED flash power supply for the 2015 National College Student Electronic Design Competition, program and circuit diagram?...
bowen815@1 Electronics Design Contest
I want to find a frequency meter based on a single chip microcomputer
Hope some friends can help me! Thank you!...
iloveliu33 MCU
Share the newly released STM32F103VCT6 schematic package
Orcad format, see the attachment for details...
yurl09mail stm32/stm8
How to burn the iar program into the chip
I checked a lot of information, all of which tell you how to crack IAR and how to simulate. How to set up IAR linker to burn the program in AVR STUDIO using the HEX file generated by IAR....
jeffery2012 Microchip MCU
I want to change the arm board
I want to change to an ARM development board with a screen for work. I have a DSP board F2812+CPLD at hand. The website is [url]https://detail.tmall.com/item.htm?spm=a230r.1.14.32.LJcXSc&id=4331705477...
908508455a Buy&Sell

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1629  1417  2262  2336  2545  33  29  46  48  52
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
