High Q / Low ESR Series (HH)
MULTILAYER CERAMIC CAPACITORS
High Q / Low ESR Series (HH)
0402, 0603 & 0805 Sizes
NP0 Dielectric
RoHS Compliance
*Contents in this sheet are subject to change without prior notice.
Page 1 of 11
ASC_ HQ_Low ESR_(HH)_006N_AS
Apr. 2012
Approval sheet
High Q / Low ESR Series (HH)
1. INTRODUCTION
MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve
miniaturization, high density and high efficiency, ceramic condensers are used.
WTC HH series MLCC is used at high frequencies generally have a small temperature coefficient of capacitance,
typical within the ±30ppm/° required for NP0 (C0G) classification and have excellent conductivity internal electrode.
C
Thus, WTC HH series MLCC will be with the feature of low ESR and high Q characteristics.
2. FEATURES
a.
b.
High Q and low ESR performance at high frequency.
Quality improvement of telephone calls for low
power loss and better performance.
3. APPLICATIONS
a.
b.
c.
Mobile telecommunication: Mobile phone, WLAN.
RF module: Power amplifier, VCO.
Tuners.
4. HOW TO ORDER
HH
Series
HH=High
Q/
Low ESR
15
Size
15=0402
(1005)
18=0603
(1608)
21=0805
(2012)
N
Dielectric
N=NP0
(C0G)
100
Capacitance
Two significant
digits followed by
no. of zeros. And
R is in place of
decimal point.
eg.:
R47=0.47pF
0R5=0.5pF
1R0=1.0pF
100=10x10
0
=10pF
G
Tolerance
B=±0.1pF
C=±0.25pF
D=±0.5pF
F=±1%
G=±2%
J=±5%
500
Rated voltage
C
Termination
T
Packaging
T=7”
reeled
G=13”
reeled
Two significant
L=Ag/Ni/Sn
digits followed by
C=Cu/Ni/Sn
no. of zeros. And
R is in place of
decimal point.
160=16
VDC
250=25
VDC
500=50
VDC
101=100
VDC
201=200
VDC
251=250
VDC
501=500
VDC
631=630
VDC
Page 2 of 11
ASC_ HQ_Low ESR_(HH)_006N_AS
Apr. 2012
Approval sheet
High Q / Low ESR Series (HH)
5. EXTERNAL DIMENSIONS
Size
Inch (mm)
0402 (1005)
L (mm)
W (mm)
T (mm)/Symbol
Remark
M
B
(mm)
0.25
+0.05/-0.10
W
L
1.00±0.05
1.60±0.10
0.50±0.05
0.80±0.10
0.80
+0.15/-0.10
0.50±0.05
0.80±0.07
0.80
+0.15/-0.10
0.60±0.10
N
S
#
T
0603 (1608)
1.60
+0.15/-0.10
0.40±0.15
X
A
B
D
#
0.50±0.20
M
B
M
B
Fig. 1 The outline of MLCC
0805 (2012)
2.00±0.15
1.25±0.10
0.80±0.10
1.25±0.10
# Reflow soldering only is recommended.
6. GENERAL ELECTRICAL DATA
Dielectric
Size
Capacitance*
NP0
0402, 0603, 0805
0402: 0.5pF to 470pF**
0603: 0.5pF to 3300pF
0805: 0.5pF to 390pF
Cap≤5pF: B (±0.1pF), C (±0.25pF)
5pF<Cap<10pF: C (±0.25pF), D (±0.5pF)
Cap≥10pF: F (±1%), G (±2%), J (±5%)
16V, 25V, 50V, 100V, 200V, 250V, 500V, 630V
Cap<30pF: Q≥400+20C
Cap≥30pF: Q≥1000
≥10G
or RxC≥100 -F whichever is smaller.
-55 to +125°
C
±30ppm
Ni/Sn (lead-free termination)
Capacitance tolerance
Rated voltage (WVDC)
Q*
Insulation resistance at Ur
Operating temperature
Capacitance change
Termination
* Measured at the conditions of 25° ambient temper ature and 30~70% related humidity.
C
Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap≤1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF.
** 0402, Capacitance <0.5pF: On request.
Page 3 of 11
ASC_ HQ_Low ESR_(HH)_006N_AS
Apr. 2012
Approval sheet
High Q / Low ESR Series (HH)
7. CAPACITANCE RANGE
DIELECTRIC
SIZE
Rated Voltage
0.5pF (0R5)
0.6pF (0R6)
0.7pF (0R7)
0.8pF (0R8)
0.9pF (0R9)
1.0pF (1R0)
1.2pF (1R2)
1.5pF (1R5)
1.8pF (1R8)
2.2pF (2R2)
2.7pF (2R7)
3.3pF (3R3)
3.9pF (3R9)
4.7pF (4R7)
5.6pF (5R6)
6.8pF (6R8)
8.2pF (8R2)
10pF (100)
12pF (120)
15pF (150)
18pF (180)
22pF (220)
27pF (270)
33pF (330)
39pF (390)
47pF (470)
56pF (560)
68pF (680)
82pF (820)
100pF (101)
120pF (121)
150pF (151)
180pF (181)
220pF (221)
270pF (271)
330pF (331)
390pF (391)
470pF (471)
560pF (561)
680pF (681)
820pF (821)
1,000pF (102)
1,200pF (122)
1,500pF (152)
1,800pF (182)
2,200pF (222)
2,700pF (272)
3,300pF (332)
NP0
16
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
0402
25
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
0603
50
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N^
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
N
16
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
X
X
X
X
X
X
25
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
X
X
X
X
X
X
50
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
X
X
X
X
X
X
100
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S^
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
50
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
100
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
0805
200
250
500
630
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
D
D
D
D
D
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
D
D
D
D
D
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
D
D
D
D
D
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
D
D
D
D
D
D
D
1. The letter in cell is expressed the symbol of product thickness.
2. The letter in cell with “^” mark is expressed product with Ag/Ni/Sn terminations.
3. 0402, Capacitance <0.5pF: On request.
4. For more information about products with special capacitance or other data, please contact WTC local representative.
Page 4 of 11
Capacitance
ASC_ HQ_Low ESR_(HH)_006N_AS
Apr. 2012
Approval sheet
High Q / Low ESR Series (HH)
8. PACKAGING DIMENSION AND QUANTITY
Size
0402
0603
Thickness (mm)/Symbol
0.50±0.05
0.80±0.07
0.80 +0.15/-0.10
0.60±0.10
0805
0.80±0.10
1.25±0.10
N
S
X
A
B
D
Paper tape
7” reel
10K
4K
4k
13” reel
20K
15K
15k
3k
10k
Unit: pieces
Plastic tape
7” reel
13” reel

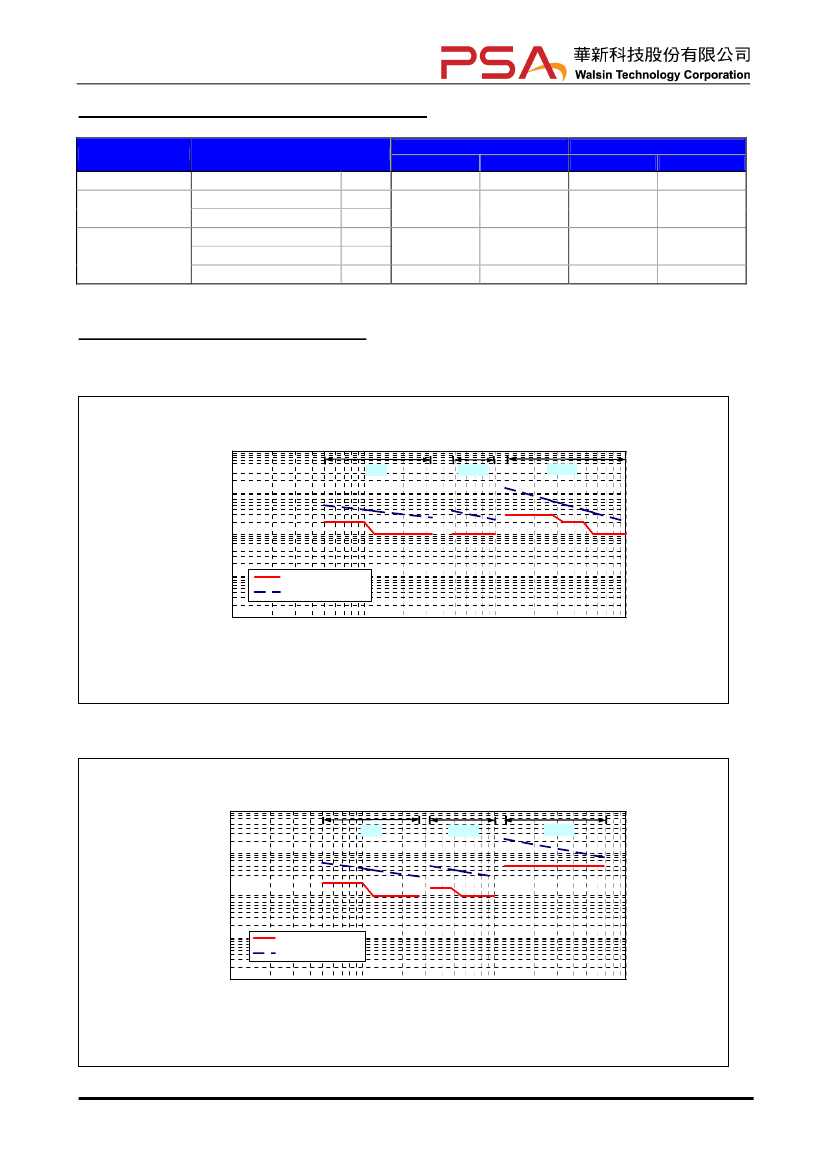

9. ELECTRICAL CHARACTERISTICS
◙
Q factor specification vs. Specific frequency
Q value criteria vs. Specific frequency
HH series, 0402
10000
1GHz
500MHz
100MHz
1000
100
Q
10
Minimum (Solid line)
Typical (Broken line)
1
0.1
1
Capacitance (pF)
10
100
Fig. 2 Q factor specification vs. Specific frequency for 0402
◙
Q factor specification vs. Specific frequency
Q value criteria vs. Specific frequency
HH series, 0603
10000
1GHz
500MHz
100MHz
1000
100
Q
10
Minimum (Solid line)
Typical (Broken line)
1
0.1
1
Capacitance (pF)
10
100
Fig. 3 Q factor specification vs. Specific frequency for 0603
Page 5 of 11
ASC_ HQ_Low ESR_(HH)_006N_AS
Apr. 2012
