354664 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 354664

354664: Description48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354664 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354664	-	-	View	Buy Now

354664 Overview

48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

354664 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.618 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	2200VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.251 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C,E
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	5.08 mm
Termination type	PRESS FIT
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

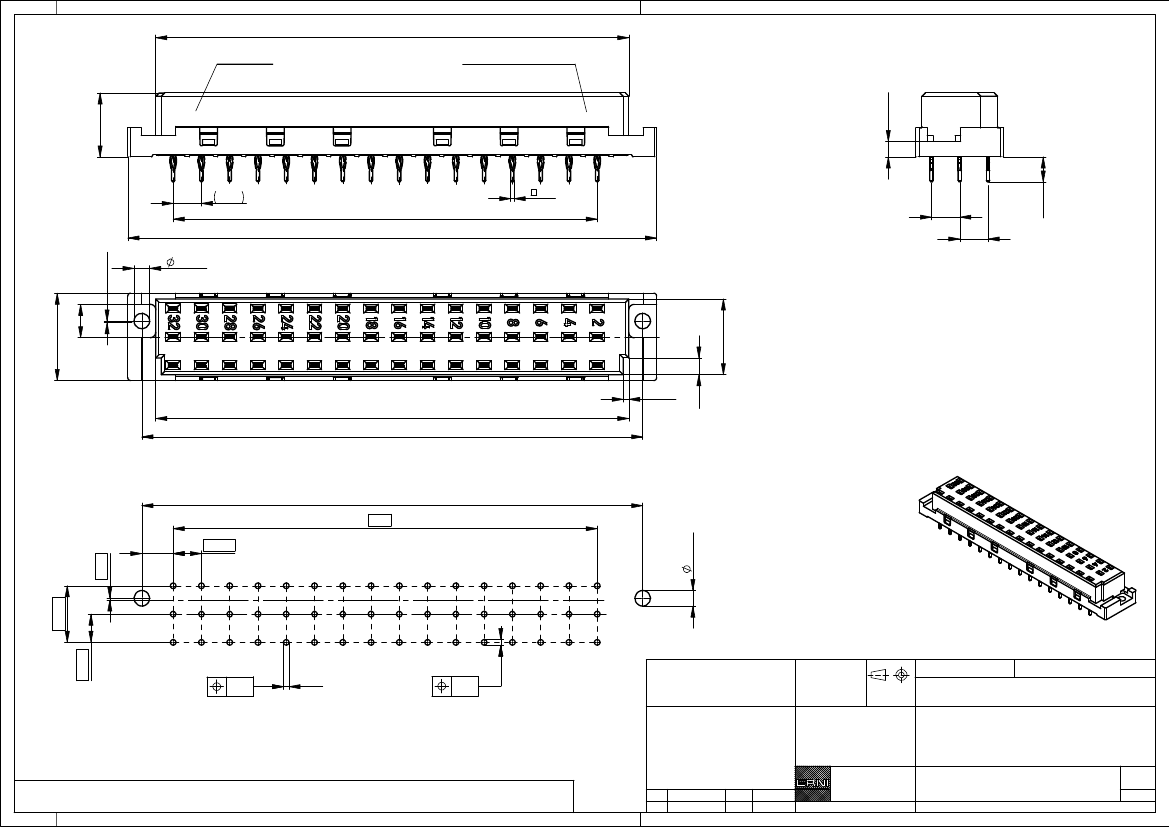

-0,2

Datum /

date

Anforderungsstufe /

class

11,6

max.

XXXX

ERNI

RC 2

2,9

max.

5,08

15 x 5,08 =76,2

max.

0,3

±0,05

2,8

+0,1

0,6

5,08

15,7

-0,2

±0,1

+0,2

+0,1

13,6

-0,1

Elastische Einpresszone /

compliant pressfit zone

Isolierwerkstoff /

housing material

: PBT GF 30

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Bauart 7 /

type 7

Lochaufbau siehe ERNI-Spezifikation 164062 /

hole design see ERNI-specification 164062

1) 1,0

+0,09

-0,06

Durchmesser des metallisierten Loches

Leiterplatten-Layout Vorschlag

PCB-Layout proposal

±0,05

15 x 5,08 (=76,2)

0,3

10,16

5,08

2,8

5,63

5,08

+0,1

1,0

-0,06

Diameter of finished plated-through hole

+0,09

0,05

alle Löcher /

all holes

0,05

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

07.05.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste E 48 EE

Fem Connector E 48 Pressfit

Fehlende Masse und Angaben nach DIN EN 60603-2 /

Missing information and dimensions according to DIN EN 60603-2

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications please see the production documentation

www.ERNI.com

Class

354664

STVE

4,5

±0,2
