CAT25-821JA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CAT25-821JA

CAT25-821JA: DescriptionArray/Network Resistor, Bussed, Metal Glaze/thick Film, 0.5W, 820ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0816, CHIP; CategoryPassive components The resistor; File Size187KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

CAT25-821JA Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.5W, 820ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0816, CHIP

CAT25-821JA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
Component power consumption	0.0625 W
The first element resistor	820 Ω
JESD-609 code	e0
Manufacturer's serial number	CAT25
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	8
Number of functions	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	4 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.1 mm
method of packing	TR, EMBOSSED
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	820 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	CAT25
size code	0816
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	25 V

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Concave terminals

Lead free version available (see How to

Order “Termination” options)

RoHS compliant*

8 bit multiple applications

Smallest bussed chip array

■

E 24 Series from 10 ohms to 1 megohm

CAT25 - Thick Film Chip Resistor Arrays

Electrical Characteristics

Parameters

Number of Resistors

Resistance Range E24

Resistance Tolerance

Power Rating/Resistor

Rating Temperature

T.C.R.

Maximum Operating Voltage

Operating Temperature

CAT25

10 ohms to 1 megohm

62.5 mW

+70 °C

+/-200 ppm/°C

25 V

-55 °C to +125 °C

Test Method

How To Order

CA T 25 - 103 J A __

Product

CA = Chip Array

Pin Style

T = Concave

Model

Resistance Value

103 = 10K ohms

Tolerance

J=5%

Electrical Circuit

A = 8 Resistors, Bussed Type

JIS-C-5202.5.1

JIS-C-5202.5.2

Environmental Characteristics

Specification

Short Time Overload

Load Life

Humidity Load Life

Resistance to Soldering Heat

Terminal Strength

Temperature Cycle

Vibration

Insulation Resistance

Dielectric Withstanding Voltage

Lead Solderability

Characteristics

+/-(3 % +0.1 ohm)

+/-(5 % +0.1 ohm)

+/-(3 % +0.1 ohm)

+/-(1 % +0.1 ohm)

+/-(2 % +0.1 ohm)

+/-(1 % +0.1 ohm)

1000 megohms minimum

50 VRMS

>95 %

Test Method

JIS-C-5202.5.5

JIS-C-5202.7.10

JIS-C-5202.7.9

JIS-C-5202.6.4

JIS-C-5202.6.

JIS-C-5202.7.4

JIS-C-5202.6.3

JIS-C-5202.5.6

JIS-C-5202.5.7

JIS-C-5202.6.5

Terminations

LF = Tin-plated (lead free)

Blank = Solder-plated

For Standard Values Used in Capacitors,

Inductors, and Resistors,

click here.

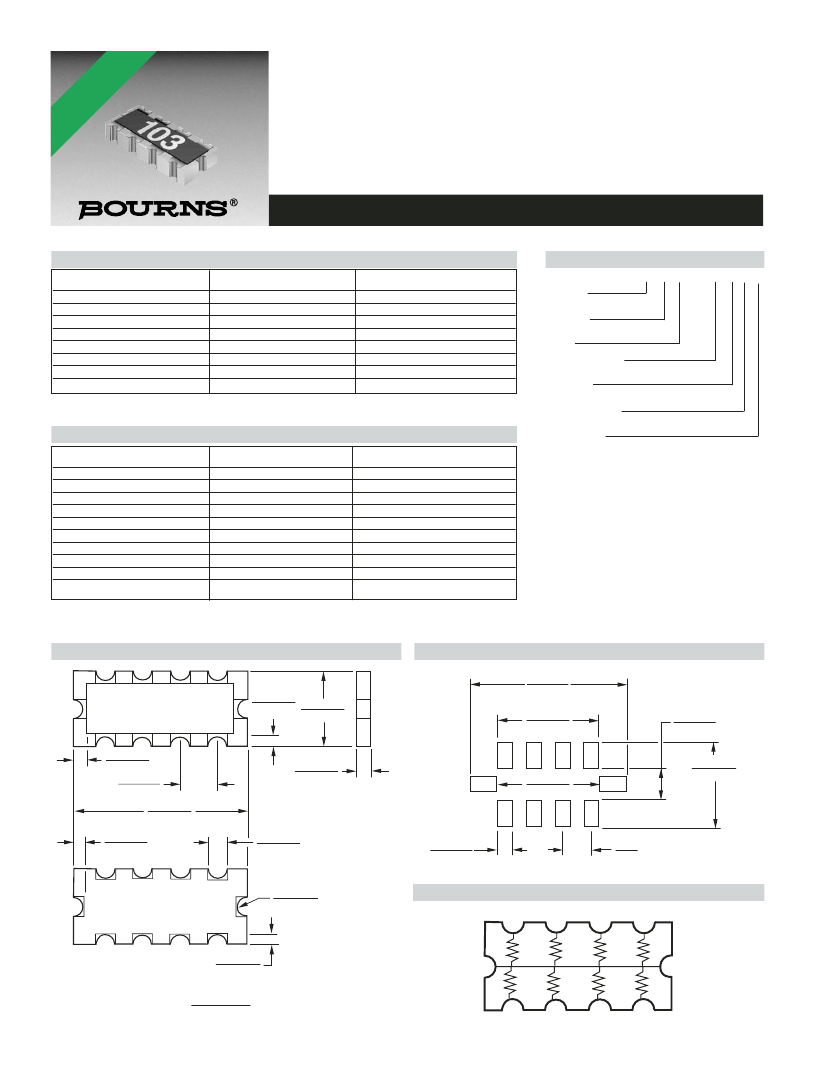

Outline Drawing

Land Pattern

4.8 - 5.2

(.190 - .205)

2.10 ± 0.20

(.083 ± .008)

2.8 - 3.0

(.110 - .118)

0.9 - 1.1

(.035 - .043)

103

0.30 ± 0.20

(.012 ± .008)

0.80 ± 0.10

(.032 ± .004)

4.00 ± 0.20

(.157 ± .008)

0.35 ± 0.20

(.014 ± .008)

0.25 ± 0.20

(.010 ± .008)

0.55 ± 0.10

(.022 ± .004)

3.3 - 3.4

(.130 - .133)

3.2 - 3.5

(.125 - .138)

0.50 ± 0.20

(.020 ± .008)

0.4 - 0.5

(.016 - .020)

0.80

(.032)

0.25 ± 0.15

DIA.

(.010 ± .006)

Electrical Circuit

0.40 ± 0.20

(.016 ± .008)

DIMENSIONS ARE:

(INCHES)

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
