5962F9215603QYC datasheet, PDF

5962F9215603QYC: DescriptionField Programmable Gate Array, 8000 Gates, 1232-Cell, CMOS, CQFP172, QFP-172; CategoryProgrammable logic devices Programmable logic; File Size530KB，24 Pages; ManufacturerActel; Websitehttp://www.actel.com/

Download Datasheet Parametric View All

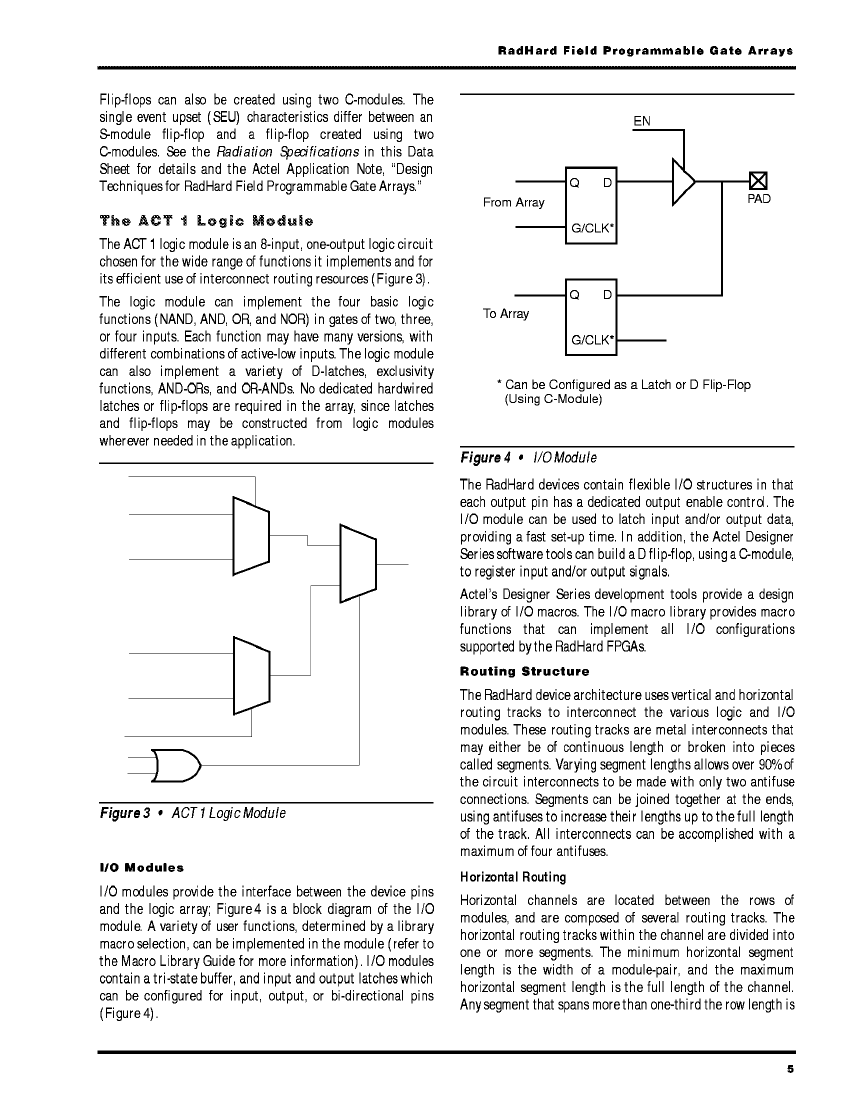

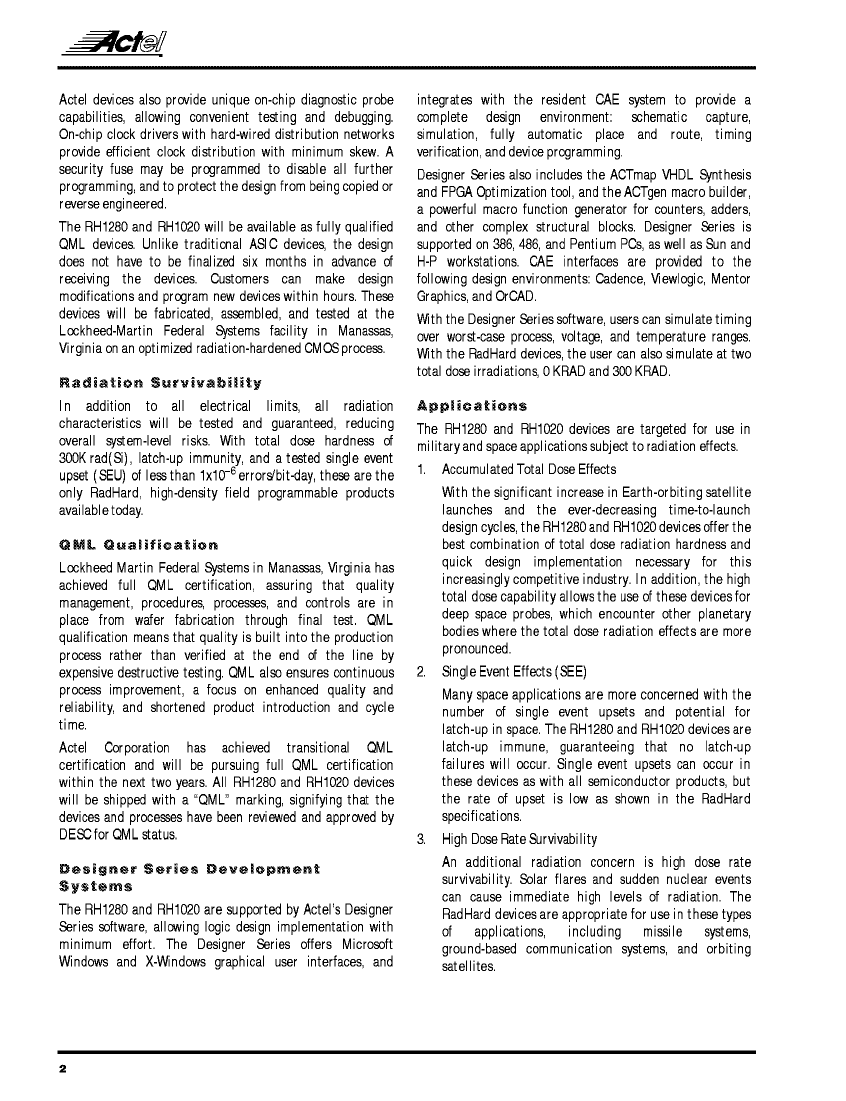

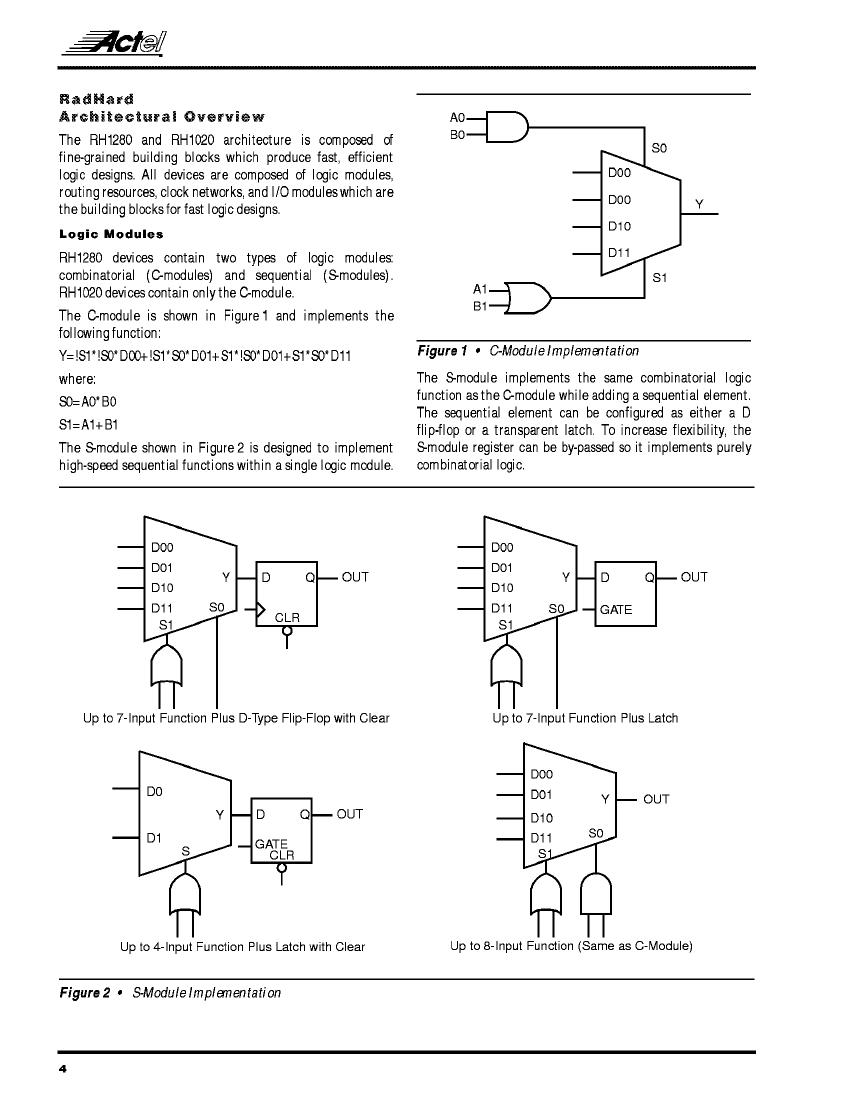

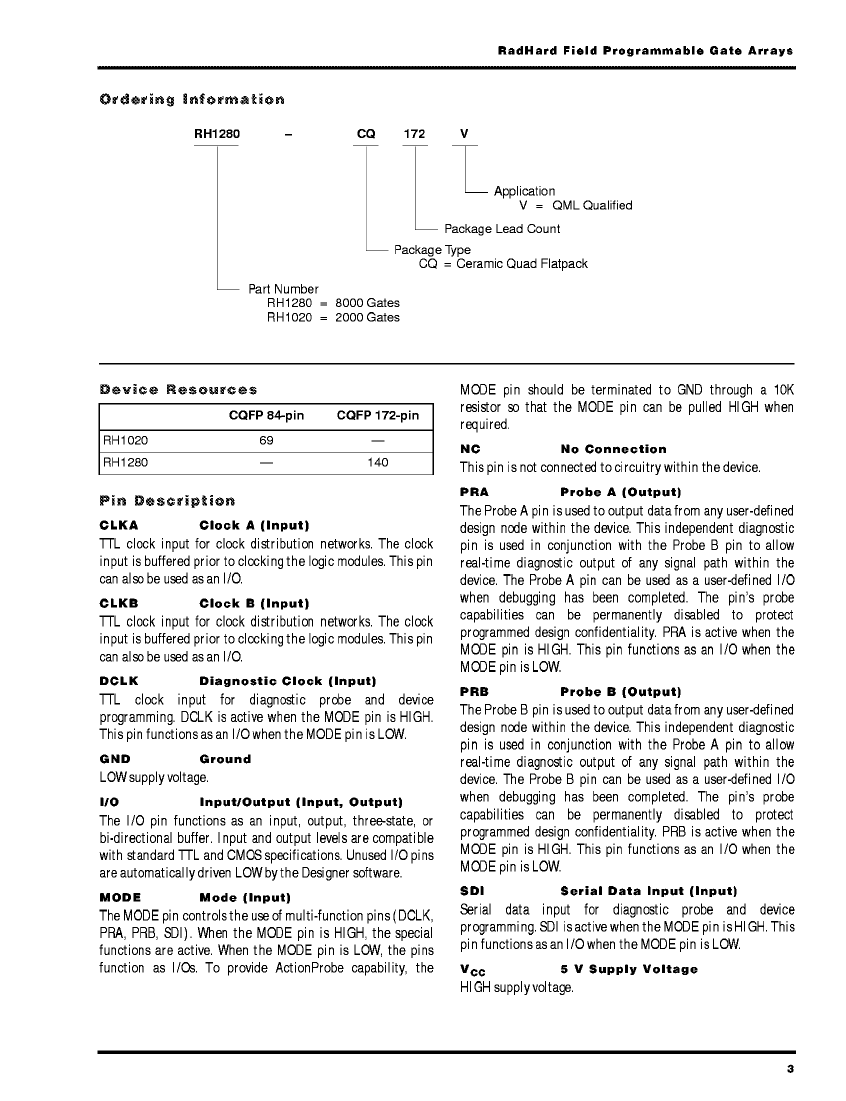

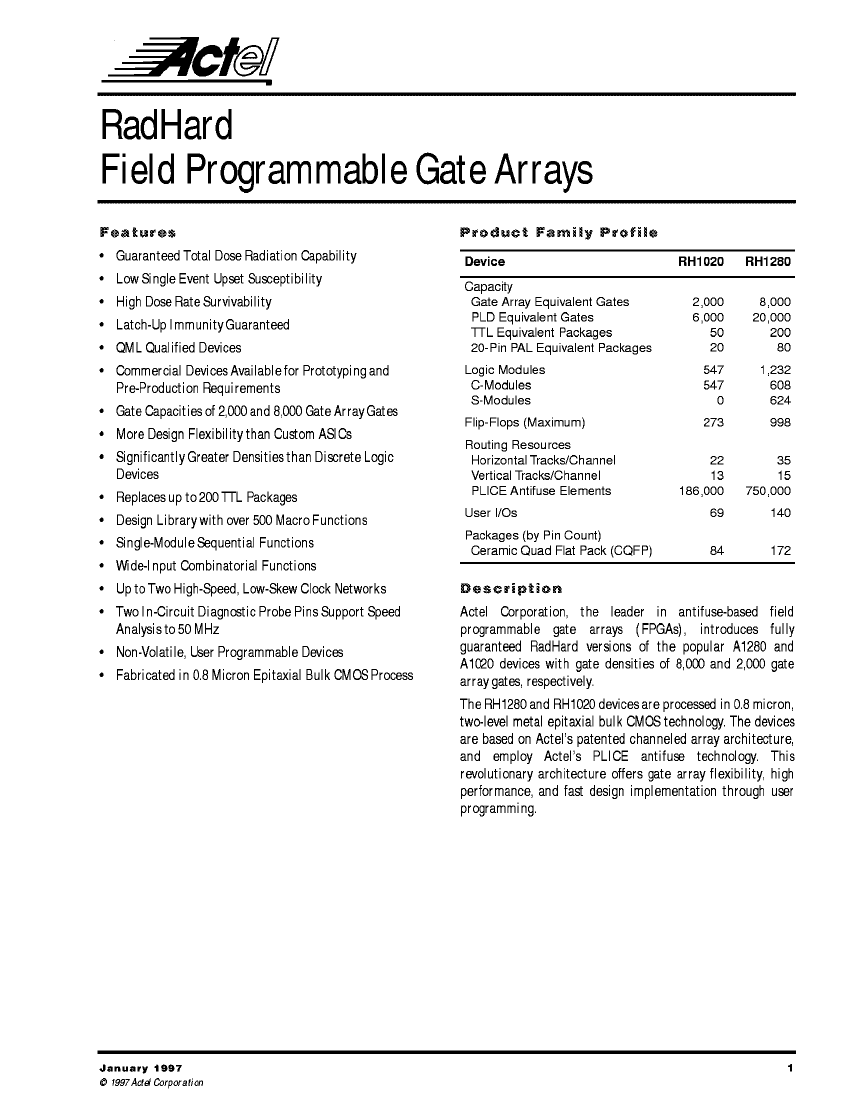

5962F9215603QYC Overview

Field Programmable Gate Array, 8000 Gates, 1232-Cell, CMOS, CQFP172, QFP-172

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Actel
package instruction	GQFF, TPAK172,2.5SQ,25
Reach Compliance Code	unknow
JESD-30 code	S-CQFP-F172
JESD-609 code	e0
length	29.972 mm
Equivalent number of gates	8000
Number of entries	140
Number of logical units	1232
Output times	140
Number of terminals	172
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	GQFF
Encapsulate equivalent code	TPAK172,2.5SQ,25
Package shape	SQUARE
Package form	FLATPACK, GUARD RING
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	3.175 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT APPLICABLE
total dose	300k Rad(Si) V
width	29.972 mm
