BA3306 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> BA3306

BA3306: DescriptionDual preamplifier with ALC; CategoryAnalog mixed-signal IC Consumption circuit; File Size92KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA3306 Overview

Dual preamplifier with ALC

BA3306 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SIP
package instruction	SIP-9
Contacts	9
Reach Compliance Code	compli
ECCN code	EAR99
Commercial integrated circuit types	AUDIO PREAMPLIFIER
harmonic distortion	0.3%
JESD-30 code	R-PSIP-T9
JESD-609 code	e3/e2
length	21.8 mm
Number of channels	2
Number of functions	1
Number of terminals	9
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP9,.05TB
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	7 V
Certification status	Not Qualified
Maximum seat height	7.2 mm
Maximum slew rate	4 mA
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	NO
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	2.8 mm

Preview

Download Datasheet

View All

Audio ICs

Dual preamplifier with ALC

BA3306

The BA3306 is a dual preamplifier with ALC designed for use in stereo radio-cassette recorders and tape recorders. It

comes in a compact 9-pin SIP package and has two record / playback preamplifiers, and an ALC circuit. The preamplifi-

ers have high gain and low distortion, and can be directly coupled to the tape head without coupling capacitors. This

prevents tape head magnetization and “pop” noise generation.

The ALC circuit has good channel balance and large dynamic range and can be constructed with addition of just an exter-

nal detector and time constant circuit.

The IC also includes a power-on mute circuit that suppresses “pop” noise generation.

FApplications

Stereo radio cassette players

FFeatures

1) Wide operating power supply voltage range

= 4.5V to 14V).

2) Low current dissipation (I

= 2.5mA).

3) High gain (G

= 80dB).

4) Low distortion (THD = 0.1%).

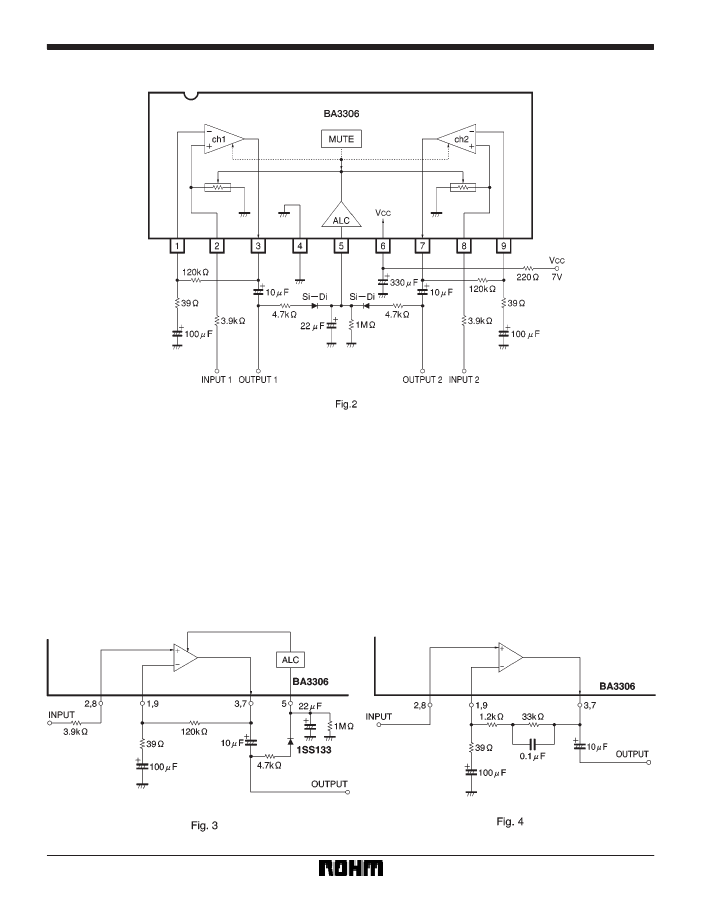

FBlock

diagram

Low noise (V

NIN

= 1µV

rms

Input coupling capacitors and not necessary.

Good ALC channel balance.

Power-on mute circuit.

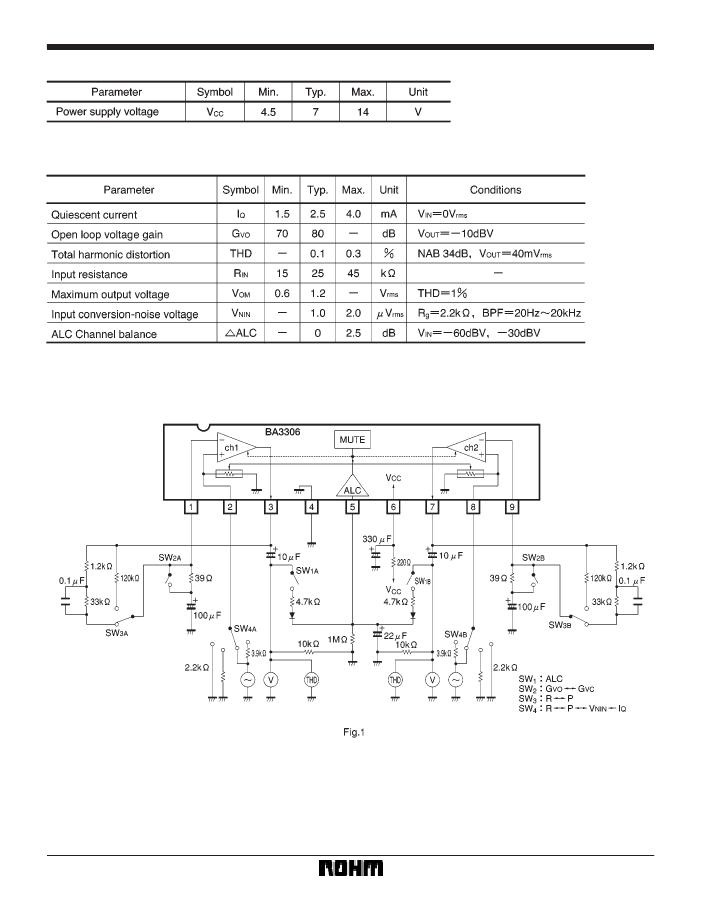

FAbsolute

maximum ratings (Ta = 25_C)

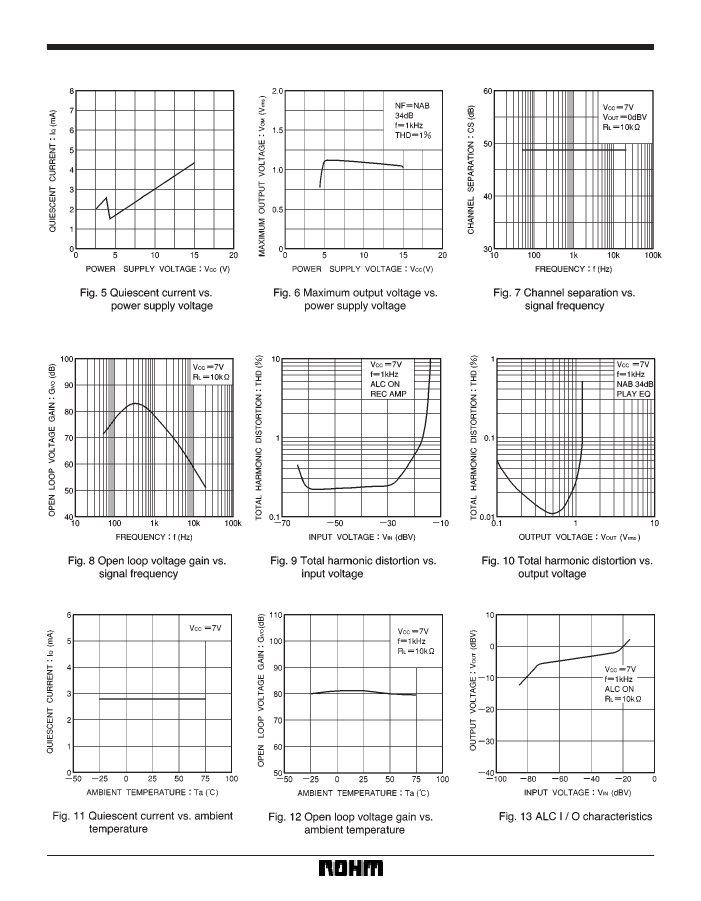

201
