CB24.75%B: DescriptionRESISTOR, WIRE WOUND, 2W, 5%, 300ppm, 4.7ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size93KB，3 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

CB24.75%B Overview

RESISTOR, WIRE WOUND, 2W, 5%, 300ppm, 4.7ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

CB24.75%B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	CB
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	4.7 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	300 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	5%

Preview

Download Datasheet

View All

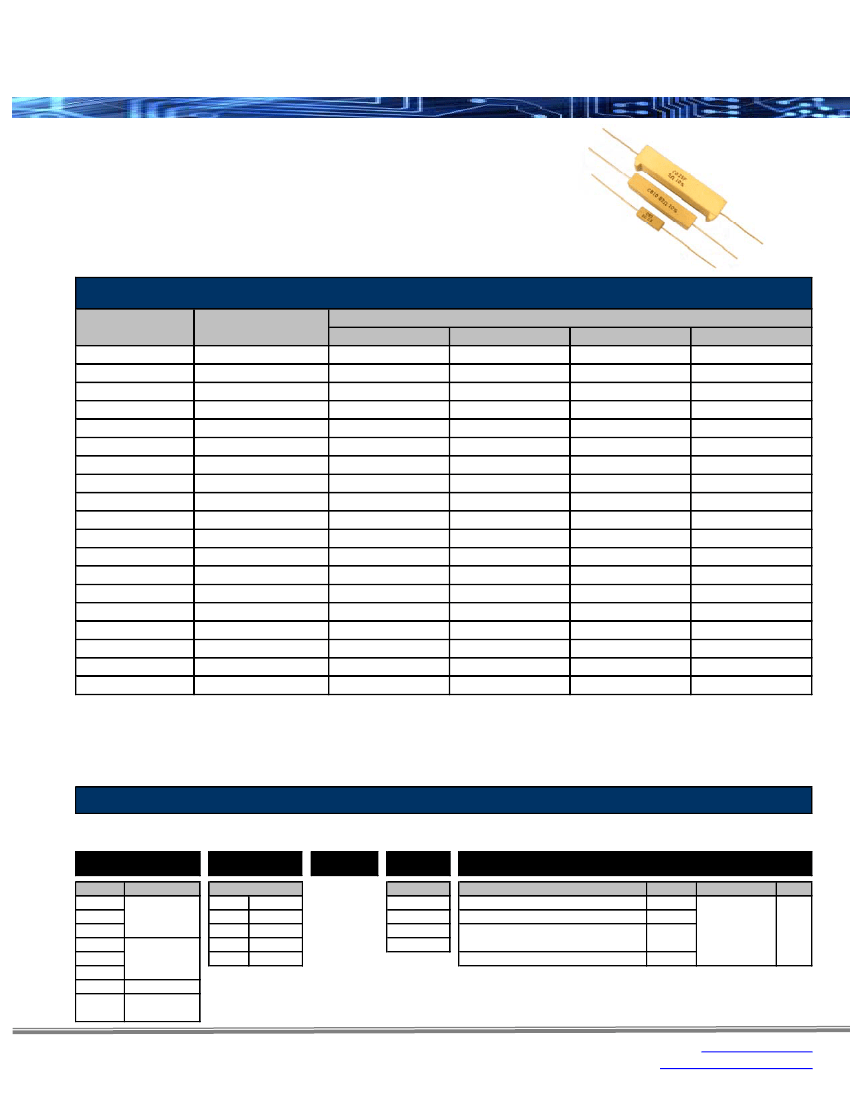

CB Series

Ceramic Housed Wirewound with Axial Leads

Features:

•

Fireproof power wirewound

High thermal conductivity

Different element(resistor) available:

precision / ceramic & metal oxide

Non-inductive styles available

Body standoffs available; add “F” after CB

RoHS compliant / lead-free

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Type / Code

CB 2

CB 3

CB 5

CB 7

CB 10

CB 15

CB 20

CB 22

CB 25

CB 30

WCB 2

WCB 3

WCB 5

WCB 7

WCB 10

WCB 15

MCB 3

MCB 5

MCB 7

Power Rating

(Watts) @ 70ºC

2

3

5

7

10

15

20

22

25

30

2

3

5

7

10

15

3

5

7

0.5%

-

1 - 5K

1 - 10K

1 - 15K

1 - 20K

-

Ohmic Range(Ω) and Tolerance

1%

5%

-

0.1 - 300

-

0.1 - 680

-

0.1 - 680

-

0.1 - 1.5K

-

0.1 - 2K

-

0.15 - 2K

-

0.2 - 2K

-

1 - 250

-

0.2 - 2K

-

1 - 250

1 - 5K

1 - 10K

1 - 15K

1 - 20K

-

1 - 500K

-

1 - 500K

-

1 - 500K

10%

0.1 - 300

0.1 - 680

0.1 - 1.5K

0.1 - 2K

0.15 - 2K

0.2 - 2K

1 - 250

0.2 - 2K

1 - 250

-

Resistance Temperature Coefficient Standard:

CB series: ±800ppm below 1Ω & ±300ppm for 1Ω and above;

WCB series: ±50ppm from 1Ω to 10Ω & ±20ppm above 10Ω;

MCB series: ±200ppm

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

CB

Code

Description

CB

Standard

WCB

MCB

CBF

WCBF With standoff

MCBF

NWCB Non inductive

Non inductive

NWCBF

with standoff

2

5

10

20

25

2

Code

3

7

15

22

30

100

5%

Tolerance

0.5%

1%

5%

10%

B

SEI Types

CB 2, CB 3, CB 5, MCB 3, MCB 5

WCB 2, WCB 3, WCB 5

CB 7, CB 10, CB 15, WCB 7,

WCB 10, WCB 15, MCB 7

CB 20, CB 22, CB 25, CB 30

Pkg Qty

750

500

250

100

Description

Code

Bulk

B

Rev Date: 01/28/2010

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

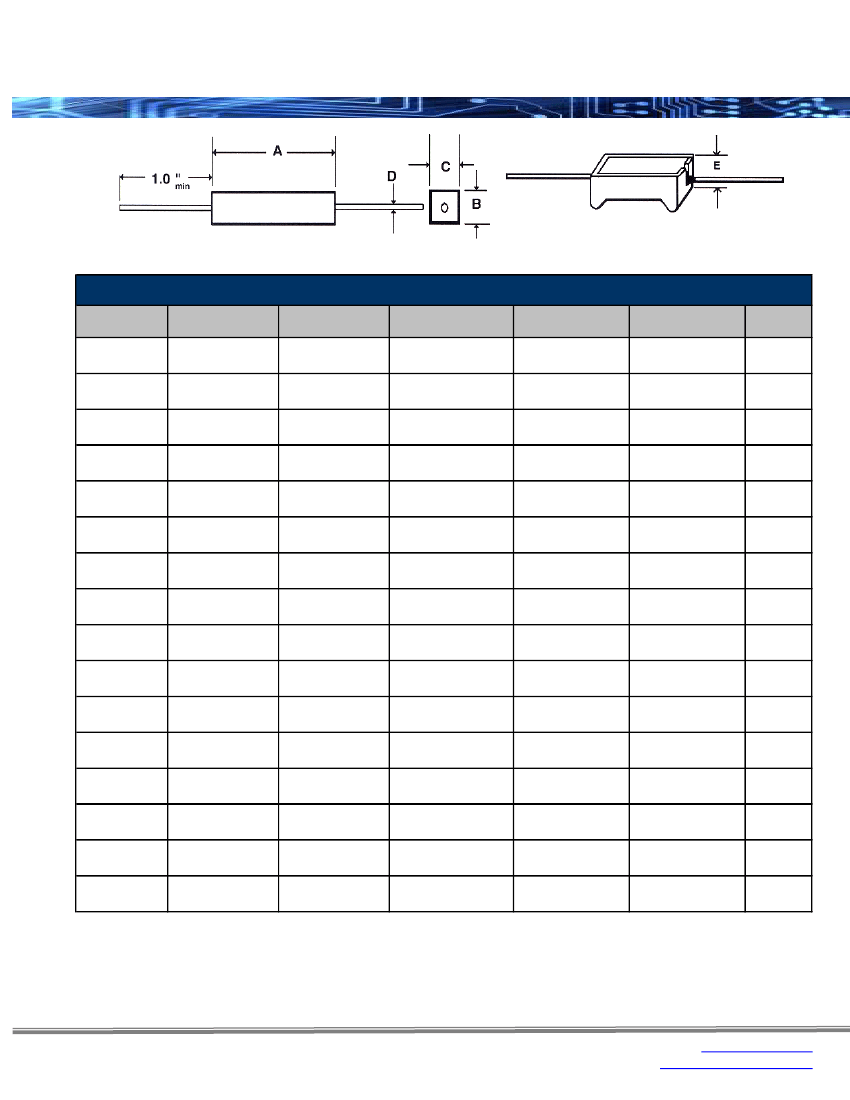

81

www.seielect.com
