SWT-M-22-A9-B15-T51-GSGS-E datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> SWT-M-22-A9-B15-T51-GSGS-E

SWT-M-22-A9-B15-T51-GSGS-E: DescriptionToggle Switch,; CategoryMechanical and electronic products switch; File Size175KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

SWT-M-22-A9-B15-T51-GSGS-E Overview

Toggle Switch,

SWT-M-22-A9-B15-T51-GSGS-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknow
Executor completed	CHROME
Actuator length	0.839 inch
Actuator material	BRASS
Nozzle length	0.297 inch
Center contact plating	GOLD OVER SILVER
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1000VRMS V
End contact plating	GOLD OVER SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal surface	Silver/Gold (Ag/Au)
Terminal material	BRASS
Termination type	WIRE WRAP

Preview

Download Datasheet

View All

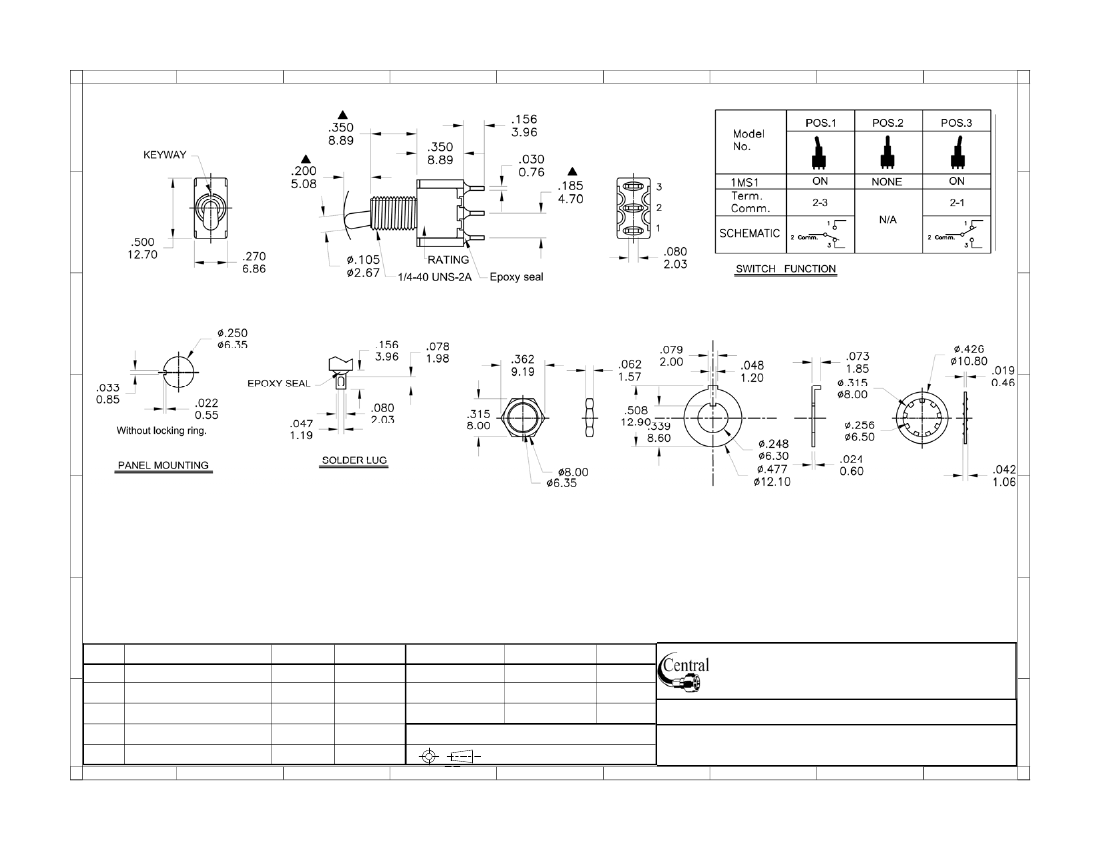

SPECIFICATIONS

Rating:

R=0.4 Volt-Amps (VA) Max. @20V max.

Q=2Amps @ 250VAC, 5Amps @120VAC or 28 VAC

Mechanical Life:

40,000 make-and-break cycles

Contact Resistance:

10mΩ max. initial @ 2-4VDC

100mA for both silver and gold plated contacts

Insulation Resistance: 1,000MΩ min.

Withstanding:

1000 V RMS@sea level

Operating Temp:

-30C to 85C

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

MATERIALS

Case:

Actuator:

Bushing:

Housing:

Terminal:

Dially phthalate (DAP) UL94V-0

Brass, Chrome Plated

Brass, Nickel Plated

Stainless Steel

Silver or Gold Plated

Date

08/30/10

08/30/10 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

SWT-M-11-A2-B1-T1-SS-E-HW

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Miniature toggle switches, Type M-11
