TC9316F: DescriptionDTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，64 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC9316F Overview

DTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER

TC9316F Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP60,.7SQ,32
Contacts	60
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	0.075 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G60
JESD-609 code	e0
length	14 mm
Number of I/O lines	16
Number of terminals	60
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP60,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	3 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	8192
ROM programmability	MROM
Maximum seat height	2.25 mm
Maximum slew rate	2 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.8 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

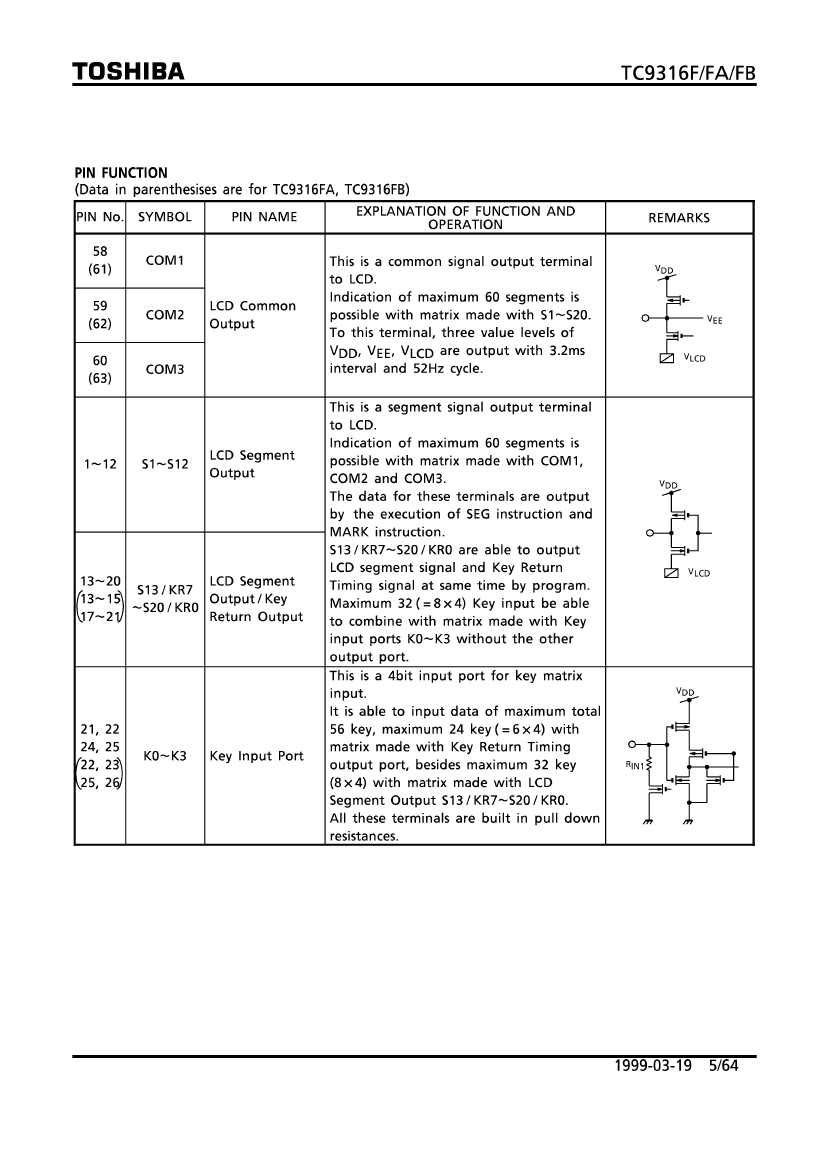

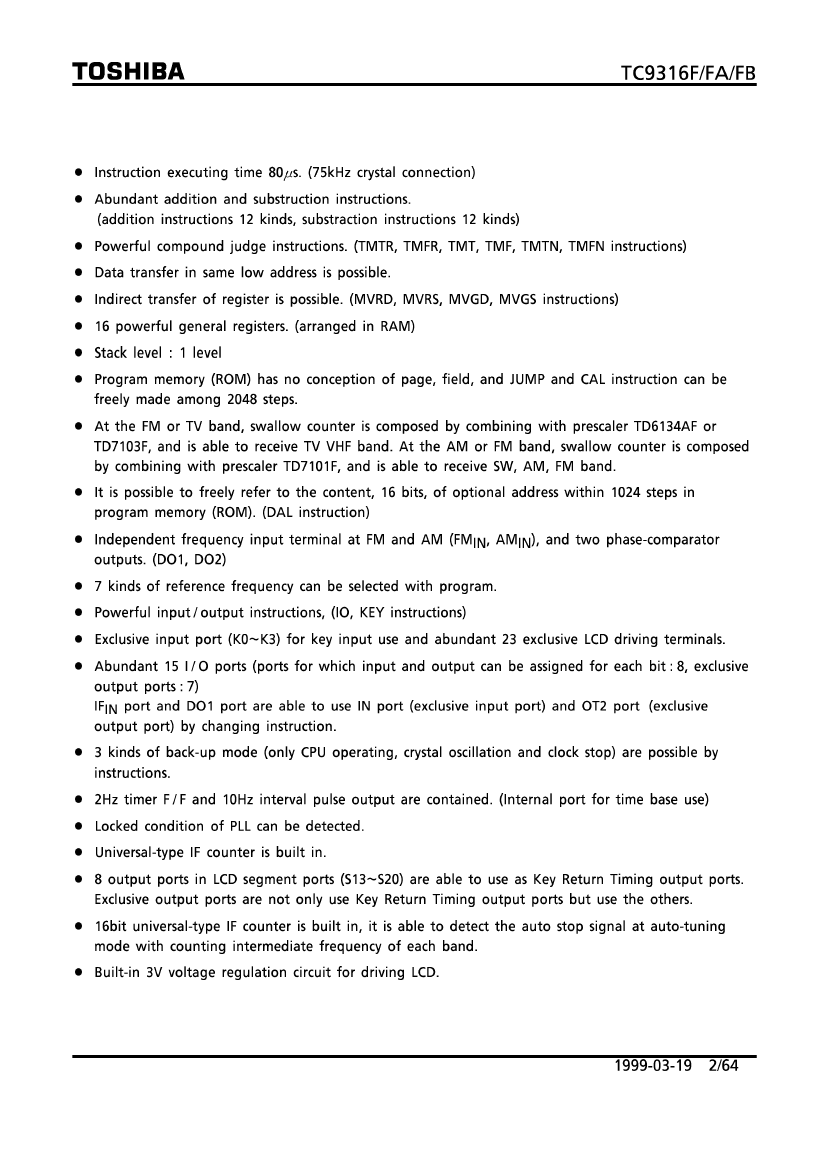

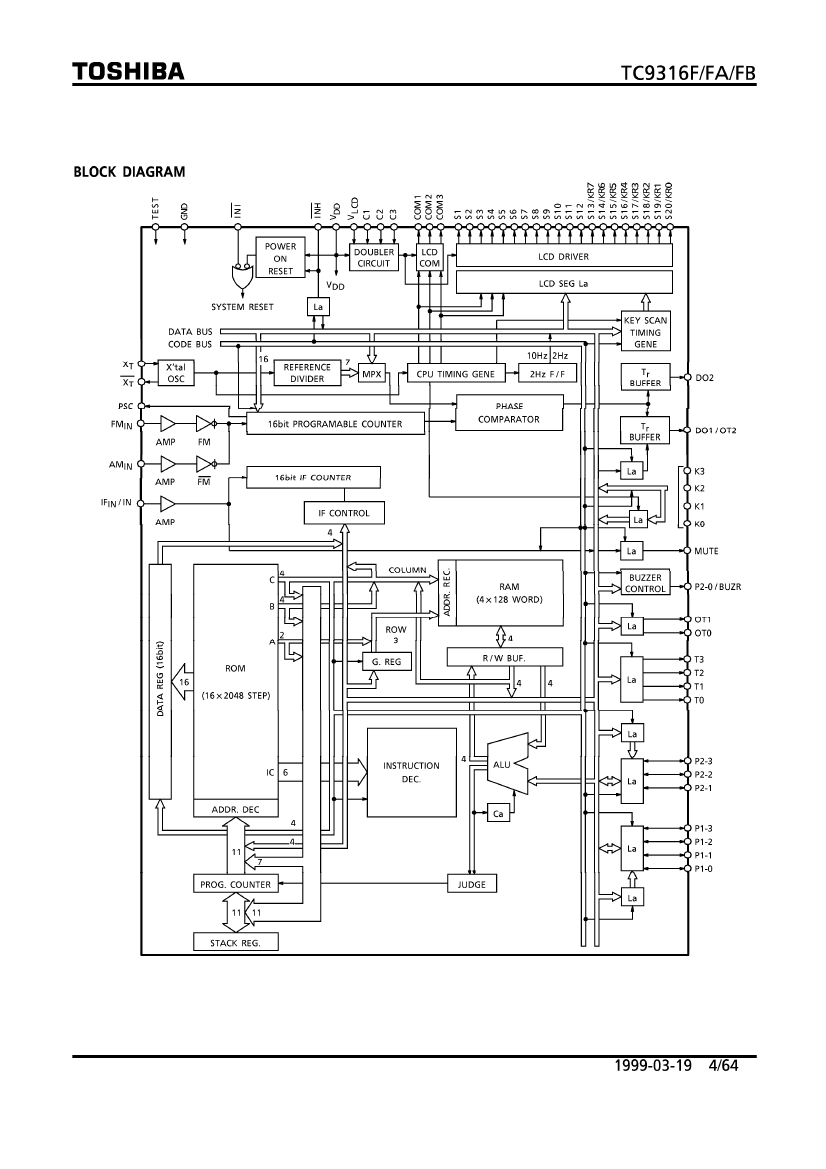

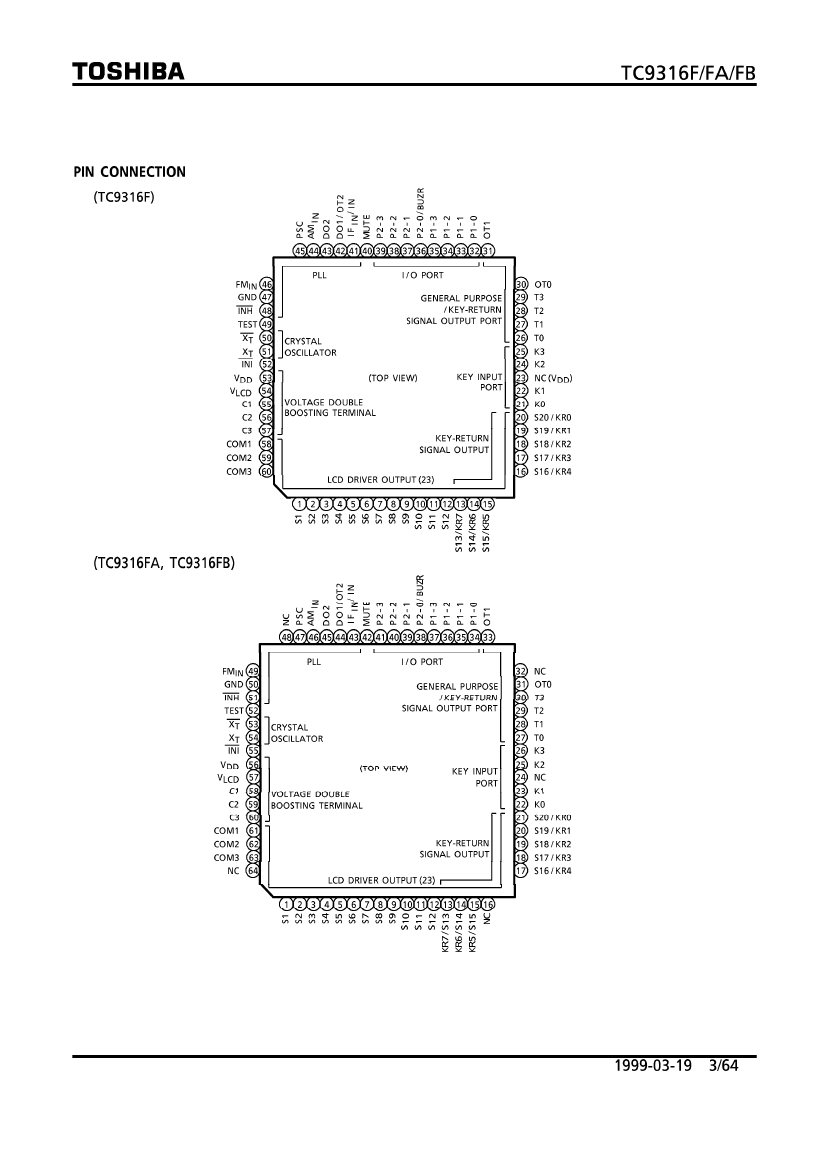

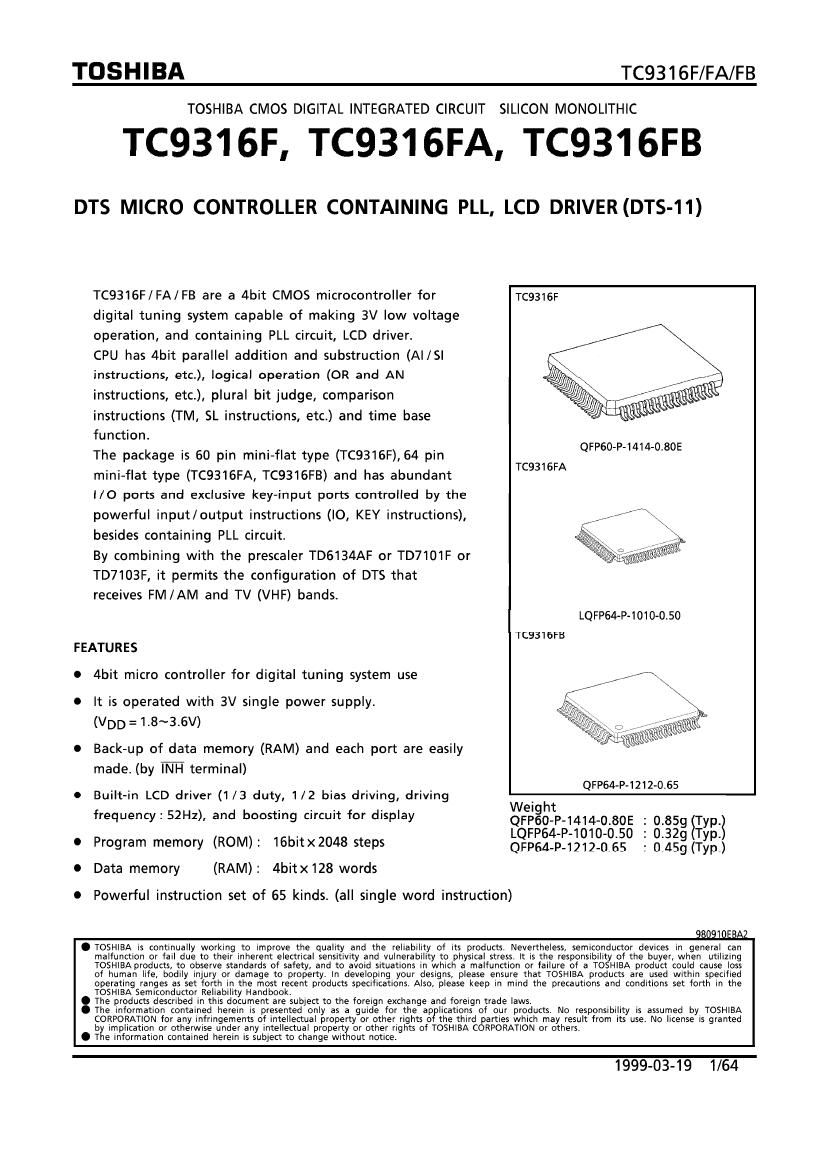

Preview

Download Datasheet

View All

TC9316F Related Products

	TC9316F	TC9316FB	TC9316FA	TC9316
Description	DTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER	DTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER	DTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER	DTS MICRO CONTROLLER CONTAINING PLL, LCD DRIVER
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	-
Parts packaging code	QFP	QFP	QFP	-
package instruction	QFP, QFP60,.7SQ,32	QFP, QFP64,.5SQ	FQFP, QFP64,.47SQ,20	-
Contacts	60	64	64	-
Reach Compliance Code	unknow	unknow	unknow	-
Has ADC	NO	NO	NO	-
bit size	4	4	4	-
maximum clock frequency	0.075 MHz	0.075 MHz	0.075 MHz	-
DAC channel	NO	NO	NO	-
DMA channel	NO	NO	NO	-
JESD-30 code	S-PQFP-G60	S-PQFP-G64	S-PQFP-G64	-
JESD-609 code	e0	e0	e0	-
length	14 mm	12 mm	10 mm	-
Number of I/O lines	16	16	16	-
Number of terminals	60	64	64	-
Maximum operating temperature	60 °C	60 °C	60 °C	-
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-
PWM channel	NO	NO	NO	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	QFP	QFP	FQFP	-
Encapsulate equivalent code	QFP60,.7SQ,32	QFP64,.5SQ	QFP64,.47SQ,20	-
Package shape	SQUARE	SQUARE	SQUARE	-
Package form	FLATPACK	FLATPACK	FLATPACK, FINE PITCH	-
power supply	3 V	3 V	3 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
RAM (bytes)	64	64	64	-
rom(word)	8192	8192	8192	-
ROM programmability	MROM	MROM	MROM	-
Maximum seat height	2.25 mm	1.85 mm	1.85 mm	-
Maximum slew rate	2 mA	2 mA	2 mA	-
Maximum supply voltage	3.6 V	3.6 V	3.6 V	-
Minimum supply voltage	1.8 V	1.8 V	1.8 V	-
Nominal supply voltage	3 V	3 V	3 V	-
surface mount	YES	YES	YES	-
technology	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	-
Terminal form	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.8 mm	0.65 mm	0.5 mm	-
Terminal location	QUAD	QUAD	QUAD	-
width	14 mm	12 mm	10 mm	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-
