TC9307AF datasheet, PDF - EEWORLD Datasheet

TC9307AF: DescriptionSINGLE CHIP DTS CONTROLLER WITH BUILT-IN PRESCALER.PLL.LCD DRIVER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size499KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

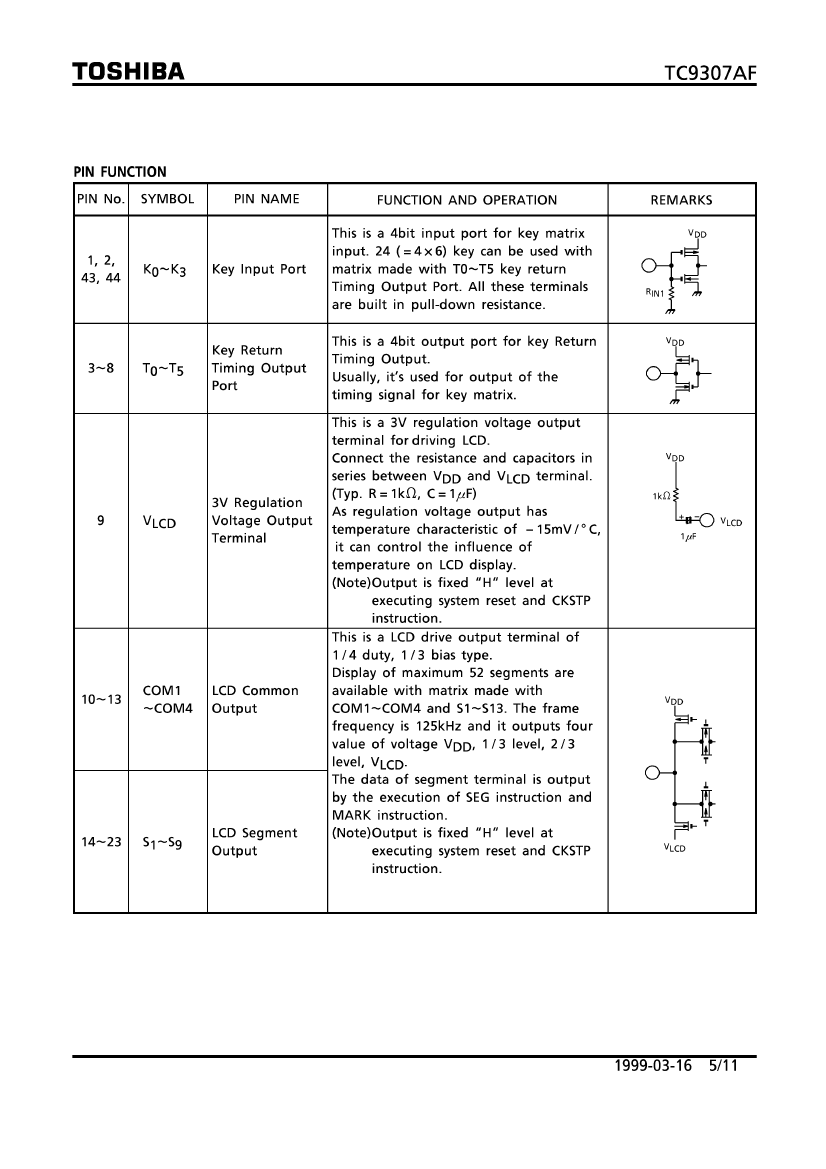

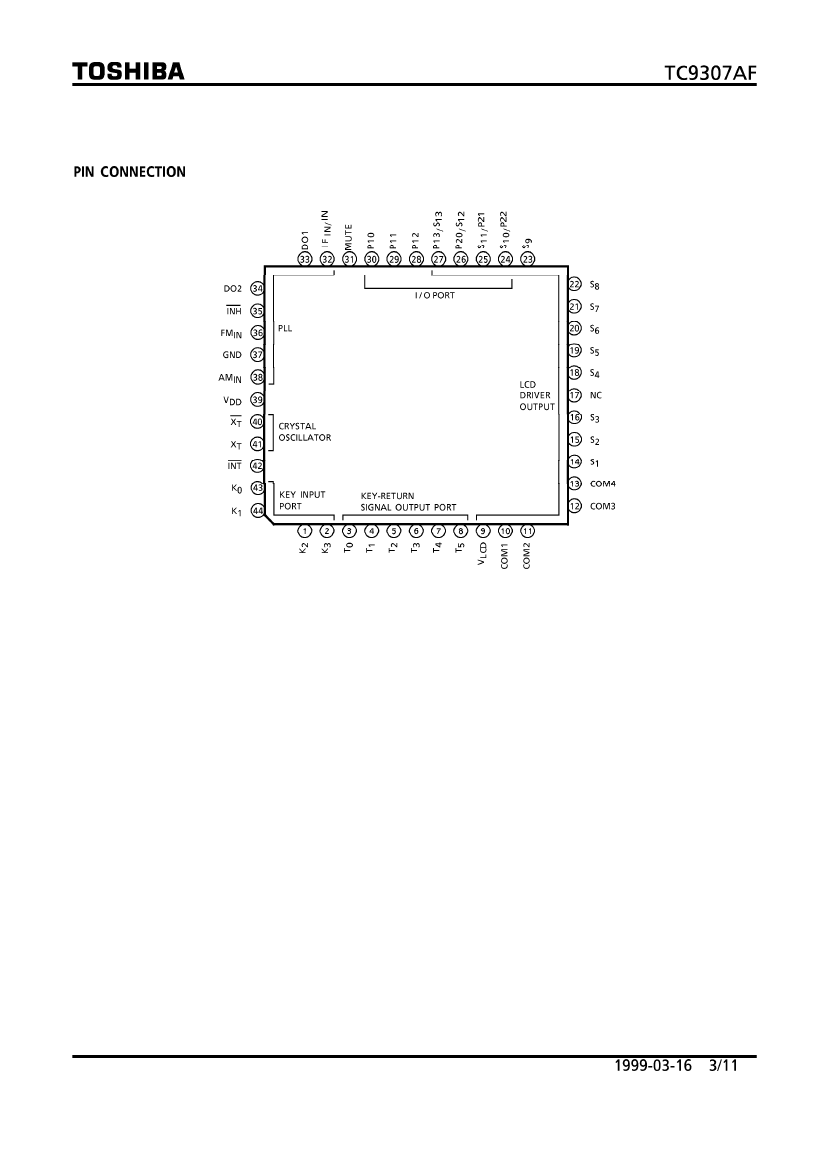

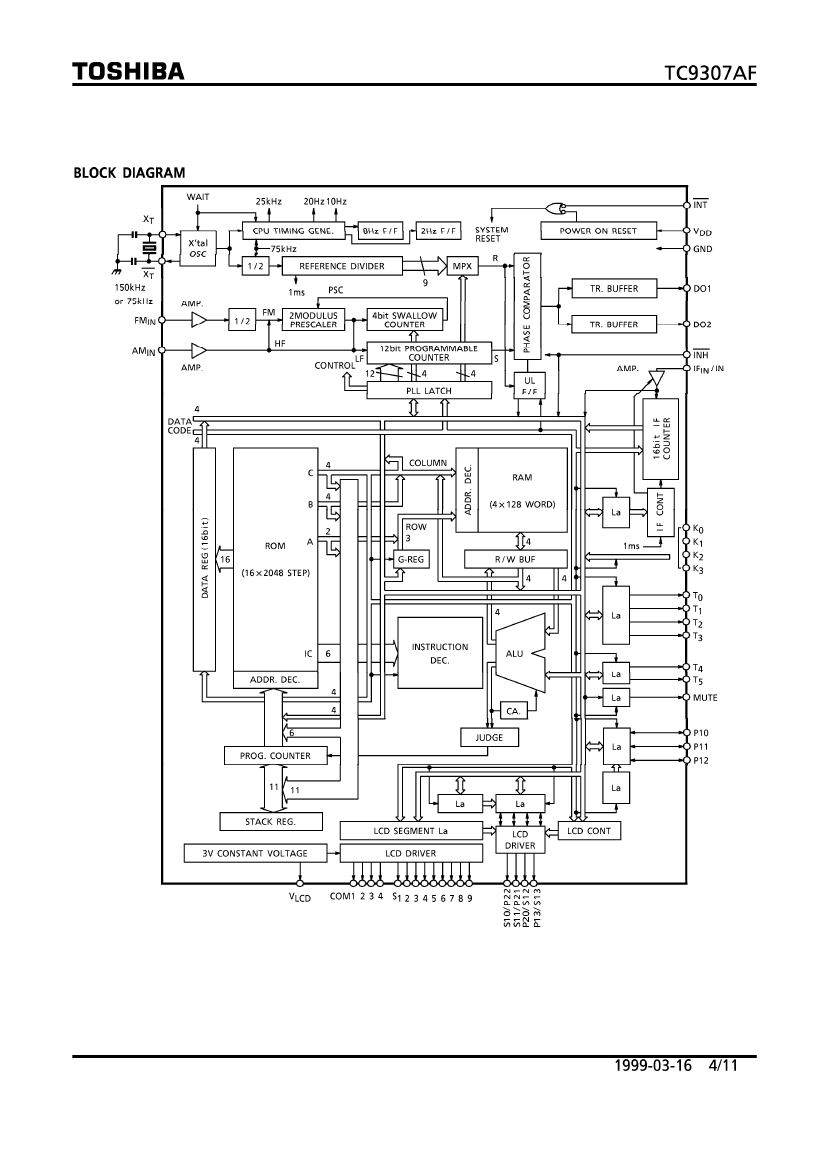

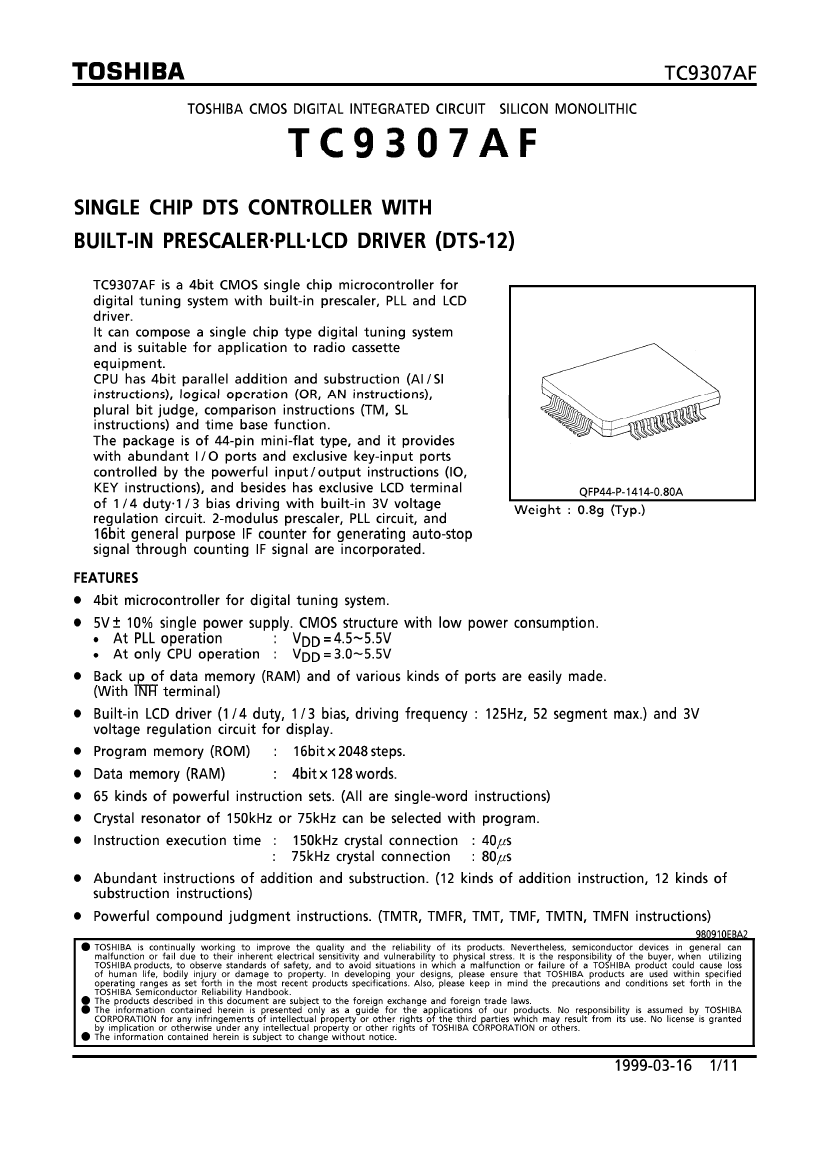

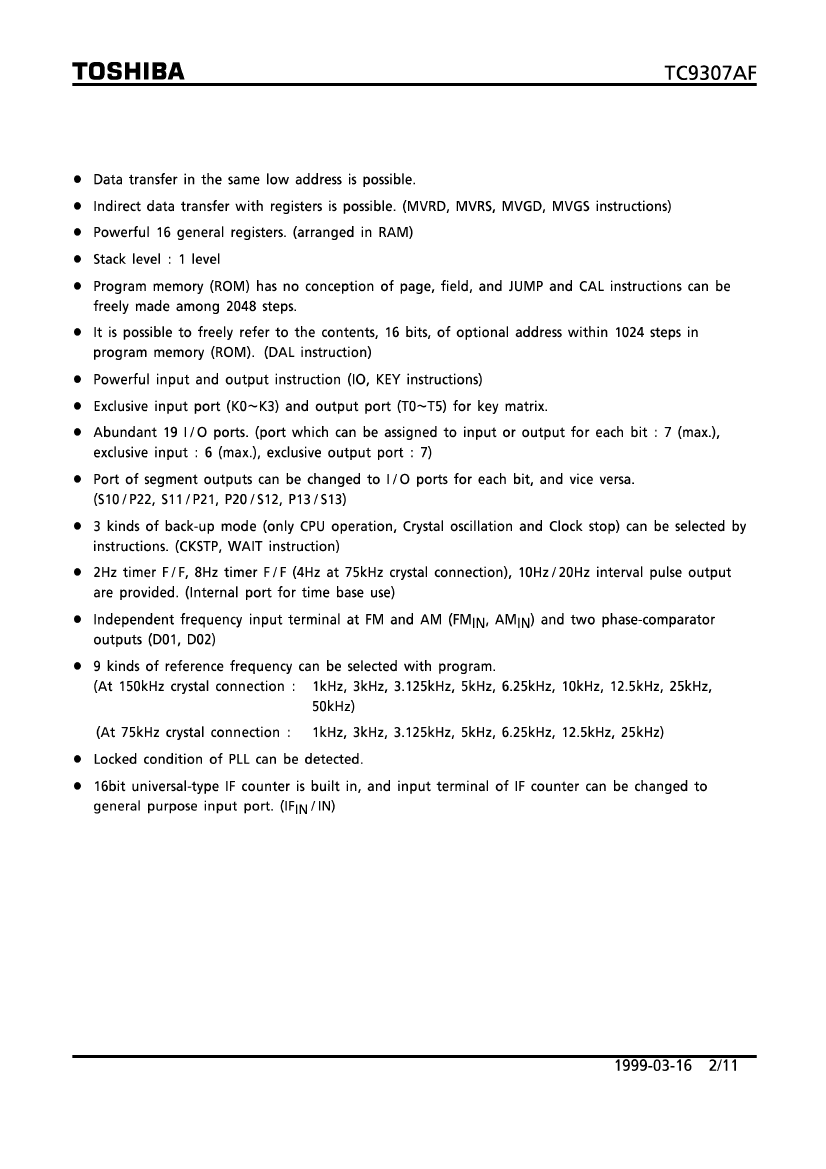

TC9307AF Overview

SINGLE CHIP DTS CONTROLLER WITH BUILT-IN PRESCALER.PLL.LCD DRIVER

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP44,.7SQ,32
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	0.15 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	14 mm
Number of I/O lines	7
Number of terminals	44
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.7SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	8192
ROM programmability	MROM
Maximum seat height	2.25 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	TC9307AF	TC9307
Description	SINGLE CHIP DTS CONTROLLER WITH BUILT-IN PRESCALER.PLL.LCD DRIVER	SINGLE CHIP DTS CONTROLLER WITH BUILT-IN PRESCALER.PLL.LCD DRIVER
