BA3950A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BA3950A

BA3950A: DescriptionSPECIALTY ANALOG CIRCUIT, PSIP12; CategoryAnalog mixed-signal IC The signal circuit; File Size95KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA3950A Overview

SPECIALTY ANALOG CIRCUIT, PSIP12

BA3950A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SIP
package instruction	SIP-12
Contacts	12
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PSIP-T12
JESD-609 code	e3/e2
length	29.8 mm
Number of functions	1
Number of terminals	12
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	SIP12,.1
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	8 V
Certification status	Not Qualified
Maximum seat height	15.3 mm
Maximum supply voltage (Vsup)	22 V
Minimum supply voltage (Vsup)	6.5 V
Nominal supply voltage (Vsup)	18 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	4.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Regulator ICs

System power supply for CD player-

equipped audio systems

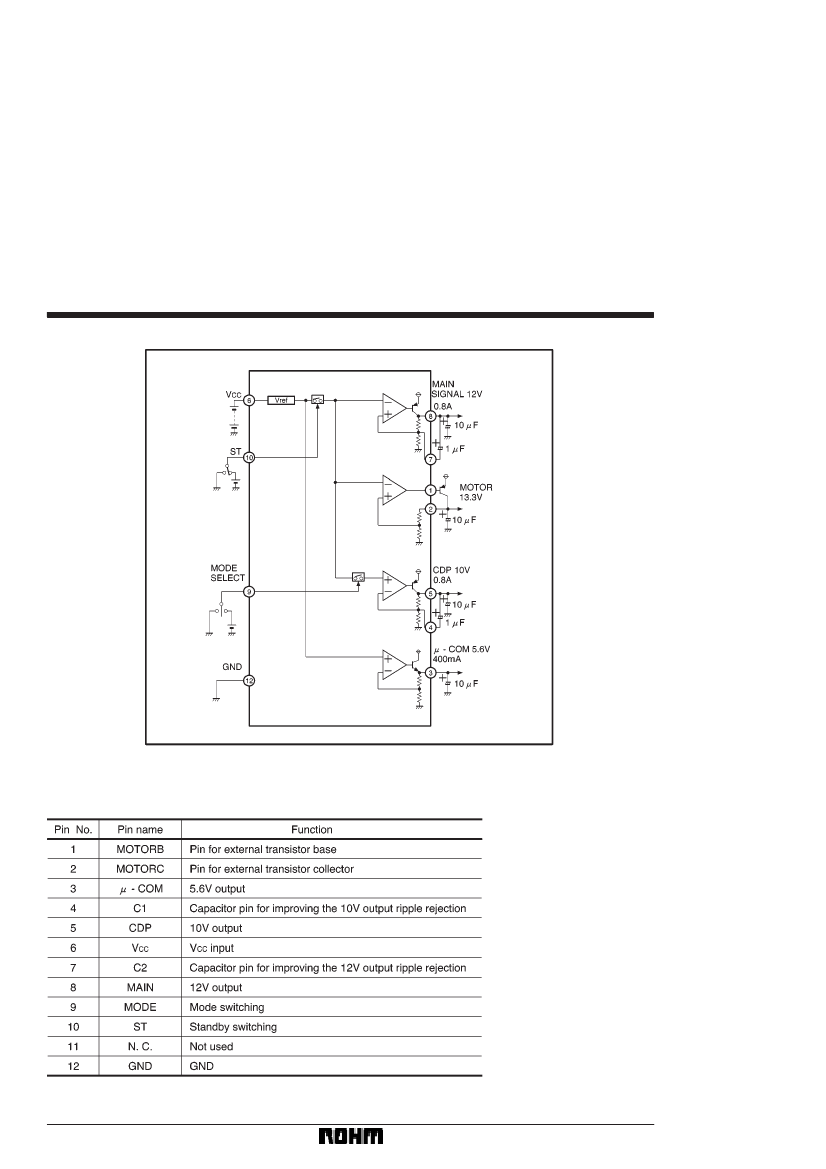

BA3950A

With 13.3V (external transistor required), 12V, 10V, and 5.6V outputs, the BA3950A power supply IC is best suited for

CD player-equipped audio systems.

FApplications

CD player-equipped audio systems

FFeatures

1) 13.3V (external transistor required), 12V, 10V, and

5.6V outputs are built in (one output for each volt-

age).

2) Output current limit circuit protects the IC against

short-circuiting damage.

3) Thermal protection circuit prevents heat damage to

the IC.

4) Compact SIP-M12 package allows a large power dis-

sipation.

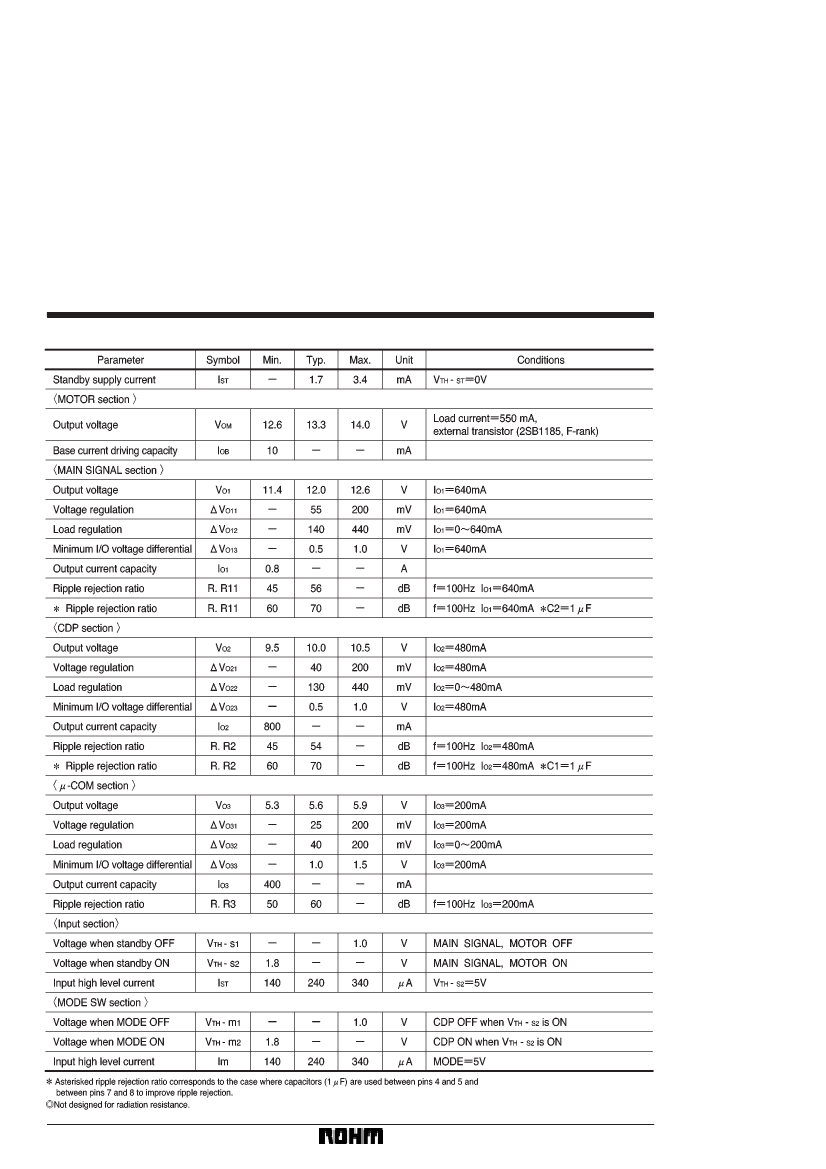

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)
