8342-2091 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8342-2091

8342-2091: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size206KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8342-2091 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

8342-2091 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.1 inch
subject depth	0.165 inch
body length	0.896 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8342
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

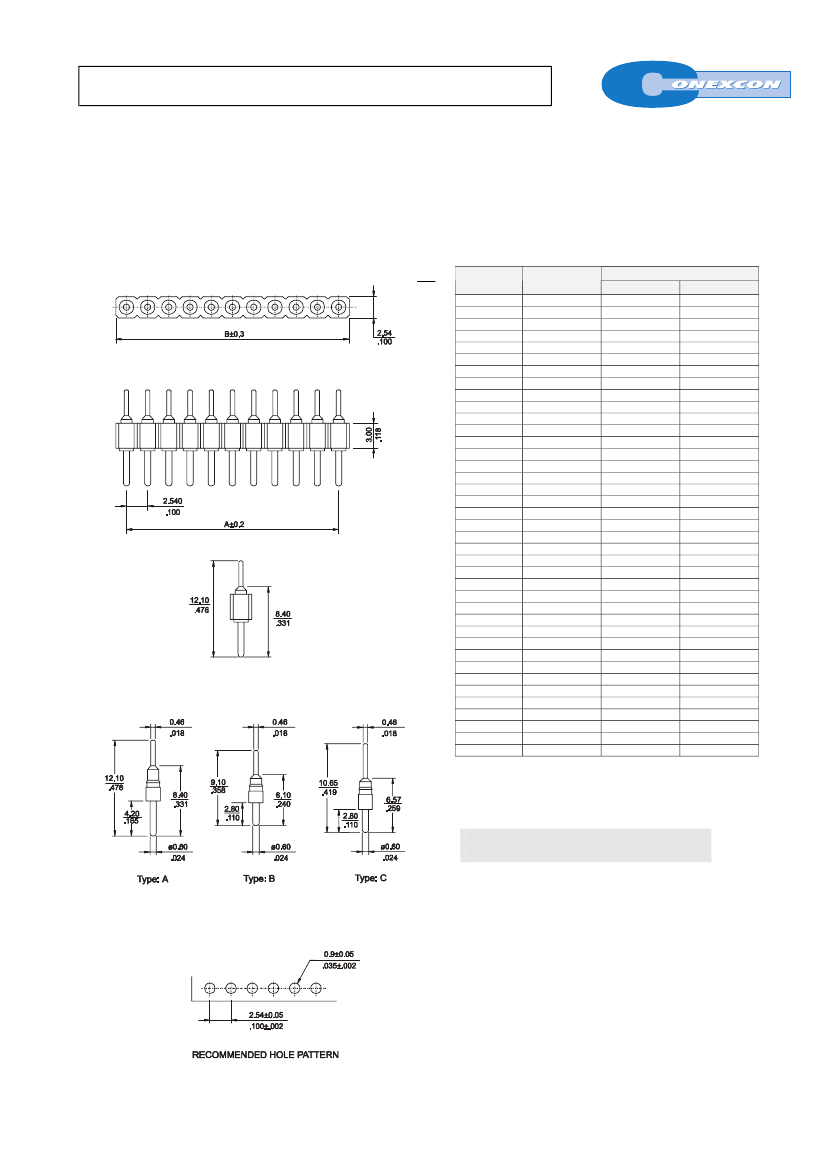

SINGLE IN LINE ADAPTER STRIP

SERIES.

8342 SERIES

2.54mm(0.100”). For

Features

PCB Solder

Machined pin: Different pin length options available

High reliability turned terminal with multiple finger contact

For other options consult the Sales Office

Ordering and Dimensional Information

mm.

Inch.

Dimension

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

4,98(0,196)

7,52(0,296)

10,06(0,396)

12,60(0,496)

15,14(0,596)

17,68(0,696)

20,22(0,796)

22,76(0,896)

25,30(0,996)

27,84(1,096)

30,38(1,196)

32,92(1,296)

35,46(1,396)

38,00(1,496)

40,54(1,596)

43,08(1,696)

45,62(1,796)

48,16(1,896)

50,70(1,996)

53,24(2,096)

55,78(2,196)

58,32(2,296)

60,86(2,396)

63,40(2,496)

65,94(2,596)

68,48(2,696)

71,02(2,796)

73,56(2,896)

76,10(2,996)

78,64(3,096)

81,18(3,196)

83,72(3,296)

86,26(3,396)

88,80(3,496)

91,34(3,596)

93,88(3,696)

96,42(3,796)

98,96(3,896)

101,50(3,996)

Available in 2 through 40 circuits

Insulation Material: PPS UL 94V-0

Contact Material: Gold or tin plated brass per QQ-B-626

Dimensional Information:

Unit:

Circuit Size

Part Number

8342-T02X

8342-T03X

8342-T04X

8342-T05X

8342-T06X

8342-T07X

8342-T08X

8342-T09X

8342-T10X

8342-T11X

8342-T12X

8342-T13X

8342-T14X

8342-T15X

8342-T16X

8342-T17X

8342-T18X

8342-T19X

8342-T20X

8342-T21X

8342-T22X

8342-T23X

8342-T24X

8342-T25X

8342-T26X

8342-T27X

8342-T28X

8342-T29X

8342-T30X

8342-T31X

8342-T32X

8342-T33X

8342-T34X

8342-T35X

8342-T36X

8342-T37X

8342-T38X

8342-T39X

8342-T40X

T = Contact Plating

T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

X = Pin Length

X =

Type

X =

Type

X =

Type

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8342-2091 Related Products

	8342-2091	8342-2051	8342-2121	8342-2111	8342-2101	8342-2151	8342-2071	8342-2141	8342-2041	8342-2081
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	0.896 inch	0.496 inch	1.196 inch	1.096 inch	0.996 inch	1.496 inch	0.696 inch	1.396 inch	0.396 inch	0.796 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8342	8342	8342	8342	8342	8342	8342	8342	8342	8342
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	5	12	11	10	15	7	14	4	8
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-	-
