Optical disc ICs

4-channel BTL driver for CD players

and CD-ROMs

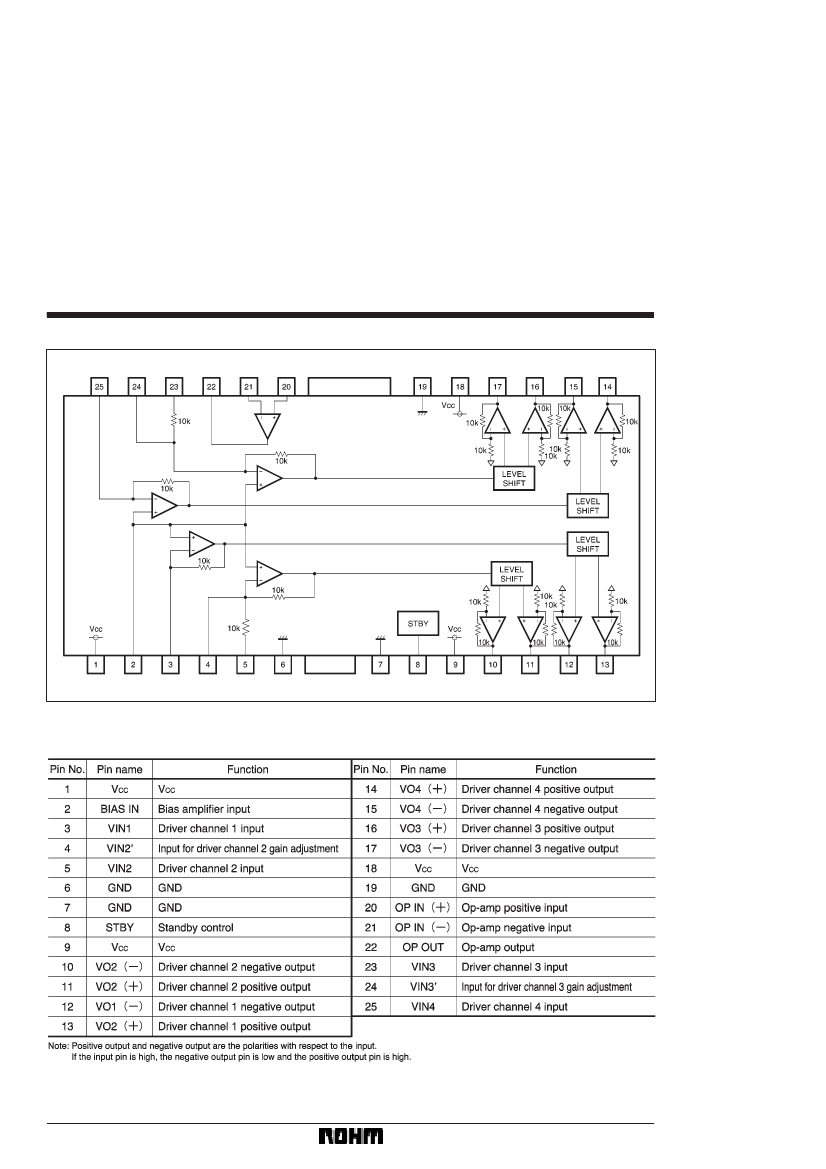

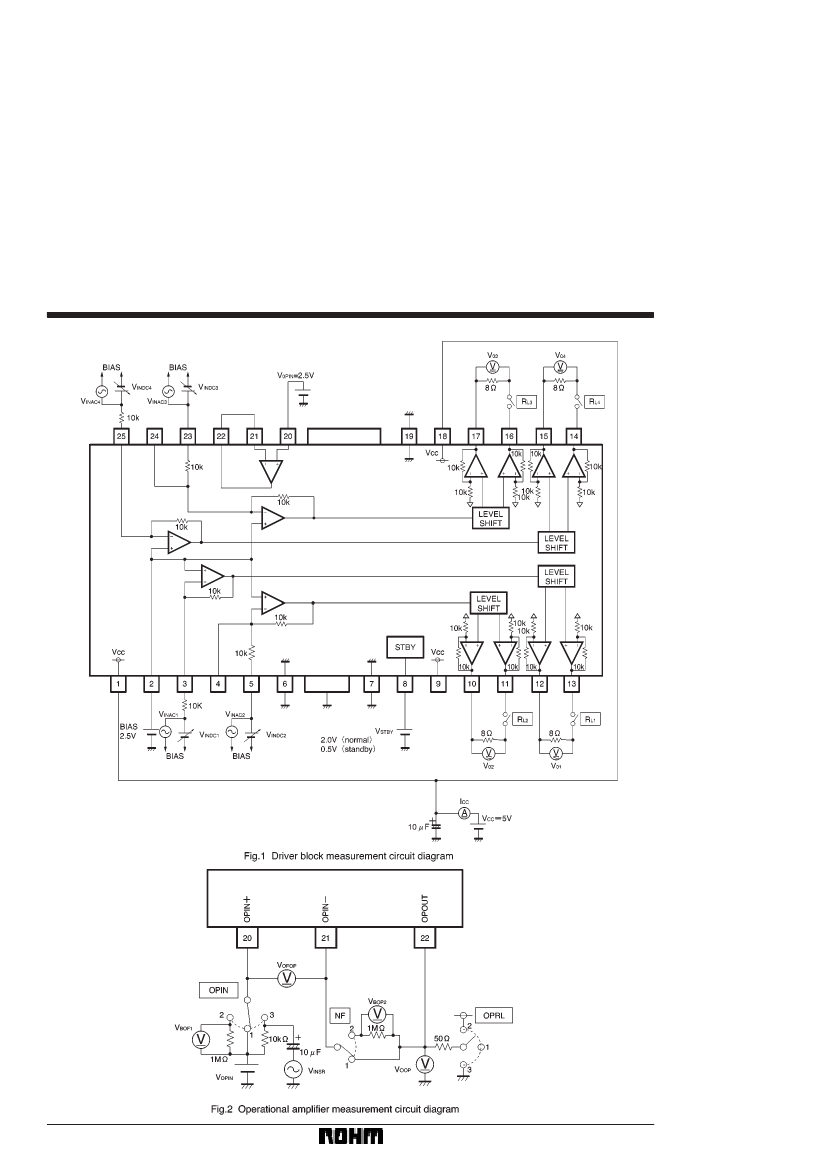

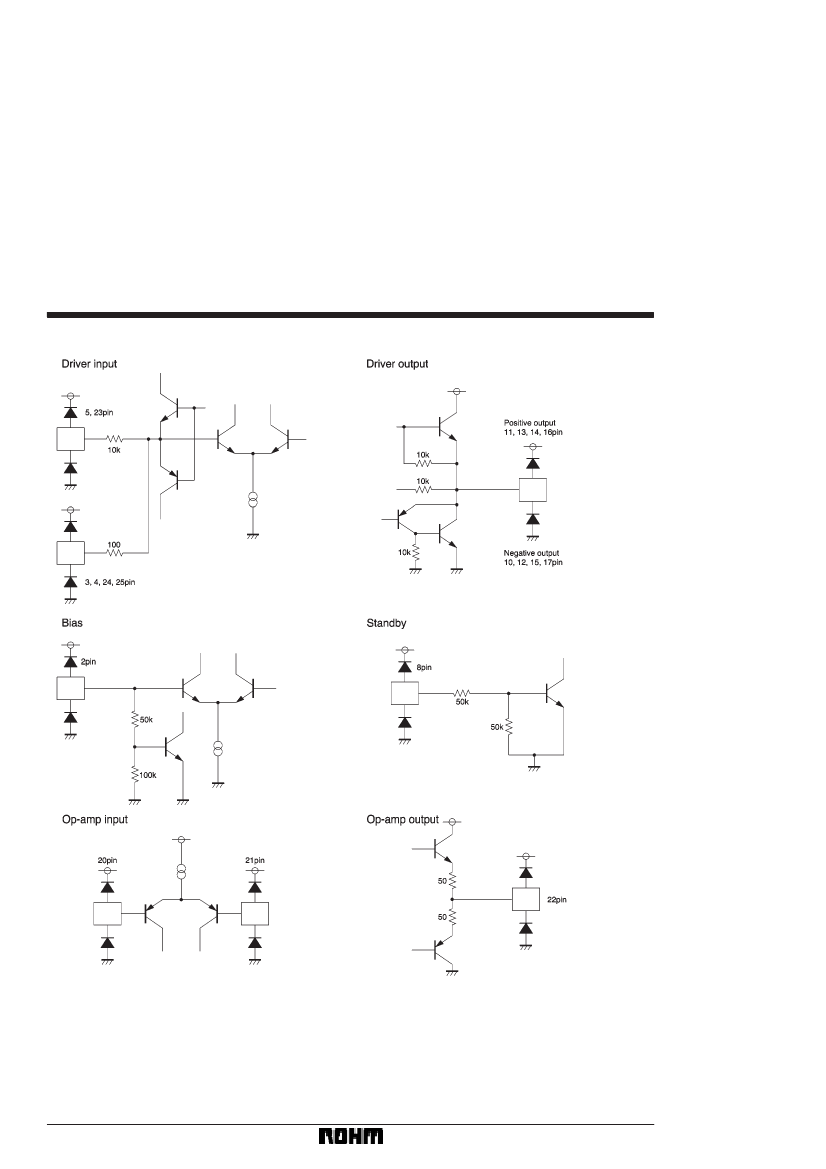

BA5916FP-Y

The BA5916FP-Y contains a 4-channel BTL driver for CD player and CD-ROM motors and actuators and a multi-pur-

pose operational amplifier. Perfect for compact applications with the use of the HSOP 25-pin package.

FApplications

CD players, CD-ROM

FFeatures

1) 4-channel BTL driver.

2) Perfect for compact applications with the use of the

HSOP 25-pin power package.

3) Wide dynamic range (3.6V (Typ.) when V

= 5V and

= 8Ω).

4) Internal thermal shutdown circuit.

5) Gain is adjustable with externally connected resistor.

6) Internal multi-purpose operational amplifier.

7) Standby pin allows IC to enter power saving mode.

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

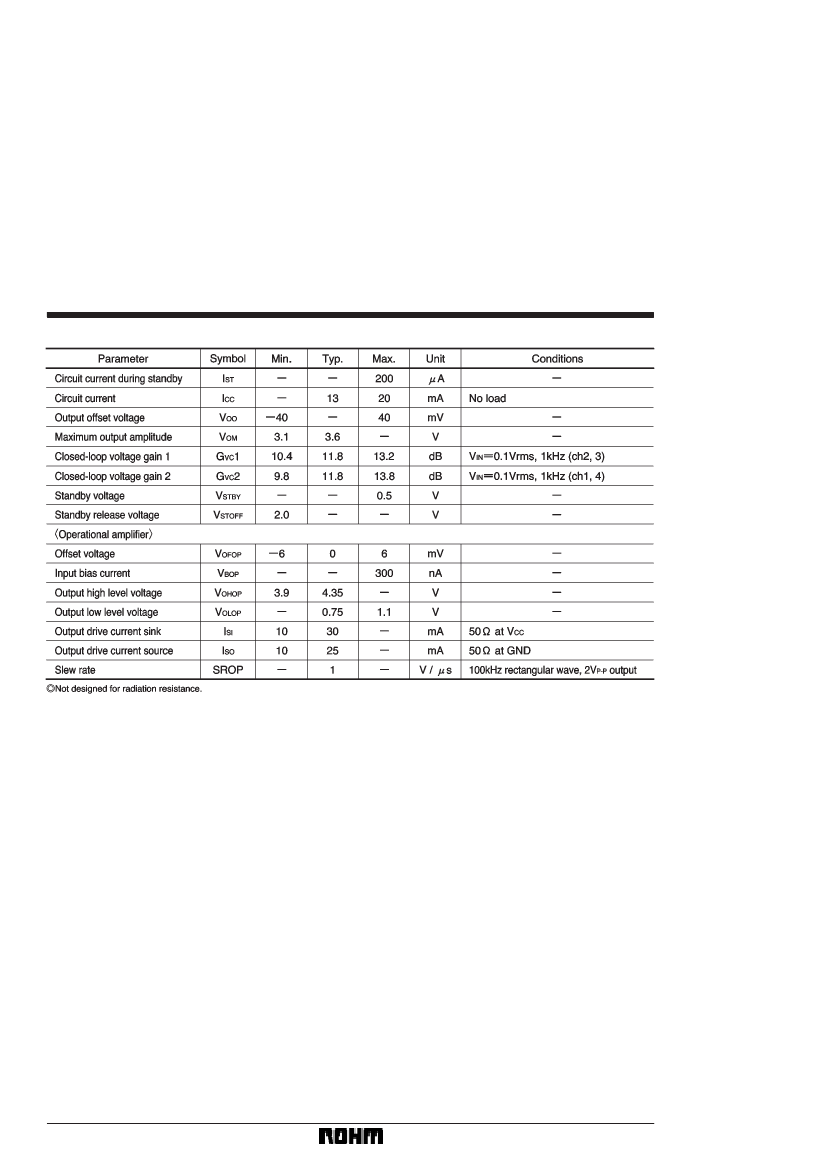

728
