TC7SH04F datasheet, PDF - EEWORLD Datasheet

TC7SH04F: DescriptionINVERTER; Categorylogic logic; File Size188KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

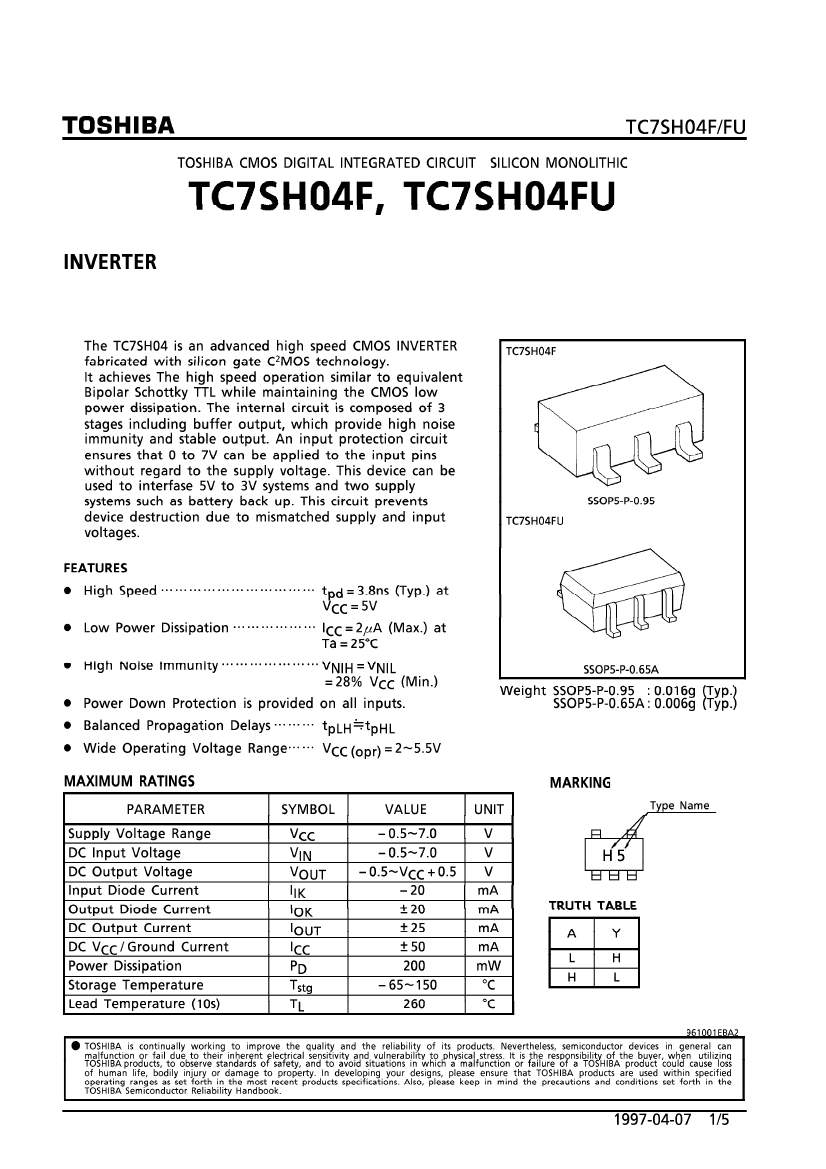

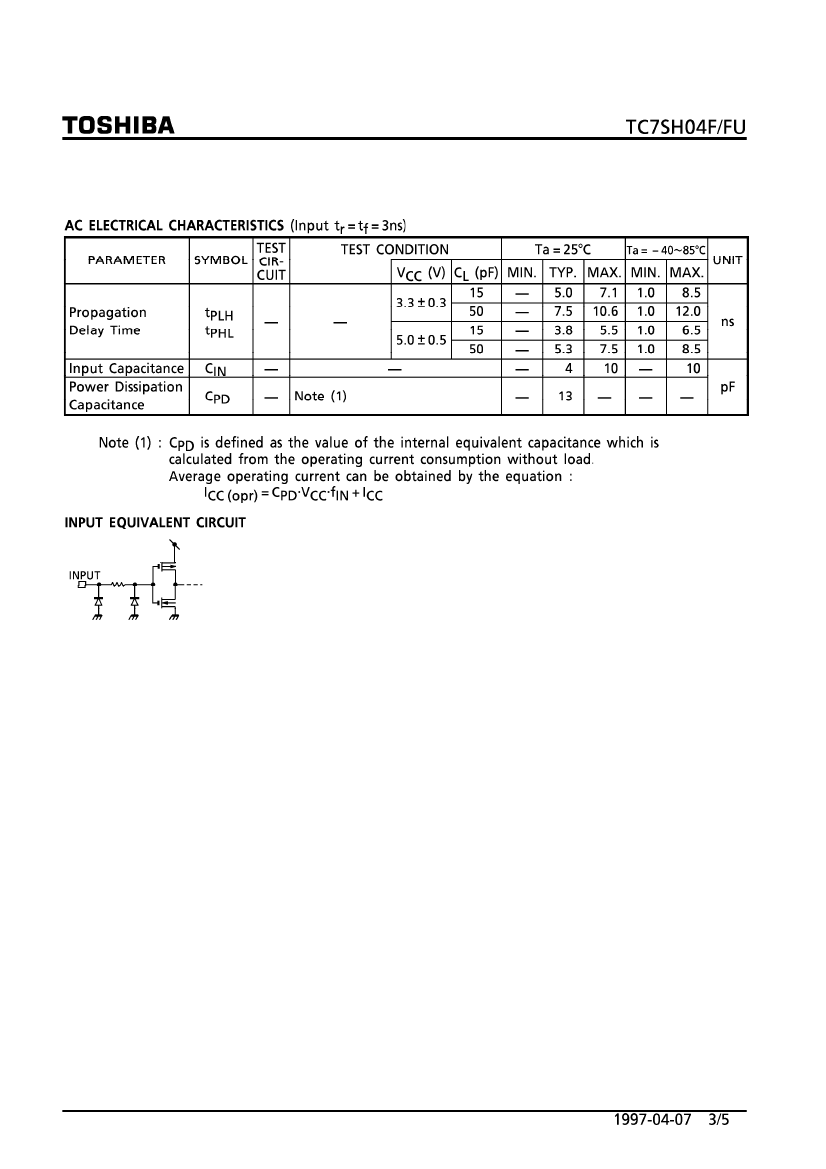

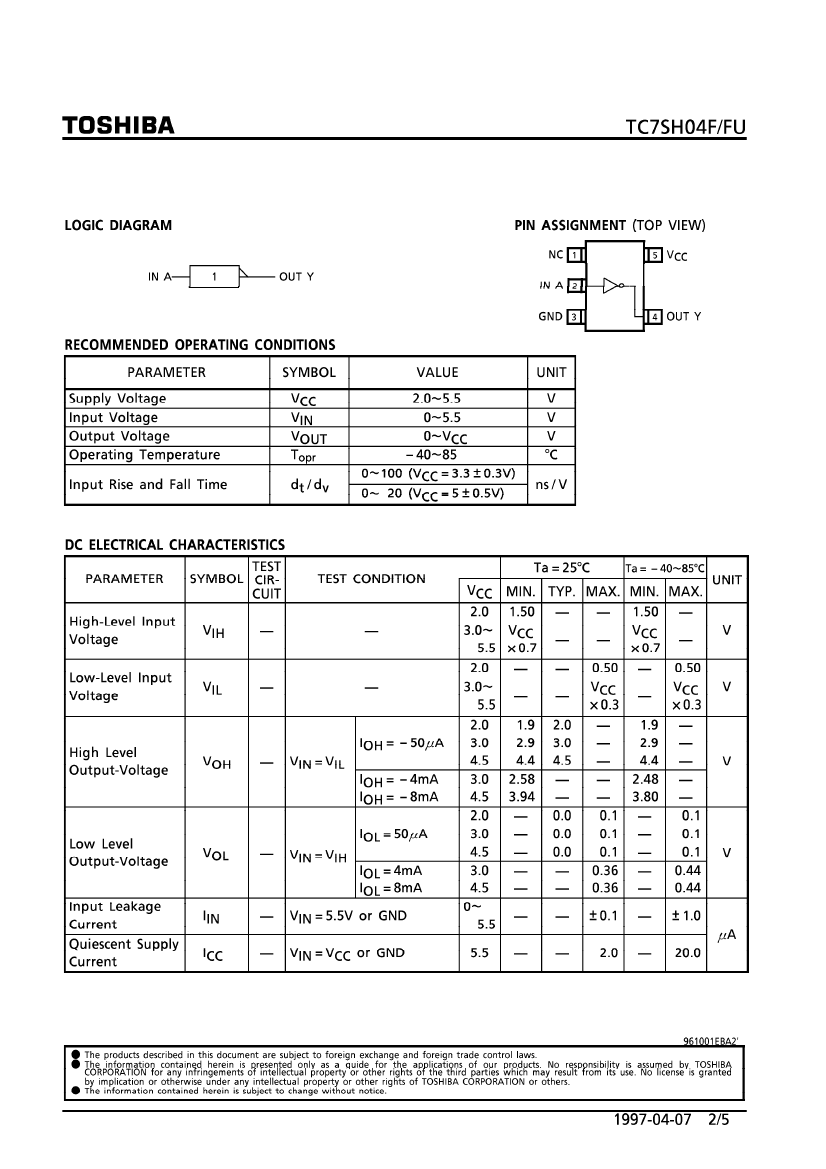

TC7SH04F Overview

INVERTER

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	unknow
series	HC/UH
JESD-30 code	R-PDSO-G5
JESD-609 code	e2

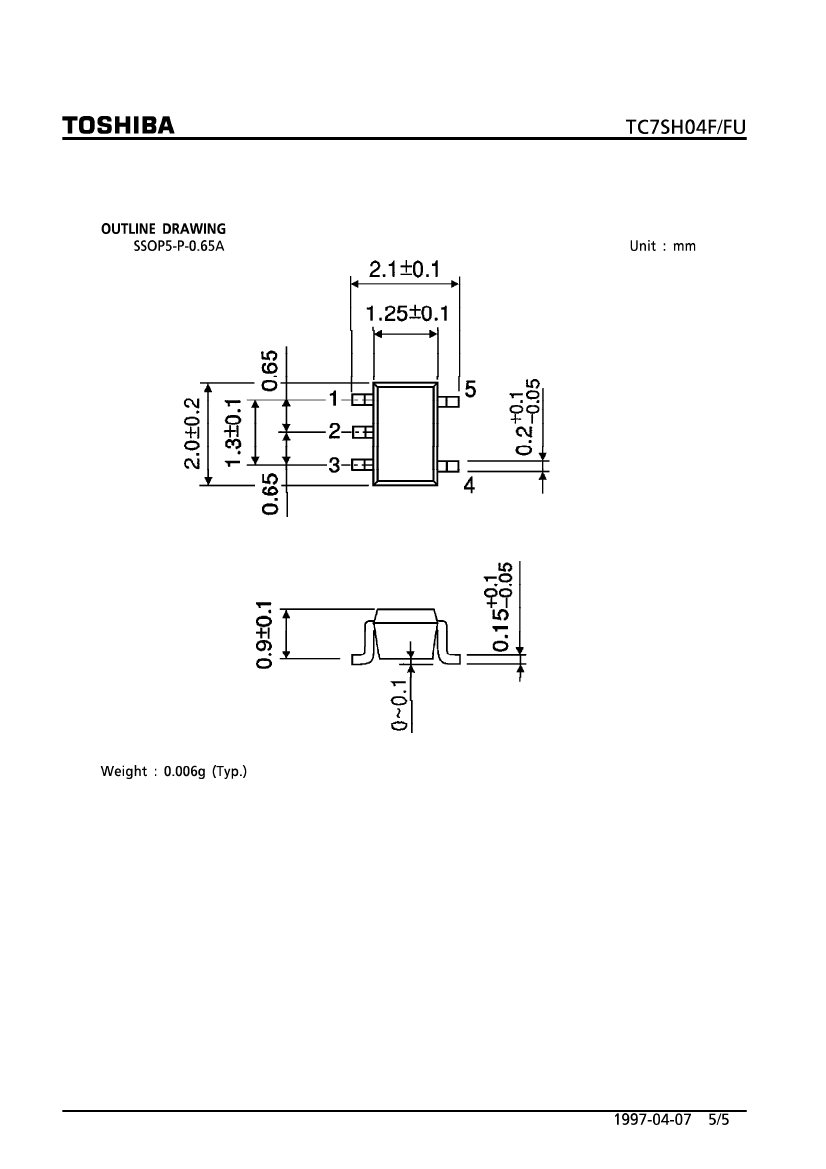

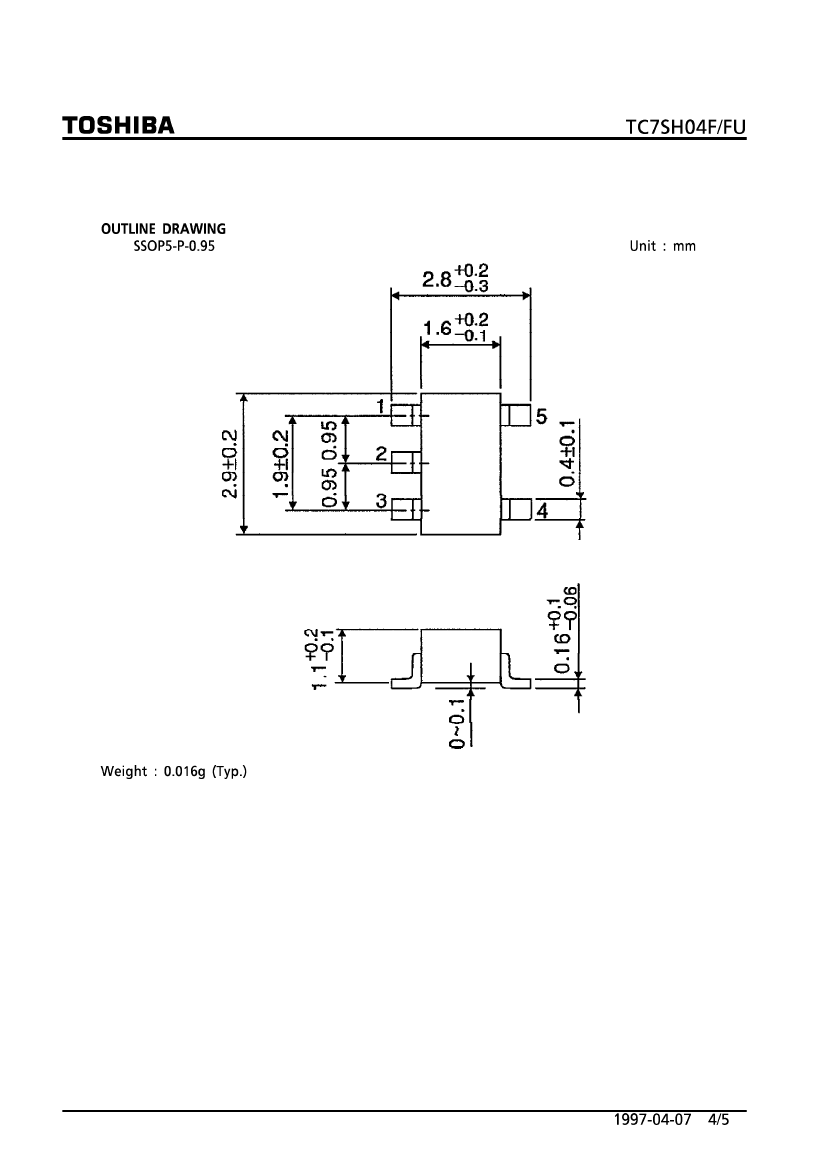

length	2.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.00005 A
Number of functions	1
Number of entries	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5.5 V
Prop。Delay @ Nom-Su	12 ns
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.6 mm
Base Number Matches	1

	TC7SH04F	TC7SH04FU
Description	INVERTER	INVERTER
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Parts packaging code	SSOP	SSOP
package instruction	LSSOP, TSOP5/6,.11,37	TSSOP, TSSOP6,.08
Contacts	5	5
Reach Compliance Code	unknow	unknow
series	HC/UH	HC/UH
JESD-30 code	R-PDSO-G5	R-PDSO-G5
length	2.9 mm	2 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER
MaximumI(ol)	0.00005 A	0.00005 A
Number of functions	1	1
Number of entries	1	1
Number of terminals	5	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSSOP6,.08
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5.5 V	2/5.5 V
Prop。Delay @ Nom-Su	12 ns	12 ns
propagation delay (tpd)	12 ns	12 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum seat height	1.4 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.65 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	1.6 mm	1.25 mm
Base Number Matches	1	1
