Datasheet> All Categories > logic> logic> TC7SH02F

Preview

TC7SH02F: Description2-INPUT NOR GATE; Categorylogic logic; File Size190KB，5 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

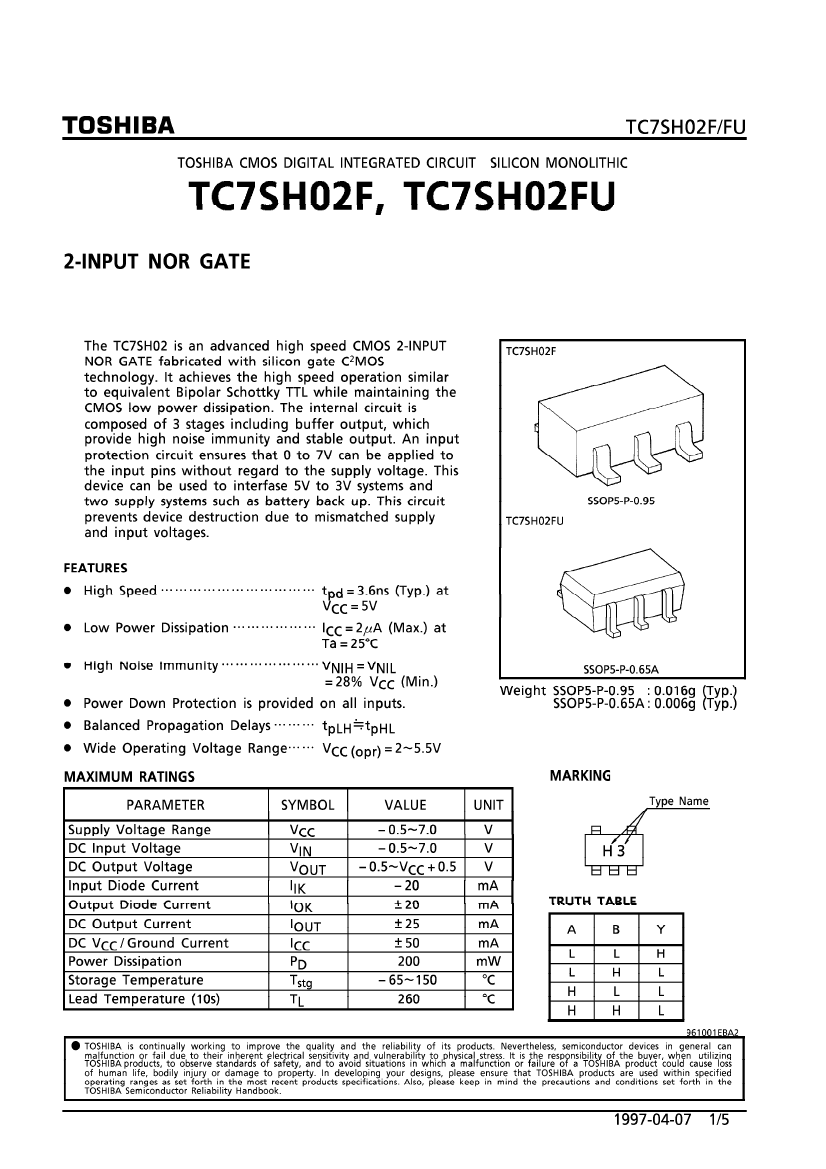

TC7SH02F Overview

2-INPUT NOR GATE

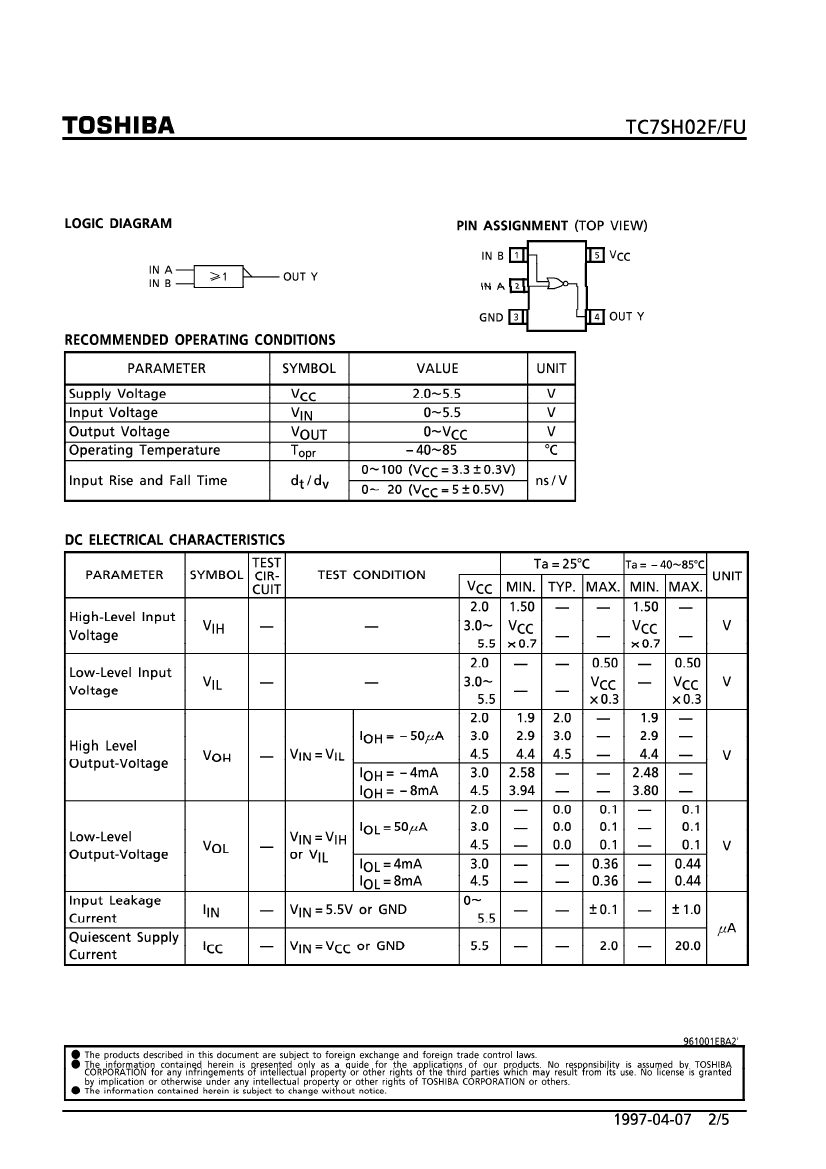

TC7SH02F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	SSOP
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	unknow
series	HC/UH
JESD-30 code	R-PDSO-G5

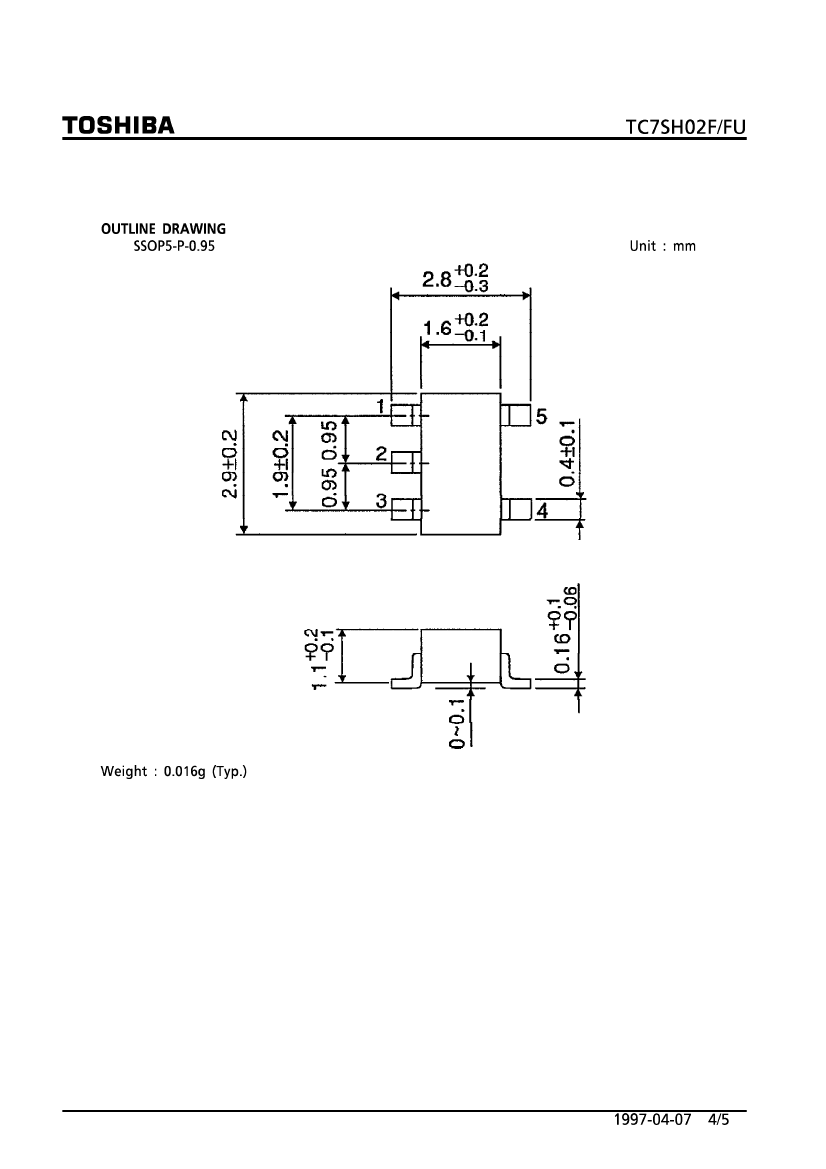

length	2.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.00005 A
Number of functions	1
Number of entries	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5.5 V

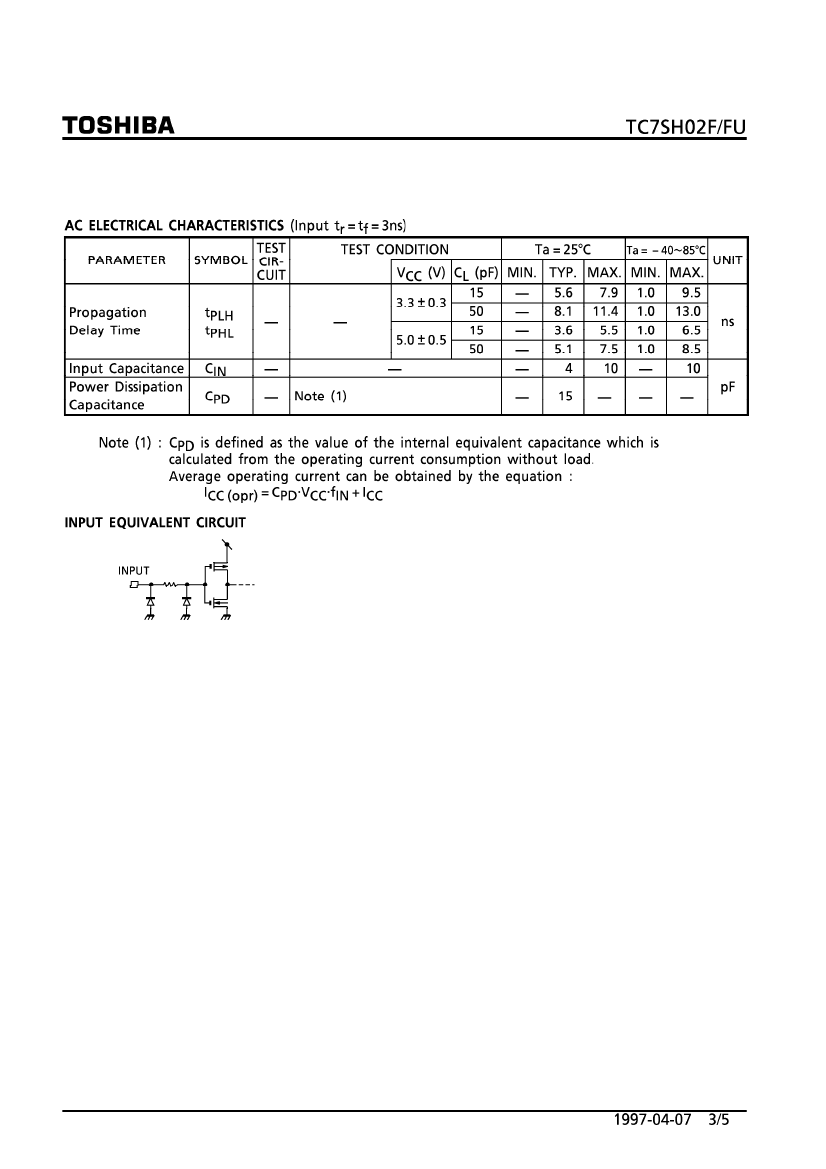

Prop。Delay @ Nom-Su	13 ns
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.6 mm

Preview

Download Datasheet

View All

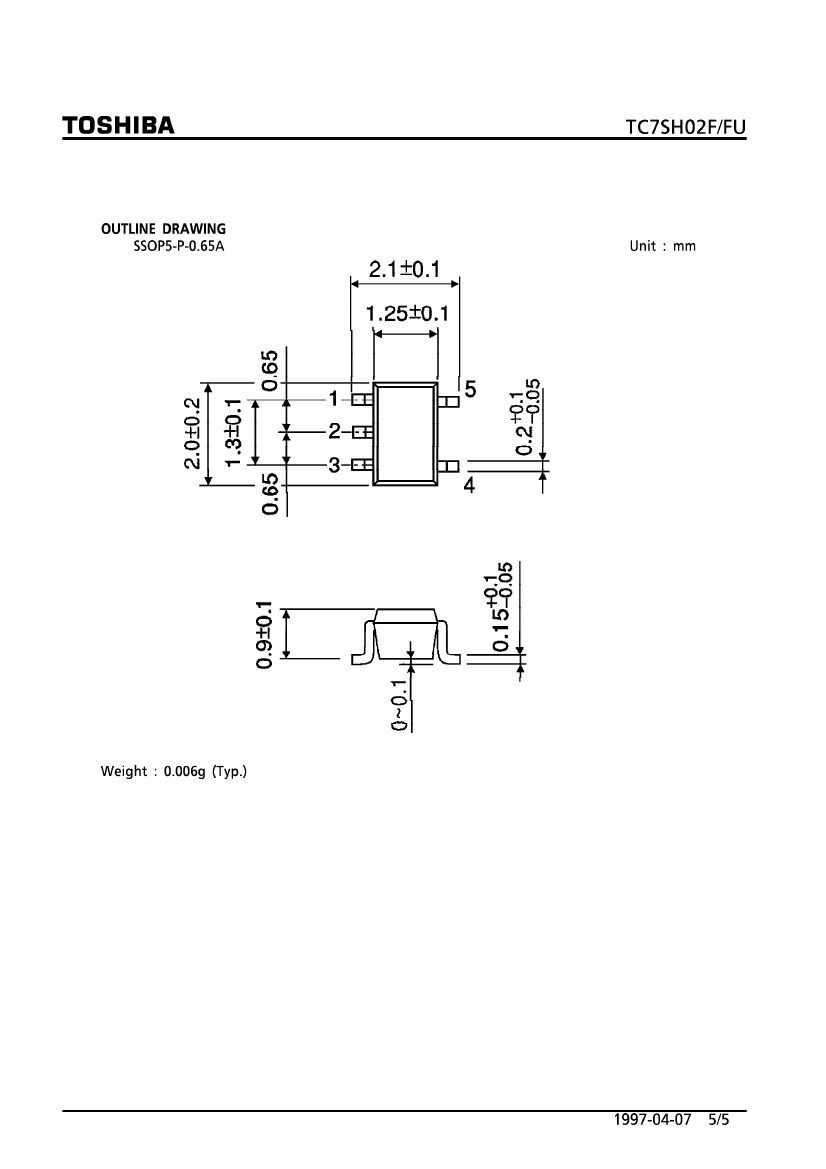

TC7SH02F Related Products

	TC7SH02F	TC7SH02	TC7SH02FU
Description	2-INPUT NOR GATE	2-INPUT NOR GATE	2-INPUT NOR GATE
Is it lead-free?	Contains lead	-	Contains lead
Is it Rohs certified?	conform to	-	conform to
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	SSOP	-	SSOP
package instruction	LSSOP, TSOP5/6,.11,37	-	TSSOP, TSSOP6,.08
Contacts	5	-	5
Reach Compliance Code	unknow	-	unknow
series	HC/UH	-	HC/UH
JESD-30 code	R-PDSO-G5	-	R-PDSO-G5
length	2.9 mm	-	2 mm
Load capacitance (CL)	50 pF	-	50 pF
Logic integrated circuit type	NOR GATE	-	NOR GATE
MaximumI(ol)	0.00005 A	-	0.00005 A
Number of functions	1	-	1
Number of entries	2	-	2
Number of terminals	5	-	5
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	LSSOP	-	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	-	TSSOP6,.08
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	2/5.5 V	-	2/5.5 V
Prop。Delay @ Nom-Su	13 ns	-	13 ns
propagation delay (tpd)	13 ns	-	13 ns
Certification status	Not Qualified	-	Not Qualified
Schmitt trigger	NO	-	NO
Maximum seat height	1.4 mm	-	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	2 V	-	2 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal form	GULL WING	-	GULL WING
Terminal pitch	0.95 mm	-	0.65 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	1.6 mm	-	1.25 mm
