FT28HT010R25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> FT28HT010R25

FT28HT010R25: DescriptionEEPROM, 128KX8, 250ns, Parallel, CMOS, CDSO32,; Categorystorage storage; File Size704KB，16 Pages; ManufacturerForce Technologies Ltd.

Download Datasheet Parametric Compare View All

FT28HT010R25 Overview

EEPROM, 128KX8, 250ns, Parallel, CMOS, CDSO32,

FT28HT010R25 Parametric

Parameter Name	Attribute value
Objectid	106301626
package instruction	SOP, SOP32,.56
Reach Compliance Code	compliant
ECCN code	3A001.A.2.A
Maximum access time	250 ns
command user interface	NO
Data polling	NO
JESD-30 code	R-XDSO-G32
memory density	1048576 bit
Memory IC Type	EEPROM
memory width	8
Number of terminals	32
word count	131072 words
character code	128000
Maximum operating temperature	170 °C
Minimum operating temperature	-40 °C
organize	128KX8
Package body material	CERAMIC
encapsulated code	SOP
Encapsulate equivalent code	SOP32,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
page size	256 words
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.003 A
Maximum slew rate	0.05 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
switch bit	NO

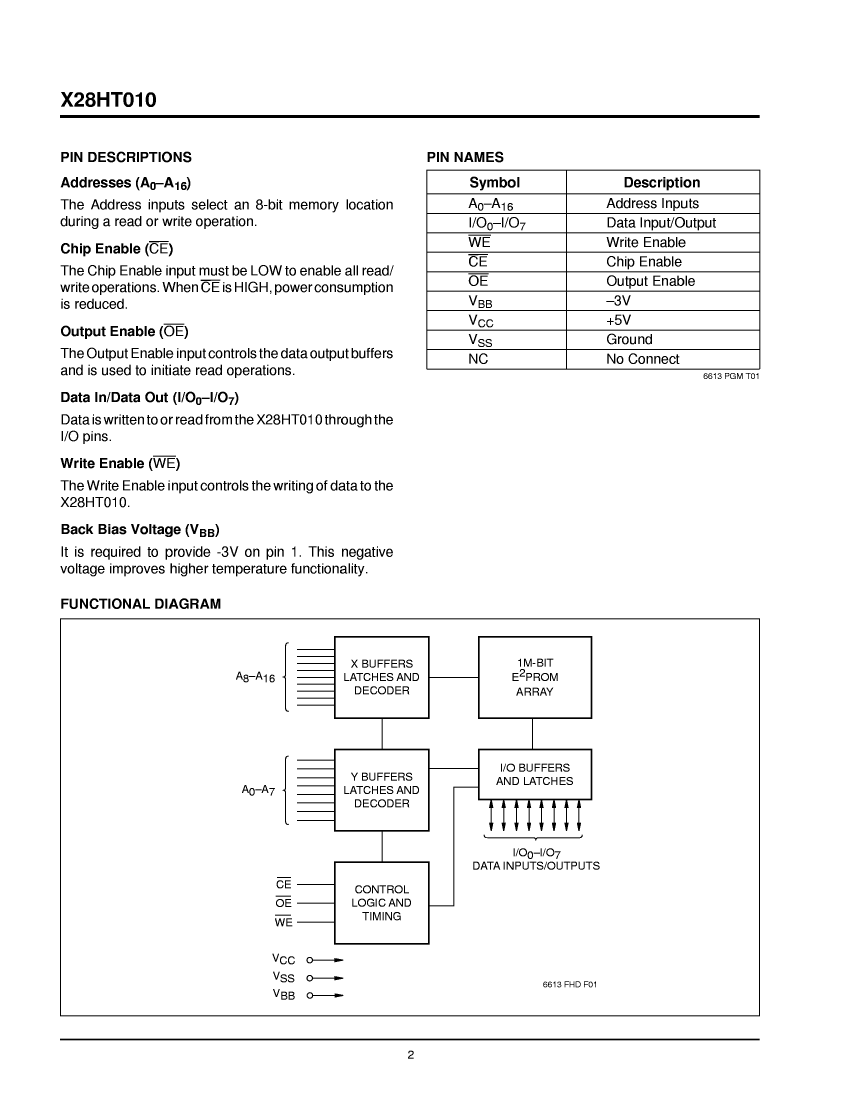

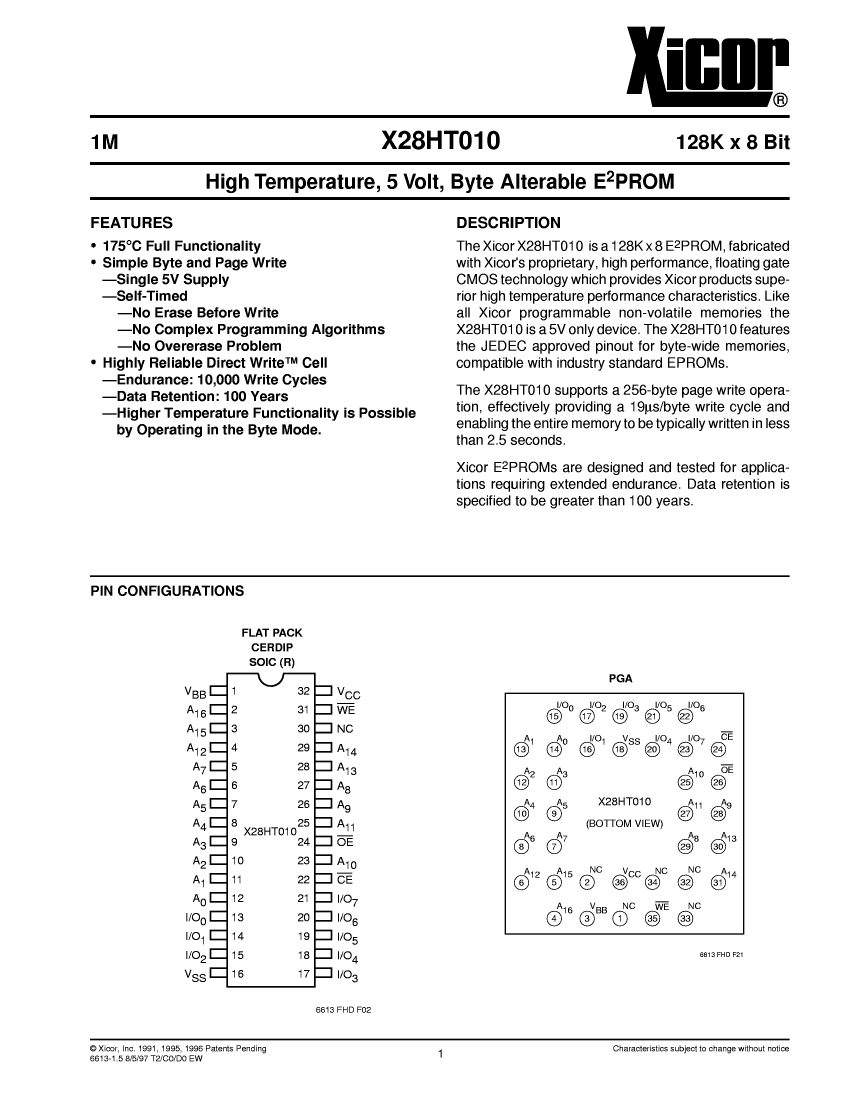

Preview

Download Datasheet

View All

SCD#QM5327

Source Control Drawing

Upscreening/Manufacturing Specification P/N FTX28HT010-20DM

Title Page ................................................................................

List of Effective Pages ..............................................................

Change List ..............................................................................

Definitions .................................................................................

Acronyms and Abbreviations .....................................................

3.1

3.2

3.3

4.1

5.1

6.1

8.1

8.2

8.3

8.4

Contents.

Introduction/Purpose .................................................................

Reference Documents ...............................................................

Source of Parts.........................................................................

Original Part Manufacturer .........................................................

Screening Company...................................................................

UK Supplier...............................................................................

Manufacturing ...........................................................................

Screening .................................................................................

Certificate of Conformity ............................................................

FT Certificate of Conformity .......................................................

Package Description..................................................................

Marking ....................................................................................

Traceability ...............................................................................

Component selection .................................................................

General ....................................................................................

Nuclear Hardness ......................................................................

Baseline Component .................................................................

Obsolescence notice .................................................................

Date-17.05.04

Date-

iss-1

iss-

Rev-

Changes-Orig

Changes-

Name-MLSalmon

Name-

Force Technologies Ltd

2003

FT28HT010R25 Related Products

	FT28HT010R25	FT28HT010R20
Description	EEPROM, 128KX8, 250ns, Parallel, CMOS, CDSO32,	EEPROM, 128KX8, 200ns, Parallel, CMOS, CDSO32,
Objectid	106301626	106301625
package instruction	SOP, SOP32,.56	SOP, SOP32,.56
Reach Compliance Code	compliant	compliant
ECCN code	3A001.A.2.A	3A001.A.2.A
Maximum access time	250 ns	200 ns
command user interface	NO	NO
Data polling	NO	NO
JESD-30 code	R-XDSO-G32	R-XDSO-G32
memory density	1048576 bit	1048576 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of terminals	32	32
word count	131072 words	131072 words
character code	128000	128000
Maximum operating temperature	170 °C	170 °C
Minimum operating temperature	-40 °C	-40 °C
organize	128KX8	128KX8
Package body material	CERAMIC	CERAMIC
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP32,.56	SOP32,.56
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
page size	256 words	256 words
Parallel/Serial	PARALLEL	PARALLEL
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.003 A	0.003 A
Maximum slew rate	0.05 mA	0.05 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
switch bit	NO	NO
