ELU
SERIES
85℃ 3000 hours assured load life.
Directly mountable on printed circuit board without holders.
Rohs compliant
Aluminum case designed explosion-proof vent.
Characteristics
Voltage Range
Capacitance Range
Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor (tanδ)
( at 20
℃
, 120Hz )
16 ~ 100V
160 ~ 450V
1000 ~ 47000uF
68 ~ 2200uF
-40 ~ +85
℃
-25 ~ +85
℃
±20%
at 120Hz , 20
℃
( 10% Tol. is available upon request)
I =3
CV
uA max C: Capacitance, V:W.V. (After 5 minutes)
Less than the value under table (%)
16
25
½
35
50
½
63
80
½
100 160
½
250
uF \\ W.V.
68
½
390
470
½3900
4700½8200
10000½22000
27000½47000
-
25
35
40
45
-
20
30
35
40
-
20
30
30
35
-
20
25
25
-
15
15
-
-
-
315
½
450
20
20
-
-
-
Stability at Low Temperature
Impedance ration at 120Hz between the -25
℃
or -40
℃
value and 20
℃
value shall not exceed :
16
25½100
160½250
315½450
Rated Voltage (V)
5
4
4
8
Z-25
℃
/Z 20
℃
20
20
-
-
Z-40
℃
/Z 20
℃
The following specifications shall satisfied when the capacitors are restored to 20
℃
after rated
Load Life
working voltage applied for 3,000 hours at max. operating temperature with the rated ripple current.
Capacitance change
≦±20%
of the initial value.
Dissipation factor
≦±200%
of the initial specified value
Leakage current
≦
The initial specified value.
After storage for 1000 hours at 85
℃
with no voltage applied, the capacitor shall meet the specified
Shelf Life
limit in load life.

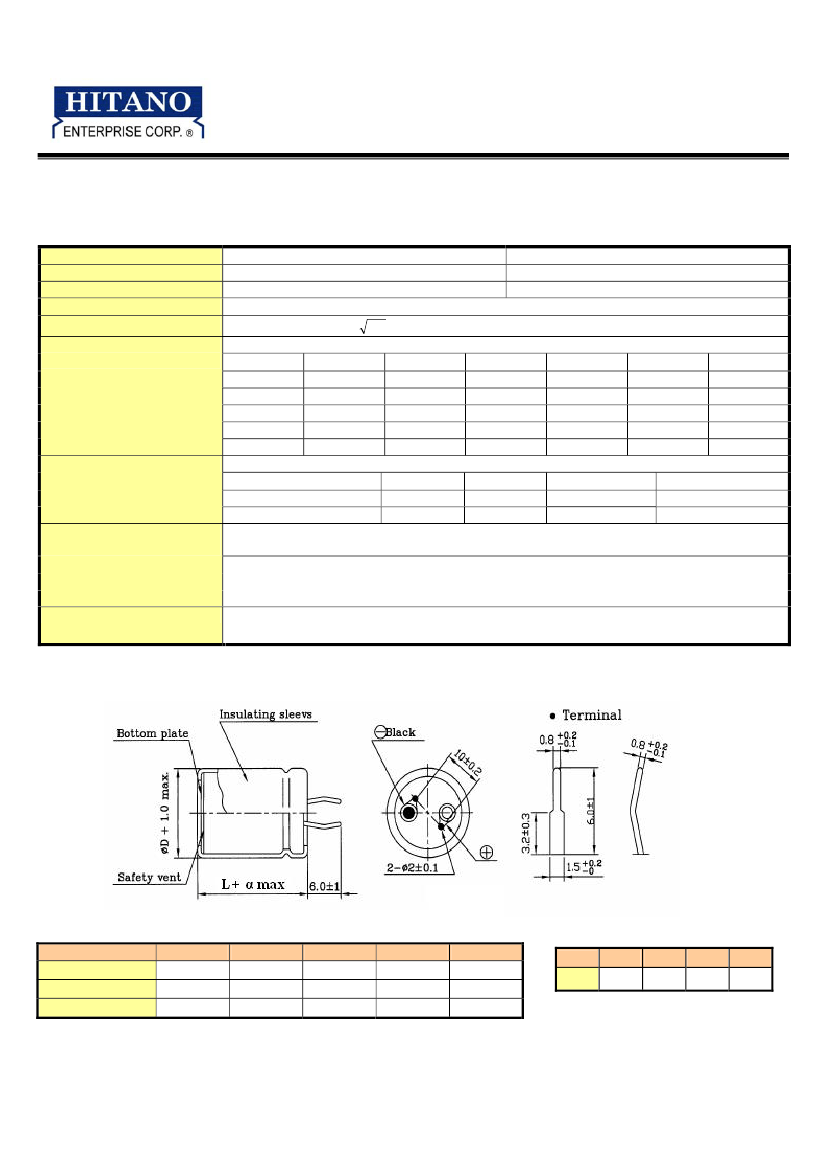

Diagram of dimensions:(unit:mm)
Multiplier for Ripple Current VS Frequency
Cap.(uF)\\ (Hz)
10＜Cap.
≦
100
100＜Cap.
≦
1000
1000＜Cap.
60
0.8
0.8
0.8
120
1
1
1
1K
1.36
1.25
1.17
10K
1.48
1.35
1.25
50K - 100K
1.53
1.38
1.28
Dia
(mm)
α
22
2
25
2
30
3
35
3
