LXZR1EM221 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LXZR1EM221

LXZR1EM221: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF; CategoryPassive components capacitor; File Size193KB，2 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric Compare View All

LXZR1EM221 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF

LXZR1EM221 Parametric

Parameter Name	Attribute value
Maker	Luminous Town Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM
length	12.5 mm
Manufacturer's serial number	LXZ(25V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
series	LXZ(25V)
Terminal pitch	5 mm

Preview

Download Datasheet

View All

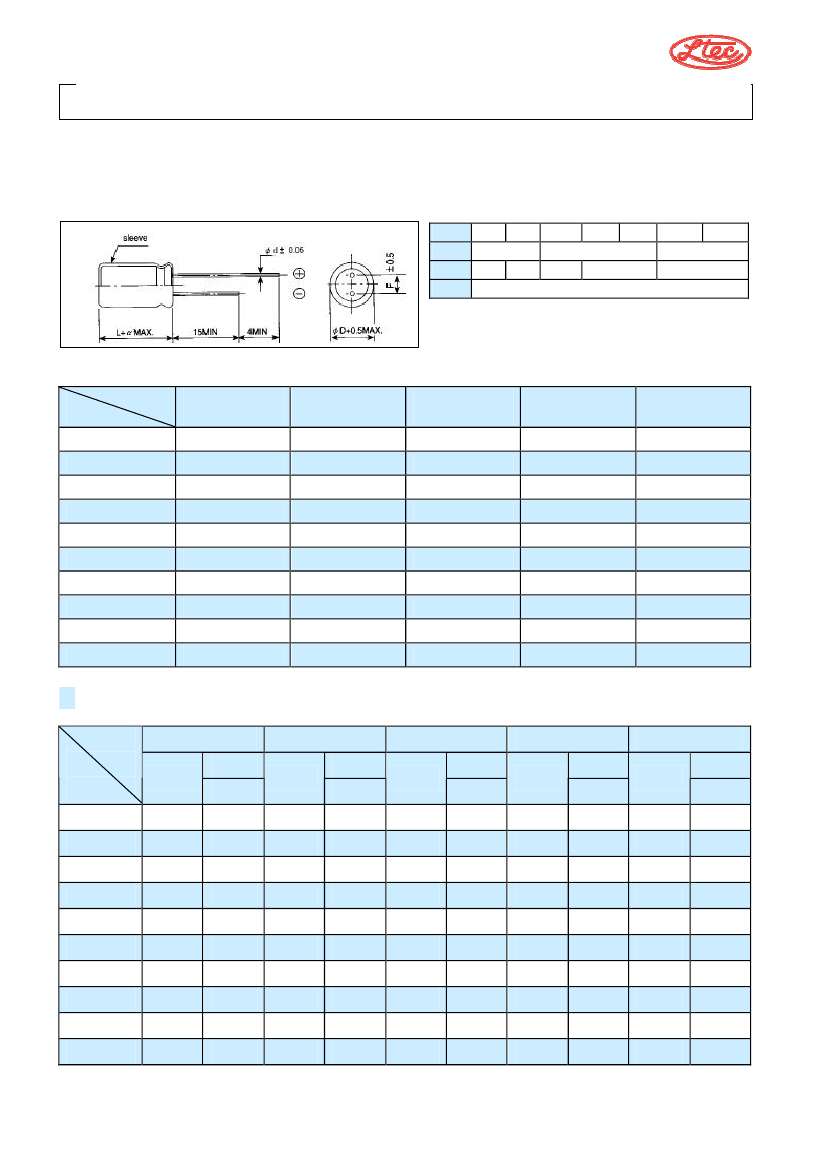

ALUMINUM ELECTROLYTIC CAPACITORS

LXZ

LXY

Goback

series

■FEATURES

S.SUPER ULTRA LOW IMPEDANCE.

LOW IMPEDANCE

LXZ

■SPECIFICATIONS

Item

Operating Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Dissipation Factor

(tanδ)

Low Temperature

Stability

Impedance

Ratio

Characteristics

-55℃~105℃

6.3~35 W.V.

±20%(20℃,120Hz)

I=0.01CV or 3

μA

whichever is greater.(Arter 2minutes)

I=Leakage Current(μA) C= Nominal Capacitance(μA)

V= Rated

When nominal capacitance is over 1000μF, tan ä shall be added 0.02 to the

listed value with increase of every 1000μF,

Rated voltage (V)

Tan

Rated Voltage(V)

Z(-40℃)/Z(+20℃)

0.22

6.3

0.19

0.16

0.14

0.12

MAX

(20℃

120Hz)

MAX

(120Hz)

Load Life

After life test at conditions stated in the table below, the capacitors shall meet the

following requirement

Capacitance

within

25% of the initial

Life

Case Dia

Time(hrs)

Change

value

Not more than 200% of the

φ6.3

Dissipation Factor

1000

specified value.

Not more than the specified

φ8,φ10

2000

Leakage Current

value.

After leaving capacitors under no load at 105℃ for 500 hours and applying voltage according to JIS C-5102

4-3, they meet the specified value for load life characteristics listed above.

Shelf Life

Standard

According to JIS C 5141

■MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency(Hz)

Cap(uF)

22~33

47~330

470~1000

1500

120

0.40

0.47

0.55

0.65

0.68

0.75

0.85

0.90

10k

0.90

0.95

0.98

1.00

≧100k

1.00

LXZ-0401

Temperature coefficient

Temperature

Coefficient

40℃

2.41

55℃

2.41

65℃

2.12

75℃

2.00

85℃

1.70

105℃

1.00

LXZR1EM221 Related Products

	LXZR1EM221	LXZR1AM471	LXZR1CM221	LXZR1AM681	LXZR1VM101	LXZR0JM152	LXZR1AM102
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 220uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 470uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 220uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 680uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 100uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 1500uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 10V, 20% +Tol, 20% -Tol, 1000uF
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	220 µF	470 µF	220 µF	680 µF	100 µF	1500 µF	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm	10 mm	8 mm	10 mm	8 mm	10 mm	10 mm
dielectric materials	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
length	12.5 mm	12.5 mm	11.5 mm	12.5 mm	11.5 mm	20 mm	20 mm
Manufacturer's serial number	LXZ(25V)	LXZ(10V)	LXZ(16V)	LXZ(10V)	LXZ(35V)	LXZ(6.3V)	LXZ(10V)
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	25 V	10 V	16 V	10 V	35 V	6.3 V	10 V
series	LXZ(25V)	LXZ(10V)	LXZ(16V)	LXZ(10V)	LXZ(35V)	LXZ(6.3V)	LXZ(10V)
Terminal pitch	5 mm	5 mm	3.5 mm	5 mm	3.5 mm	5 mm	5 mm
Maker	Luminous Town Electric Co., Ltd.	-	-	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.	Luminous Town Electric Co., Ltd.
